2018 - Genie GTH1056 Telehandler()
- Listing No
- 210983
- Year
- 2018
- Manufacturer
- Genie
- Model
- Condition
- Used
- Location
- USA
- Price
- $98,000
- Description
-
All listed inventory is in stock and ready for immediate purchase. Financing and delivery is available on all inventory purchases. Dimensions A Length To Fork Face 22.02ft in E Ground Clearance 1.51ft in B Width Over Tires 8.5ft in C Overall Height 8.5ft in D Wheelbase 10.67ft in Turning Radius Outside Tires 13.26ft in Lift F Max Lift Height 56.83ft in G Max Forward Reach 42ft in Lift Capacity At Max - Height 3999185.18lb Max Lift Capacity 10000.17lb Max Load At Max Height 3999.19lb Max Load At Max Reach 3000.5lb Lift Capacity At Max - Reach 3000491.19lb Specifications Engine Power Deutz TCD 3.6 L Emission Tier Level Tier 4i Battery 1000 CCA at 0˚F (-18˚C) Number Of Cylinders 4 Engine Make 2351 Engine Model 1104C-44TA Gross Power 121.1hp System Voltage 12V Aspiration Turbocharged Operational Turning Radius - Axle Outside 13.3ft in Operating Weight 30000.6lb Fuel Capacity 35.1gal Hydraulic System Fluid Capacity 55.1gal Drawbar Pull 28799lb Tire Size 14 x 24 in, 12 ply Transmission Transmission Type Powershift Number Of Forward Gears 3 Number Of Reverse Gears 3 Max Speed - Forward 16.8mph Hydraulic Auxiliary Hydraulic Flow 15gal/min Auxiliary Hydraulic Pressure 3200psi Pump Type Variable displacement Pump Flow Capacity 15.1gal/min Relief Valve Pressure 3200psi Boom Boom Up 13.5sec Boom Extend 16sec Boom Retract 15sec Boom Down 12sec
About this machine

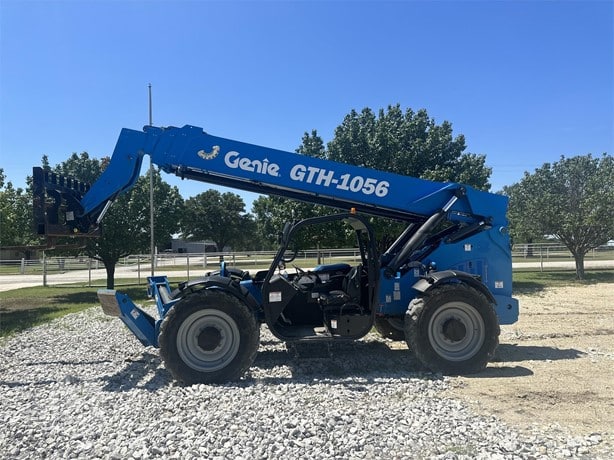

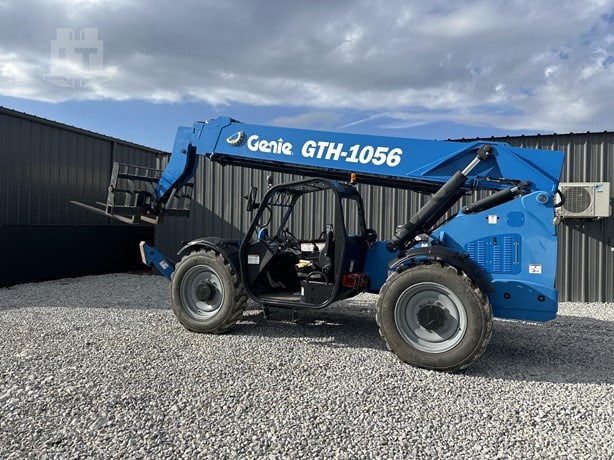

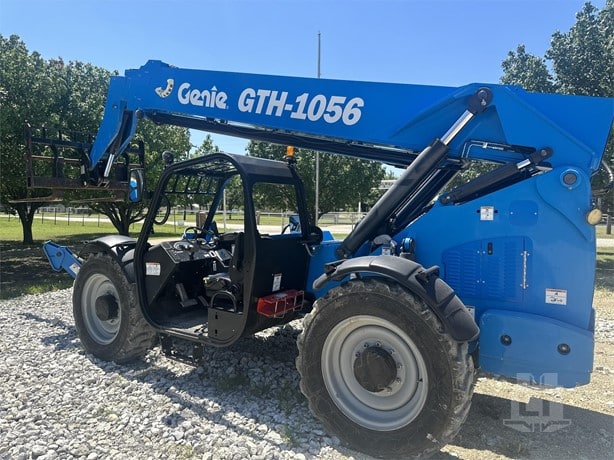

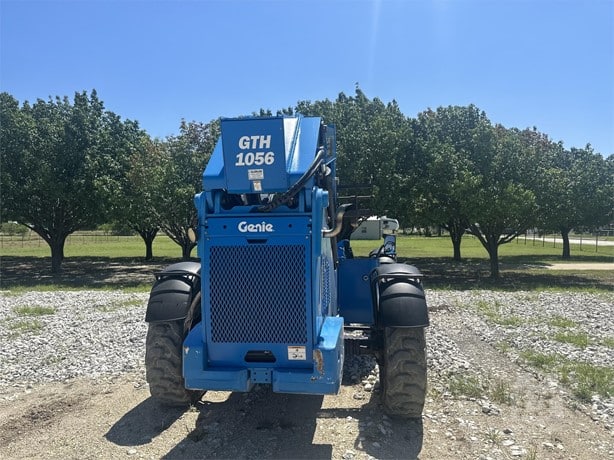

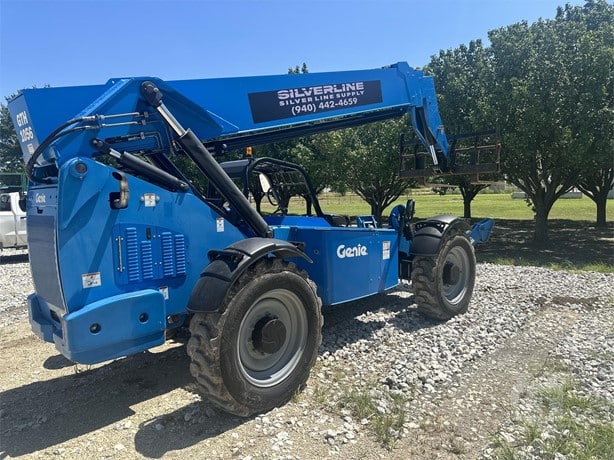

The Genie GTH1056 is a used telehandler — also commonly referred to as a telescopic handler or reach forklift — available from a seller in Texas, USA, priced at $98,000. Telehandlers are versatile lifting machines that combine the reach of a crane with the load-handling capability of a forklift, used extensively in construction, agriculture, and industrial applications to place materials at height and distance. Genie is a widely recognised manufacturer of aerial work platforms and lifting equipment, serving construction, industrial, and maintenance sectors around the world.
This 2018 machine is powered by a Deutz TCD 3.6 L four-cylinder turbocharged engine producing 121.1 horsepower, compliant with Tier 4i emissions standards. The engine operates on a 12-volt electrical system backed by a 1,000 CCA battery rated at 0°F (−18°C), and the fuel tank holds 35.1 gallons. The machine has an operating weight of approximately 30,000 pounds.
Drive is delivered through a powershift transmission with three forward and three reverse gears, allowing a maximum forward speed of 16.8 mph. Drawbar pull is rated at 28,799 pounds, and the machine rides on 14 x 24-inch, 12-ply tyres. The outside turning radius at the axle measures 13.3 feet.
The hydraulic system uses a variable-displacement pump with a flow capacity of 15.1 gallons per minute at a relief valve pressure of 3,200 psi; auxiliary hydraulic flow is 15 gallons per minute at the same maximum pressure of 3,200 psi. The hydraulic system fluid capacity is 55.1 gallons. Boom cycle times are 13.5 seconds to raise, 12 seconds to lower, 16 seconds to extend, and 15 seconds to retract. Maximum lift height is 56.83 feet, and maximum forward reach is 42 feet. Maximum lift capacity is 10,000 pounds, with a rated load of 3,999 pounds at maximum height and 3,000 pounds at maximum reach.
The machine's overall dimensions include a length to fork face of 22.02 feet, a width over tyres of 8.5 feet, an overall height of 8.5 feet, a wheelbase of 10.67 feet, and a ground clearance of 1.51 feet. The outside turning radius over the tyres is 13.26 feet. The seller states that the unit is in stock and available for immediate purchase, with financing and delivery options available.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
