2024 - Genie GTH5519 Telehandler()
- Listing No
- 211044
- Year
- 2024
- Manufacturer
- Genie
- Model
- Condition
- Used
- Location
- USA
- Price
- $74,000
- Description
-
All listed inventory is in stock and ready for immediate purchase. Financing and delivery is available on all inventory purchases. Dimensions A Length To Fork Face 13.13ft in E Ground Clearance 1.19ft in B Width Over Tires 5.91ft in C Overall Height 6.5ft in D Wheelbase 7.52ft in Turning Radius Outside Tires 11ft in Weight 10361.73lb Lift F Max Lift Height 18.84ft in G Max Forward Reach 11.26ft in Lift Capacity At Max - Height 4400.43lb Max Lift Capacity 5500.54lb Max Load At Max Height 4400.43lb Max Load At Max Reach 1699.77lb Reach At Maximum Height 22.05in Lift Capacity At Max - Reach 1900.39lb Specifications Engine Power Deutz TD 2.9 L04 Tier 4f diesel 74 hp (55.4 kW) Battery 720 CCA at 0°F (-18°C) Number Of Cylinders 4 Engine Make 2349 Engine Model F4M2011 Gross Power 63hp System Voltage 12V Alternator 95amps Operational Turning Radius - Axle Outside 11ft in Operating Weight 10000.2lb Fuel Capacity 15.8gal Hydraulic System Fluid Capacity 31.8gal Drawbar Pull 10250lb Tire Size 12 x 16.5 in, 10 ply Transmission Transmission Type Hydrostatic Max Speed - Forward 15mph Hydraulic Auxiliary Hydraulic Flow 17gal/min Auxiliary Hydraulic Pressure 3918psi Pump Flow Capacity 17gal/min Relief Valve Pressure 3918psi
About this machine

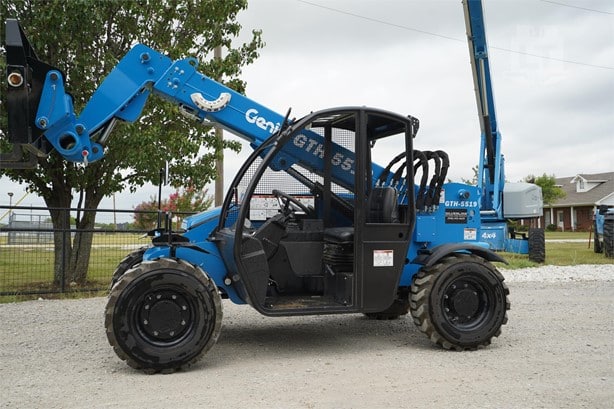

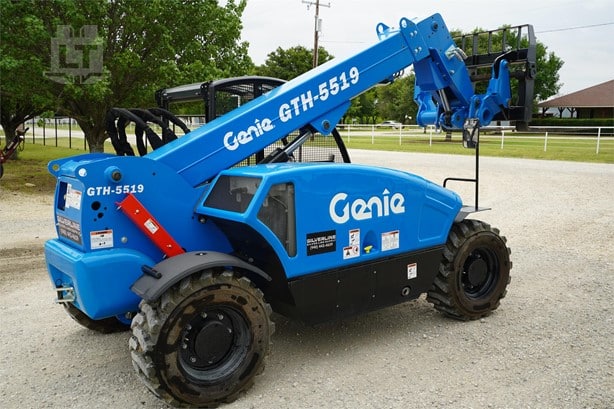

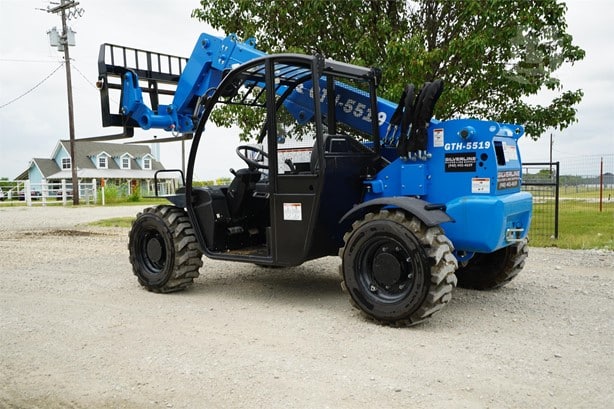

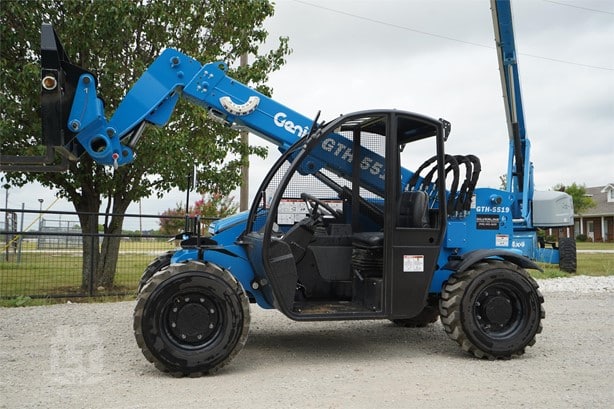

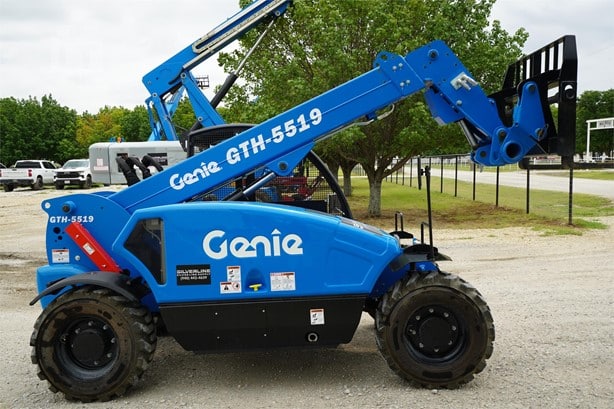

This Genie GTH5519 is a used telehandler — sometimes referred to as a telescopic handler or reach forklift — a type of lifting machine widely used in construction, agriculture, and industrial settings to place loads at height and forward reach simultaneously. Genie is a well-established manufacturer of aerial work platforms and material-handling equipment, serving construction and industrial markets around the world.
This 2024 machine is available in Texas, USA, priced at $74,000, with financing and delivery options offered on the purchase. It is described as in stock and ready for immediate purchase.
The telehandler is powered by a Deutz TD 2.9 L04 Tier 4 Final four-cylinder diesel engine, model F4M2011, producing 74 horsepower (55.4 kW), with a gross power rating of 63 hp. The 12-volt electrical system is supported by a 95-amp alternator and a battery rated at 720 CCA at 0°F (−18°C). Fuel capacity is 15.8 gallons, and the hydraulic system holds 31.8 gallons of fluid. The auxiliary hydraulic circuit delivers a flow of 17 gallons per minute at a relief valve pressure of 3,918 psi. The machine uses a hydrostatic transmission and is capable of a maximum forward speed of 15 mph. Drawbar pull is rated at 10,250 lb.
In terms of lifting performance, the machine has a maximum lift capacity of 5,500.54 lb, reducing to 4,400.43 lb at maximum lift height. At maximum forward reach, the rated load is 1,699.77 lb, with lift capacity at maximum reach listed at 1,900.39 lb. Maximum lift height is 18.84 feet, and maximum forward reach is 11.26 feet, with a reach at maximum height of 22.05 inches.
The machine's physical dimensions include a length to fork face of 13.13 feet, an overall width over tires of 5.91 feet, and an overall height of 6.5 feet. Wheelbase is 7.52 feet, with a ground clearance of 1.19 feet and an outside turning radius of 11 feet. The machine rides on 12 x 16.5-inch, 10-ply tires. Operating weight is listed at 10,000.2 lb, with a stated machine weight of 10,361.73 lb.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
