2024 - Genie GTH5519 Telehandler()
- Listing No
- 211078
- Year
- 2024
- Manufacturer
- Genie
- Model
- Condition
- Used
- Location
- USA
- Price
- $74,000
- Description
-
All listed inventory is in stock and ready for immediate purchase. Financing and delivery is available on all inventory purchases. Dimensions A Length To Fork Face 13.13ft in E Ground Clearance 1.19ft in B Width Over Tires 5.91ft in C Overall Height 6.5ft in D Wheelbase 7.52ft in Turning Radius Outside Tires 11ft in Weight 10361.73lb Lift F Max Lift Height 18.84ft in G Max Forward Reach 11.26ft in Lift Capacity At Max - Height 4400.43lb Max Lift Capacity 5500.54lb Max Load At Max Height 4400.43lb Max Load At Max Reach 1699.77lb Reach At Maximum Height 22.05in Lift Capacity At Max - Reach 1900.39lb Specifications Engine Power Deutz TD 2.9 L04 Tier 4f diesel 74 hp (55.4 kW) Battery 720 CCA at 0°F (-18°C) Number Of Cylinders 4 Engine Make 2349 Engine Model F4M2011 Gross Power 63hp System Voltage 12V Alternator 95amps Operational Turning Radius - Axle Outside 11ft in Operating Weight 10000.2lb Fuel Capacity 15.8gal Hydraulic System Fluid Capacity 31.8gal Drawbar Pull 10250lb Tire Size 12 x 16.5 in, 10 ply Transmission Transmission Type Hydrostatic Max Speed - Forward 15mph Hydraulic Auxiliary Hydraulic Flow 17gal/min Auxiliary Hydraulic Pressure 3918psi Pump Flow Capacity 17gal/min Relief Valve Pressure 3918psi
About this machine

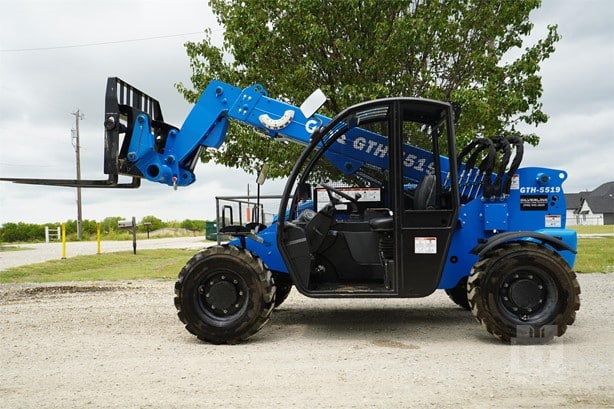

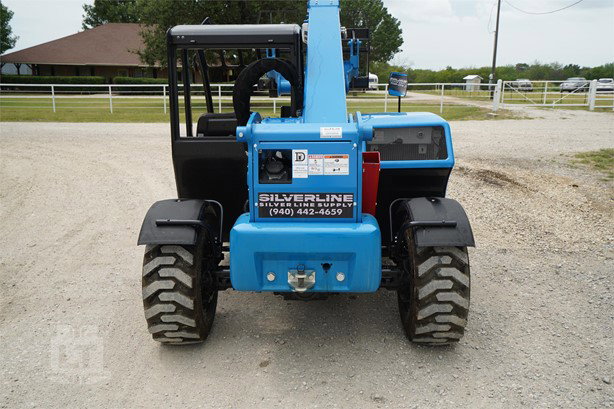

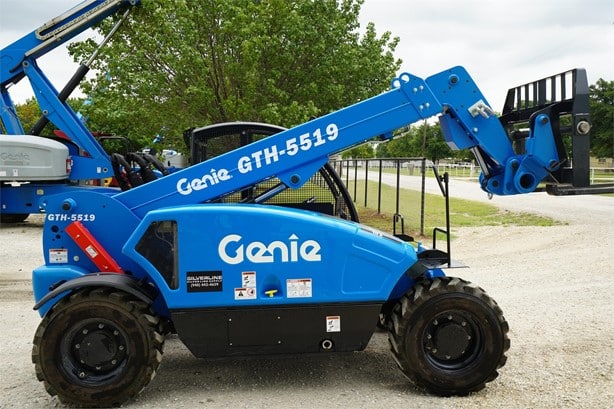

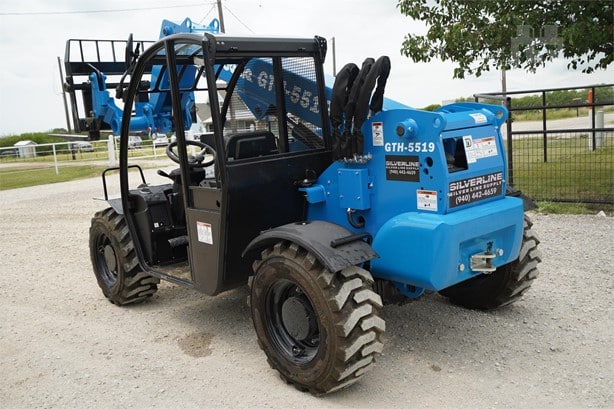

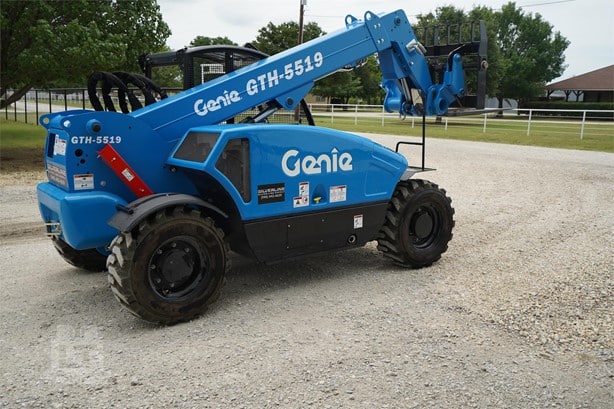

This Genie GTH5519 is a used telehandler — sometimes called a reach forklift or telescopic handler — a machine designed to lift, place, and transport heavy loads across construction sites, agricultural operations, and industrial yards. Genie is a well-established manufacturer of aerial work platforms and material-handling equipment, serving construction, rental, and industrial markets worldwide. This example was manufactured in 2024, is currently in used condition, and is located in Texas, USA, with financing and delivery available.
The machine is powered by a Deutz TD 2.9 L04 Tier 4 Final four-cylinder diesel engine producing 74 horsepower (55.4 kW), with a gross power rating of 63 hp. The engine drives a hydrostatic transmission, allowing smooth, stepless speed control up to a maximum forward speed of 15 mph. A 12-volt electrical system is supported by a 95-amp alternator and a battery rated at 720 CCA at 0°F (−18°C). The fuel tank holds 15.8 gallons, and the hydraulic system carries 31.8 gallons of fluid.
Lifting performance is substantial. Maximum lift capacity reaches 5,500.54 lb, while the rated lift capacity at maximum height is 4,400.43 lb. At maximum forward reach, the rated load is 1,699.77 lb, and the lift capacity at maximum reach is listed at 1,900.39 lb. The boom extends to a maximum lift height of 18.84 ft and a maximum forward reach of 11.26 ft, with a reach at maximum height of 22.05 inches. These figures make the machine well suited to placing materials at elevation or across obstacles where a conventional forklift cannot reach.
The auxiliary hydraulic circuit delivers a flow of 17 gallons per minute at a relief valve pressure of 3,918 psi, matching the pump flow capacity of 17 gal/min — figures that support a range of hydraulic attachments. Drawbar pull is rated at 10,250 lb. The machine rides on 12 × 16.5-inch, 10-ply tyres and has a turning radius of 11 ft measured outside the tyres. Ground clearance is 1.19 ft, with a wheelbase of 7.52 ft.
Overall dimensions are compact for the class: length to fork face is 13.13 ft, width over tyres is 5.91 ft, and overall height is 6.5 ft. Operating weight is listed at 10,000.2 lb, with a gross machine weight of 10,361.73 lb. This Genie GTH5519 telehandler is priced at $74,000 and is stated to be in stock and ready for immediate purchase.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
