2024 - Terex Colt 800 Crusher()
- Listing No
- 1163836
- Year
- 2024
- Manufacturer
- Terex
- Model
- Colt 800
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Terex EvoQuip COLT 800 Dieselengine CAT C2.2 (55 kW/ 74 PS / Stage V) Hopper Capacity 4 ,7 m³ 2- Deck Screenbox / Top- and Bottomdeck á 2.755mm x 1.220 mm Topdeck 50 mm Punch Plate Bottom Deck 22 mm Squaremesh Oversize Conveyor 1.000 mm (chevron belt / discharge high max. 3.030 mm) Mid Grade Conveyor 650 mm (chevron belt / discharge high max. 3.630 mm) Fine Conveyor 650 mm (plain belt / discharge high max. 3.820 mm) Radio Remote Controle Weight approx. 17,5 t
About this machine

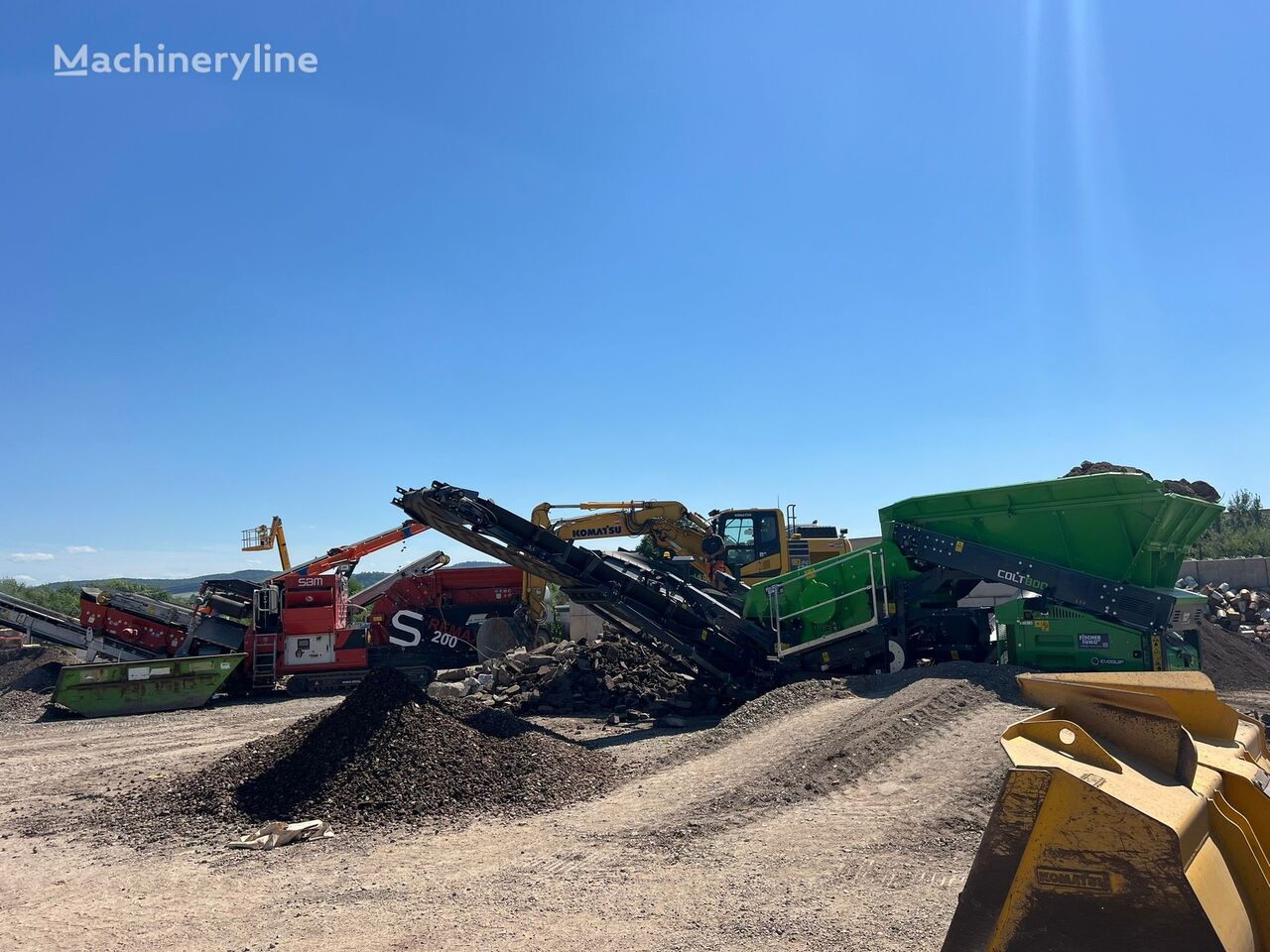

The Terex Colt 800 is a mobile jaw crusher designed for primary and secondary aggregate processing, mineral sorting, and recycling operations. It is built and supported by Terex, a global manufacturer of specialised crushing, screening, and material-handling equipment serving the construction, quarrying, mining, and waste-recycling industries.

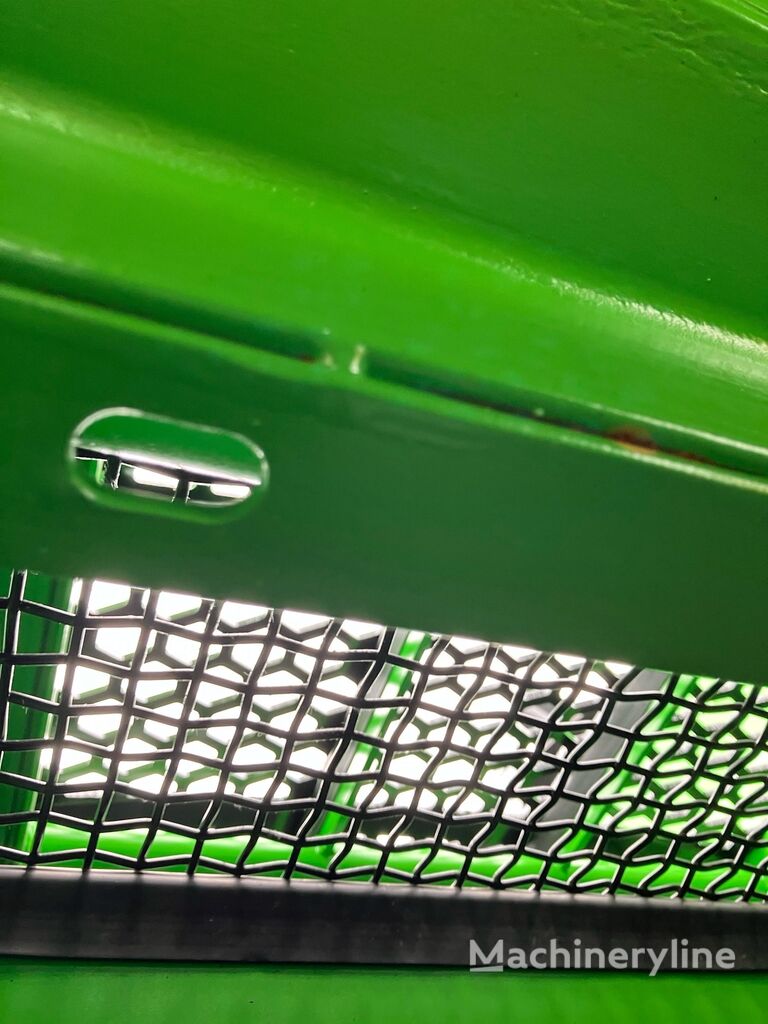

This 2024 unit is powered by a CAT C2.2 diesel engine producing 55 kW (74 PS) and meeting Stage V emissions standards. The machine features a 4.7 m³ hopper capacity and is equipped with a dual-deck screenbox, with both decks measuring 2,755 mm × 1,220 mm. The top deck is fitted with 50 mm punch plate, while the bottom deck uses 22 mm square mesh, allowing efficient particle separation into multiple fractions.

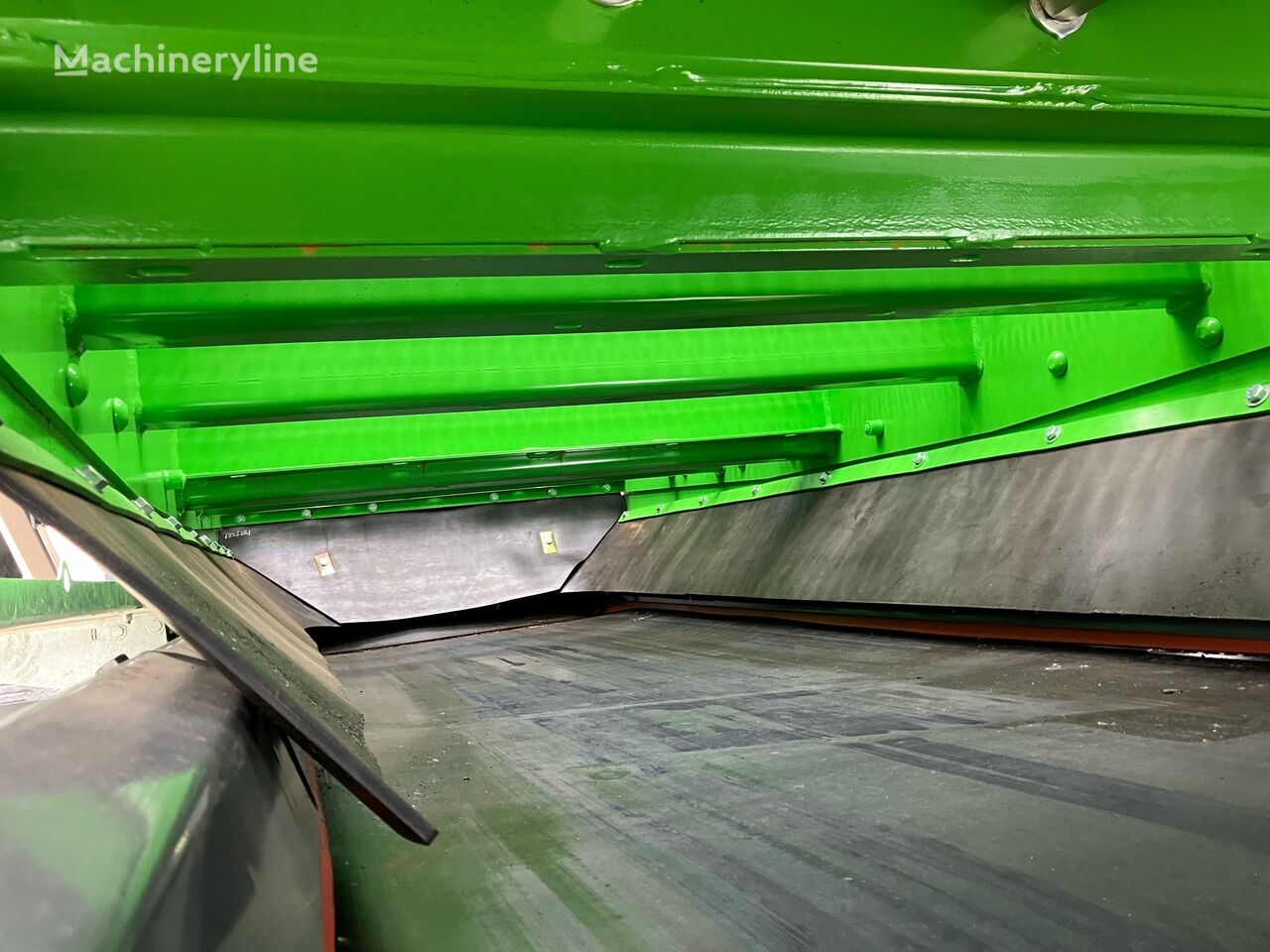

Material is discharged via three conveyor belts. The oversize conveyor is 1,000 mm wide with a chevron belt, discharging at a maximum height of 3,030 mm. The mid-grade conveyor measures 650 mm with a chevron belt and a maximum discharge height of 3,630 mm. The fine material conveyor is also 650 mm wide, fitted with a plain belt, and discharges at a maximum height of 3,820 mm. The machine is equipped with radio remote control for operator convenience and safety.
The machine weighs approximately 17.5 tonnes and is located in Germany. As a used 2024 model in working condition, it represents recent manufacturing with the current component specification.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
