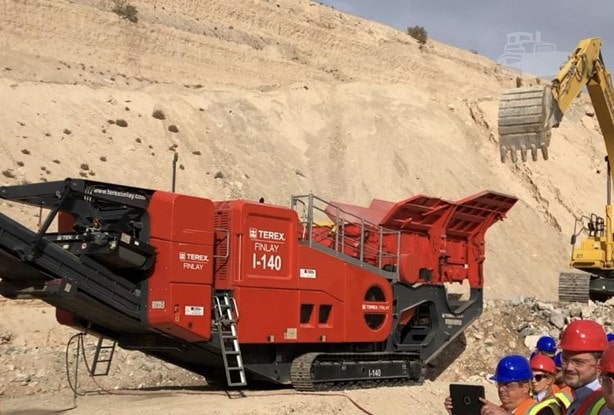

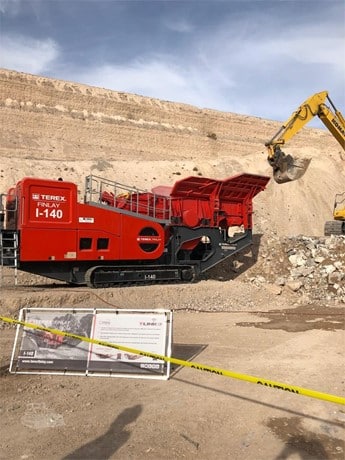

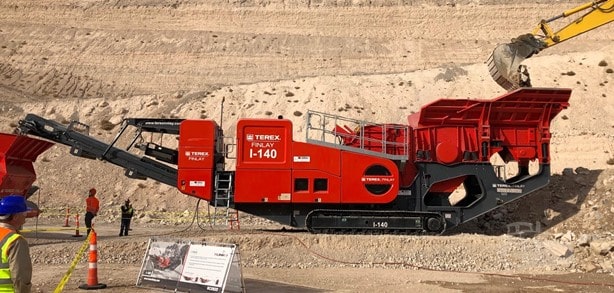

2019 - Terex Finlay I140 Quarry Crusher()
- Listing No
- 272503
- Year
- 2019
- Manufacturer
- Terex Finlay
- Model
- I140
- Condition
- Used
- Location
- USA
- Price
- $550,000
- Description
-
Fixed Hopper with Optional hydraulically folding and locking extensions VGF Hopper capacity - No Ext: 6m³ (7.85yd³) VGF Hopper capacity - With Ext: 9m³ (11.8yd³) Hopper Extensions: Optional with hydraulic folding & locking mechanism Rotor diameter: Ø1270mm (50”) Rotor width: 1220mm (48.8”) VGF Inlet opening: 1.16m x 865mm (45.6” x 34”) Prescreen Inlet opening: 1.17m x 835mm (46” x 33”) Direct drive via ‘V’ belts Belt Width: 1.3m (52”) Discharge Height: 3.5m (11’ 5”) Discharge Height: 3.76m (12’ 4”) Stockpile capacity: 69m³ (90yd³)
About this machine
The Terex Finlay I140 Quarry Crusher is a used crusher — sometimes referred to as an impact crusher or rock crusher in the wider quarrying and aggregate industry — designed to reduce large feed material into sized product for quarrying, mining, recycling, and construction applications. Terex Finlay is a well-established manufacturer of mobile crushing, screening, and conveying equipment, serving the quarrying, mining, demolition, and construction sectors globally with a broad range of tracked and wheeled processing machines.
This 2019 machine is located in California, USA, and is offered at $550,000. The seller's notes provide a comprehensive set of specifications covering the feed system, rotor assembly, and discharge arrangement.
On the feed side, the machine is fitted with a fixed hopper that can be equipped with optional hydraulically folding and locking extensions. Without extensions, the VGF hopper capacity is 6 m³ (7.85 yd³), expanding to 9 m³ (11.8 yd³) when the optional extensions are fitted. The VGF inlet opening measures 1.16 m × 865 mm (45.6" × 34"), while the prescreen inlet opening is slightly different at 1.17 m × 835 mm (46" × 33"). The hydraulic folding and locking mechanism on the hopper extensions allows for straightforward setup and teardown on site.
The rotor has a diameter of 1,270 mm (50") and a width of 1,220 mm (48.8"), giving the crushing chamber a substantial working envelope suited to high-throughput quarry applications. Drive is delivered directly via V-belts.
The main discharge conveyor has a belt width of 1.3 m (52") and is capable of building a stockpile capacity of 69 m³ (90 yd³). Two discharge height figures are noted: 3.5 m (11' 5") and 3.76 m (12' 4"), which likely correspond to different operating or transport configurations. This combination of a wide belt, generous stockpile capacity, and practical discharge height makes the machine well suited to sustained production in a quarry or aggregate processing environment.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
