2023 - Terex Finlay J-960 Crusher()
- Listing No
- 1162046
- Year
- 2023
- Manufacturer
- Terex Finlay
- Model
- J-960
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Щековая камнедробильная установка Terex-Finlay J-960 Jaw Crusher Terex-Finlay J-960 Год выпуска / Year of manufacture: 2023 Наработано моточасов / Operating hours: 493 h. Техническая информация / Technical information: Силовой агрегат / Driving unit: Двигатель / Enginge: Caterpiilar C4.4 (129 kW / 188 PS) Euro4/Tier4final Система охлаждения: водяное, с циркуляцией от насоса Cooling system: Water, circulation with pump Емкость топливного бака / Fuel tank: 400 литров / l. Емкость гидравлического бака / Hydraulic tank: 280 литров / l. Питающий бункер / Feed hopper: Объём загрузки / Charging volume: 3,6 m³ Длина загрузочного отверстия / Charging length: 3.400 mm Ширина загрузочного отверстия / Charging width: 1.800 mm Высота загрузки / Charging height: 3.200 mm Вибрационный питатель c предварительной сортировкой Vibrating feeder with pre-screen section: Камера дробления / Jaw Chamber: Приёмное отверстие / Inlet opening: 900 mm x 600 mm Линейные размеры материала, подлежащего дроблению max: 800 x 500 mm Linear dimensions of material to be crushed max: 800 x 500 mm Ширина разгрузочной щели / CSS Opening: 40 mm – 125 mm Главный конвейер / Main conveyor belt: Ширина ленты главного конвейера / Belt width: 800 mm Высота выгрузки / Discharge height: 2.900 mm Привод / Drive: гидравлический / hydraulic Для целей транспортировки головная часть конвейера может складываться Hydraulic folding for transport. Магнитный сепаратор / Permanent magnet separator: Suspendet self-clearing crossbelt overband magnet Ширина ленты / Belt width: 750 mm Расстояние между осями / Wheelbase: 1.590 mm Привод / Drive: гидравлический / hydraulic Боковой конвейер / By-pass conveyor: Ширина ленты / Belt width: 600 mm Высота выгрузки / Discharge height: 2.000 mm Привод / Drive: гидравлический / hydraulic Для целей транспортировки конвейер может складываться For transportation the head-piece can be folded. Гусеничный ходовой механизм / Crawler unit: Длина ходовой тележки / Undercarriage overall length 3.600 mm Ширина гусеничной ленты / Shoe width: 400 mm Натяжение гусеничной ленты осуществляется гидроцилиндром Cкорость передвижения / Max. Travel speed: 0,9 km/h. Электронная система управления CANBUS CANBUS electronic control system Широкий цветной дисплей / Wide color monitor Рабочие размеры / Working dimensions: Длина / Length: 13.100 mm *** Ширина / Width: 3.870 mm *** Высота / Height: 3.200 mm Транспортировочные размеры / Transport dimensions: Транспортировочная длина / Transport length: 13.100 mm Транспортировочная ширина / Transport width: 2.400 mm Транспортировочная высота / Transport height: 3.200 mm Рабочий вес / Operating weight: 27.790 kg Terex Finlay J-960 - in Action! Video: show contacts Terex-Finlay J-960 in Action! Video: show contacts Сроки поставки / Delivery time: немедленно / prompt! Цена / Price: договорная / to be agreed – EURO EXW Germany Мы можем обеспечить надёжную транспортировку до необходимого конечного пункта назначения! Wir können für Sie einen sicheren Transport bis zu Bestimmungsort organisieren! We can arrange for you a safe transport to the place of destination! BUCHHAMMER Handel GmbH Alexander Buchhammer Willy-Brand-Allee 31A, 23554 Lübeck, Germany Mobil: show contacts (WhatsApp & Viber) & по-русски Mobil: show contacts – по-русски E-Mail: show contacts show contacts Show the whole comment
About this machine

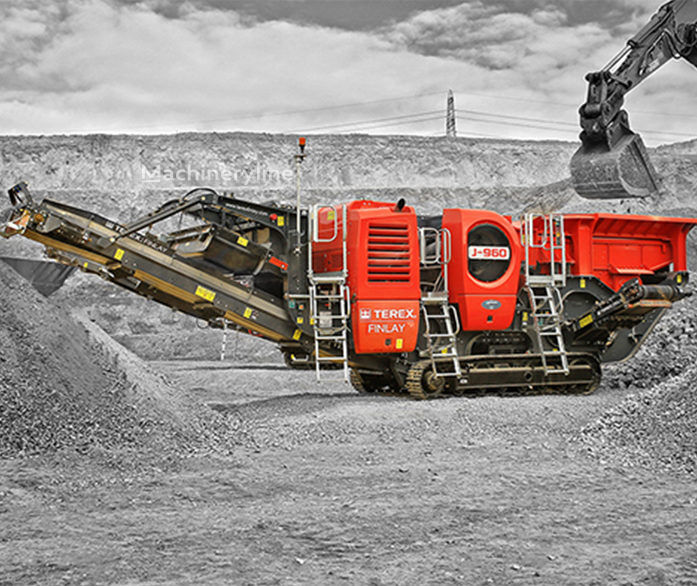

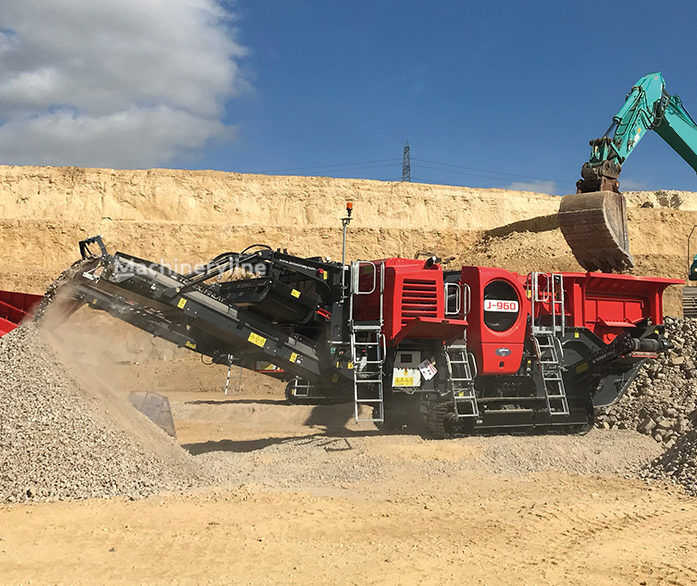

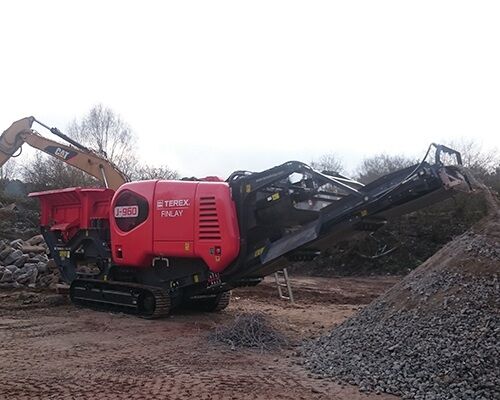

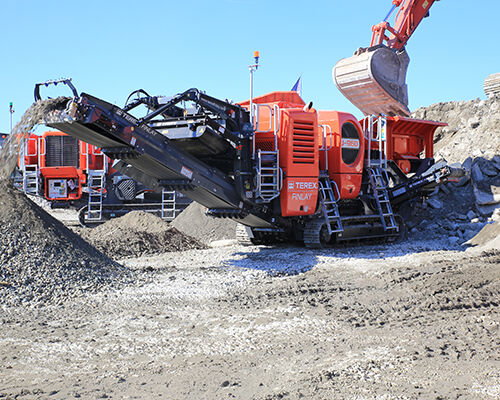

The Terex Finlay J-960 is a mobile jaw crusher designed for aggregate production and material processing in quarrying, mining, demolition, and recycling operations. Terex Finlay manufactures portable crushing and screening equipment for the construction materials and waste processing industries, and this model represents a mid-range tracked crushing unit suited to medium-volume production work.
This 2023 machine has accumulated 493 operating hours. It is powered by a Caterpillar C4.4 diesel engine producing 129 kilowatts (188 PS) and complying with Euro 4 and Tier 4 Final emissions standards. The engine is cooled by a water circulation system fed by pump. The fuel tank holds 400 litres and the hydraulic tank 280 litres.
The feed hopper has a charging capacity of 3.6 cubic metres with an opening measuring 3,400 millimetres long and 1,800 millimetres wide, positioned at a height of 3,200 millimetres. Material is fed to the jaw chamber via a vibrating feeder with integrated pre-screening capability. The jaw chamber inlet opening measures 900 by 600 millimetres and can accept material up to 800 by 500 millimetres in linear dimension. The crusher discharge gap is adjustable from 40 to 125 millimetres.
Material discharge is handled by a main conveyor belt 800 millimetres wide, discharging at a height of 2,900 millimetres, driven hydraulically and fitted with a folding head section for transport. A permanent magnet separator with self-clearing crossbelt overband configuration is mounted above the main discharge, with a belt width of 750 millimetres and wheelbase of 1,590 millimetres, also hydraulically driven. A by-pass conveyor belt, 600 millimetres wide and discharging at 2,000 millimetres height, provides secondary discharge and is likewise hydraulically driven with a folding head.
The machine is mounted on a tracked undercarriage with an overall length of 3,600 millimetres and shoe width of 400 millimetres. Track tension is maintained hydraulically. Maximum travel speed is 0.9 kilometres per hour. The unit is equipped with a CANBUS electronic control system and a wide colour monitor display.
Working dimensions are 13,100 millimetres length, 3,870 millimetres width, and 3,200 millimetres height. For transport, the width reduces to 2,400 millimetres while length and height remain the same. Operating weight is 27,790 kilograms. The machine is located in Germany and is available for prompt delivery.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
