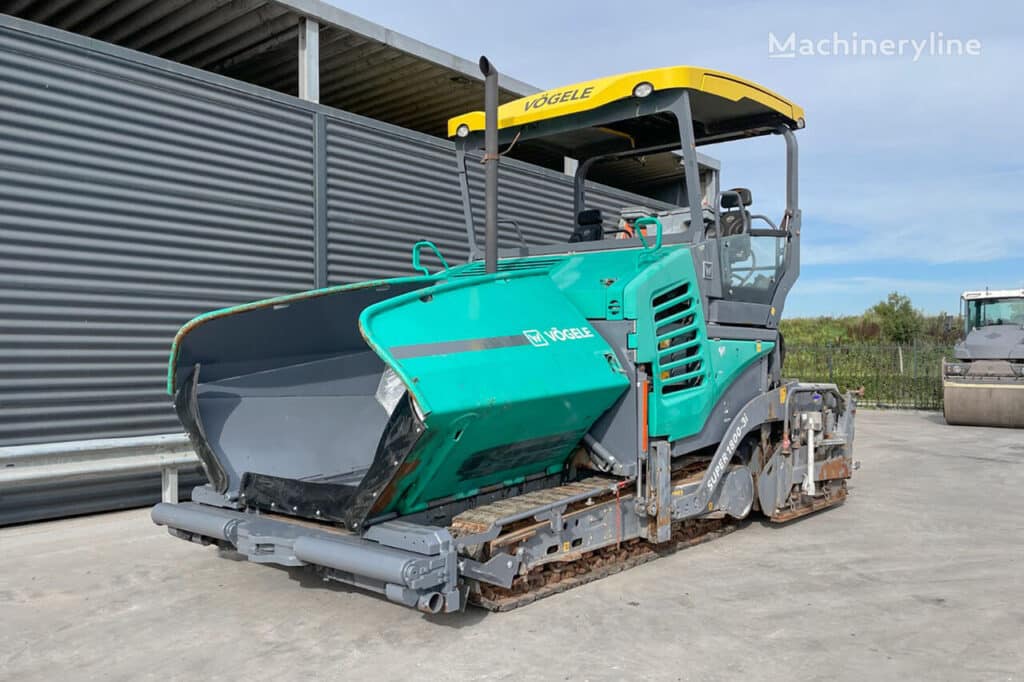

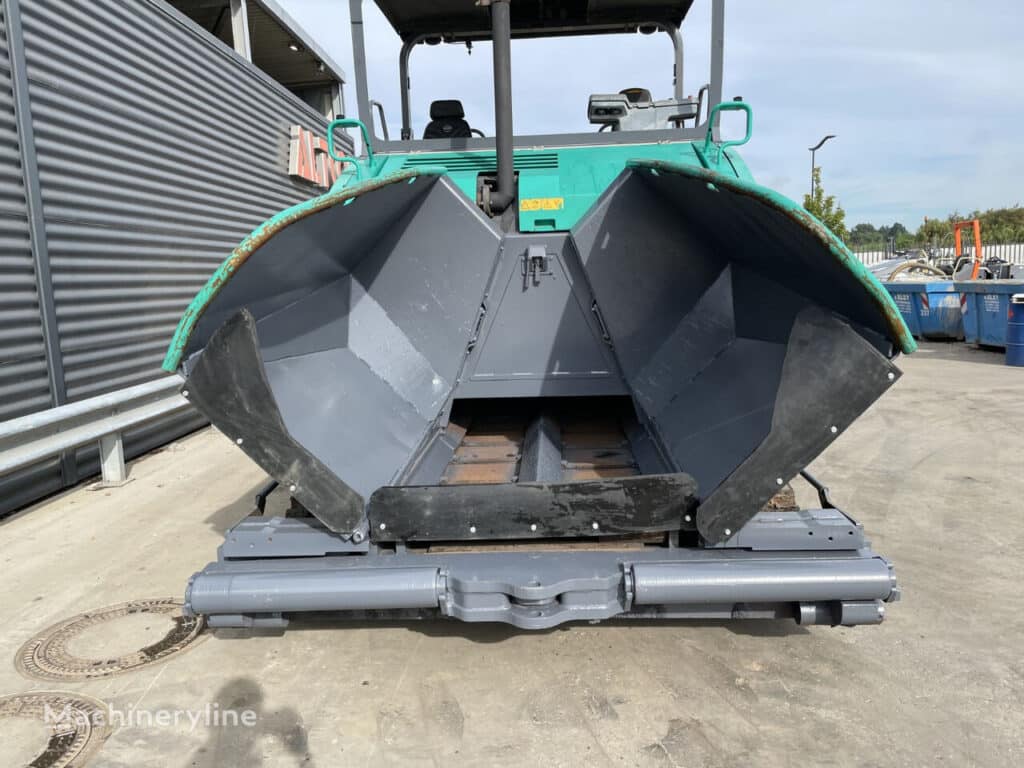

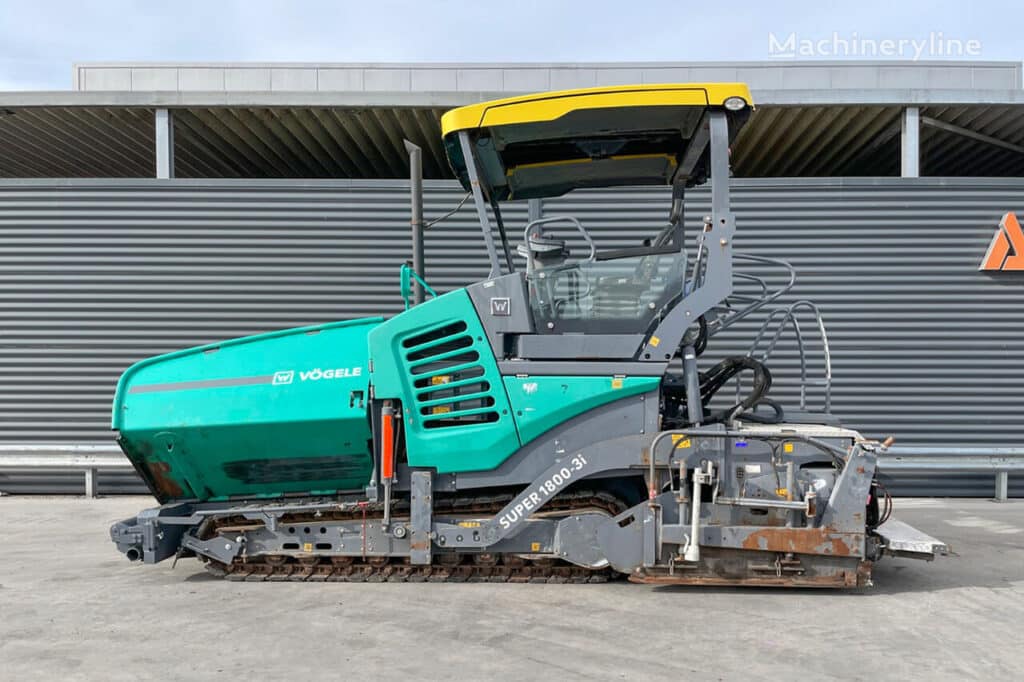

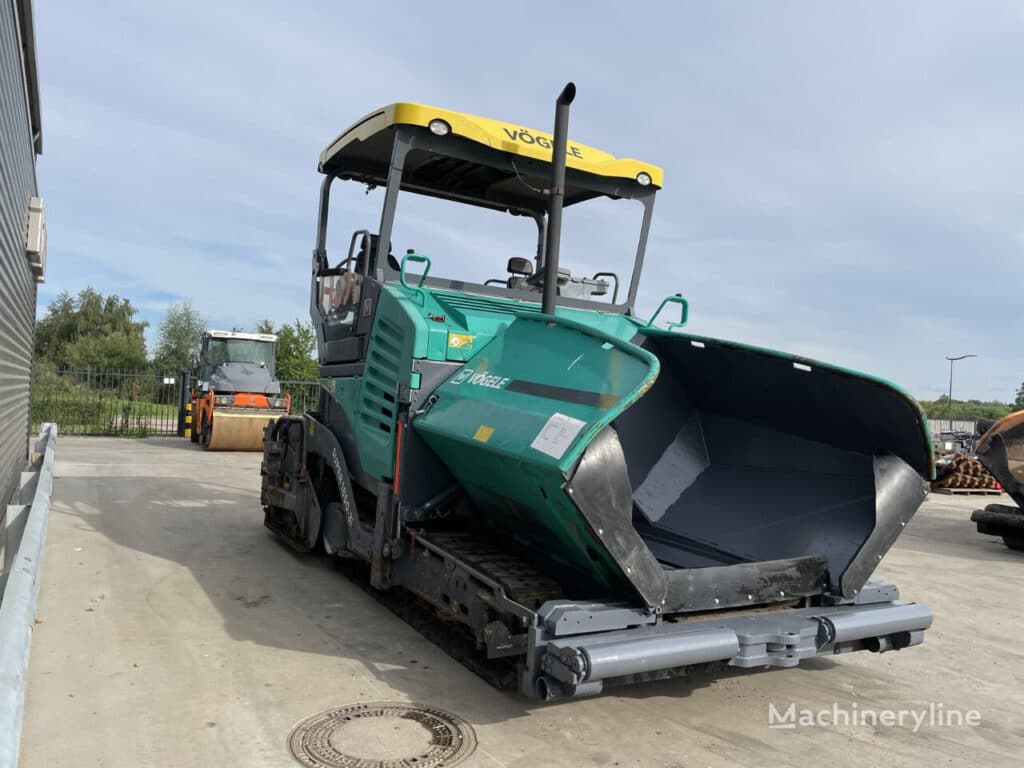

2017 - Vögele 1800-3I Asphalt Paver
()- Listing No
- 677718
- Year
- 2017
- Manufacturer
- Vögele
- Model
- Super 1800-3I
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Screed AB500-3 TV electrical heated (working width from 2,5 till 5,0 meter+additional extensions parts on request), high leveling system: VOGELE Niveltronic Plus (2x leveling sensors, 1x slope sensor, 2x ultrasonic auger sensors, set of wires), 6-cyl diesel engine type CUMMINS QSB 6.7 C-164 (output 125 kW) emission norm EU stage 3b, /US Tier 4i, Auto Set plus, Pave Dock assist, laydown rate up to 700 t/hours, max. layer thickness 30 cm, hopper capacity 13 tonnes, pave speed up to 24 m/min, hydraulic lifting system side plates, general condition: good working. = More information = Year of manufacture: 2017 GVW: 19.800 kg Screed AB500-3 TV electrical heated (working width from 2,5 till 5,0 meter+additional extensions parts on request), high leveling system: VOGELE Niveltronic Plus (2x leveling sensors, 1x slope sensor, 2x ultrasonic auger sensors, set of wires), 6-cyl diesel engine type CUMMINS QSB 6.7 C-164 (output 125 kW) emission norm EU stage 3b, /US Tier 4i, Auto Set plus, Pave Dock assist, laydown rate up to 700 t/hours, max. layer thickness 30 cm, hopper capacity 13 tonnes, pave speed up to 24 m/min, hydraulic lifting system side plates, general condition: good working. = Weitere Informationen = Baujahr: 2017 zGG: 19.800 kg Produktionsår: 2017 Totalvægt: 19.800 kg Año de fabricación: 2017 PBV: 19.800 kg Année de construction: 2017 PBV: 19.800 kg Screed AB500-3 TV electrical heated (working width from 2,5 till 5,0 meter+additional extensions parts on request), high leveling system: VOGELE Niveltronic Plus (2x leveling sensors, 1x slope sensor, 2x ultrasonic auger sensors, set of wires), 6-cyl diesel engine type CUMMINS QSB 6.7 C-164 (output 125 kW) emission norm EU stage 3b, /US Tier 4i, Auto Set plus, Pave Dock assist, laydown rate up to 700 t/hours, max. layer thickness 30 cm, hopper capacity 13 tonnes, pave speed up to 24 m/min, hydraulic lifting system side plates, general condition: good working. = Meer informatie = Bouwjaar: 2017 GVW: 19.800 kg Rok produkcji: 2017 Dopuszczalna masa całkowita (dmc.): 19.800 kg Ano de fabrico: 2017 GVW: 19.800 kg Год выпуска: 2017 Полная масса автомобиля: 19.800 kg Byggnadsår: 2017 GVW: 19.800 kg
About this machine
This is an asphalt paver—a road construction machine used to lay and finish asphalt surfaces on highways, streets, and other paved areas. Vögele manufactures heavy compaction and paving equipment widely used in road construction and civil engineering projects worldwide.
The machine is equipped with a Screed AB500-3 TV with electrical heating, capable of adjusting working width from 2.5 to 5.0 metres, with provision for additional extension parts. The paver is fitted with Vögele's Niveltronic Plus automatic leveling system, which comprises two leveling sensors, one slope sensor, and two ultrasonic auger sensors with a complete wire set, ensuring precise grade and slope control during operation.
Power is delivered by a six-cylinder Cummins QSB 6.7 C-164 diesel engine rated at 125 kW and compliant with EU Stage 3b and US Tier 4i emission standards. The machine features Auto Set Plus technology and Pave Dock assist functionality. Operating capacity includes a hopper capacity of 13 tonnes, a maximum laydown rate of 700 tonnes per hour, a paving speed of up to 24 metres per minute, and a maximum layer thickness of 30 centimetres. The paver is equipped with a hydraulic lifting system for side plates.
The machine was manufactured in 2017 and is in good working condition. Its gross vehicle weight is 19,800 kilograms. The unit is located in the Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
