2007 - Wagner SE-MAN Slsv Laboratory Equipment
()- Listing No
- 1222368
- Year
- 2007
- Manufacturer
- Wagner
- Model
- SE-MAN Slsv
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: SE-MAN/SLSV No: SE-2012 Material: PTFE (Teflon), Stainless steel 1.4301 (304) With hopper: check PTFE coated Hopper sizes: Dia:780x550mm Inlet: 690x940mm Outlet: Dia: 200mm With motor: 3kW, 230/400Volt, 1430rpm With vibro motor: 0,18kW Hopper with flexible wall: check Mounted on frame: check With switchgear: check Floorspace: 3x1,95m CE: check Total height: 2,4m Extra Specifications: In this dump cabinet, bags can be emptied, and then the empty bags can be thrown to the back of the cabinet, where they are removed by a screw."Endless disposable bag system" The cone under the dump cabinet is flexible. There is an air cylinder mounted here General Main Features Specified Features - Bag dump station Bag dump stations Information
About this machine

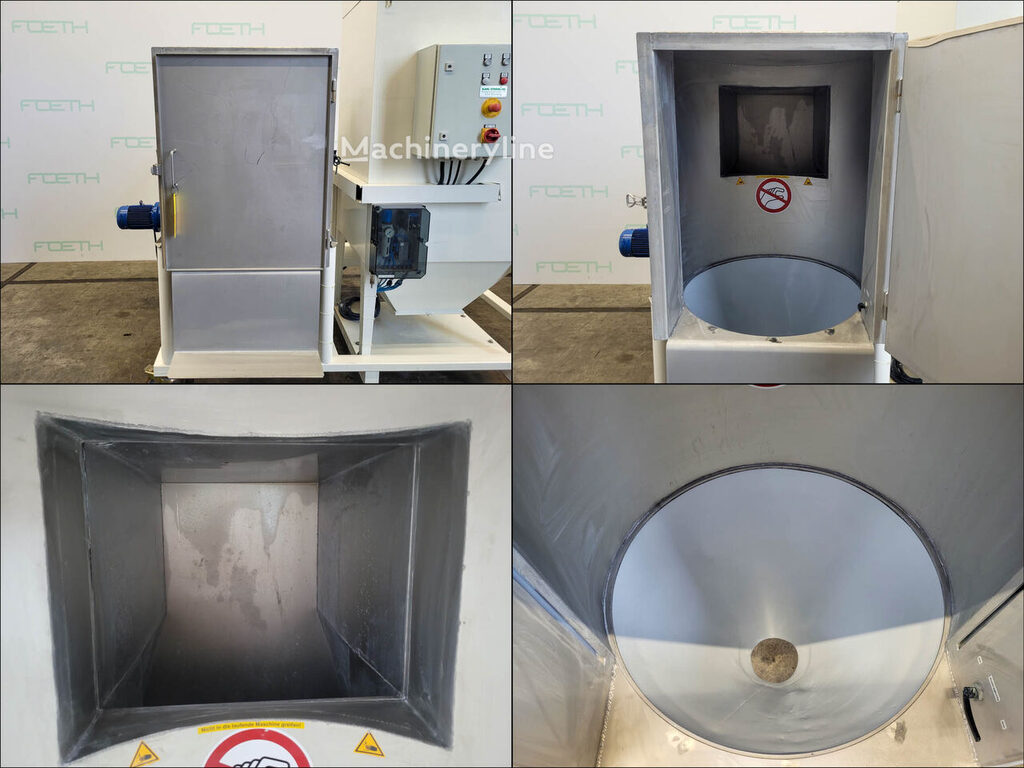

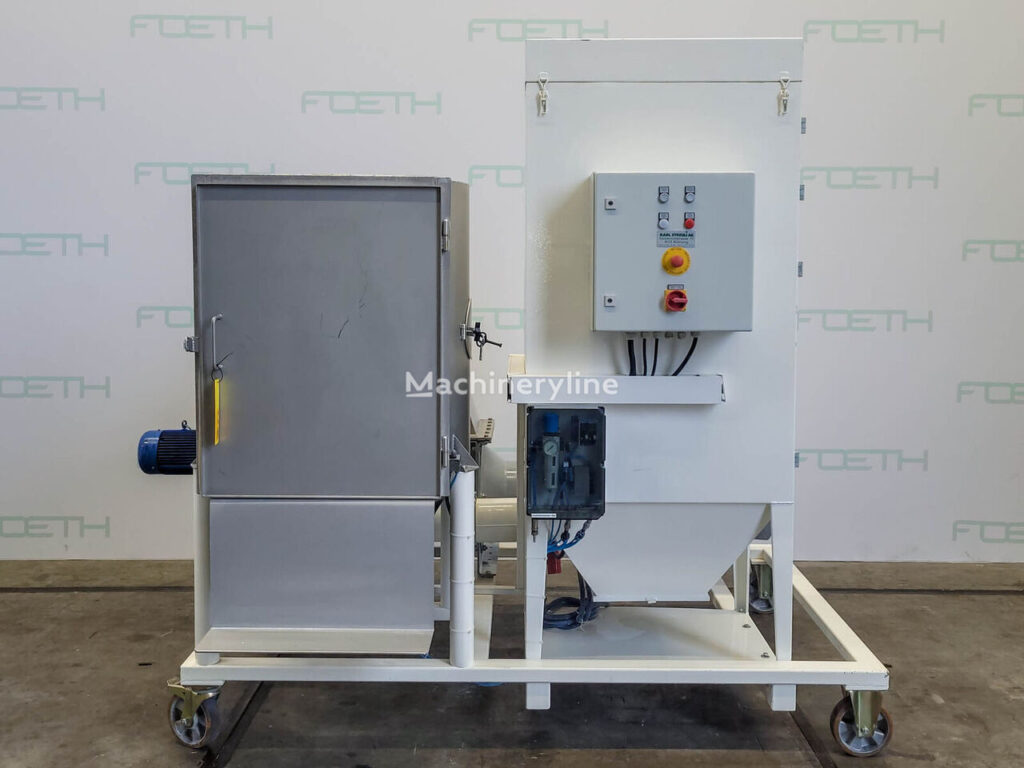

This Wagner SE-MAN Slsv is a laboratory bag dump station — sometimes referred to as a bag tip station — designed for the controlled emptying of bulk bags or sacks into a downstream process in a contained, hygienic environment. Wagner is a manufacturer associated with powder handling and process equipment, building systems for industries where dust control, hygiene, and material containment are critical.
The unit carries serial number SE-2012 and was manufactured in 2007. Construction materials are PTFE (Teflon) and stainless steel grade 1.4301 (AISI 304), making it well suited to food, pharmaceutical, or chemical applications where corrosion resistance and cleanability are important. The hopper is PTFE-coated and features a flexible wall, which assists in preventing material bridging and promoting consistent flow. A flexible cone is fitted beneath the dump cabinet and is actuated by an air cylinder, allowing controlled discharge and aiding material movement.
The hopper measures 780 mm in diameter by 550 mm in height. The inlet opening is 690 × 940 mm, and the outlet diameter is 200 mm. The unit is mounted on a frame and has an overall floor footprint of 3 × 1.95 metres, with a total height of 2.4 metres.
Drive is provided by a 3 kW main motor rated at 230/400 V and 1,430 rpm, supplemented by a 0.18 kW vibro motor to assist material flow. A switchgear cabinet is included. The machine is CE marked.
A notable feature of this station is its integrated endless disposable bag system. Bags are emptied into the hopper, and the spent empty bags are then passed through to the rear of the cabinet, where a screw conveyor removes them. This arrangement keeps the operator area clean and reduces handling of contaminated bag material. The unit is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
