ADC 16 TON X 20 95 Gantry Crane()
- Listing No
- 1029165
- Year
- Manufacturer
- ADC
- Model
- 16 TON X 20 95
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
1 cart with two hoists of 8 ton with digital scale + cable guide to connect to magnet Optional: lifting magnet 9 ton gt click here Kind of: overhead travelling crane Span: 20 950 mm Tackle speed: 0,7 > 4,25 m/min Rotationspeed: 10 > 40 m/min Displacementspeed: 5 > 20 m/min Numbre of riggers : double rigger
About this machine
This ADC 16 TON X 20 95 is a used gantry crane, a type of overhead lifting structure — sometimes referred to as a portal crane — designed to move heavy loads along a defined runway, typically in workshops, warehouses, fabrication yards, and industrial production facilities. ADC is a manufacturer of overhead handling equipment serving heavy industrial sectors.

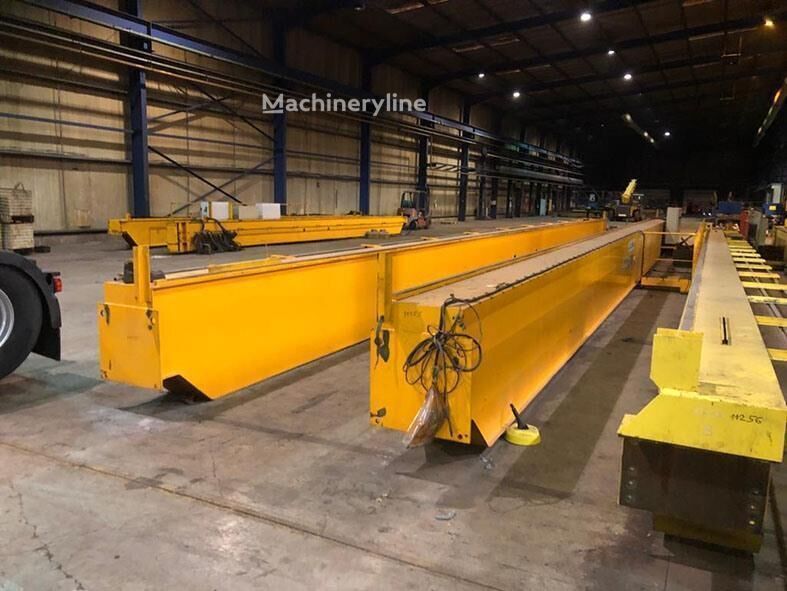

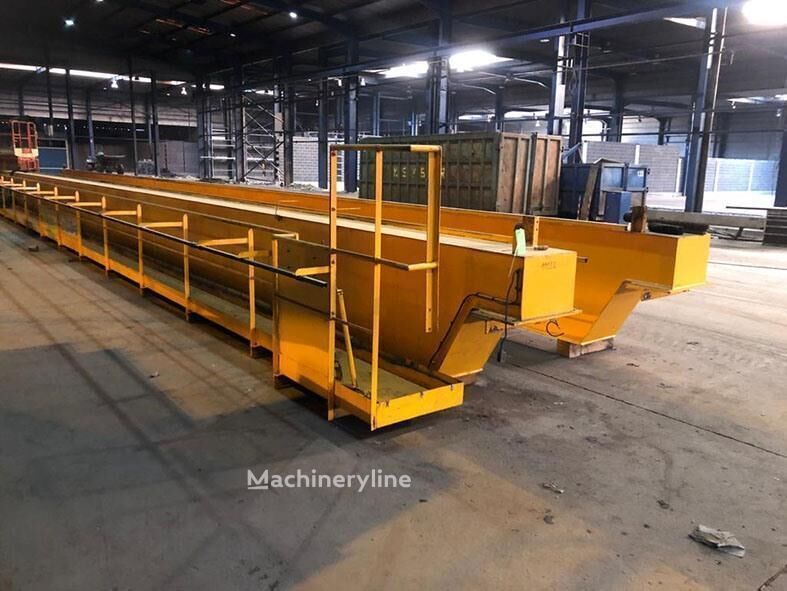

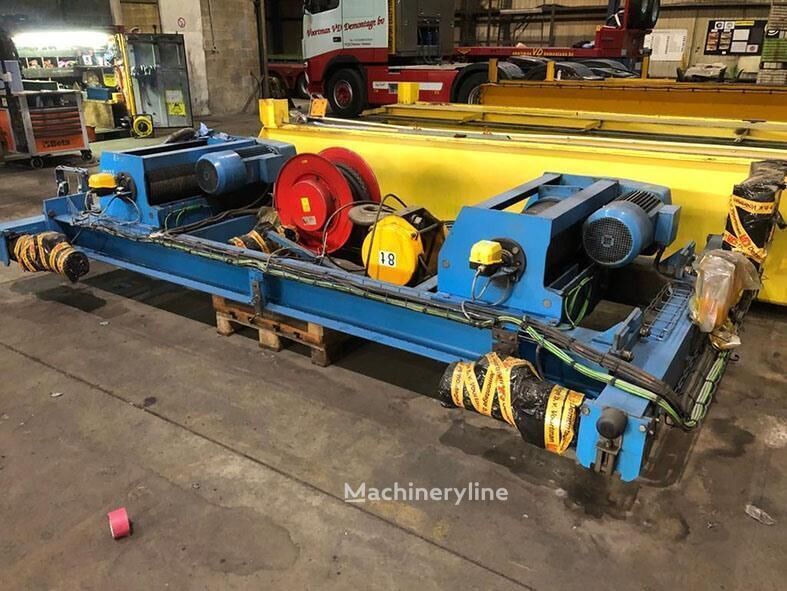

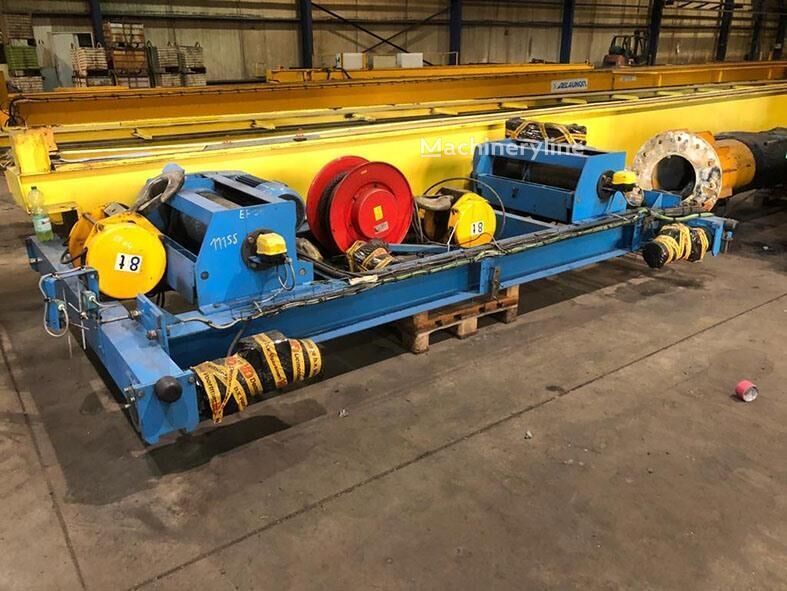

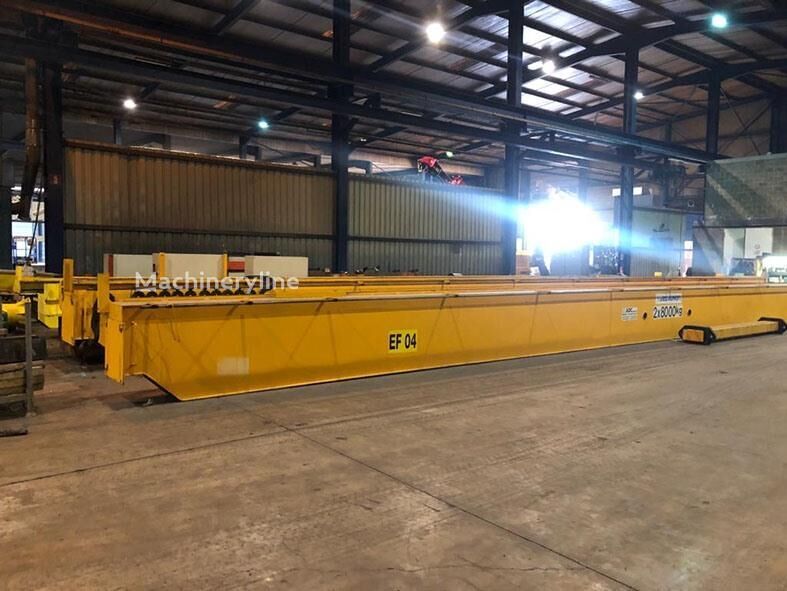

The crane is configured as a double-girder overhead travelling crane with a span of 20,950 mm. It runs on a double-rigger (twin-leg) gantry frame, providing the structural stability suited to heavy-duty lifting operations. A single crab unit is fitted, carrying two hoists each rated at 8 tonnes, combining for a total lifting capacity of 16 tonnes. The hoist assembly is equipped with a digital scale, allowing operators to weigh loads during the lift, and a cable guide to facilitate connection to a lifting magnet. A 9-tonne lifting magnet is available as an optional accessory.
The drive and speed characteristics have been specified in detail. The hoist tackle operates at variable speeds ranging from 0.7 to 4.25 metres per minute, giving precise control over lift and lower movements. The cross-travel (rotation) speed of the crab runs from 10 to 40 metres per minute, and the long-travel displacement speed of the gantry itself ranges from 5 to 20 metres per minute. These variable-speed ranges across all three axes indicate a frequency-controlled drive system capable of both precise positioning and productive travel across the full span.
The crane is offered in used condition and is located in Belgium.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
