2023 - Beinlich DÜSENWAGEN R 4 Irrigation Equipment()
- Listing No
- 1041939
- Year
- 2023
- Manufacturer
- Beinlich
- Model
- DÜSENWAGEN R 4
- Condition
- Used
- Location
- Germany
- Price
- $28,322
- Description
-
Zusatzfahrwerk ________ Düsenwagen R 46/46;;Arbeitsbreite 50 m;8 selbsttragende Rohrelemente,;verzinkt, schwenkbar, Düsenhöhe 1,50 m;Abhängevorrichtung für 3. und 4. Element;(aus Edelstahl 304) unter 2. Element,;3-Rad Fahrwerk schwere Ausführung, verzinkt;Spurweite verstellbar 1,50 m - 4,20 m mit Drehkranz,;PE-Rohranschluss mittig;Düsenset 14 x 360°, 2 x 180°, Kugelhahn Druckregulierung 1,4 bar mit Spinner rot/grau 33; R 5552 für 42 m³/h;Düsenauswahl gemäß Durchflussmenge Mittelteil 2,50 m;; 2. Düsensatz ;16 Düse für Rotator R 3000, 37; R5552, 52 m³/h, 2. Düsensatz;1 Transportauflagen für Düsenwagen; 4-Rad Stativ schwere Ausführung; 1 Rohranschluss seitlich für Fahrspurablage rechts statt mittig, Spurweite verstellbar 1,50 - 2,20m, mit Drehkranz-Einstellung 30° max.; Rotator Enddüse R55iVT; 1 2 Stück, 52 für bis zu 66m Arbeitsbreite; Schwenkvorrichtung; 1 zur Reduzierung der Transportbreite, 2. Element wird auf 1. Element geklappt, 3. und 4. Element wird unter 1. Element gehangen (2 Personen Bedienung); Radhalter höhenverstellbar ; 1 zum Ausgleich tiefer Fahrspuren
About this machine

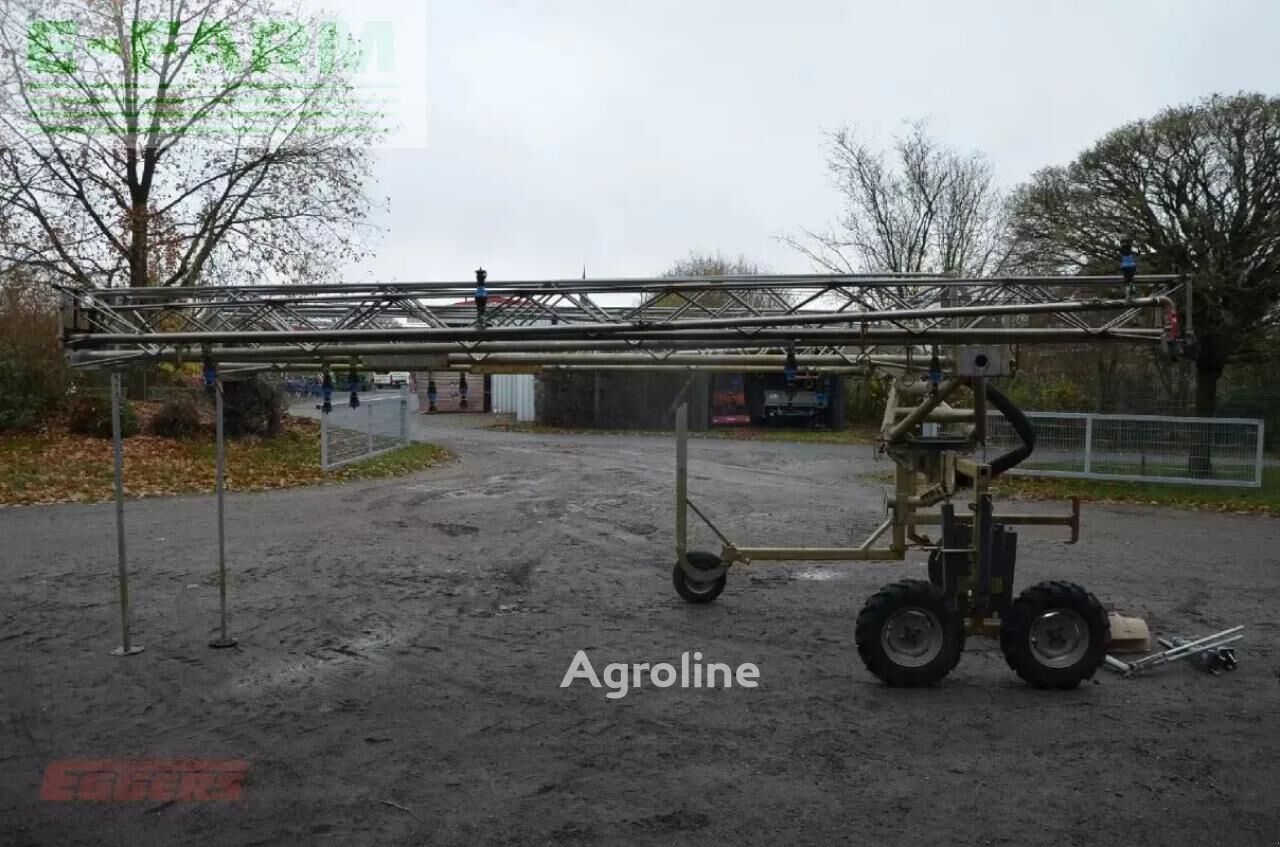

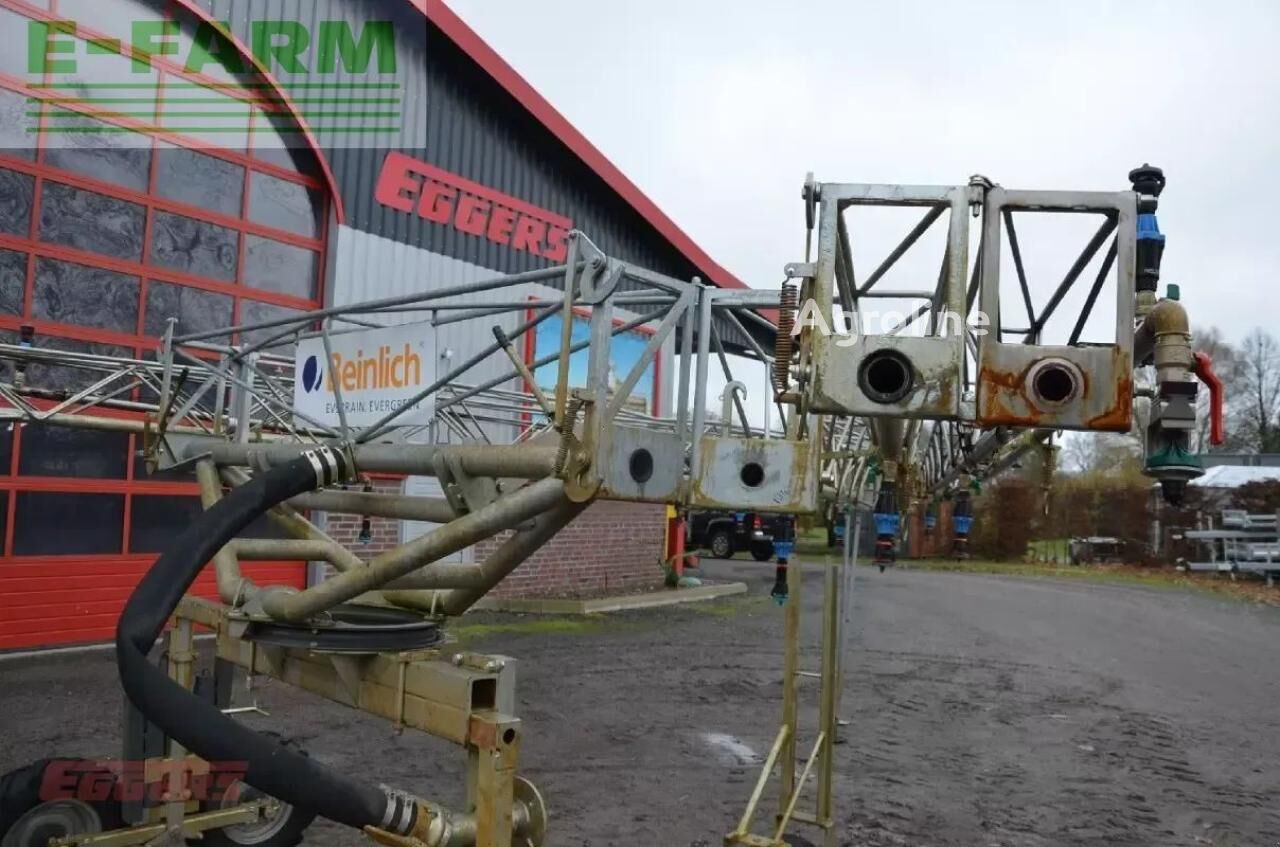

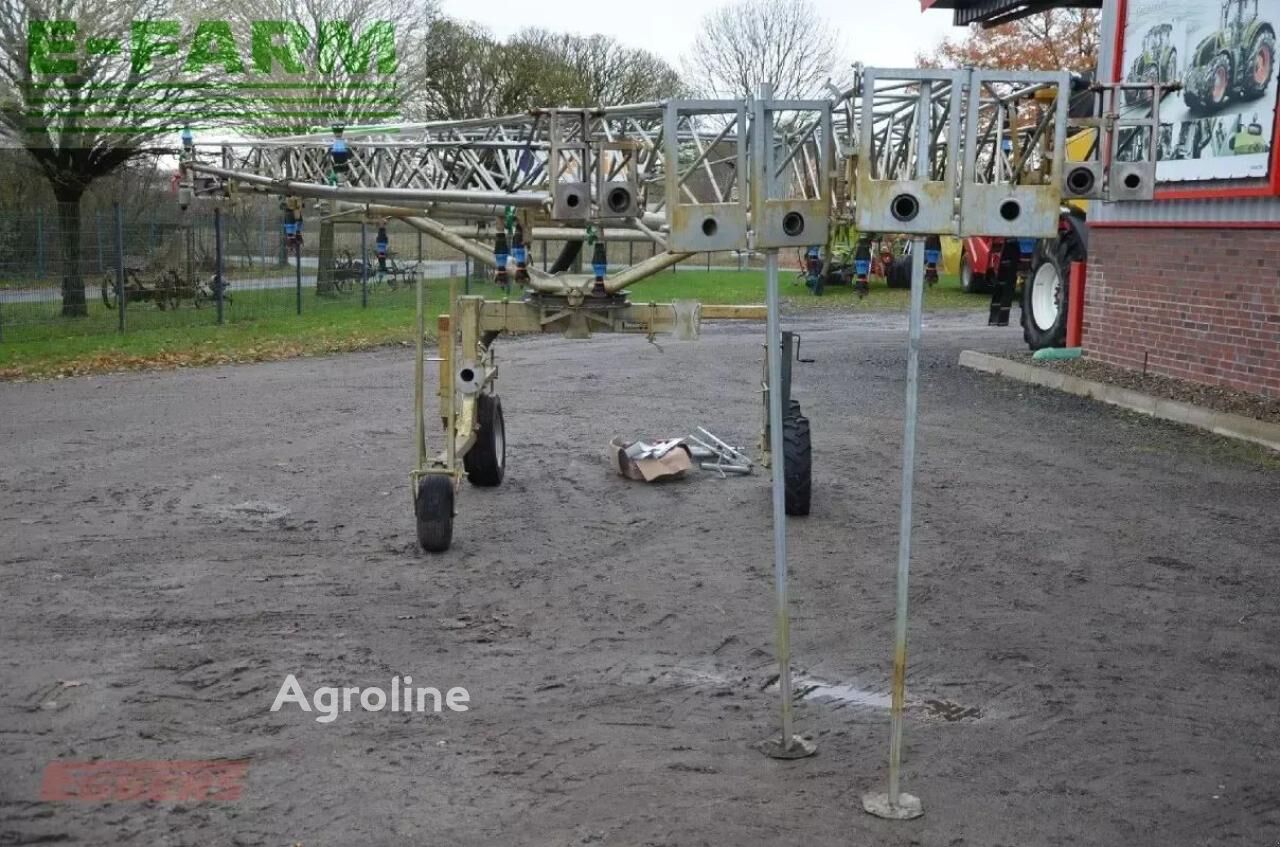

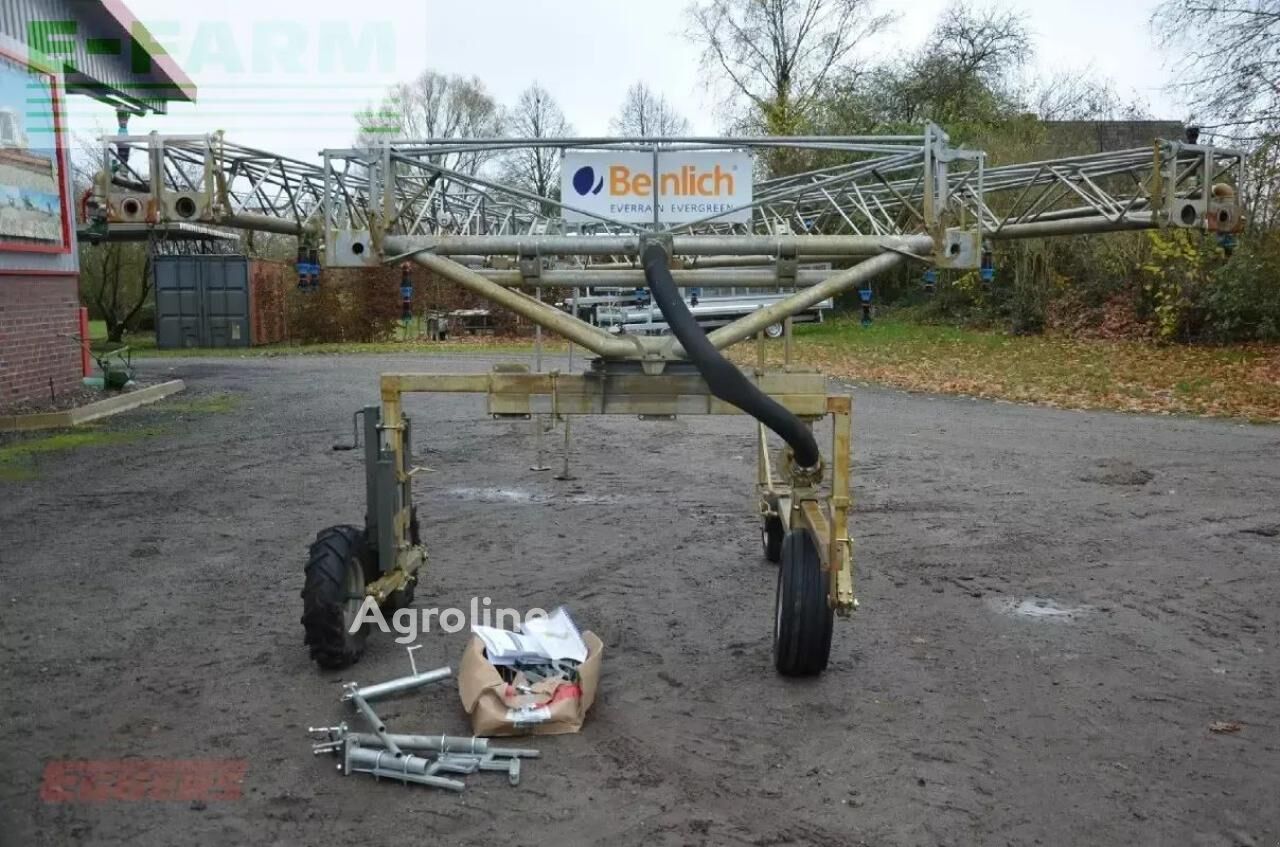

The Beinlich DÜSENWAGEN R 4 is an irrigation equipment system designed for large-scale field application. Beinlich manufactures irrigation machinery and systems for agricultural use. This unit is a wheeled irrigator configured for broad coverage with modular pipe elements and precision nozzle distribution.
The machine features eight self-supporting pipe elements, galvanised and pivotable, with a total working width of 50 metres. The nozzles are mounted at a height of 1.50 metres. Suspension brackets made of stainless steel 304 are fitted beneath the second element to support the third and fourth elements. The system includes a three-wheel chassis of heavy-duty construction, also galvanised, with adjustable track width ranging from 1.50 to 4.20 metres via a slewing ring. Water connection is via a central PE pipe inlet.
The nozzle configuration comprises 14 full-circle 360° nozzles, 2 half-circle 180° nozzles, a ball valve for pressure regulation set at 1.4 bar, and spinner nozzles (red/grey, model 33) rated for 42 cubic metres per hour. A second nozzle set of 16 rotator nozzles (model R 3000) is included, rated for 52 cubic metres per hour. Two Rotator end nozzles (model R55iVT) are supplied, each capable of irrigating widths up to 66 metres. Transport supports for the DÜSENWAGEN are included.
The system also features a four-wheel stand of heavy-duty construction. An alternative lateral water connection is available for the right-hand side instead of the centre. A folding mechanism reduces transport width by folding the second element onto the first, with the third and fourth elements suspended beneath (requires two-person operation). Adjustable wheel holders compensate for rutted ground.
This used machine is located in Germany and is offered in used condition.
