Bema C4C CNC PO Bending & Forming
()- Listing No
- 958106
- Year
- Manufacturer
- Bema
- Model
- C4C CNC PO
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
hydraulic tube clamping CNC control with 39 programs each possible with 9 angle programmations retraction of mandrel mechanical stops for length determination Max dia tube x thickness: dia 40 mm Max bendingradius: 199° Driven axes: 3 axes
About this machine

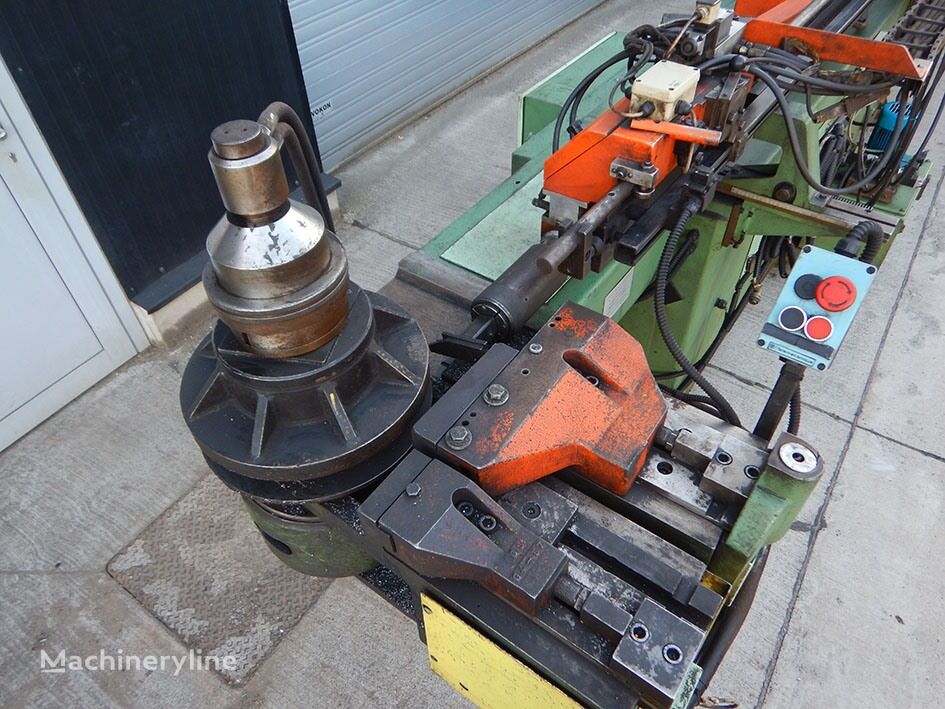

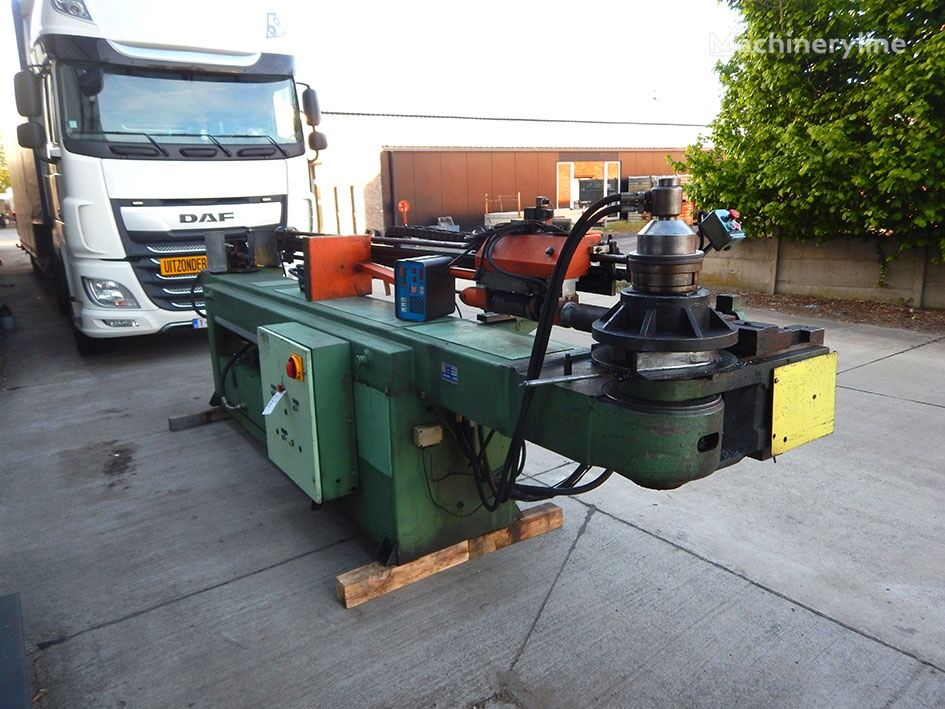

The Bema C4C CNC PO is a used bending and forming machine — sometimes referred to as a tube bender or pipe bender — designed to bend and shape tubular material to precise, repeatable angles and radii. Bema is a Belgian manufacturer with a long-standing reputation in the tube and pipe processing sector, producing equipment used in industries such as automotive, hydraulics, and general metalworking.

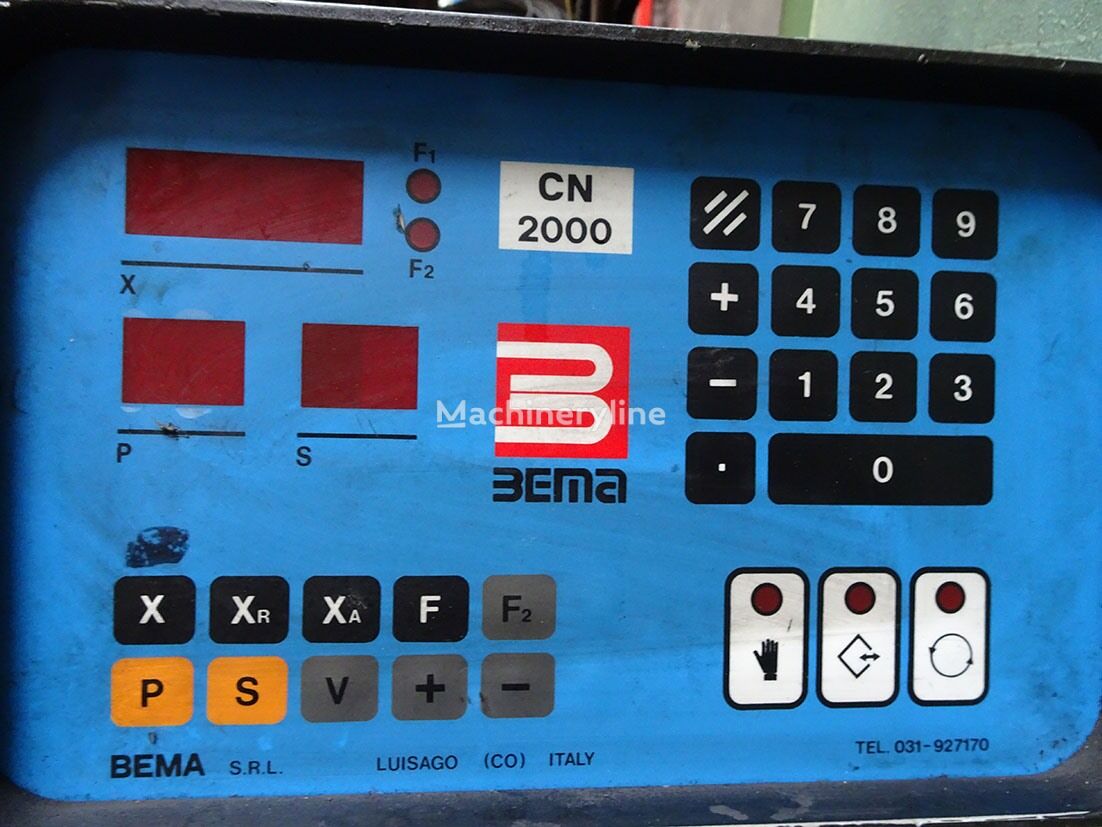

This machine is equipped with a CNC control system capable of storing up to 39 programs, with each program accommodating as many as 9 individual angle programmations. That flexibility allows operators to set up complex, multi-bend sequences and switch efficiently between different production runs. The three driven axes give the machine the coordinated motion needed to position and bend tubing with consistency across repeated cycles.

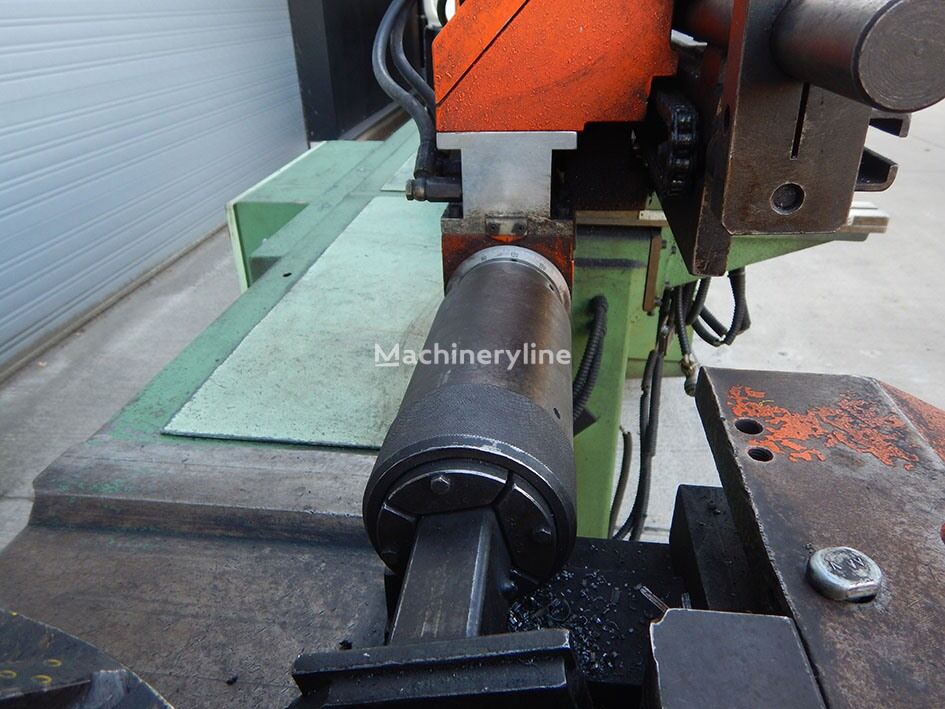

Hydraulic tube clamping secures the workpiece firmly during the bending operation, reducing movement and helping to maintain accuracy. A mandrel retraction function is included, which supports the tube wall from the inside during the bend and is then withdrawn automatically, a feature that is particularly important when working with thin-walled or precision tubing where collapse or deformation of the cross-section must be avoided. Mechanical stops are provided for length determination, enabling reliable and repeatable positioning of the tube prior to each bend.
In terms of capacity, the machine handles tube up to 40 mm in diameter and is capable of bending to a maximum angle of 199 degrees. This machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
