2005 - Bjönkjaer ELTS FLASH 235/100 – Falling film evaporator Laboratory Equipment()
- Listing No
- 1221258
- Year
- 2005
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: ELTS Flash 235/100 Working pressure: 9.3 Bar Working pressure vapour evaporator: 1 Bar Capacity: 155 ltr (stage 2+3) Number of stages: 3 Mach.No: 67794 Tube capacity: 21 ltr (stage 1) Shell capacity: 700 ltr (stage 1) Max. temperature: 40 gr.C Material: Stainless steel Extra Specifications: System inclusive, Centrifugalpump CSF Inox, Typ 32-210, capacity 3900 ltr/h, 1,1 KW, 400 Volt, Compressor Bock, Typ HG6/1240-4, 30,5 KW, 400 Volt, Vacümpump SPECK, Type V130, 3,0 KW, 400 Volt, Gearpump Iwaki, Typ MDG-R15K220, capacity 500 ltr/h, 0,18 KW, 400 Volt, Centrifugalpump Iwaki, Typ YMD 25-100/110CV merk: Bjönkjaer General Pressure Specified Features - Falling film evaporator Falling film evaporator Condenser Information
About this machine

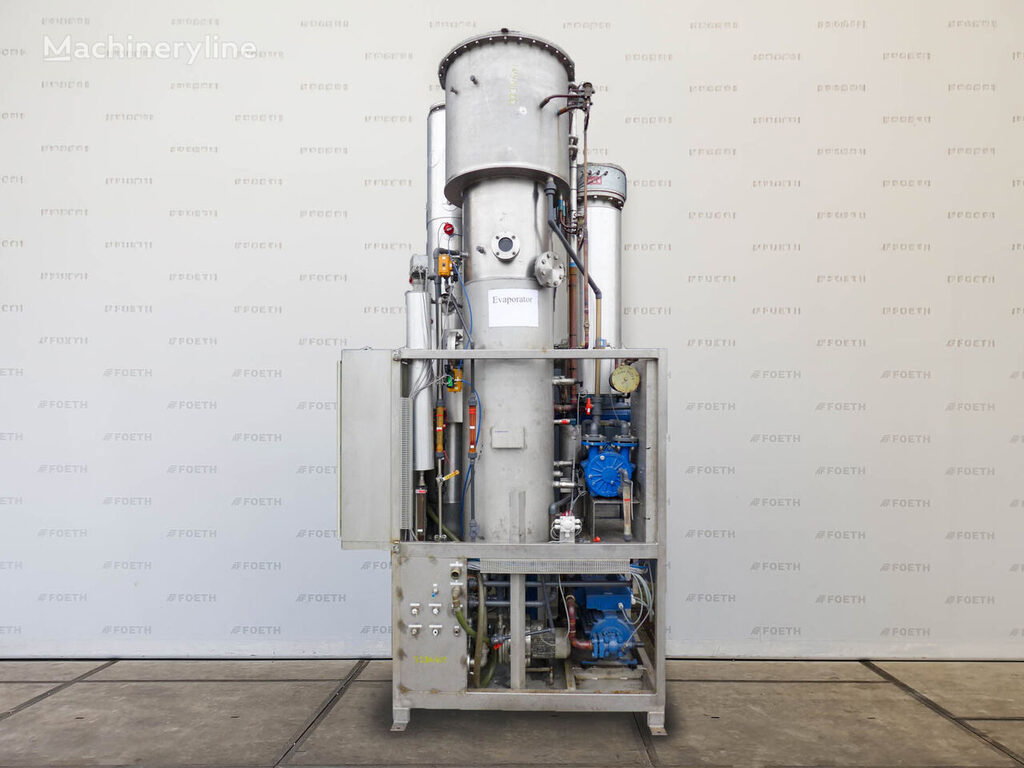

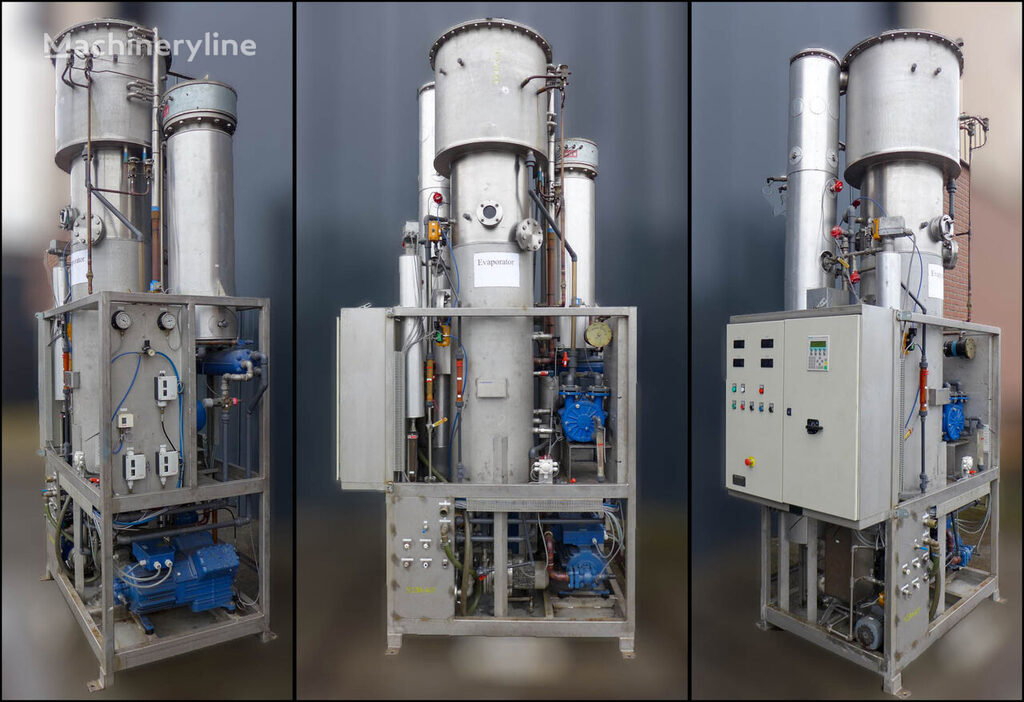

This Bjönkjaer ELTS FLASH 235/100 is a falling film evaporator — sometimes referred to as a thin film evaporator — a type of laboratory equipment used to concentrate, separate, or purify liquids by causing a thin film of product to flow down the inner surface of heated tubes while solvent evaporates under controlled conditions. The process is well suited to heat-sensitive materials, as it allows evaporation at low temperatures and reduced pressures.
This particular unit is a three-stage system, manufactured in 2005 and located in Barneveld, Netherlands. It is constructed throughout in stainless steel. Stage one has a tube capacity of 21 litres and a shell capacity of 700 litres, while stages two and three together provide a combined capacity of 155 litres. The system operates at a working pressure of 9.3 bar, with the vapour evaporator section operating at 1 bar. Maximum process temperature is rated at 40°C.

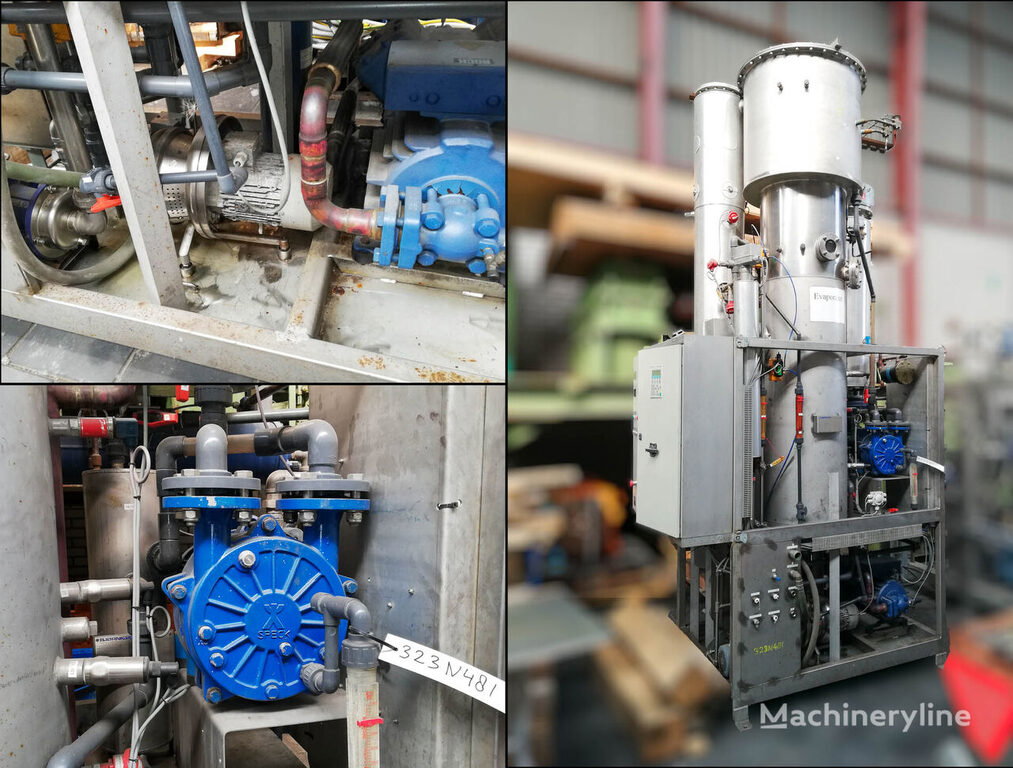

The listing includes a complete integrated system with several auxiliary components. Liquid feed is handled by a centrifugal pump from CSF Inox, model 32-210, rated at 3,900 litres per hour, 1.1 kW, 400 V. A Bock compressor, type HG6/1240-4, provides refrigeration duty at 30.5 kW, 400 V. Vacuum is drawn by a Speck vacuum pump, type V130, rated at 3.0 kW, 400 V. A magnetically driven gear pump from Iwaki, type MDG-R15K220, handles product transfer at up to 500 litres per hour, drawing 0.18 kW at 400 V. An additional Iwaki centrifugal pump, type YMD 25-100/110CV, is also included as part of the system. Machine number is recorded as 67794.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
