1997 - Brabender Technologie KG (D) DDW-H32 Laboratory Equipment()
- Listing No
- 1222332
- Year
- 1997
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: DDW-H32-FW79/2-150 No: 976693M21 Material: Stainless steel Inlet diameter: 200 mm Metering screw: check Screw diameter: 75mm Pitch: 70mm Screw length: 650mm With hopper: check Hopper sizes: 500x500x700mm Inlet: dia. 200mm (1x), dia. 60mm (1x) Outlet: dia. 100mm With motor: 0.37 kW 230-242/380-420 Volt Hopper with flexible wall: check With switchgear: check Floorspace: 1,4x0,8 M CE: check Total height: 1,7 M merk: Brabender Technologie KG (D) General Main Features Specified Features - Metering screw Metering screws Information
About this machine

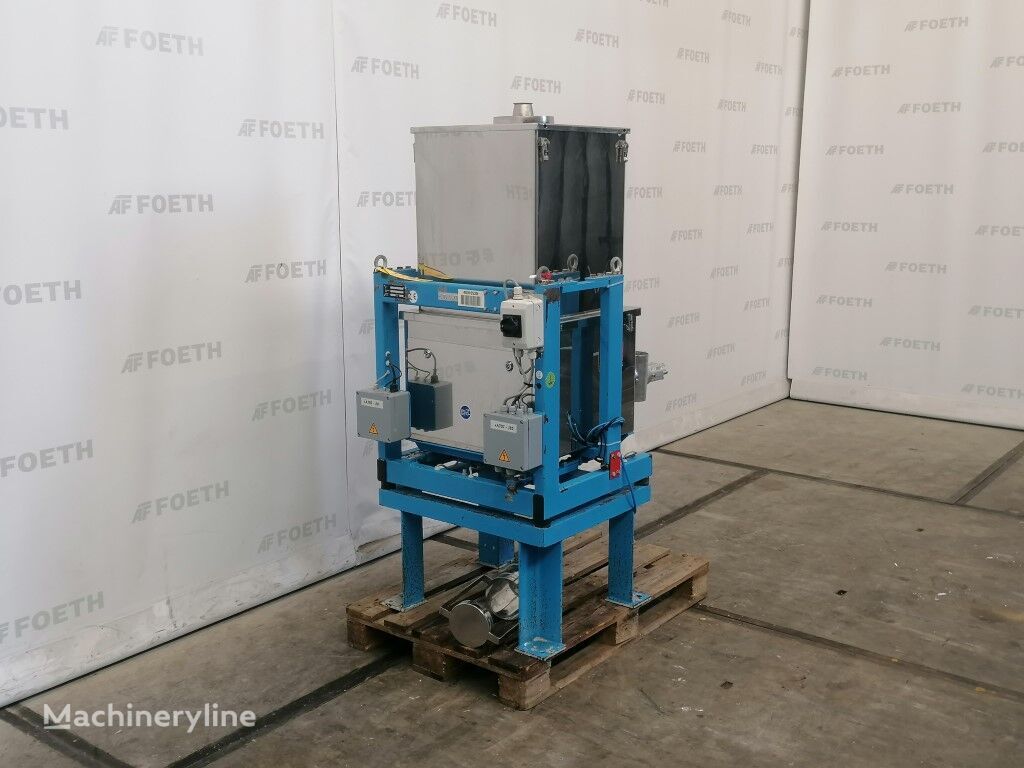

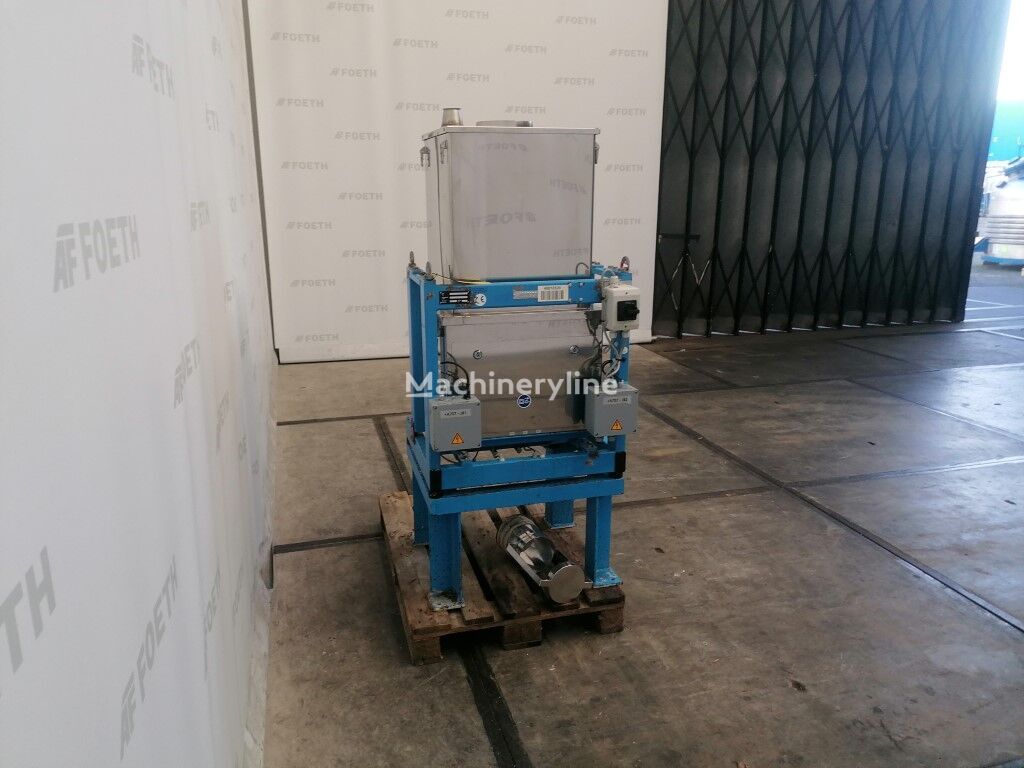

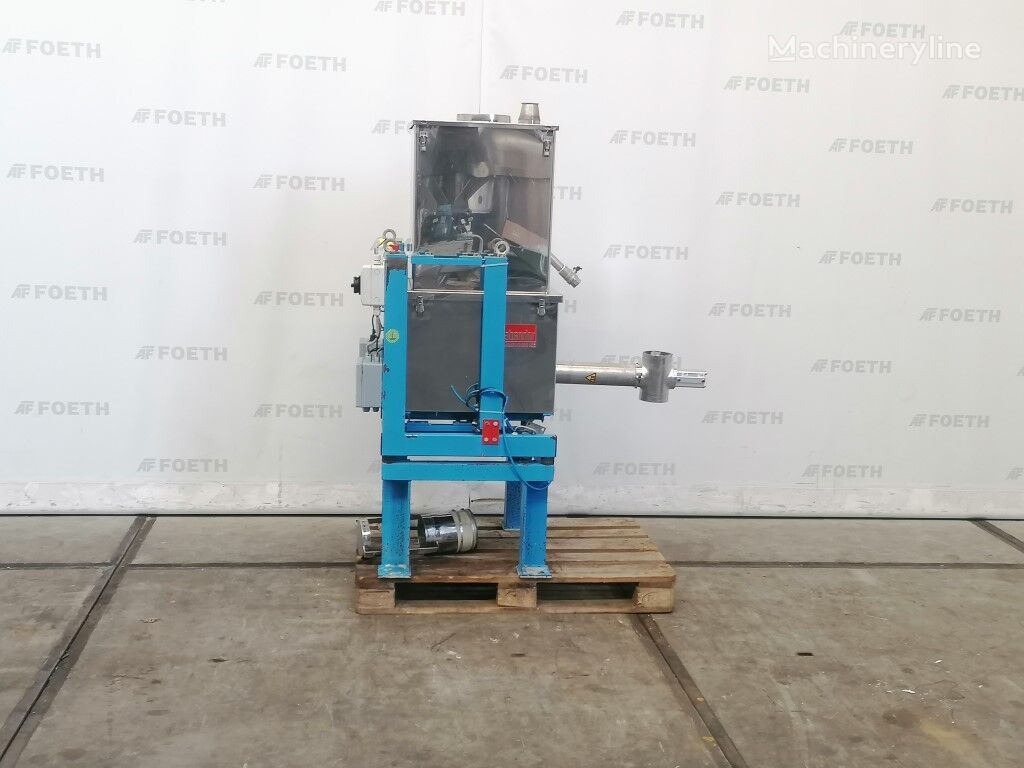

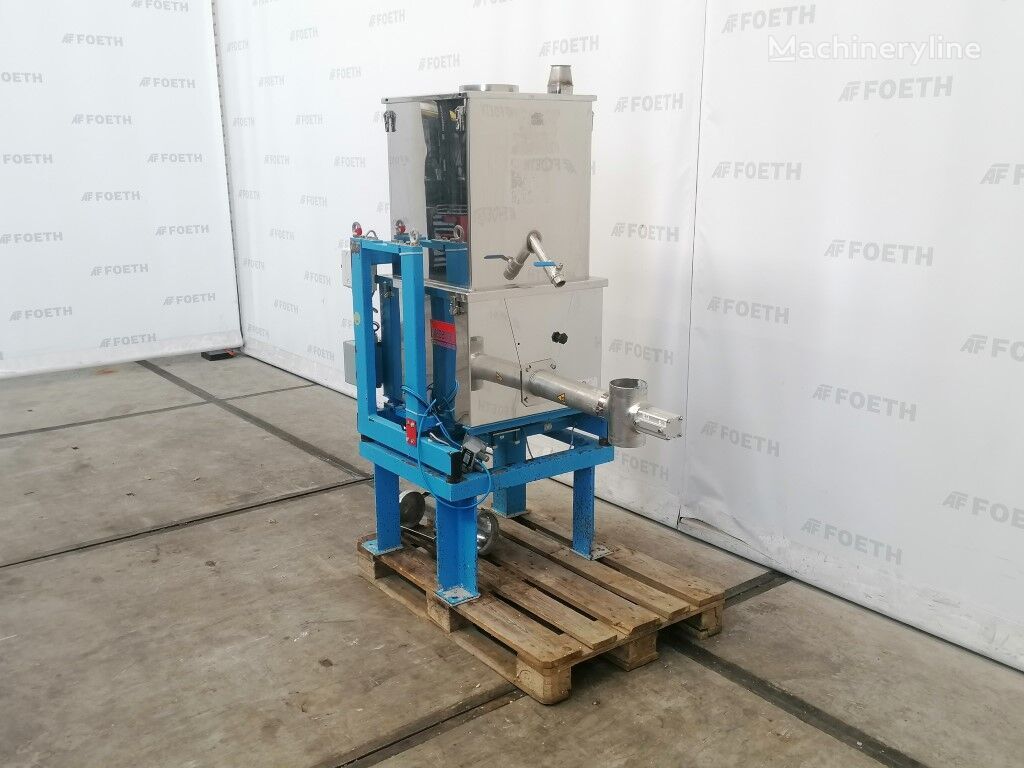

This Brabender Technologie KG DDW-H32 is a laboratory dosing and feeding unit — sometimes referred to as a gravimetric feeder or loss-in-weight feeder — used to meter bulk materials with precision in research, development, and small-scale process environments. Brabender Technologie KG is a well-established German manufacturer with a long-standing reputation for producing high-accuracy dosing, feeding, and measuring equipment, serving industries such as plastics, food processing, and materials science.
This particular unit is listed under the full type designation DDW-H32-FW79/2-150, serial number 976693M21, and was manufactured in 1997. It is constructed in stainless steel throughout, making it suitable for applications where hygiene or material compatibility is a consideration. The machine carries CE certification and is located in Barneveld, Netherlands.

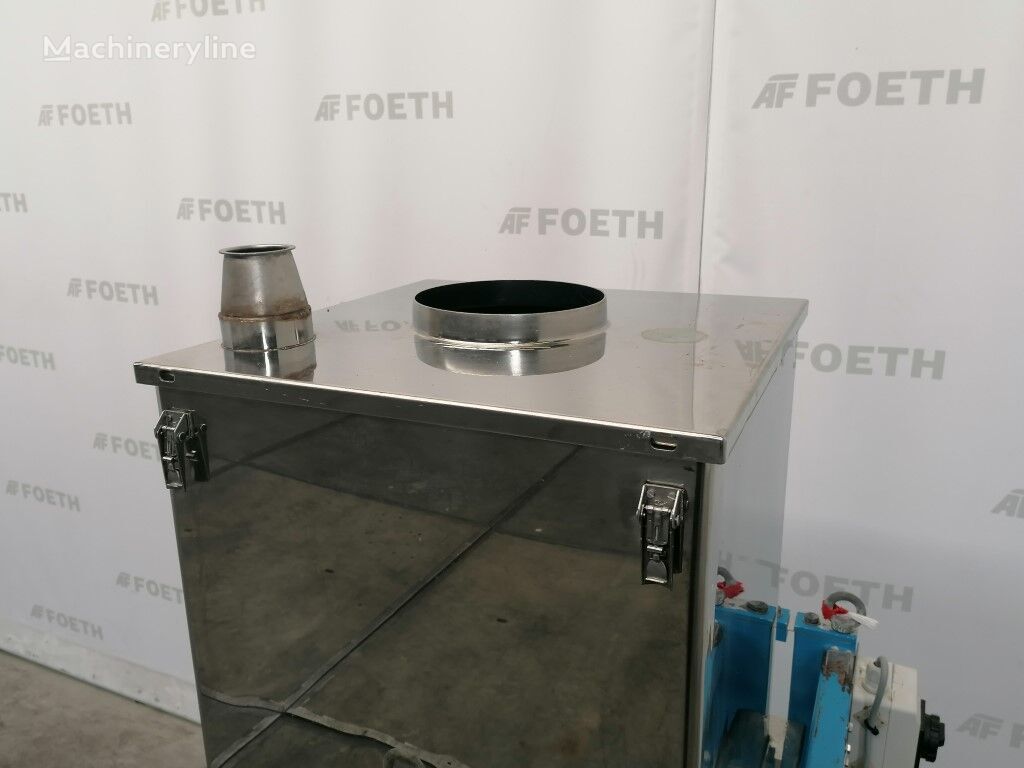

The metering screw has a diameter of 75 mm, a pitch of 70 mm, and a length of 650 mm. The unit is equipped with a hopper measuring 500 × 500 × 700 mm, which features a flexible wall — a design detail that helps prevent bridging or compaction of difficult-flowing bulk materials. The hopper has two inlets: one of 200 mm diameter and one of 60 mm diameter. The discharge outlet has a diameter of 100 mm. The inlet connection to the machine body is also 200 mm in diameter.
Drive is provided by a 0.37 kW electric motor rated for 230–242 / 380–420 volt supply. The unit comes complete with switchgear. The overall footprint is 1.4 × 0.8 metres, and the total height is 1.7 metres, making it a compact, floor-standing installation suitable for laboratory or pilot-plant use.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
