2005 - Brogtec Mischtechnik GmbH (DE) Processing vessel Laboratory Equipment()
- Listing No
- 1221623
- Year
- 2005
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: MH-20 No: BR-121104 Working pressure: 2 Bar Working pressure jacket: 5 Bar Material: Stainless steel 1.4404 (316L) Volume: 20 Ltr Motor: 3 kW 400 Volt Capacity: 20 Ltr Vessel sizes: dia. 340 x 280 mm Outlet: dia. 65 mm Max. temperature: 150 Degr. C Speed mixing shaft: 15 rpm Floorspace: 1,4x0,8 M Total height: 1,9 M merk: Brogtec Mischtechnik GmbH (DE) General Pressure Vacuum possible Vacuum possible jacket Main Features Specified Features - Processing vessel Closed stirring vessel Dished bottom Flat top side With cover With jacket With anchor stirrer Information Mounted on legs With switchgear CE
About this machine

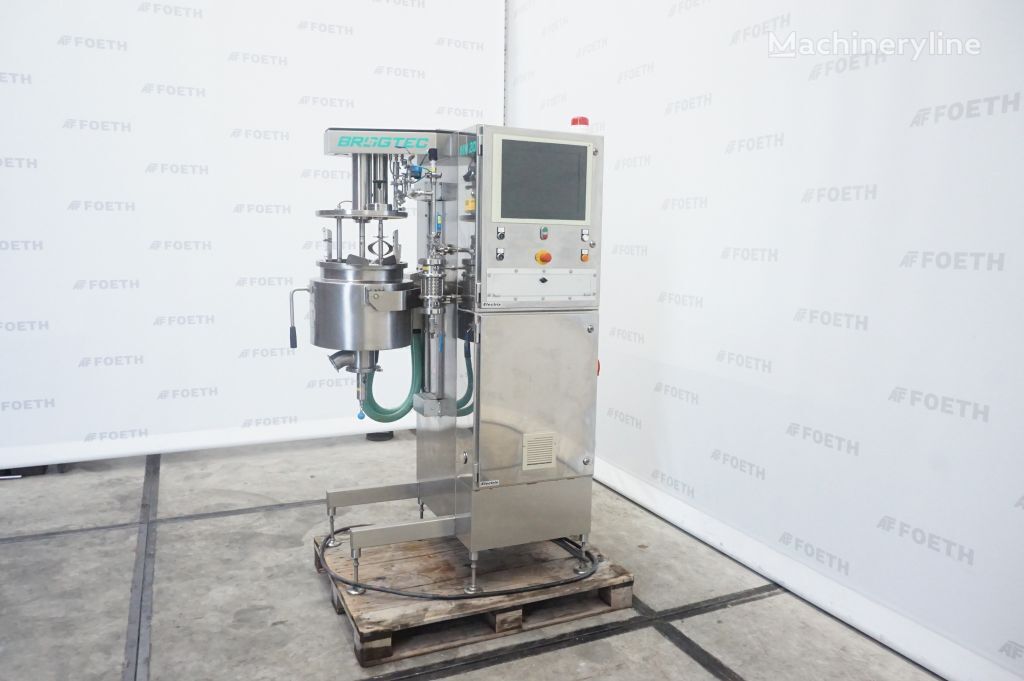

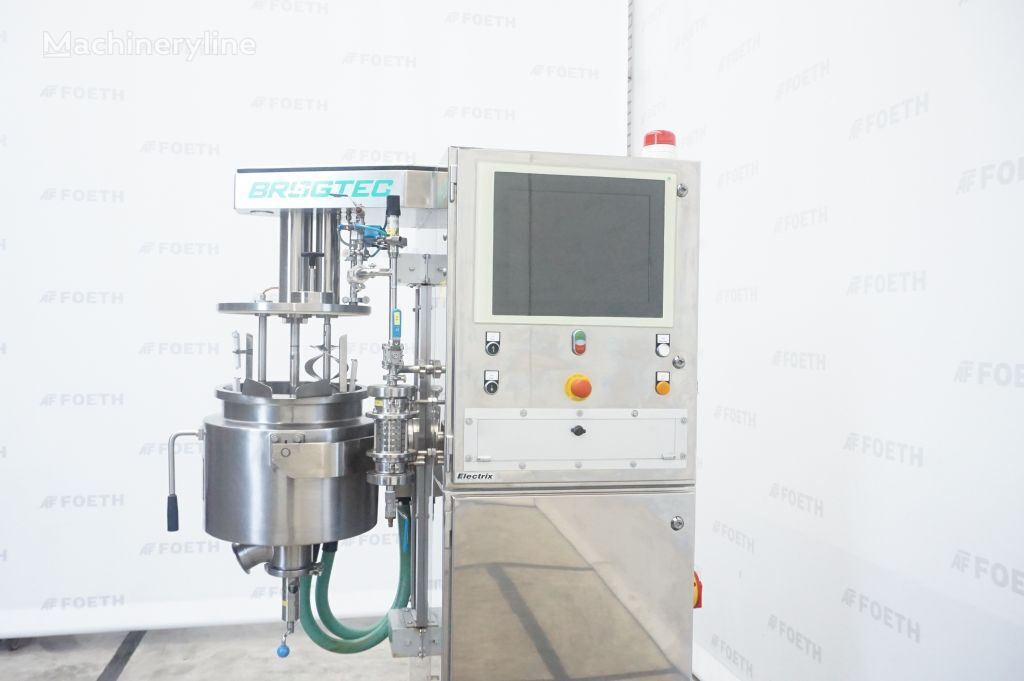

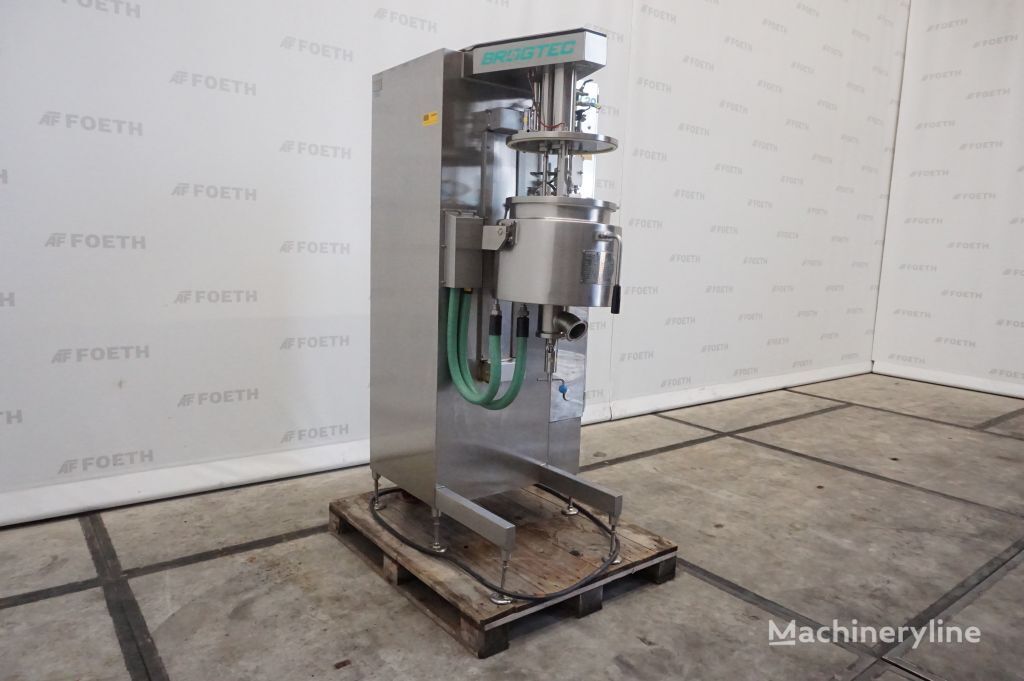

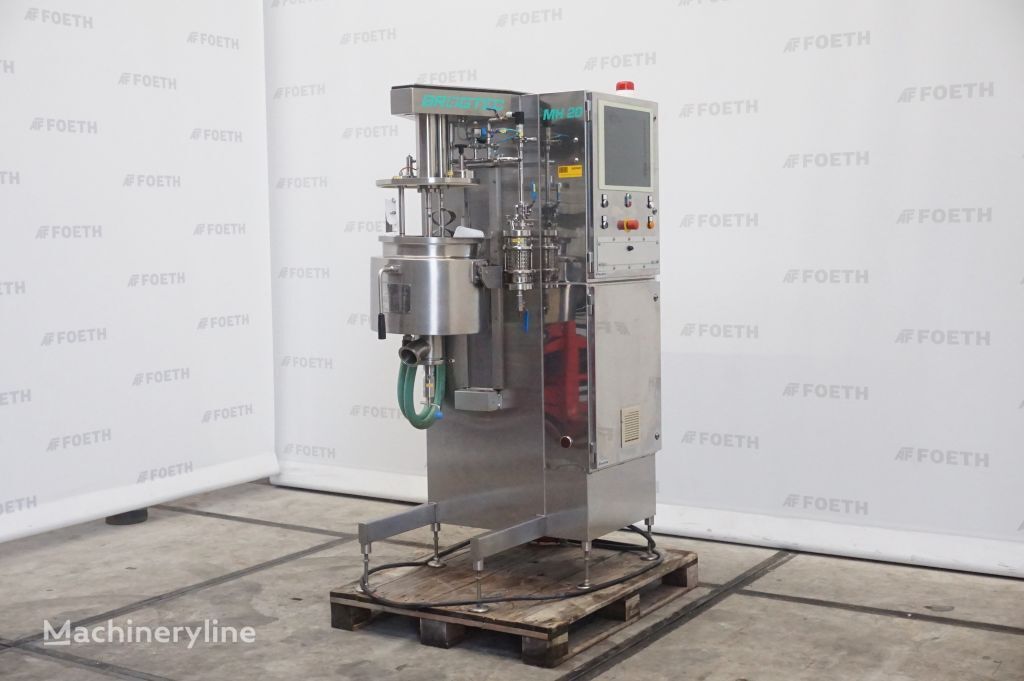

This Brogtec Mischtechnik GmbH (DE) Processing vessel MH-20 (serial number BR-121104) is a laboratory-grade closed stirring vessel — sometimes referred to as a mixing reactor — used for blending, processing, and homogenising materials under controlled temperature and pressure conditions. Brogtec Mischtechnik is a German manufacturer specialising in mixing and processing equipment for laboratory and industrial applications across the chemical, pharmaceutical, and food sectors. This unit, built in 2005, is offered in used condition and is currently located in Barneveld, Netherlands.
The vessel has a capacity of 20 litres and is constructed from stainless steel grade L), making it suitable for corrosive or hygienic applications. The vessel body measures 340 mm in diameter by 280 mm tall, with an outlet port of 65 mm in diameter. The design features a dished bottom, a flat top side, and a removable cover, with an anchor stirrer driven by a 3 kW, 400-volt motor at a mixing shaft speed of 15 rpm.
The vessel is fully jacketed, allowing for temperature control through the jacket. The working pressure of the vessel itself is rated at 2 bar, while the jacket is rated to a higher working pressure of 5 bar. Both vacuum operation and vacuum operation through the jacket are possible, and the maximum process temperature is 150°C. These combined pressure, vacuum, and temperature capabilities make the unit well suited to a broad range of laboratory processing tasks.
The unit is mounted on legs and has a floor footprint of 1.4 by 0.8 metres, with a total installed height of 1.9 metres. It is supplied with its own switchgear and carries CE certification.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
