About this machine

This Cartobol Ecofill Master is a packing machine — sometimes referred to as a packaging line or filling line — designed for the automated industrial packaging of liquids in Bag in Box format. This type of machine handles the complete process of forming, filling and sealing carton-boxed bag-in-bag containers, making it well suited to food, beverage and liquid goods producers operating at scale.

This particular unit dates from 2021 and is offered used from Spain, with the seller noting it has seen low usage since new. It is configured exclusively for standard VITOP® DN15 Bag in Box fitments and handles volumes ranging from 3 to 20 litres, giving it broad flexibility across common commercial fill sizes.

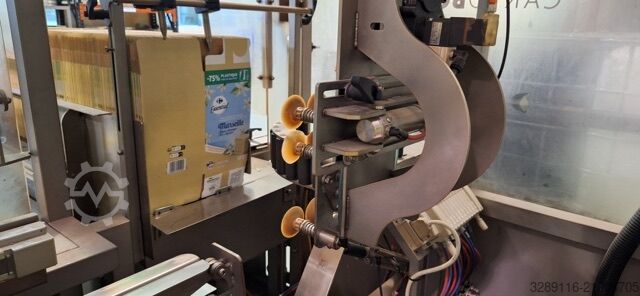

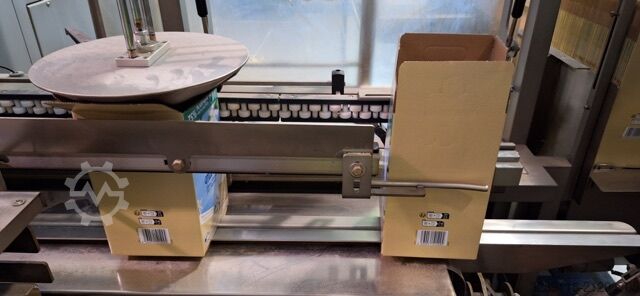

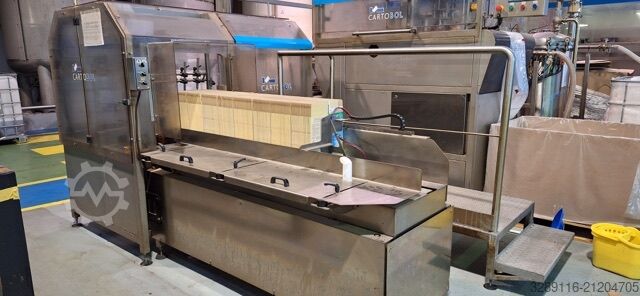

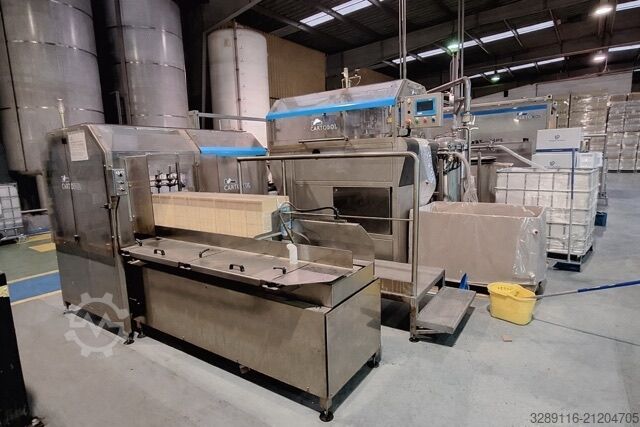

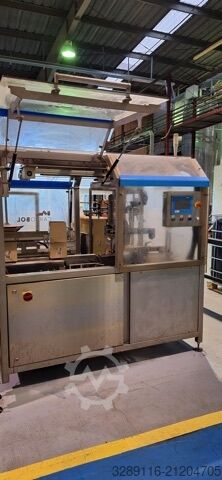

The line is a fully integrated, multi-station system comprising four principal components. The ECOPACK MASTERFORM automatic case former handles B1–B1 cartons with central sealing, accepting carton base dimensions from a minimum of 100 × 220 mm up to a maximum of 115 × 225 mm, and carton heights between 210 mm and 400 mm. The ECOFILL MASTER automatic filling machine forms the heart of the line and delivers rated production capacities of approximately 780 bags per hour at 2.25 litres, 600 bags per hour at 5 litres, and 290 bags per hour at 20 litres. Supporting the filler is a 100-litre pressurised buffer tank, which helps maintain consistent product flow during continuous operation. The ECOPACK HOTMELT hot-melt case sealer closes and seals the formed cartons after filling, and the line is completed by an automatic Cartesian palletiser configured for Bag in Box cartons in the 3 to 10 litre range.

The complete line is described by the seller as configured for continuous, accurate and reliable production, and its low-usage history from 2021 suggests it retains significant working life.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
