2022 - Cascade 110 F Forklift Attachment()
- Listing No
- 992168
- Year
- 2022
- Manufacturer
- Cascade
- Model
- 110 F
- Condition
- Used
- Location
- Italy
- Price
- POA
- Description
-
Installable short arm: yes Opening ranges mm: 350-1300 Rotation limitation: no(STD) Rotation speed mm: STD Arm configuration: short positionable arm with 45° rotation - long oscillating arm Grip Rockers, TYP: RHX Rubber Bolt-On Rocker arm size (HxW)mm: 2x 1015 x 255 Engagement class: FEM 4A Bolt-on lower brackets Inclination: 2° Solenoid: NO(STD) Fitting: 15MM L Load capacity at center of gravity: 5500/600 KG/MM Trolley pressure MIN-MAX bar: MAX 160 Recommended oil flow l/min: 39-57-76 Weight kg: 1555 Thickness (ET)mm: 260 Center of gravity (CG)mm: 320
About this machine

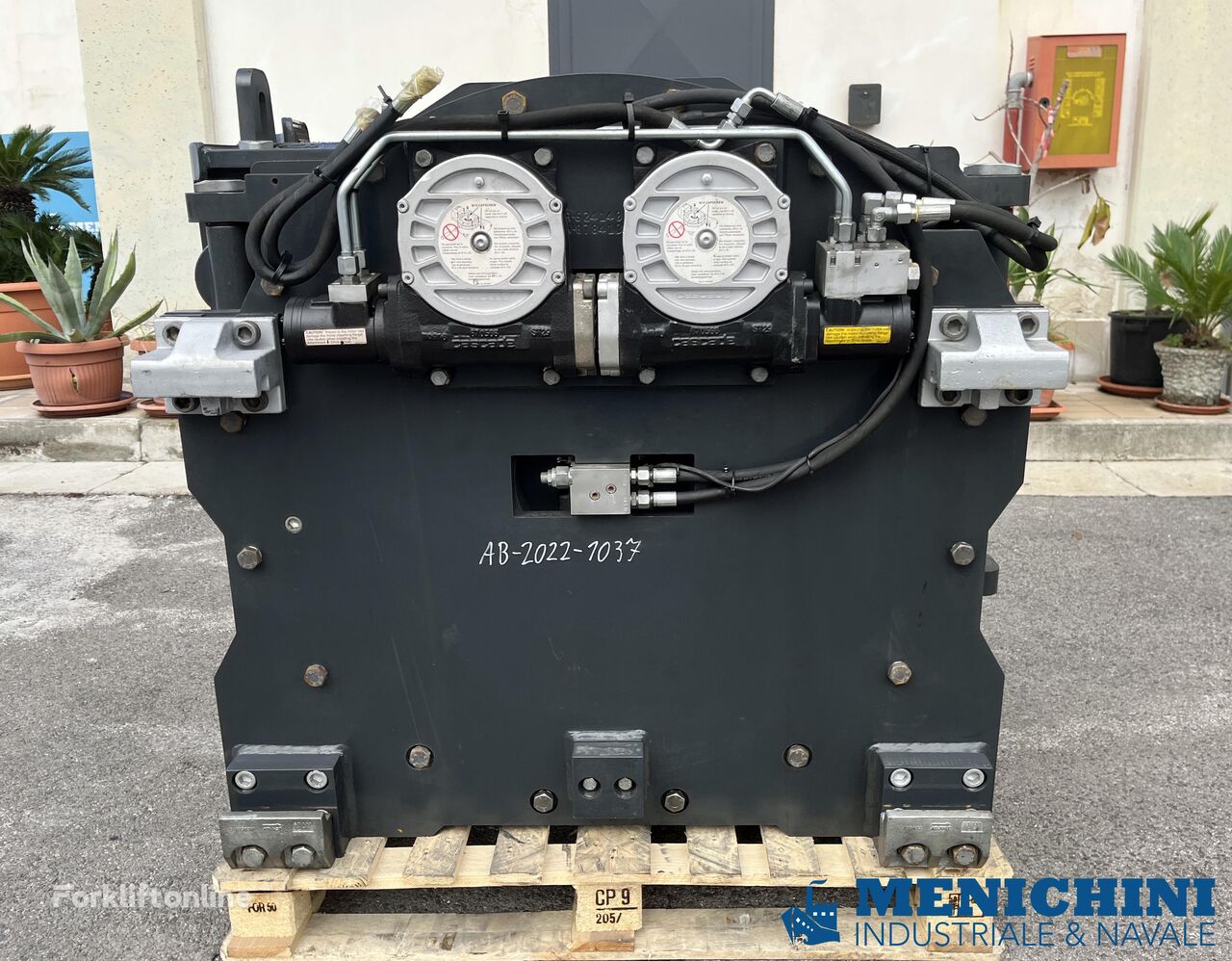

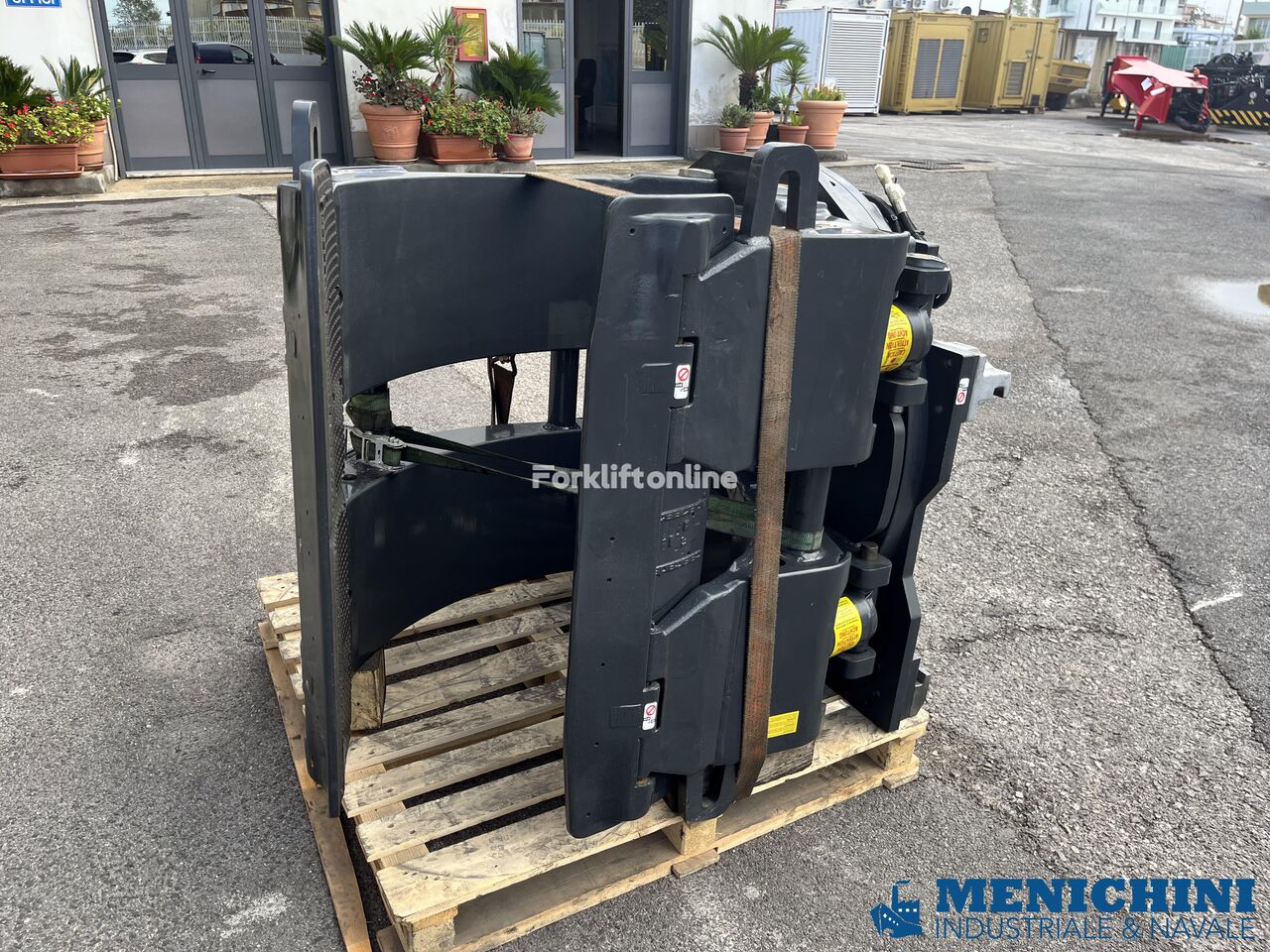

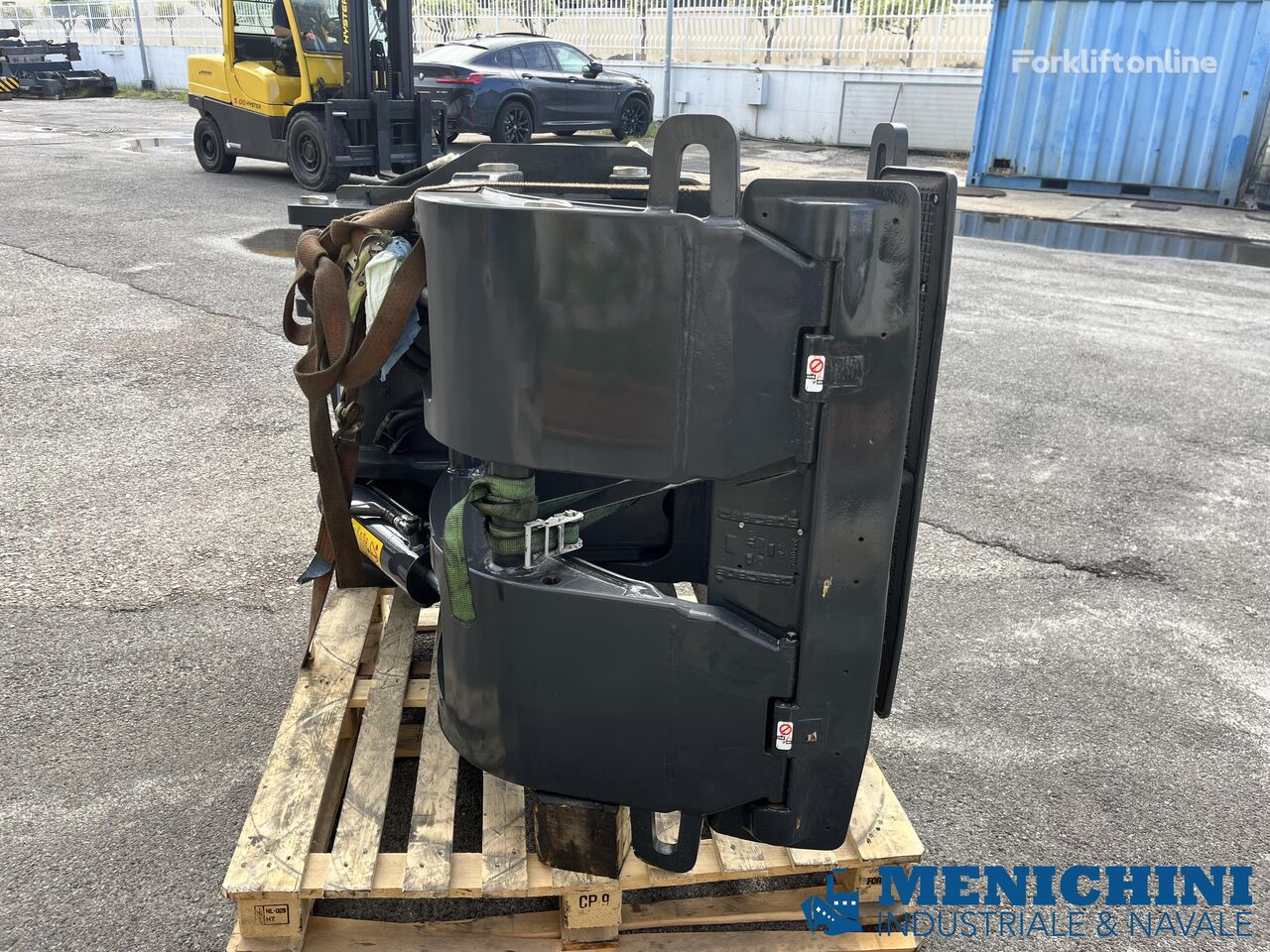

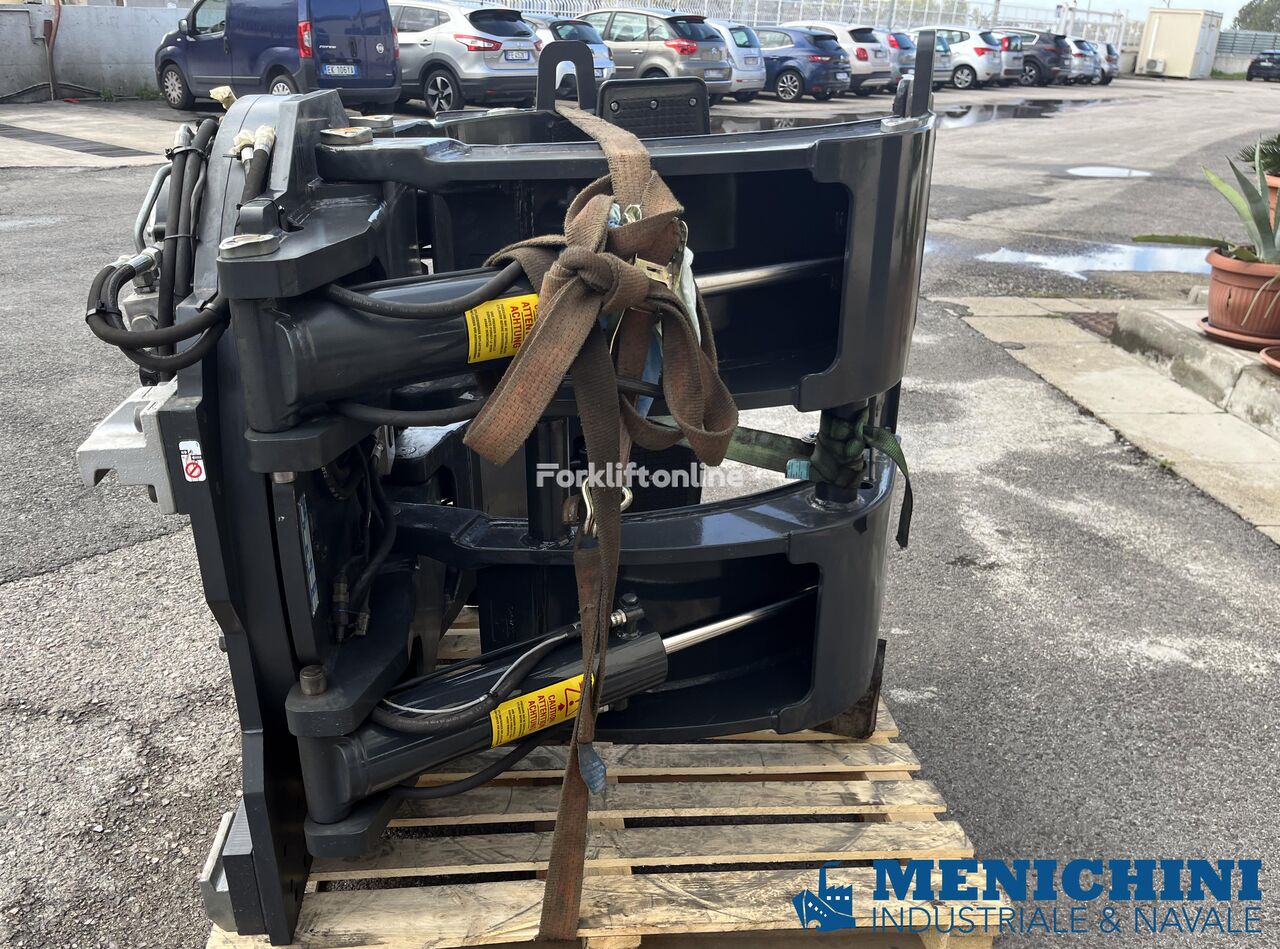

This Cascade 110 F is a forklift attachment — a category of equipment also known as a forklift accessory — designed to expand the handling capabilities of a compatible forklift truck. In this case the attachment functions as a clamp or bale arm unit, enabling a forklift to grip, reposition, and carry loads that cannot be handled on standard forks alone. Cascade is a globally recognised manufacturer of forklift attachments and material-handling equipment, supplying a wide range of industries including warehousing, logistics, paper and pulp, recycling, and manufacturing.
This 2022 unit is offered used from Italy and carries a substantial specification. It is built to FEM engagement class 4A, the heaviest-duty class in the FEM standard, indicating it is engineered for intensive industrial use. The attachment has a rated load capacity of 5,500 kg at a centre-of-gravity distance of 600 mm, making it suitable for handling large and heavy unitised loads. The unit weighs 1,555 kg, with an equipment thickness (ET) of 260 mm and a centre-of-gravity measurement (CG) of 320 mm.
The arm configuration combines a short positionable arm with 45-degree rotation and a long oscillating arm, giving operators flexibility when engaging irregularly shaped or differently sized loads. The opening range spans 350 mm to 1,300 mm, covering a wide variety of load widths. A short arm is installable on this unit as an additional configuration option. Rotation is standard (STD) with no rotation limitation and standard rotation speed. The inclination is 2 degrees.
Grip rockers are of the RHX Rubber Bolt-On type, each measuring 1,015 mm in height by 255 mm in width, with two rockers fitted. Bolt-on lower brackets are included as part of the assembly. The hydraulic fitting is 15 mm L, and the recommended oil flow range is 39, 57, or 76 litres per minute depending on the host truck's hydraulic circuit. Maximum trolley pressure is 160 bar. There is no solenoid fitted as standard. This is a well-specified, heavy-duty attachment suited to demanding clamp applications in industrial environments.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
