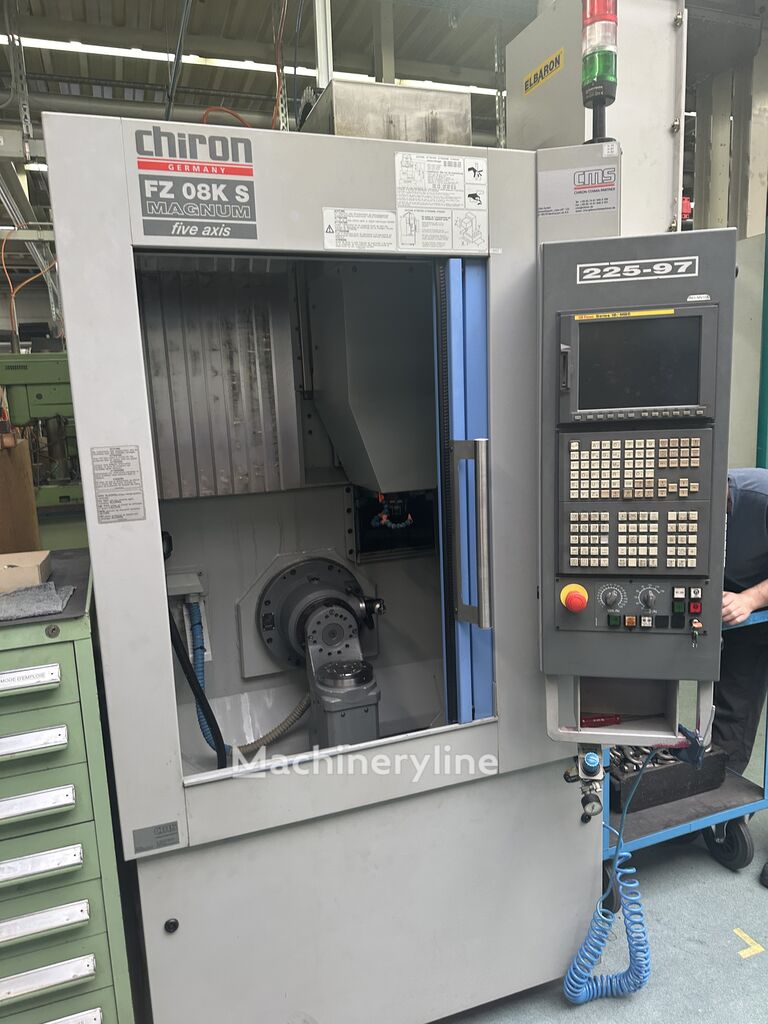

2008 - Chiron FZ 08 KS Magnu Machining Center

• Listing No
• 965106
• Year
• 2008
• Manufacturer
• Chiron
• Model
• FZ 08 KS Magnu
• Condition
• Used
• Location
• Price
• $N/A
• Description
• Group: Machining centres Control: GE Fanuc Series 18i-MB5 Number of axis total: 3 Number of spindles: 1 Table length: 770 mm Table width: 290 mm Transversal travel (y-axis): 270 mm Drill capacity: 12 mm Max. taping diameter M: 8 Number of tools: 24 Tool diameter max: 47 mm Diameter with free adjacent pockets: 100 mm Tool lenght: 160 mm Max. tool-weight: 1.2 kg Time of tool changing: 0.8 / 2.3 s Average chip-to-chip time: 2.2 s Spindle nose: HSK-A: 40 DIN 69893 up to: 30000 t/min Rapid traverse: 75 m/min Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Total power required: 19 kVA Machine's weight about: 3400 kg
