About this machine

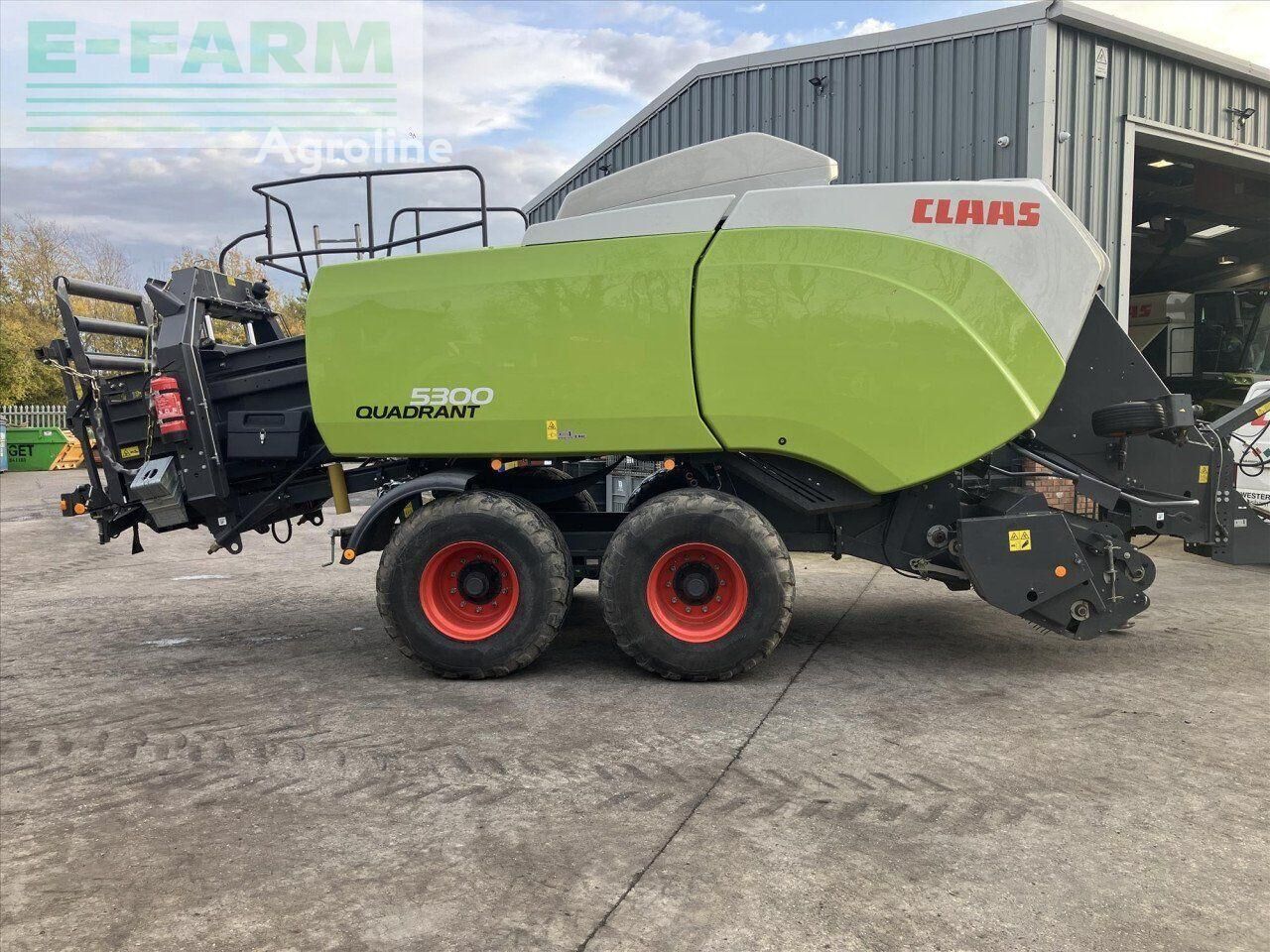

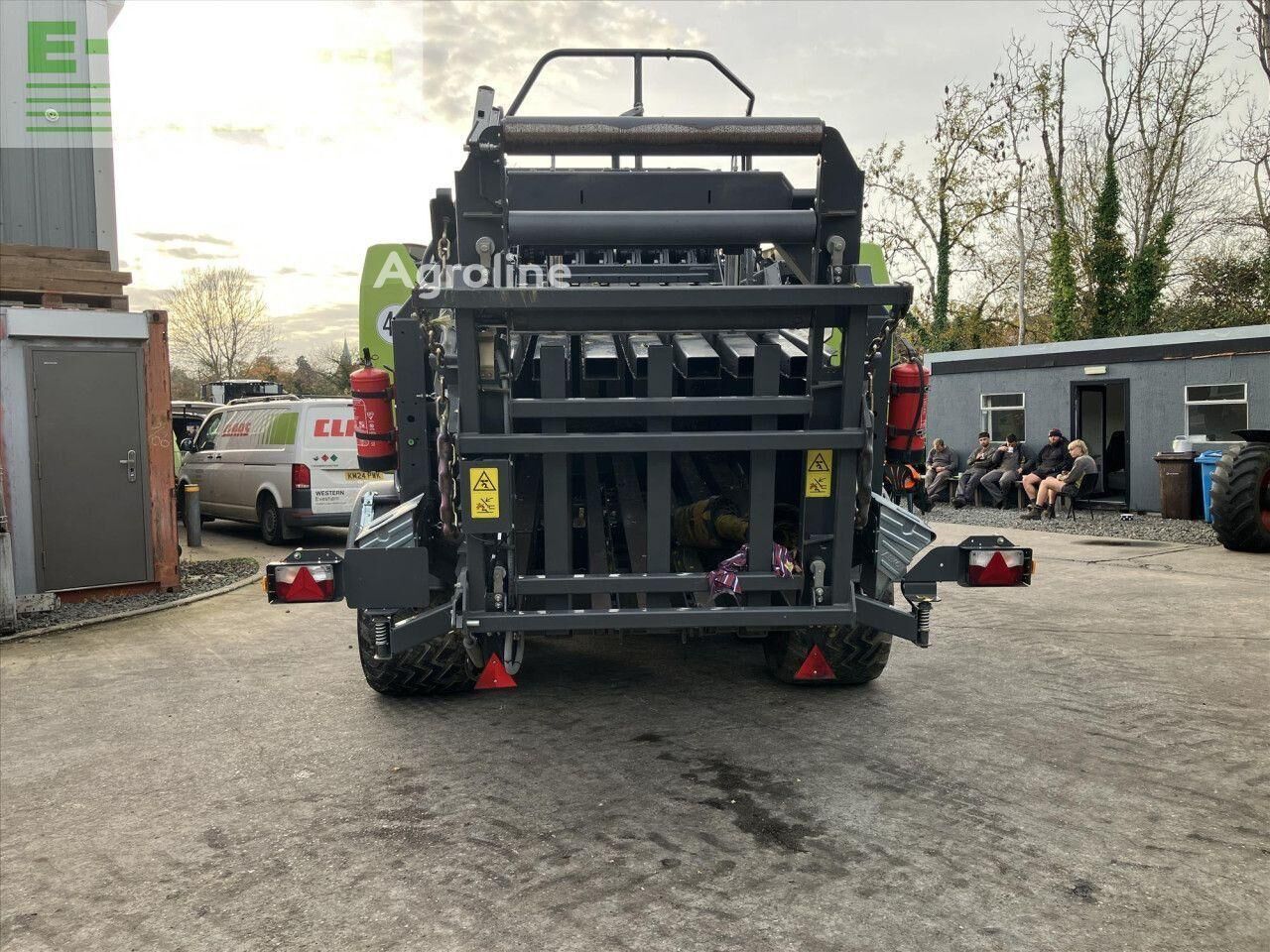

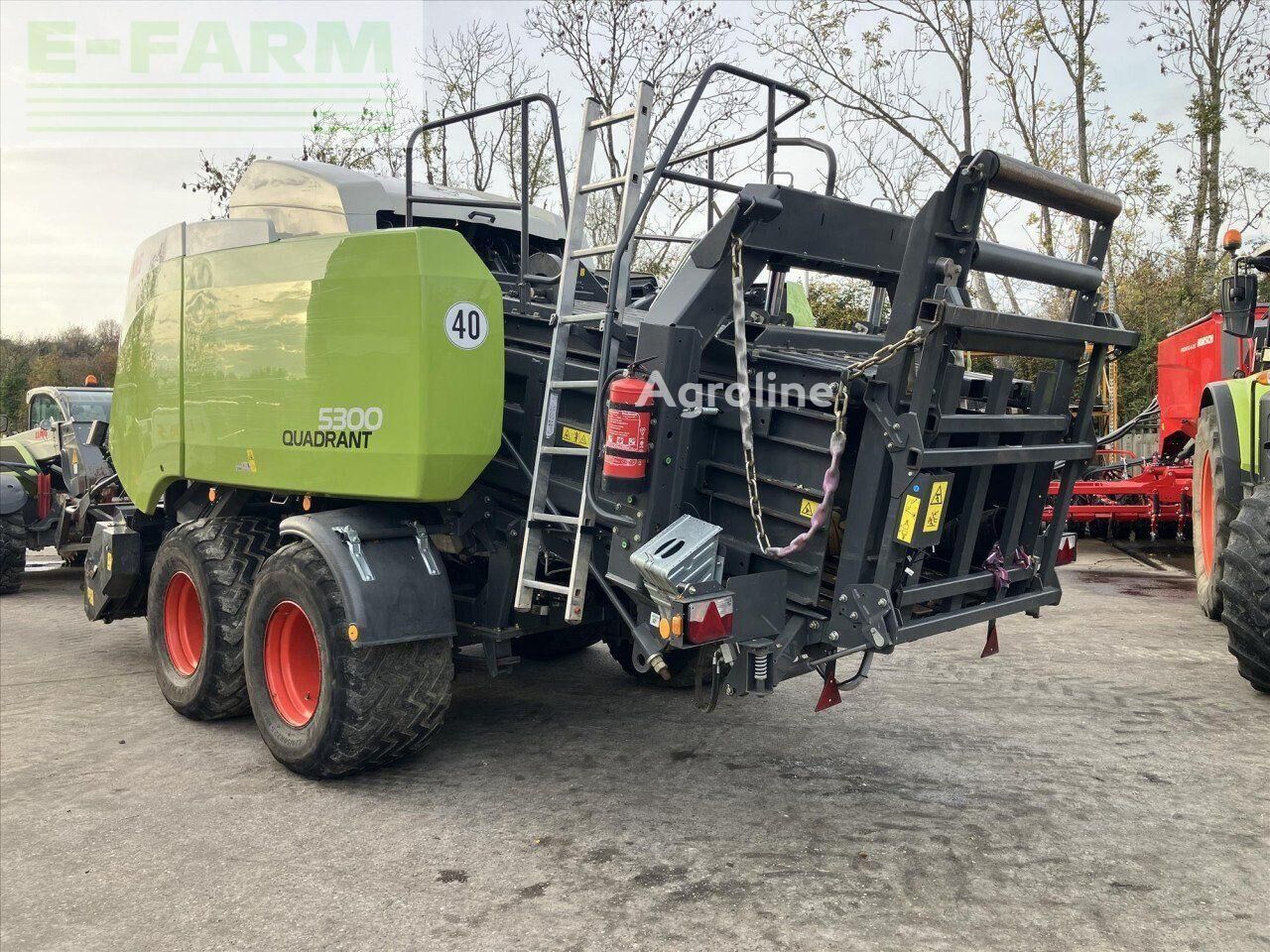

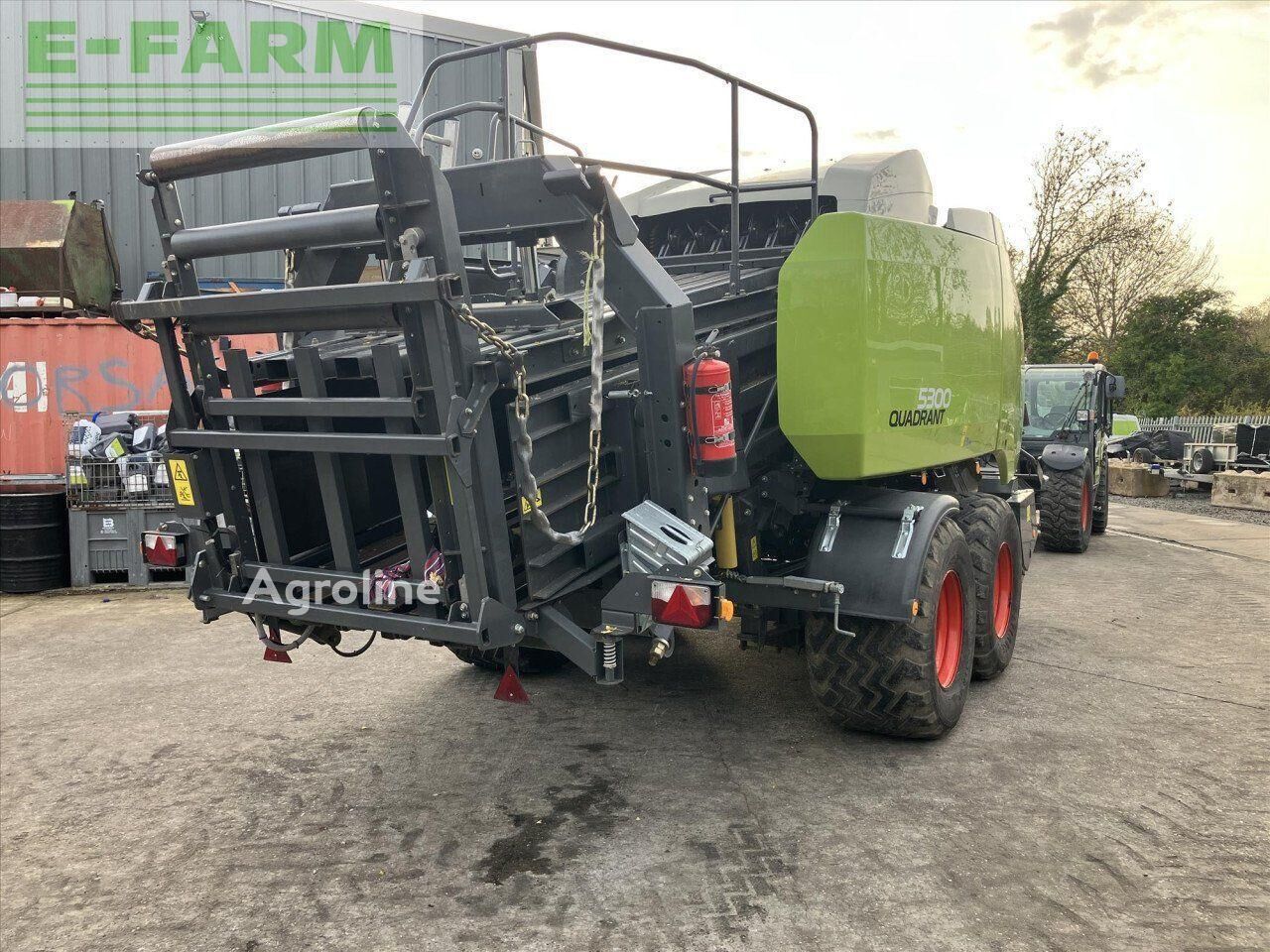

The Claas Quadrant 5300 is a square baler manufactured by Claas, a leading European producer of harvesting and hay-making machinery. Square balers are used to compress and bind cut crop material into uniform rectangular bales, commonly employed in hay production, straw harvesting, and silage operations across agricultural and forestry sectors.

This 2024 model features a tandem axle configuration with a pivot steer axle for enhanced manoeuvrability. The machine is equipped with a roller crop press system and pneumatic operation via a pressure-air brake system. Bale ejection is handled by an electric bale ejector, and the machine incorporates an automatic feed auger for consistent material intake. A hydraulic swing-frame suspension with an adjustable support foot provides stability during operation and transport.

The baling mechanism employs twine tying with automatic knot cleaning via an air-blast system. Material sensing is supported by both a moisture sensor and a deposit sensor to monitor bale formation and ejection. A bale weighing device and electronic bale counter are integrated for production monitoring and documentation. The machine is fitted with automatic chain lubrication to reduce maintenance demands.

Drive specifications include a 1,000 rpm gearbox input speed and a 1 3/8" PTO shaft diameter. The machine runs on Vredestein CEMIS 700 pneumatic tyres. Hydraulic controls operate the feeder wheels, bale ejector, and primary drive system, with a hydraulic flywheel brake providing stopping power. An integrated camera system is supplied for operator visibility and safety.

Additional equipment includes a tool kit, service handbook, document case, maintenance tools, and a hydraulic drawbar coupling. The machine is located in Germany and is supplied in used condition.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
