2007 - Collin Calander Pharma Laboratory Equipment()
- Listing No
- 1219555
- Year
- 2007
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 202x400 No: 1209-06-07 Motor: 2,5 kW, 400 volt, 4000 Nm Roll compactor: Two roll mill Roll width: 450 mm Roll diameter: 202 mm Roll speed: 0,3-4 rpm Rolls can be adjusted: check With hydraulic unit: check Material: Stainless steel Mounted on frame: check ( steel wheels) Total height: 1,96 m CE: check Floorspace: 2,25x1,34 m Extra Specifications: Work width 405 mm. walz tempering, +5 till +50°C. Fast hub back walz 80 mm, fine hub 0.08-2.99 mm. pressure cap. 100 kN. Without 2-roll walzen merk: Collin General Main Features Specified Features - Roll compactor Information
About this machine

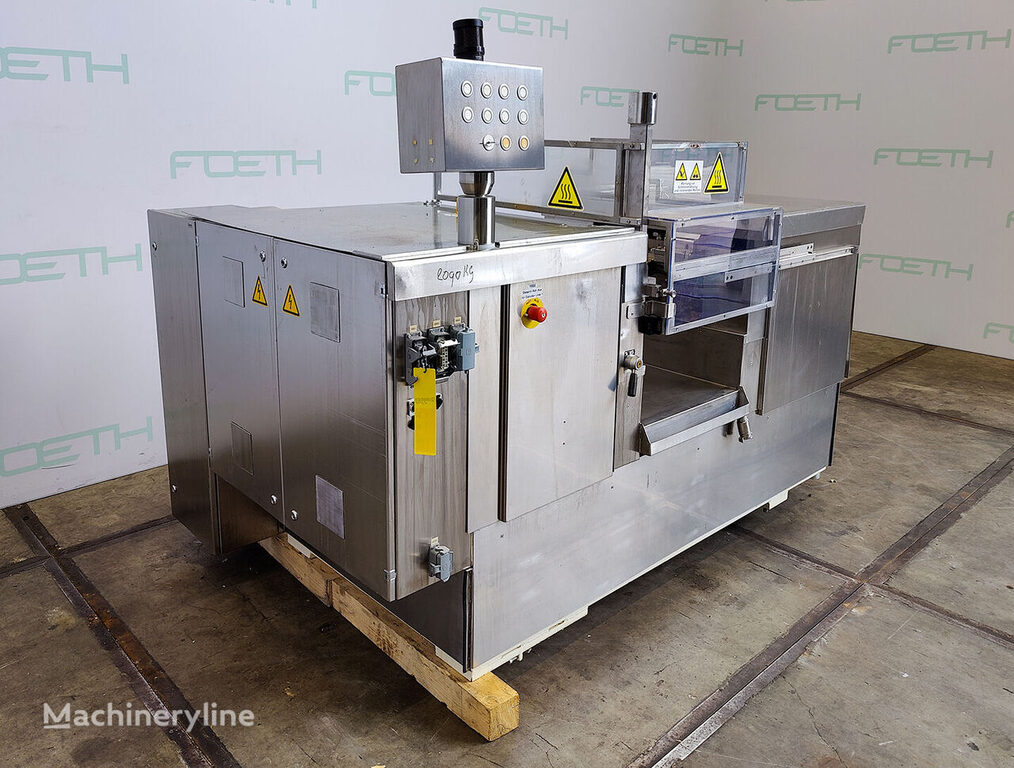

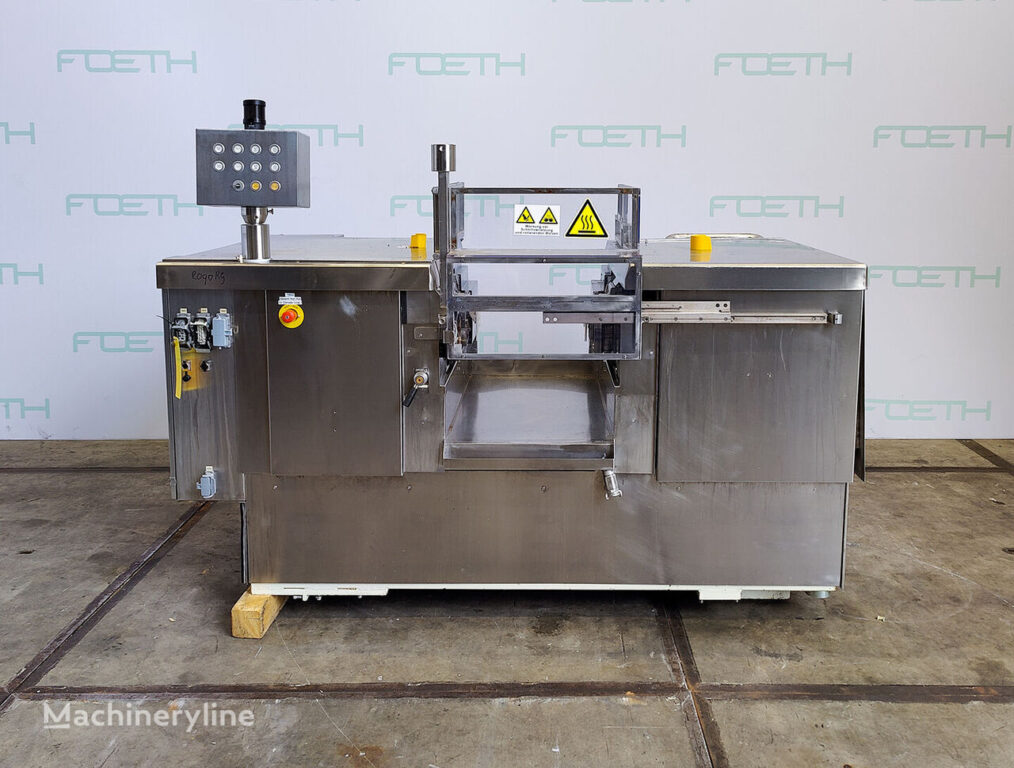

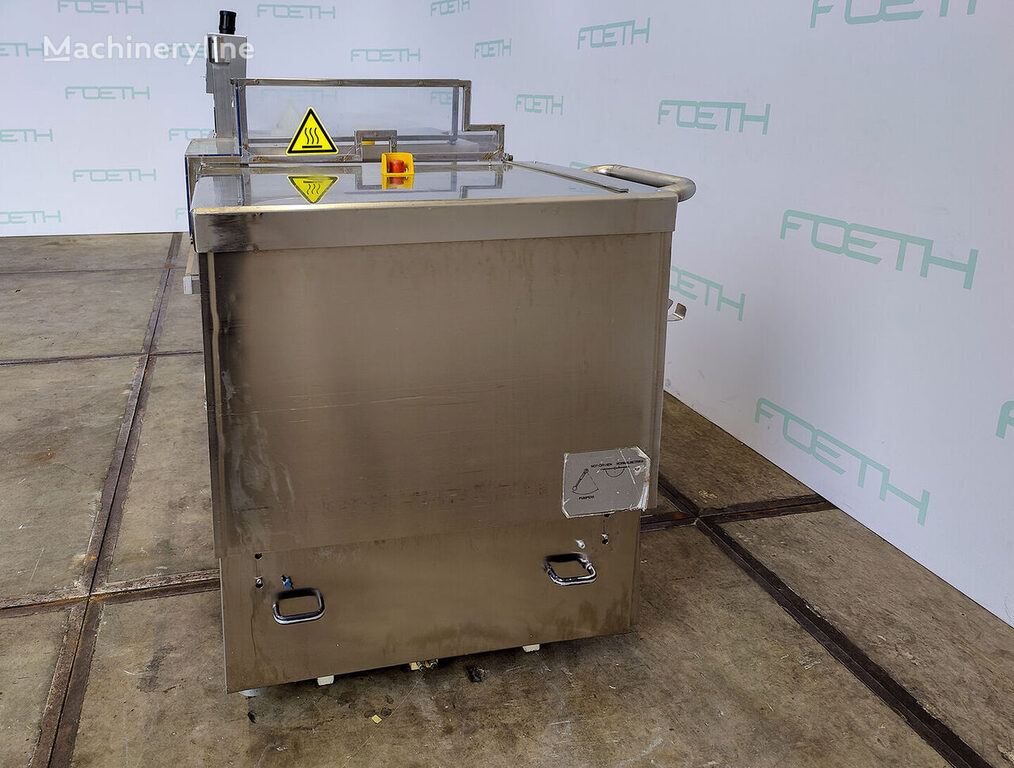

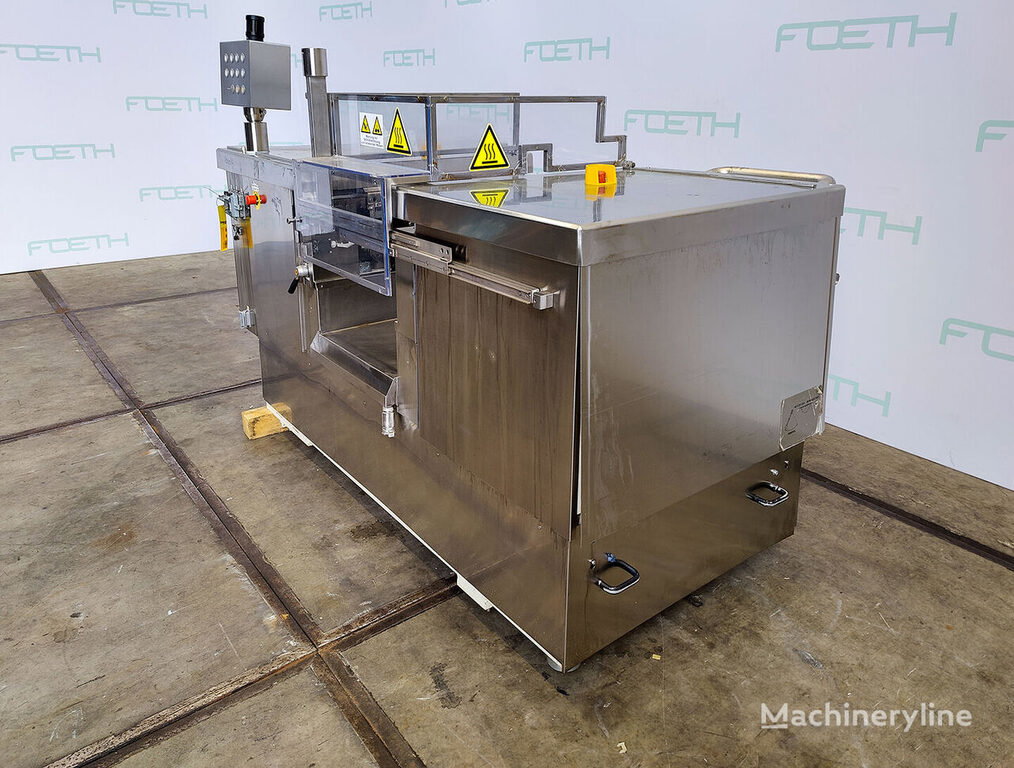

This Collin Calander Pharma Laboratory Equipment is a laboratory roll mill — also known as a two-roll mill — used for compacting, calendering, and processing materials in laboratory-scale pharmaceutical and related research applications. Collin is a well-established German manufacturer of laboratory and pilot-scale processing equipment, widely recognised for roll mills, calenders, and extruders serving the pharmaceutical, plastics, and materials science industries.
This 2007 machine carries the type designation 202x400 and serial number . It is built around two rolls, each 202 mm in diameter and 450 mm wide, with a working width of 405 mm. Roll speed is variable, ranging from 0.3 to 4 rpm, and the rolls are adjustable. The fine gap setting runs from 0.08 to 2.99 mm, while the fast return stroke of the rear roll is 80 mm — a practical feature for rapid opening of the nip. The unit delivers a maximum pressing force of 100 kN.
The rolls are equipped with tempering capability across a range of +5 °C to +50 °C, allowing temperature-controlled processing of heat-sensitive or viscosity-dependent materials. Drive power is provided by a 2.5 kW motor running on 400 V, with a rated torque of 4,000 Nm. A hydraulic unit is included as part of the assembly.
The machine is constructed in stainless steel, making it suitable for pharmaceutical and clean-room adjacent environments, and is mounted on a steel-wheeled frame for ease of repositioning. Overall height is 1.96 m and the floor footprint measures 2.25 × 1.34 m. The unit carries CE certification. It is offered used, located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
