Dalmec PMC Gantry Crane()
- Listing No
- 1030144
- Year
- Manufacturer
- Dalmec
- Model
- PMC
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Maximum lifting capacity: 180 kg Manipulator weight: 829 kg Maximum radius: 2700 mm Useful radius: 2350 mm Vertical course: 1500 mm Main axis rotation: ∞360° Intershaft rotation: 300° Rotational axis gripping system: ∞360°
About this machine
This Dalmec PMC Gantry Crane is a used industrial gantry crane — sometimes referred to as a bridge crane or overhead crane — designed for the controlled lifting, positioning, and manipulation of loads in manufacturing and assembly environments. Dalmec is a well-established Italian manufacturer specialising in industrial manipulators and material handling equipment, serving sectors such as automotive, aerospace, glass, and general manufacturing where precise, ergonomic load handling is essential.

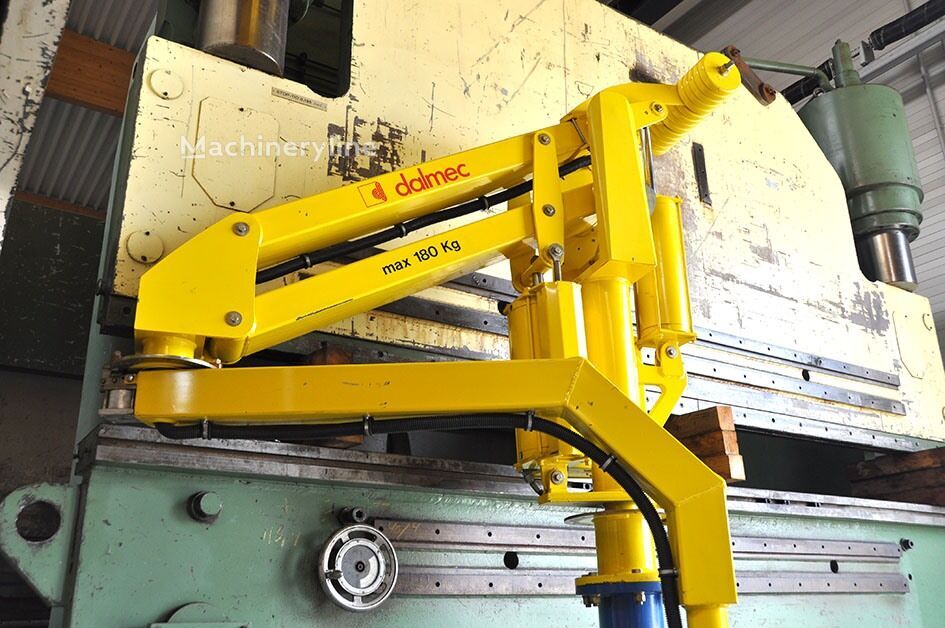

This unit is located in Belgium and offers a maximum lifting capacity of 180 kg, making it suitable for handling mid-weight components that require careful, repeatable positioning. The manipulator itself weighs 829 kg, reflecting the robust construction typical of Dalmec's industrial handling systems.
The reach and movement capabilities of this crane are well-specified. It provides a maximum radius of 2,700 mm and a useful working radius of 2,350 mm, giving operators a generous horizontal envelope in which to manoeuvre loads. The vertical course — the range of up-and-down travel — is 1,500 mm, allowing loads to be raised and lowered over a meaningful distance within the working cell.

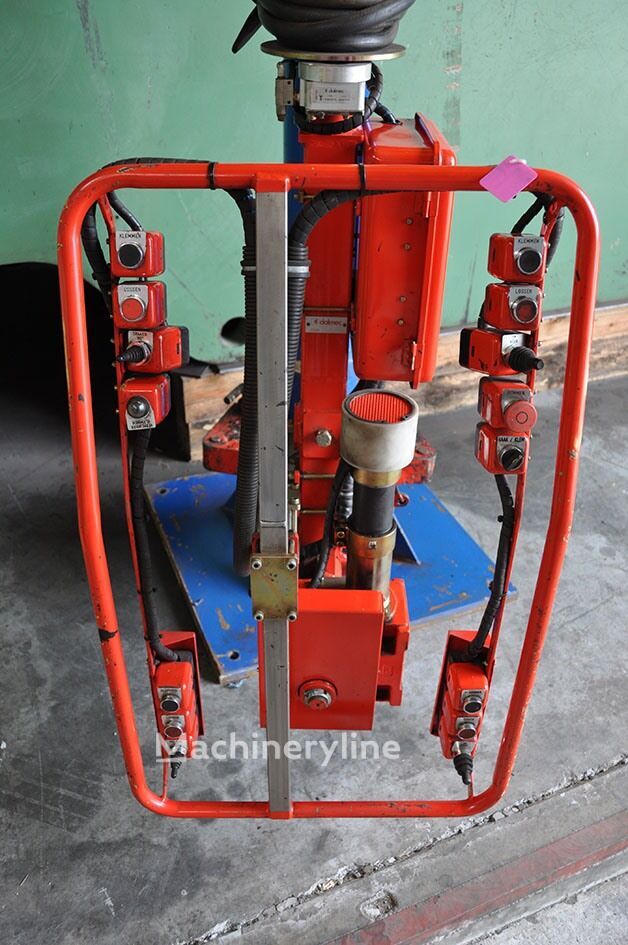

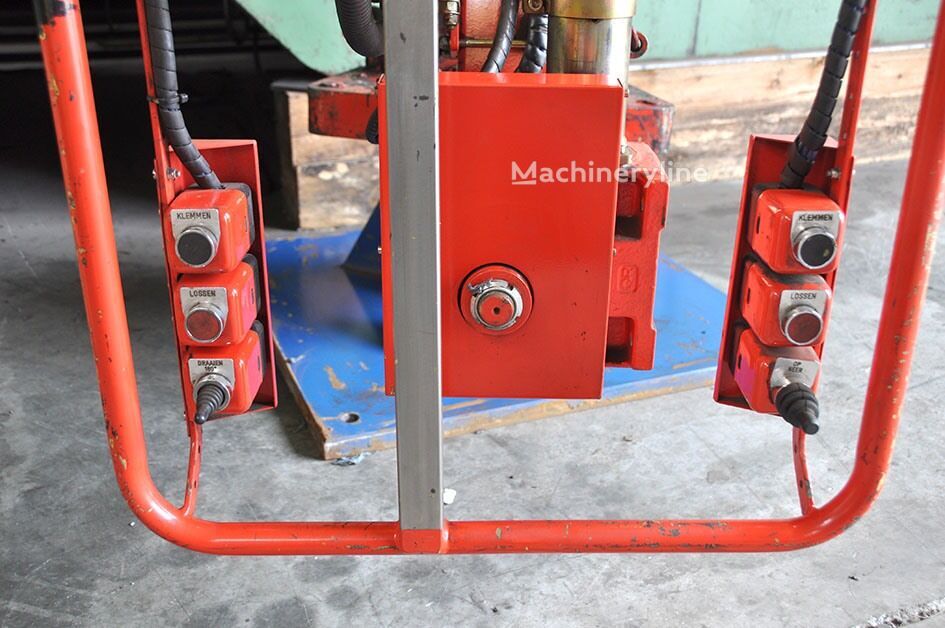

The rotational articulation of this machine is particularly comprehensive. The main axis offers continuous 360-degree rotation with no mechanical stop, allowing the arm to swing freely through any horizontal orientation. The intershaft rotation extends to 300 degrees, providing substantial angular flexibility at the intermediate joint. The gripping system at the end of the arm also features continuous 360-degree rotation, meaning the tool or gripper can be oriented freely around its own axis to suit the exact presentation angle required by the workpiece. Together, these three axes of rotation give the operator a high degree of freedom when positioning and orienting loads precisely.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
