1997 - Demag Ergotech Sytem Injection Moulding
()- Listing No
- 1151769
- Year
- 1997
- Manufacturer
- Demag
- Model
- Ergotech Sytem
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

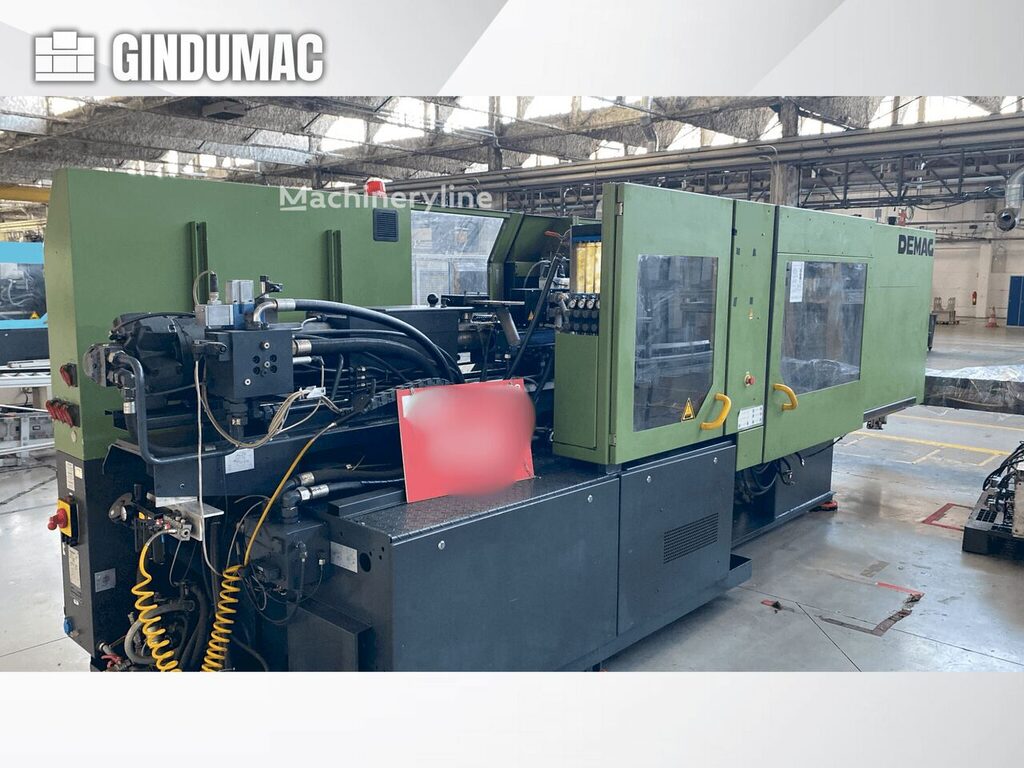

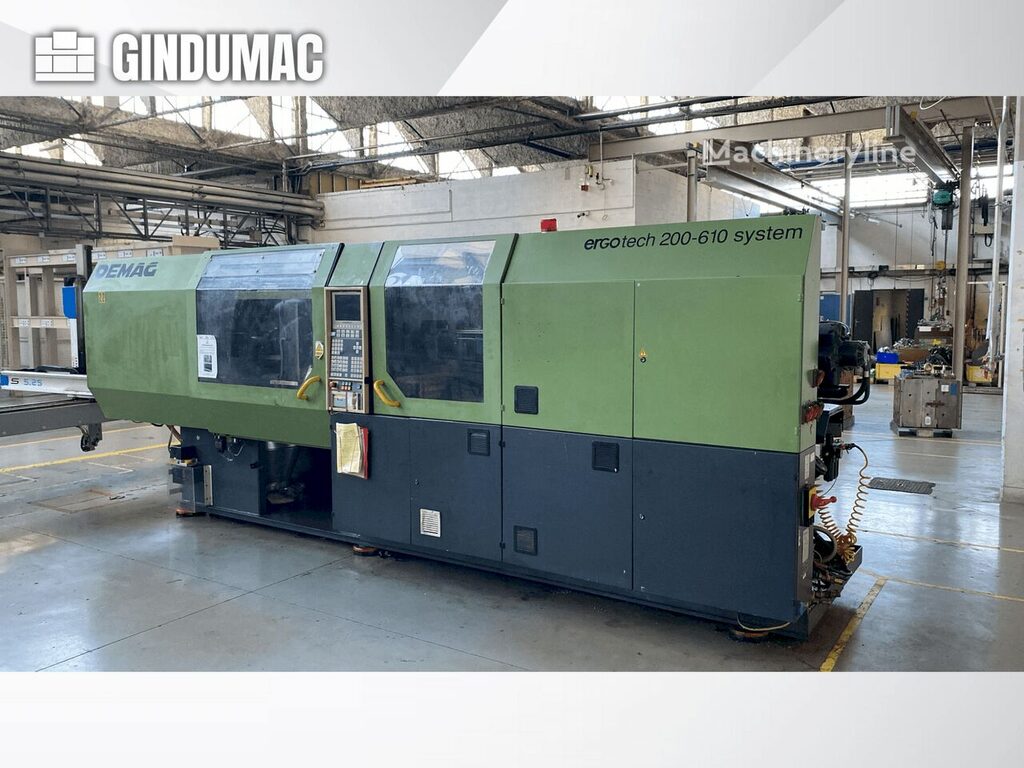

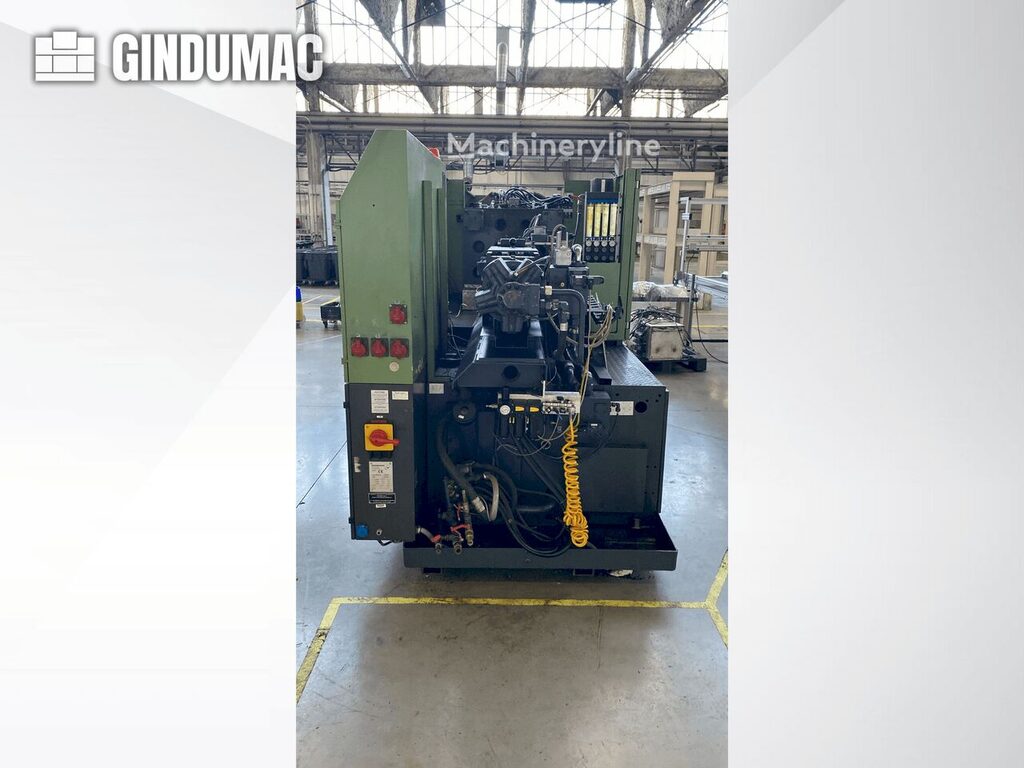

This DEMAG Ergotech System 200-610 hydraulic injection moulding machine was manufactured in 1997. It's a robust option for efficient plastic processing tasks. Contact us for more information. Location: FR Screw Diameter: 40 mm Maximum mold weight: 2500 kg Mold weight on moving platen: 1700 kg Oil reservoir volume: 650 liters Pump power: 30 kw Heater power: 13 kw Mold size: 230 - 500 mm Ejection rod length: 230 mm Fixed centering plate diameter: 160 mm Movable centering plate diameter: 160 mm Platen tapping diameter: m20 Number of cores: 1 Press type: nc4 Horizontal tie bar spacing: 560 mm Vertical tie bar spacing: 560 mm Maximum platen opening: 1235 mm Additional equipment SEPRO ROBOT INCLUDED Machine Benefits Qualitative Machine Benefits Heater power: 13 kw Technical Machine Benefits Extra Information Machine still under power
About this machine
This Demag Ergotech Sytem is a used hydraulic injection molding machine — sometimes referred to as a plastic injection press — manufactured in 1997 and currently located in Germany. Injection molding machines are used to produce plastic components by injecting molten material into a mold under high pressure, and they are fundamental to manufacturing across the automotive, consumer goods, packaging, and electronics industries. Demag is a well-established name in plastics processing equipment, with a long history of producing hydraulic and electric injection molding machines known for their reliability in high-volume production environments.
This machine is equipped with a 40 mm screw diameter and operates with a pump power of 30 kW and a heater power of 13 kW. The oil reservoir has a volume of 650 litres, reflecting the hydraulic nature of the press. The platen configuration features a horizontal tie bar spacing of 560 mm and a vertical tie bar spacing of 560 mm, with a maximum platen opening of 1,235 mm. Mold sizes between 230 mm and 500 mm are accommodated, and the ejection rod length is 230 mm.
Both the fixed and movable centering plate diameters measure 160 mm, and the platen tapping diameter is M20. The machine supports a maximum total mold weight of 2,500 kg, with 1,700 kg permitted on the moving platen alone. One core is fitted, and the press type is designated NC4. A Sepro robot is included with the machine.
The machine is reported to be still under power, indicating it remains in operational condition at its current location.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
