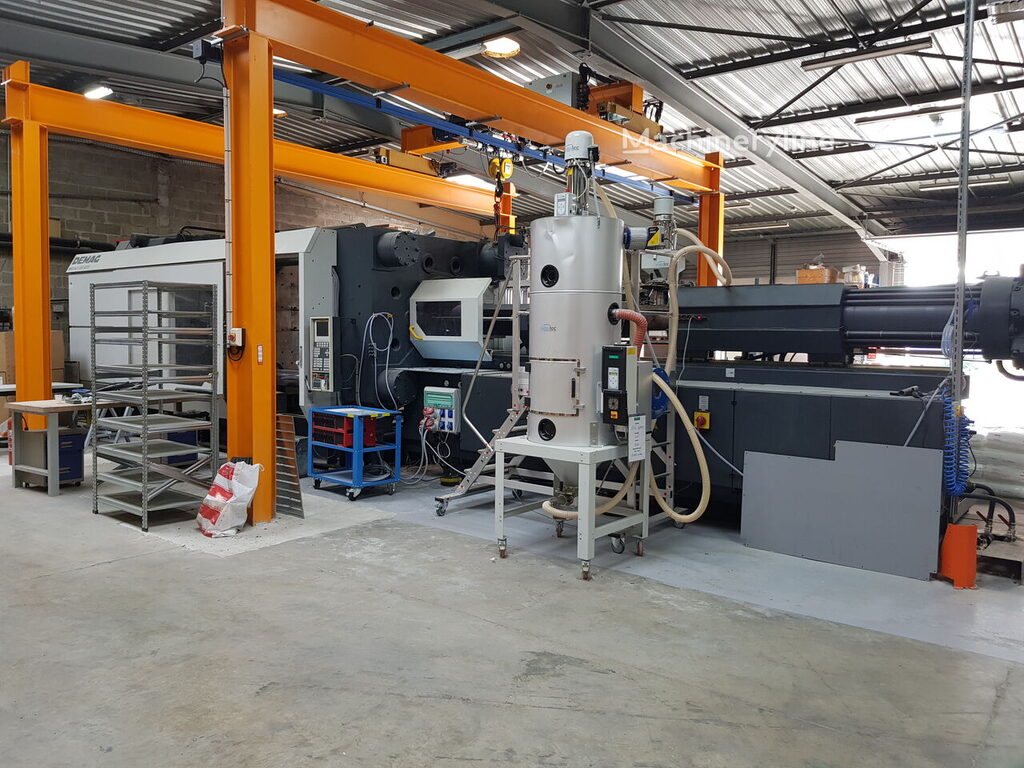

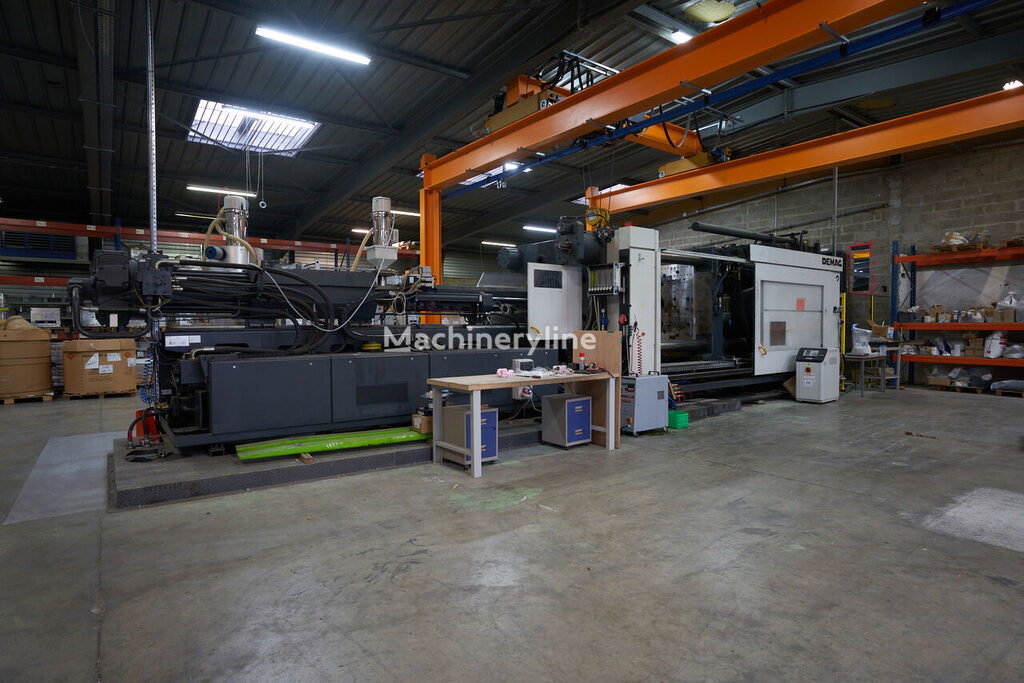

1997 - Demag System 1300 80 Injection Moulding
()- Listing No
- 1152849
- Year
- 1997
- Manufacturer
- Demag
- Model
- System 1300 80
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Controls de commande : NC4S Nombre de noyaux / Core pulling : 4 Interface robot : oui /yes 1 Colonne rectractable Diamètre de vis / Screw diameter mm : 110 Volume injectable/ Shot volume cm3 : 4370 Poids injectable/ Shot Weight Gr : 3976 Pression d’injection / Injection Pressure bar : 1815 Passage entre colonne / Bettween tie bar mm : 1500 X 1200 Dimensions des Plateaux /Platen sizes mm : 2150 X 1880 Course d’ouverture / Opening Stroke mm : 1500 Epaisseur moule / Mould Height Mini-maxi mm : 700 -1400
About this machine
The Demag System 1300 80 is a used injection molding machine — sometimes referred to as an injection moulding press — designed to produce plastic components by injecting molten material into a closed mould under high pressure. Injection molding machines of this type are central to high-volume plastics manufacturing across the automotive, consumer goods, packaging, and industrial components sectors. Demag is a well-established name in plastics processing machinery, with a long history of producing robust, precision-engineered injection molding equipment trusted in industrial production environments worldwide.
This machine is equipped with an NC4S control system, providing the operator interface and process management for the injection cycle. The screw diameter is 110 mm, supporting a shot volume of 4,370 cm³ and a shot weight of 3,976 grams — figures that indicate a machine suited to producing large or complex moulded parts. Injection pressure is rated at 1,815 bar, delivering the force necessary for demanding moulding applications.
The clamping unit offers a tie-bar clearance of 1,500 × 1,200 mm, with platen dimensions of 2,150 × 1,880 mm, accommodating large moulds. The opening stroke is 1,500 mm, and mould height (the distance between platens) is adjustable between 700 mm and 1,400 mm, giving flexibility across a range of tooling sizes. One tie-bar is retractable, which further increases accessibility for mounting large or irregularly shaped moulds.
The machine supports four core pulls, enabling complex mould configurations with moving cores. A robot interface is present, allowing integration with automated part-removal or handling systems. This machine is located in France and is offered in used condition, manufactured in 1997.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
