2017 - DrM TSD Laboratory Pressure Filter Laboratory Equipment()
- Listing No
- 1219921
- Year
- 2017
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld CE: check Type: TSD 316 Material: Stainless steel 1.4404 (316L) Filter: check (Laboratory Filter) Filter surface: 0,012 m² No: 1002561 Floor space: 0,9 x 0,5 m Total height: 1,65 m Extra Specifications: Technical specifications Filtration area: 0.012 m² Filling volume: 0.95 L Max. operating pressure: –1 / +20 barg Max. operating temperature: 250 °C Filter element: Stainless steel candle Gasket materials: FKM / PTFE / FEP merk: DrM General Main Features Specified Features - Miscellaneous filter Information
About this machine

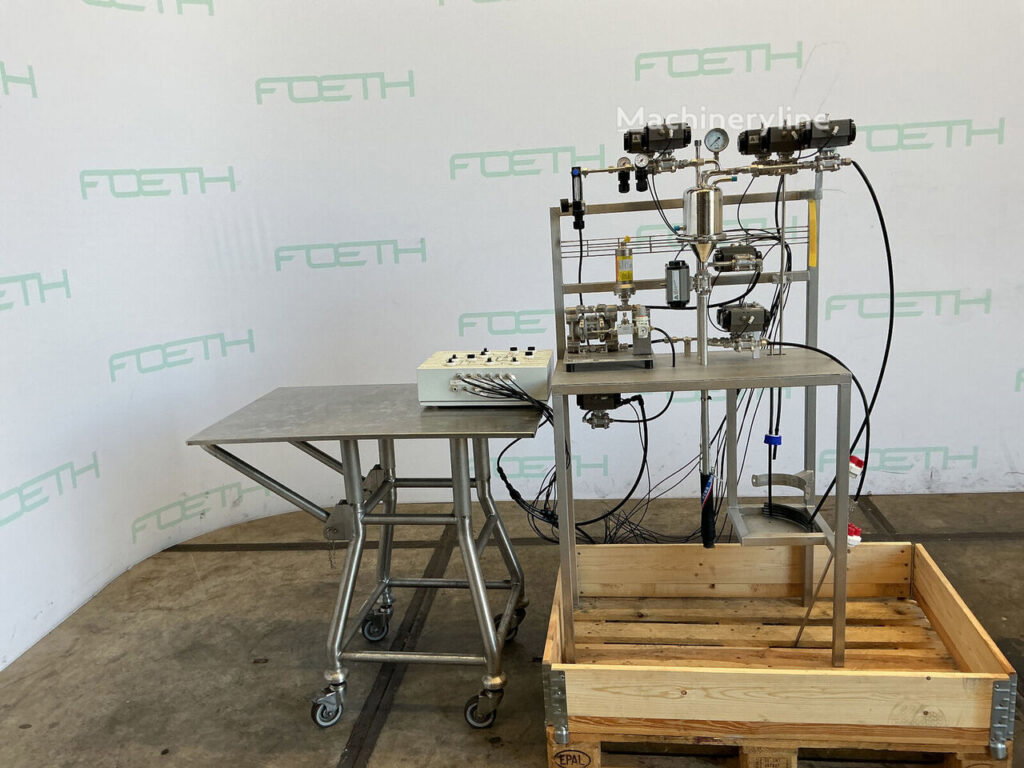

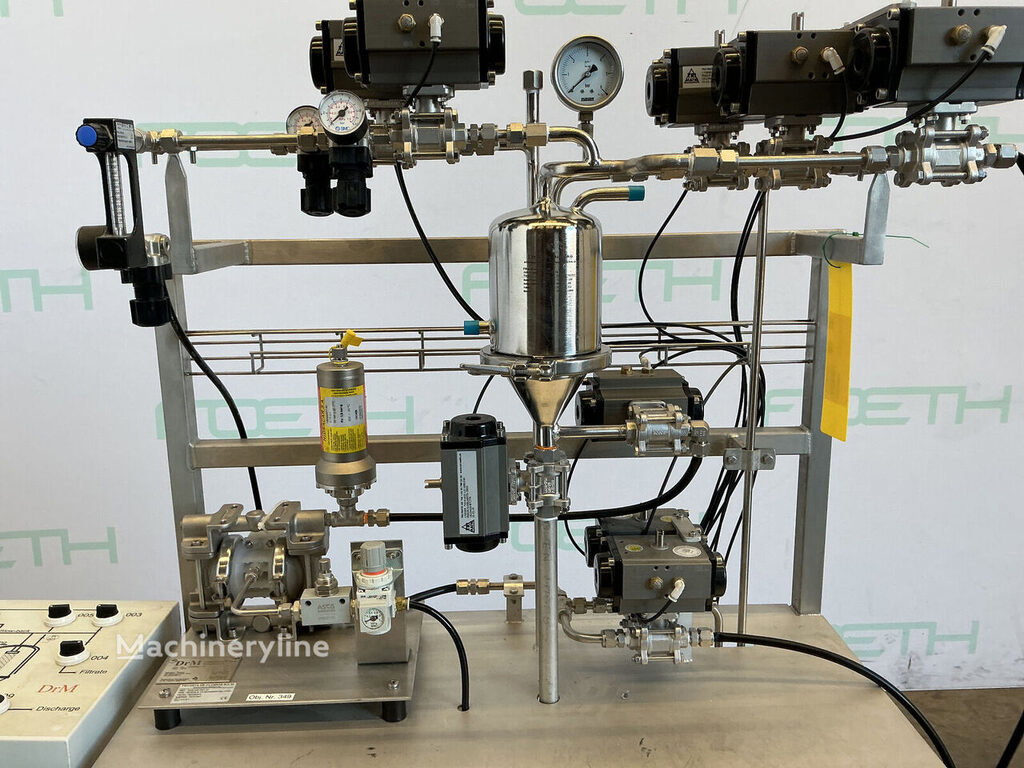

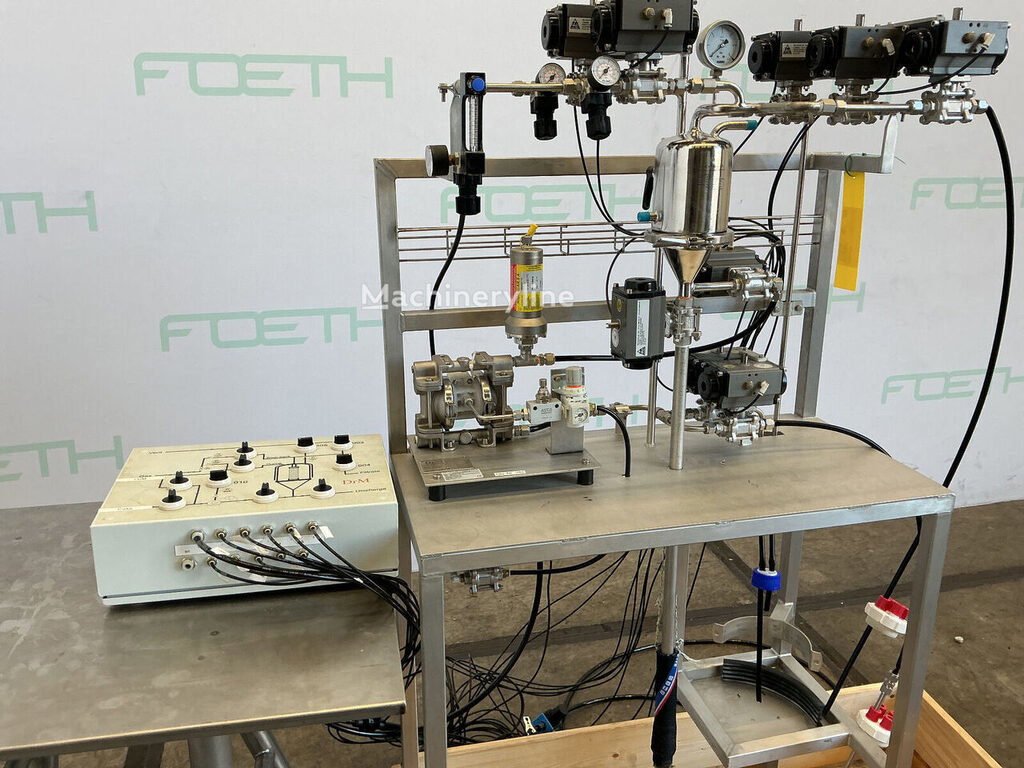

This DrM TSD Laboratory Pressure Filter is a laboratory-grade pressure filtration unit, sometimes referred to as a pressure leaf filter or laboratory filter press, used to separate solids from liquids under controlled pressure conditions in research, development, and small-scale process testing environments. DrM is a specialist Swiss filtration technology company known for designing and manufacturing precision filtration and drying equipment for the pharmaceutical, chemical, and fine-chemical industries.

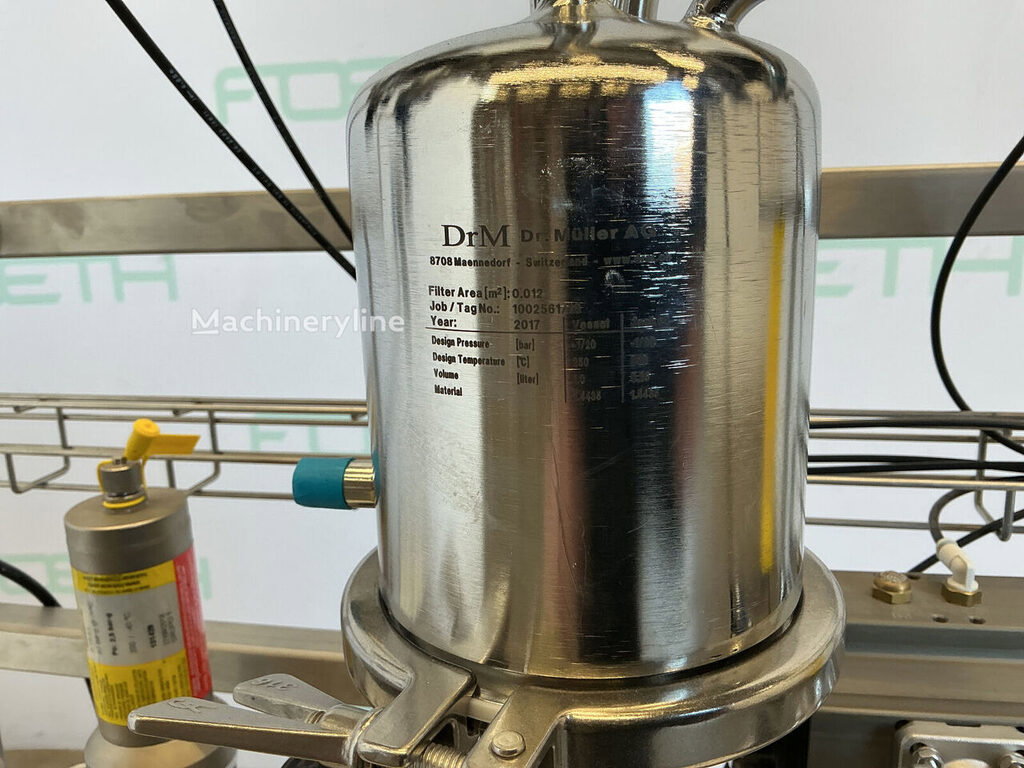

This used example, manufactured in 2017 and located in Barneveld, Netherlands, is CE-marked and built to a high standard of material quality. The unit is constructed entirely from stainless steel grade L), offering excellent corrosion resistance suitable for aggressive chemical environments. The filter element is a stainless steel candle type, and the unit carries serial number 1002561.
The filter offers a filtration area of 0.012 m² and a filling volume of 0.95 litres, making it well suited to small-scale laboratory work where minimal material quantities are available. The unit is rated for a maximum operating pressure of −1 to +20 barg, supporting both vacuum and positive pressure filtration applications, and can handle a maximum operating temperature of 250 °C, extending its compatibility to high-temperature process streams and solvents.
Gasket materials available on this unit are FKM, PTFE, and FEP, providing broad chemical compatibility across a wide range of solvents, acids, and process media commonly encountered in laboratory filtration. The machine has a compact floor footprint of 0.9 × 0.5 metres and a total height of 1.65 metres, making it practical for bench-adjacent or dedicated laboratory floor installation.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
