About this machine

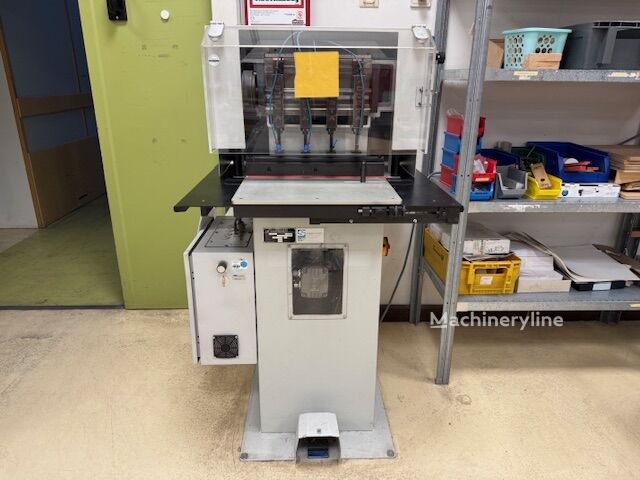

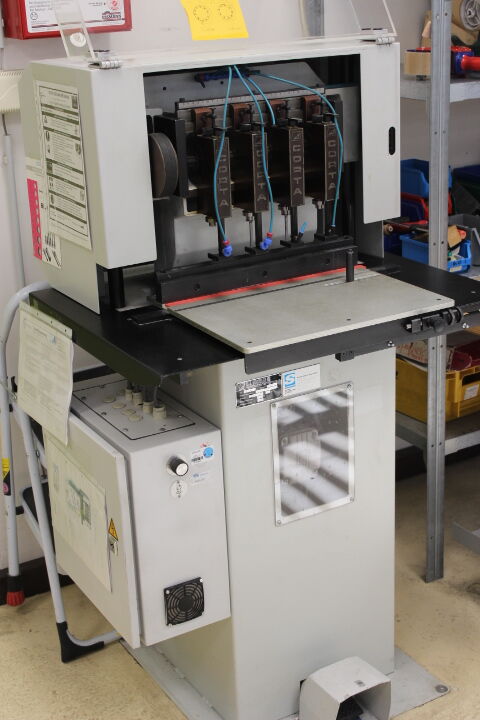

The Dürselen Corta PB 04 is a paper drill — sometimes referred to as a book drill or stack drill — a spindle drilling machine designed to punch clean, precise holes through stacked paper, books, documents, and other bound materials. Dürselen is a German manufacturer with a long-standing reputation for producing high-quality paper-drilling and finishing equipment used in print shops, binderies, and document-processing operations worldwide.

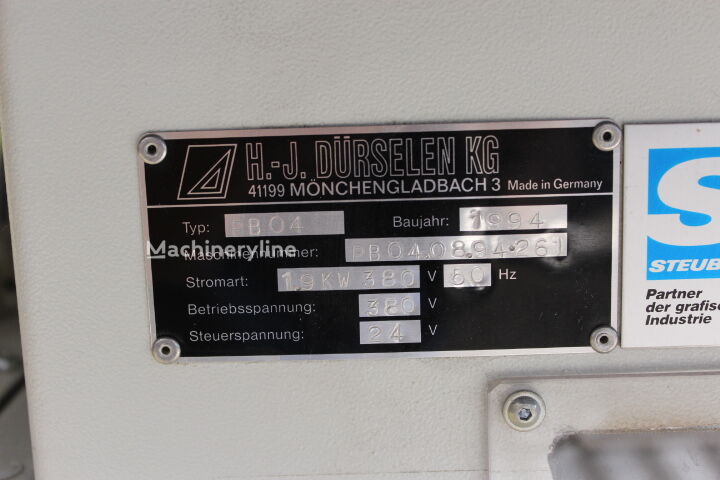

This 1994 machine, bearing serial number PB, has had its motor replaced in 2015, giving the drive system considerably more recent service life than the age of the chassis alone would suggest. It is available for immediate collection from its current location in Germany.

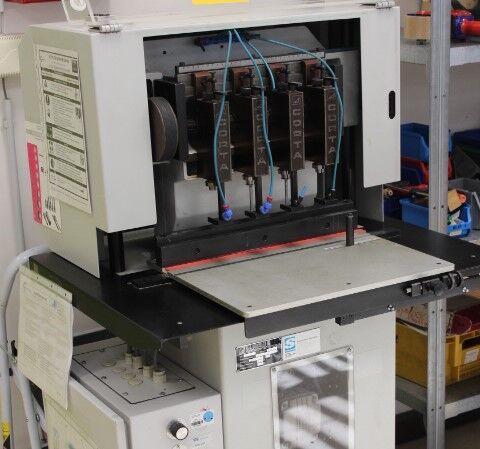

The machine comes configured with four drill heads and can be upgraded to accommodate up to six, providing flexibility for operations requiring a greater number of simultaneous holes. The drill diameter range runs from 3 mm to 14 mm, covering the full spectrum of standard hole sizes used in binding and filing applications. Hole spacing between drill heads is adjustable from 31.7 mm to 293 mm in standard configuration, and the addition of the sliding table extends that range dramatically, allowing spacing from just 1 mm up to 420 mm. The sliding table measures 450 mm in width, with 300 mm of table surface in front of the drill heads. Insertion depth behind the drills is 25 mm, and the maximum stacking height — the depth of material that can be drilled in a single pass — is 50 mm.

Power requirements are 230/400 V, three-phase, 50 Hz, with a rated consumption of 1.87 kW. The machine has a compact footprint of 770 mm wide by 760 mm deep by 1,350 mm tall and weighs 275 kg net, making it a substantial but floor-manageable unit suited to a dedicated workstation in a production environment.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
