Extec S5 Quarry Screener()
- Listing No
- 213006
- Year
- Manufacturer
- Extec
- Model
- S5
- Condition
- Used
- Location
- Mexico
- Price
- $92,500
- Description
-
CON MOTOR DEUTZ BF4M 2012, DE 100.4 HP, TOLVA DE 10X6 FT, BANDA TRANSPORTADORA DE TOLVA DE 100 PULGADAS DE LARGO X 48 PULGADAS DE ANCHO, BANDA SUPERIOR DE 32 FT DE LARGO, CRIBA DE 126 PULGADAS DE LARGO X 56 PULGADAS DE ANCHO, BANDA TRANSPORTADORA INFERIOR DE 20 FT DE LARGO X 46 PULGADAS DE ANCHO, BRAZOS LATERALES DE 25 FT C/U CON BANDA TRANSPORTADORA DE 31 PULGADAS DE ANCHO, PESO 73, 853 LBS
About this machine
The Extec S5 Quarry Screener is a used screener — sometimes referred to as a screening plant — designed to separate and sort bulk materials such as aggregates, crushed stone, sand, and gravel by particle size. Extec is a well-known manufacturer of mobile crushing and screening equipment, producing heavy-duty machines built for demanding quarry, mining, demolition, and recycling applications.

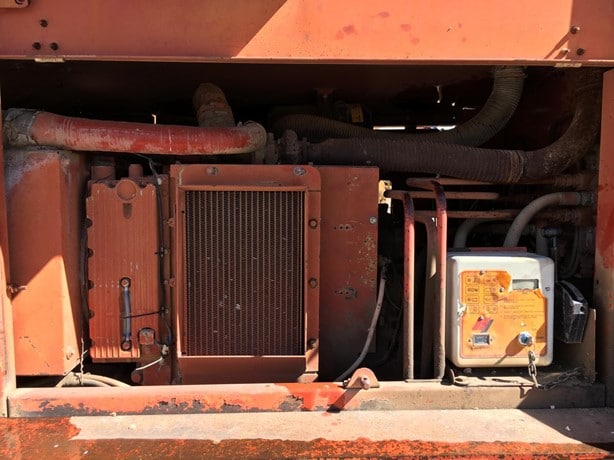

This unit is powered by a Deutz BF4M 2012 diesel engine producing 100.4 horsepower, providing reliable, direct-injection power suited to continuous screening operations. The hopper measures 10 by 6 feet, providing a substantial receiving area for raw feed material. Material is carried from the hopper by a feed conveyor belt measuring 100 inches long by 48 inches wide, delivering a wide, even flow onto the screening deck.

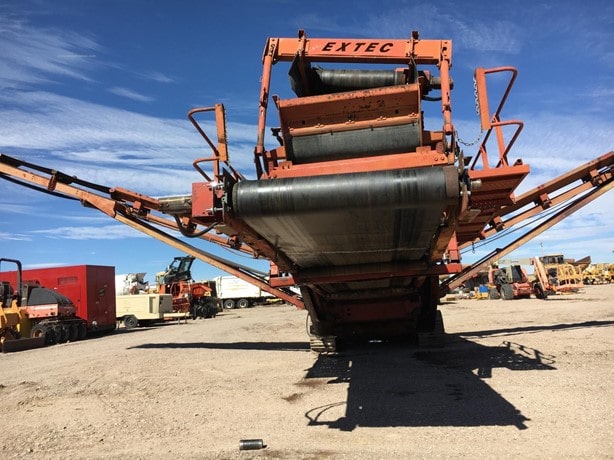

The screening deck itself measures 126 inches long by 56 inches wide, offering a generous working area for effective material separation. An upper conveyor belt runs 32 feet in length to discharge oversized material away from the machine. The underscreen fines are handled by a lower conveyor belt measuring 20 feet long by 46 inches wide. Two side discharge arms, each 25 feet in length, are fitted with conveyor belts 31 inches wide, allowing the machine to stockpile multiple separated fractions simultaneously without the need for repositioning.
The machine has a total operating weight of 73,853 pounds. It is currently located in Mexico and is offered for sale at $92,500.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
