1985 - Fette Perfecta 1000 Laboratory Equipment()
- Listing No
- 1219449
- Year
- 1985
- Manufacturer
- Fette
- Model
- Perfecta 1000
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-

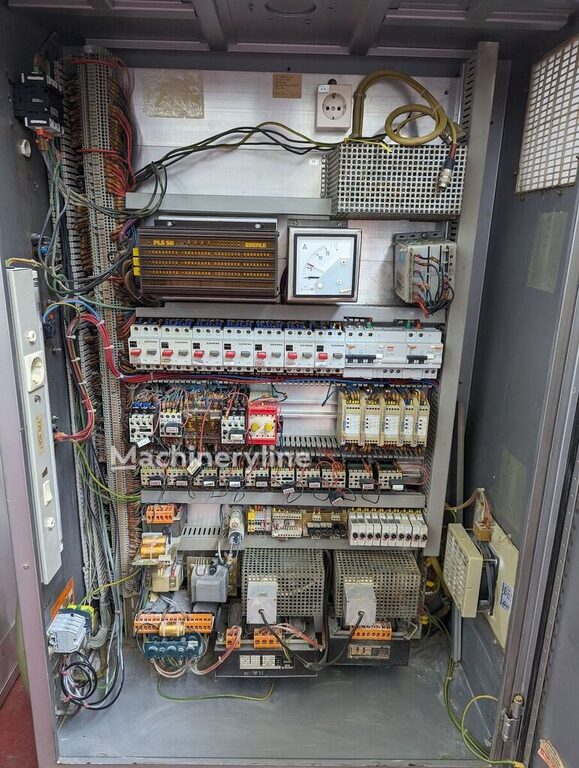

Perfecta 1000 rotary tablet press with electrical cabinet Manufacturer: Fette Model: Perfecta 1000 / P1000 Year : 1985 Number of pressing stations: 22 Maximum compression force: 80 kN Maximum pre-compression force: 20 kN Maximum tablet diameter: 25 mm Maximum tablet thickness: 10.5 mm Maximum hourly throughput: 72,600 tablets Maximum filling height: 22 mm Pitch diameter: 315 mm Die plate speed: 15-55 rpm Punch shape: EU 1 Die diameter: 38.1 mm Die height: 23.8 mm Punch body diameter: 25.4 mm Upper punch length: 133.6 mm Length of lower punches: 133.6 mm Depth of punch insertion into die: 2 – 6 mm Machine footprint: 1030 x 1090 mm Net weight: 1800 kg Documentation available
About this machine

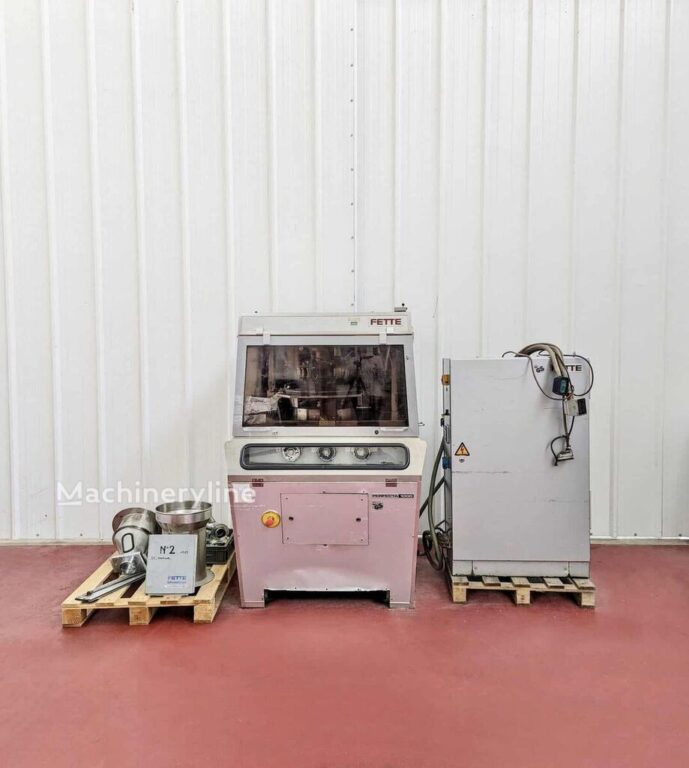

This Fette Perfecta 1000 is a used rotary tablet press — sometimes referred to as a tablet compression machine — designed to form powdered or granulated materials into uniform tablets at high throughput. Fette is a well-established German manufacturer with a long heritage in tablet compression technology, supplying equipment to the pharmaceutical, nutraceutical, and chemical industries. This particular machine dates from 1985 and is located in France, offered in used condition and sold together with its electrical cabinet.

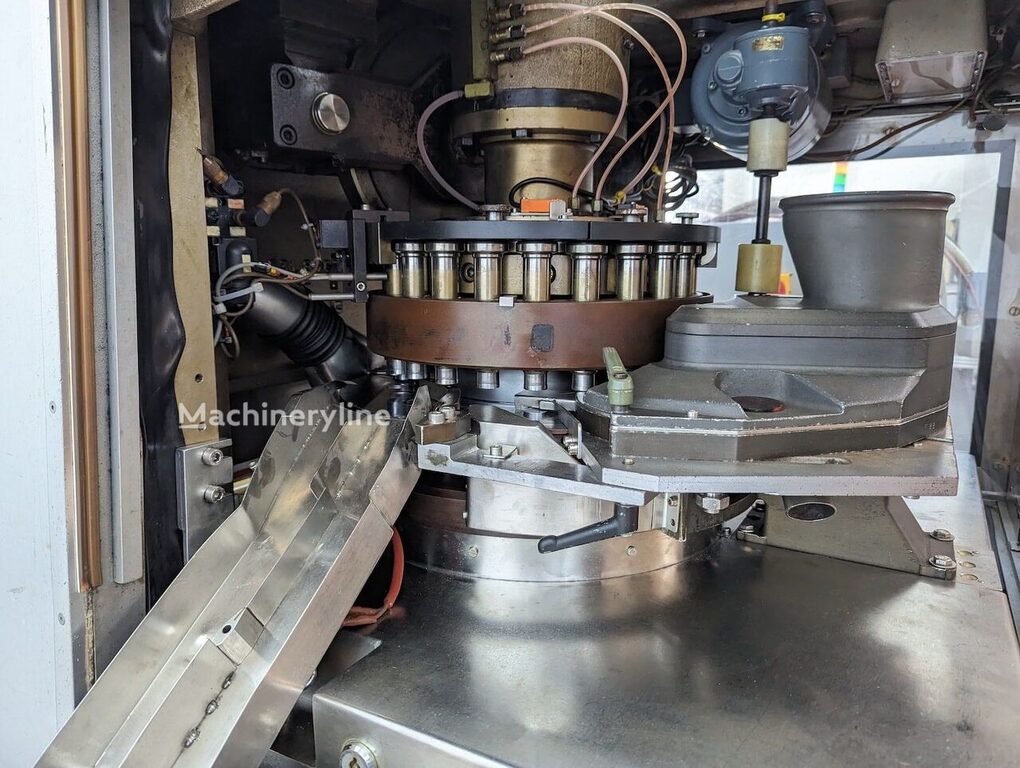

The press is configured with 22 pressing stations arranged on a die plate with a pitch diameter of 315 mm. The die plate operates across a speed range of 15 to 55 rpm, enabling a maximum hourly output of up to 72,600 tablets. Compression is handled at two stages: a maximum pre-compression force of 20 kN and a maximum main compression force of 80 kN, allowing the machine to handle a wide range of formulations and compaction requirements.
Tooling follows the EU 1 punch shape standard. Dies measure 38.1 mm in diameter and 23.8 mm in height, while both upper and lower punches share a body diameter of 25.4 mm and a length of 133.6 mm. The depth of punch insertion into the die ranges from 2 to 6 mm. Maximum tablet diameter is 25 mm, maximum tablet thickness is 10.5 mm, and maximum filling height reaches 22 mm, giving the machine considerable versatility across different tablet sizes and formats.
The machine has a footprint of 1,030 × 1,090 mm and a net weight of 1,800 kg. Documentation is available for this unit.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
