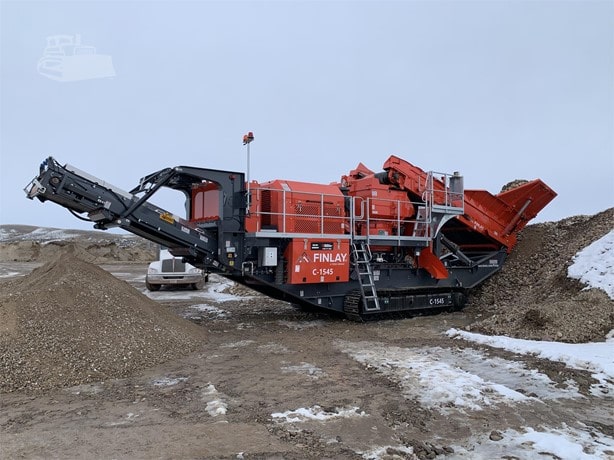

2022 - Finlay C-1545 Quarry Crusher()
- Listing No
- 271564
- Year
- 2022
- Manufacturer
- Finlay
- Model
- Condition
- Used
- Location
- USA
- Price
- $768,000
- Description
-
Hopper capacity: 6m³ (7.8yd³) Feed height: 3.0m (9’ 10”) Feed height with optional hopper extensions: 3.22m (10’ 7”) Hopper Width at rear: 2.27m (7’ 5”) Hopper Width at rear with optional hopper extensions: 4.12m (13’ 6”) Terex 1150mm (45”) cone chamber Variable speed control settings for producing a quality aggregate Drive arrangement: Direct drive via clutch and v-belts u ‘On the fly’ hydraulically adjustable closed side setting with monitoring system Mantle/concave wear indicator Belt Width: 1.0m (40”) Belt Spec: Plain Discharge Height: 3.26m (10’ 8”)
About this machine
The Finlay C-1545 is a used quarry crusher — sometimes referred to as a cone crusher or rock crusher — designed to reduce large, hard rock and quarried stone into consistent, sized aggregate material. Finlay is a well-established manufacturer of mobile crushing, screening, and conveying equipment, serving the quarrying, mining, construction, and recycling industries worldwide.
This 2022 machine is built around a Terex 1150 mm (45-inch) cone chamber, which forms the core of the crushing circuit. The cone's closed side setting can be adjusted hydraulically on the fly, meaning the output gradation can be changed while the machine is in operation without stopping production. A built-in monitoring system accompanies this adjustment capability, and a mantle and concave wear indicator allows operators to track liner condition and plan maintenance proactively. The drive arrangement is direct drive via clutch and V-belts, and variable speed control settings are available to fine-tune performance and help produce a quality, well-graded aggregate.
The feed system is designed to accept high-volume material efficiently. The hopper has a capacity of 6 m³ (7.8 yd³), with a feed height of 3.0 m (9 ft 10 in) and a rear hopper width of 2.27 m (7 ft 5 in). Optional hopper extensions raise the feed height to 3.22 m (10 ft 7 in) and widen the rear of the hopper to 4.12 m (13 ft 6 in), significantly increasing the effective opening for excavator or loader feeding.
Crushed material is discharged via a 1.0 m (40-inch) wide plain belt conveyor with a discharge height of 3.26 m (10 ft 8 in), allowing material to stockpile freely beneath the machine. This unit is located in California, USA, and is offered at $768,000.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
