2022 - Finlay J-1160 Quarry Crusher()
- Listing No
- 271612
- Year
- 2022
- Manufacturer
- Finlay
- Model
- J-1160
- Condition
- Used
- Location
- USA
- Price
- $429,000
- Description
-
Hopper capacity: 5m³ (6.5yd³) Feed height with standard hopper: 3.4m (11’ 2”) Feed height with standard hopper and extensions: 3.7m (12’ 1”) Vibrating grizzly feeder (VGF) VGF Speed range: variable, 450-850 rpm Hopper extensions hydraulic folding and hydraulic locking Belt Width: 650mm (26”) Working Angle: 22° Hydraulically folds for transport Standard Discharge Height: 2.1m (6’ 10”) Stockpile capacity: 12m3 (15.7yds3) @ 40° Terex chamber single toggle jaw crusher Inlet width: 1000mm (40”) Inlet gape: 600mm (24”) Under jaw clearance: 540mm nominal Drive arrangement: Hydrostatic with full reverse crush capability Maximum Closed Side Settings (CSS): 145mm (5 45/64”) Minimum Closed Side Settings (CSS): 40mm (1 1/2”) Demolition and Recycling applications. 50mm (1 31/32”) quarry application Reverse action for clearing blockages Full hydraulic closed side setting adjust Shoe Width: 400mm (16”) Dual speed tracking with ‘soft start’ Gradeability: 30° T-Link telematics hardware and software along with free seven year data subscription are fitted and installed as standard.
About this machine

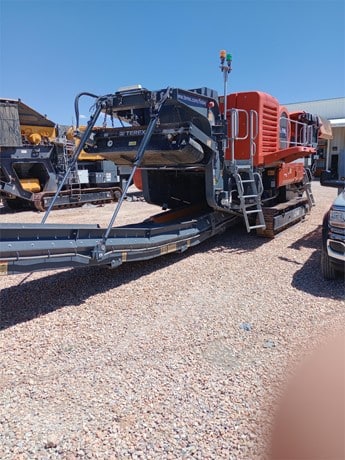

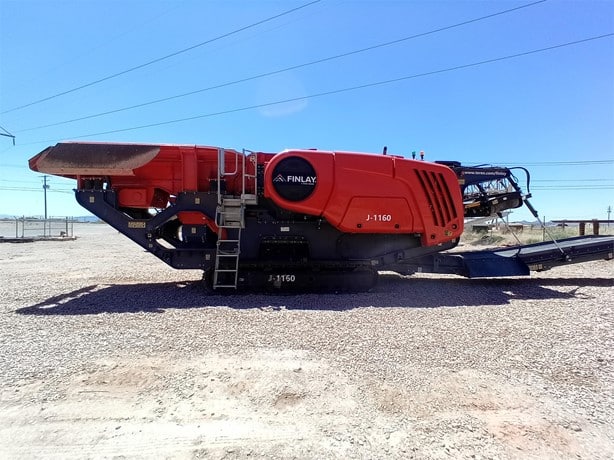

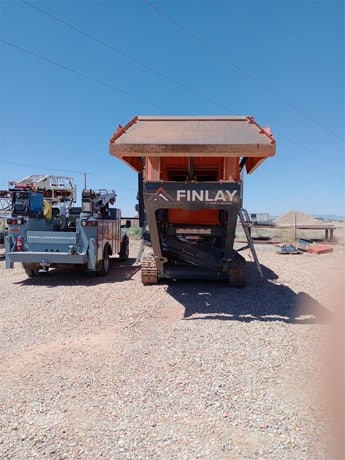

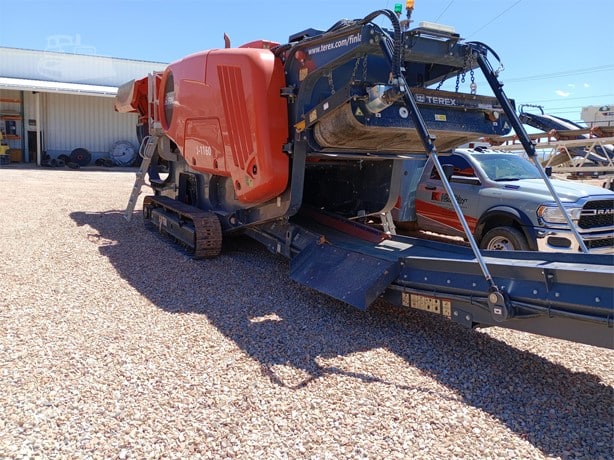

This Finlay J-1160 Quarry Crusher is a used crusher — sometimes referred to as a jaw crusher or rock crusher — built for primary reduction of hard rock, ore, and aggregate material in quarrying and related heavy processing applications. Finlay is a well-established manufacturer of mobile crushing, screening, and conveying equipment, serving the quarrying, mining, recycling, and construction industries worldwide.

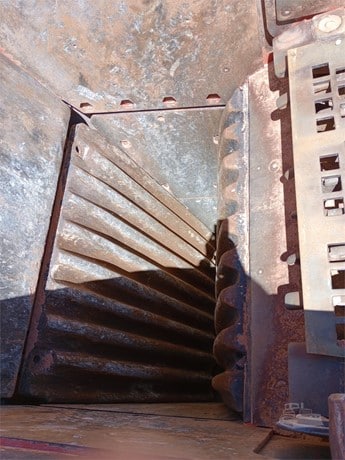

The machine is equipped with a Terex chamber single-toggle jaw crusher featuring an inlet width of 1,000 mm (40") and an inlet gape of 600 mm (24"), with a nominal under-jaw clearance of 540 mm. The closed side setting (CSS) is fully hydraulically adjustable, ranging from a minimum of 40 mm (1½") for demolition and recycling applications — or 50 mm (1 31⁄32") for quarry use — up to a maximum of 145 mm (5 45⁄64"). The drive arrangement is hydrostatic with full reverse crush capability, allowing the jaw to clear blockages without manual intervention, which reduces downtime during operation.
The vibrating grizzly feeder (VGF) runs at a variable speed range of 450 to 850 rpm and draws from a hopper with a capacity of 5 m³ (6.5 yd³). Feed height with the standard hopper is 3.4 m (11' 2"), rising to 3.7 m (12' 1") when hopper extensions are fitted. Those extensions are both hydraulically folding and hydraulically locking for convenience and security. The main discharge conveyor is 650 mm (26") wide, operates at a working angle of 22°, and hydraulically folds for transport. Standard discharge height is 2.1 m (6' 10"), with a stockpile capacity of 12 m³ (15.7 yd³) at a 40° pile angle.
Undercarriage tracking features dual-speed operation with a soft-start function, and the machine is rated to a gradeability of 30°, reflecting its suitability for site conditions typical of active quarry operations. The jaw shoe width is 400 mm (16"). T-Link telematics hardware and software are fitted and installed as standard, and this unit includes a seven-year data subscription, enabling remote monitoring of machine performance and location.
This 2022 machine is offered used and is currently located in Utah, USA, priced at $429,000.
