2012 - Frey F-LINE F222 Meat Processing()
- Listing No
- 1183113
- Year
- 2012
- Manufacturer
- Frey
- Model
- F-LINE F222
- Condition
- Used
- Location
- Poland
- Price
- POA
- Description
-
Nadziewarka próżniowa z załadunkiem Marka Frey Model F-Line F222 Numer maszyny: F222T 1252652 SA Rok produkcji 2012 Moc 15,15kW Napięcie 400V 50Hz Wymiary 1650x1400x1960mm Z przystawką łączącą i szpulką do osłonek Wydajność napełniania do ok. 6 200 kg/h (Wewnętrzna i zewnętrzna) obudowa maszyny i zbiornik wykonane w całości ze stali nierdzewnej Zbiornik o pojemności ok. 300 litrów Ciśnienie napełniania do maks. ok. 50 barów Pompa próżniowa 21 m³ Zakres porcjowania 5 - 100 000 g (5 - 999 g w krokach co 0,1 g) Prędkość porcjowania maks. 1000 porcji/min. Wyświetlacz dotykowy Prędkość i długość pauzy są płynnie regulowane Pomiar przepływu, licznik sztuk, automatyczne zatrzymanie na podstawie liczby sztuk Mechanizm cofania przepływu i regulowana waga 1. porcji
About this machine

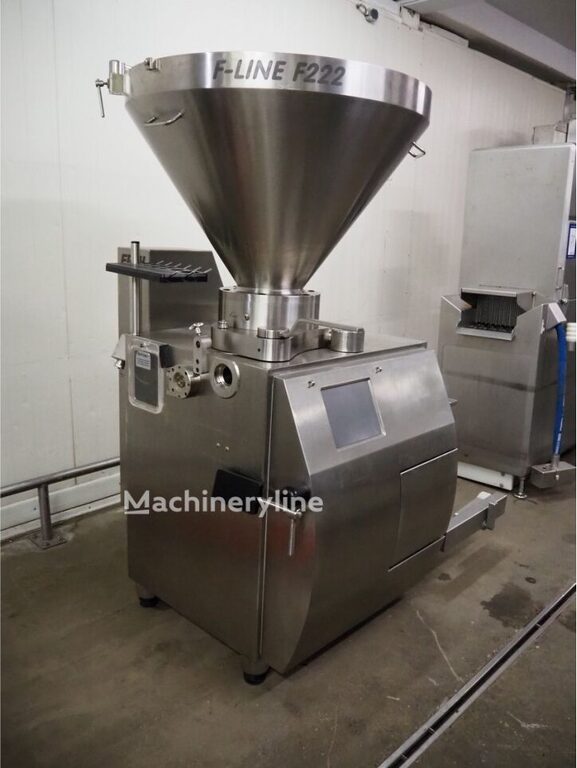

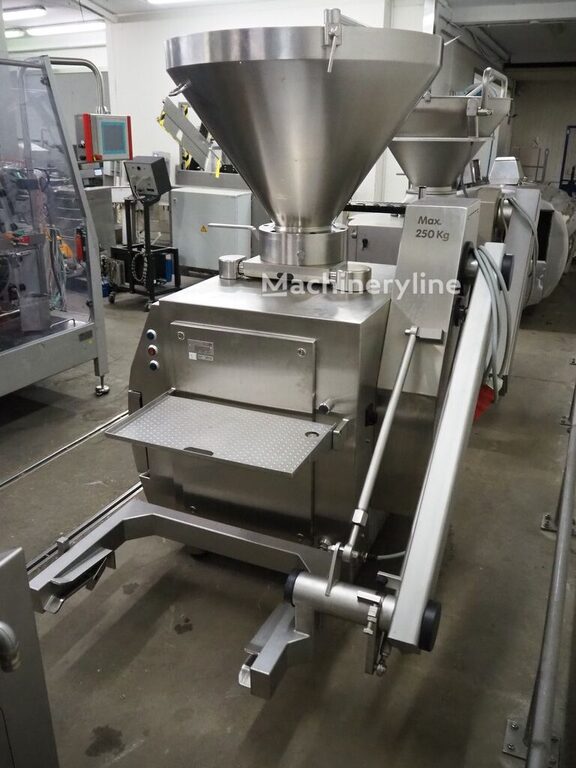

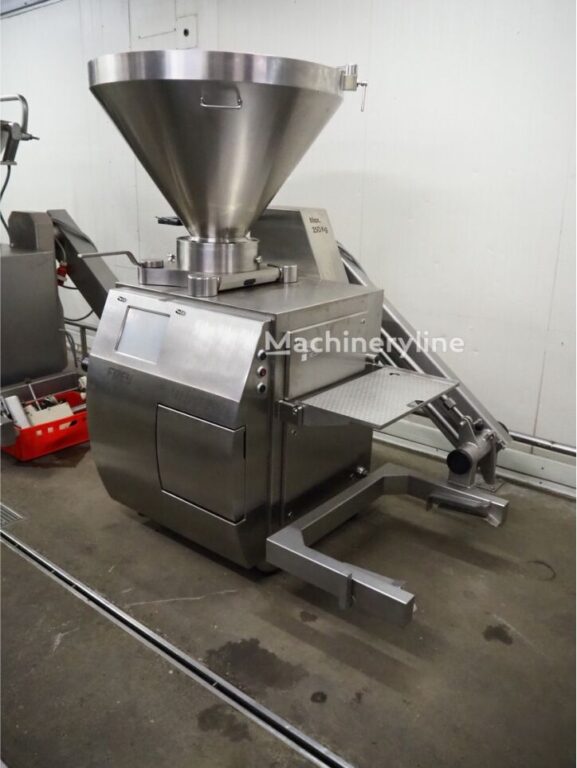

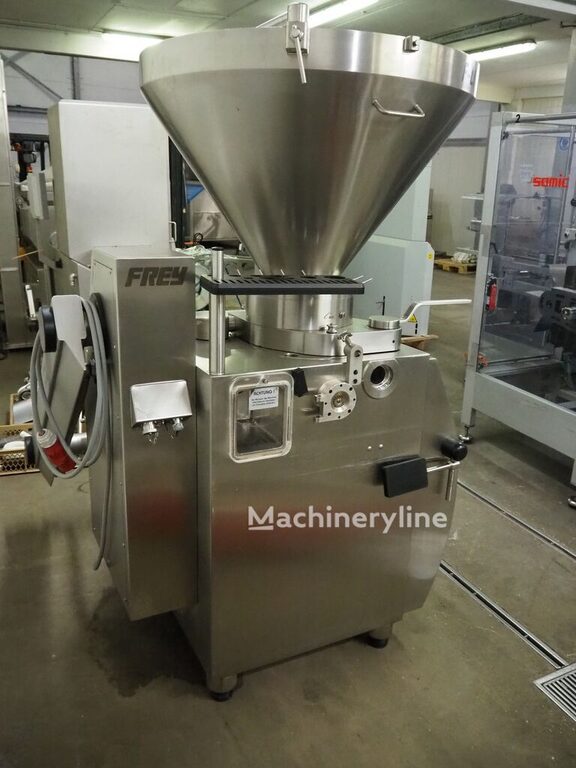

This Frey F-LINE F222 is a vacuum filler — sometimes referred to as a vacuum stuffer — used in meat processing applications for portioning and filling sausages, charcuterie products, and other processed meat items. Frey is a recognised German manufacturer of filling and portioning equipment, serving the food processing and meat industry with machinery designed for high-throughput, hygienic production environments.

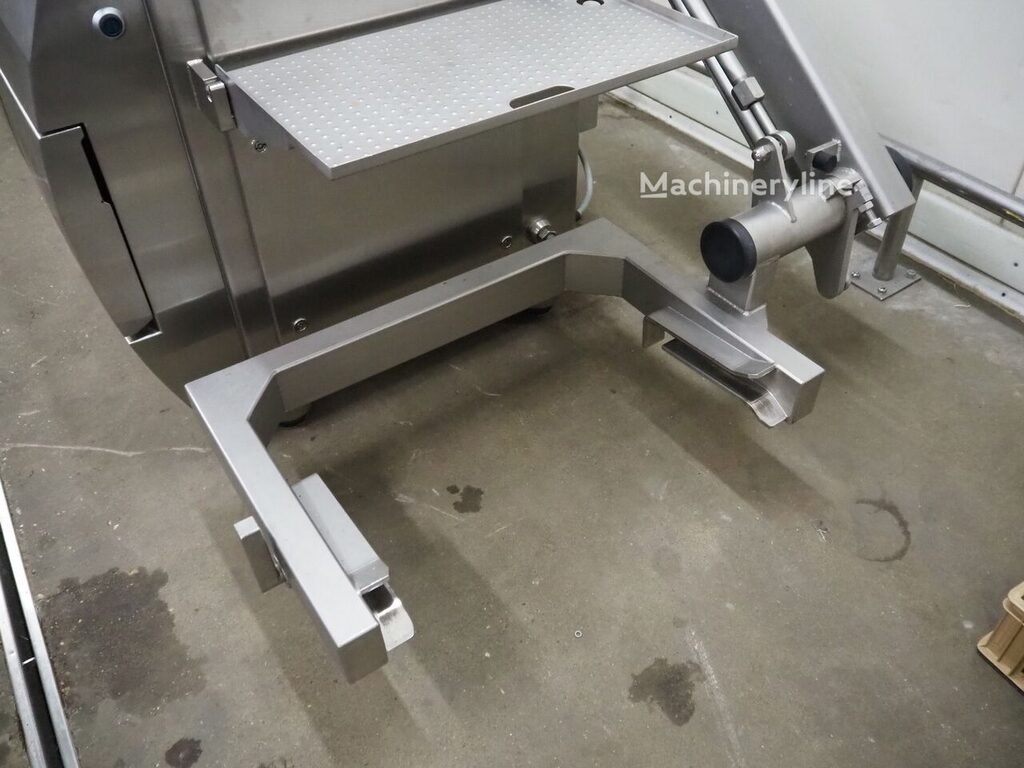

This used example was built in 2012 and is located in Poland. It carries machine number F222T 1252652 SA and is powered by a 15.15 kW motor running on 400 V / 50 Hz. The overall footprint is 1,650 × 1,400 × 1,960 mm. The machine comes equipped with a linking attachment and a horn for casings, making it ready for sausage-linking operations.
The filling capacity reaches up to approximately 6,200 kg/h, and the hopper holds around 300 litres. Both the internal and external housing of the machine and the hopper are constructed entirely from stainless steel, suited to food-grade hygiene requirements. Filling pressure reaches a maximum of approximately 50 bar, and the vacuum pump has a displacement of 21 m³.
The portioning range runs from 5 g to 100,000 g, with fine resolution of 0.1 g increments available between 5 g and 999 g. Maximum portioning speed is 1,000 portions per minute. Operation is managed through a touchscreen interface, and both speed and pause duration are continuously and smoothly adjustable. The machine includes flow measurement, a piece counter, and automatic stop based on a pre-set count. A flow-reversal mechanism and adjustable first-portion weight function are also incorporated.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
