G. BRIEM Messtechnik Differenzdruckanzeiger, vertikal kalibriert Laboratory Equipment()
- Listing No
- 1220145
- Year
- Manufacturer
- Model
- Condition
- Used
- Location
- Germany
- Price
- $100
- Description
-
model/type: Differential pressure gauge, vertically calibrated Measuring range: -50 to +50 kPa Max. Druckbelastung: 15 PSIG (100 kPa) material: Die casting housing with stainless steel front plate calibration: Factory-installed for vertical mounting The differential pressure gauge G. BRIEM with an extended measurement range up to ±50 kPa, it is a precise and robust instrument for monitoring pressure differentials in air handling systems, filter housings, or cleanrooms. The device is already mounted on a stainless steel installation frame and is calibrated for vertical orientation. The system consists of the parts shown in the pictures. Advantages: - Large measurement range: Ideal for applications with higher pressure differential or longer filter paths. - Clear reading system: With color scale for safe monitoring in the green or red area. - Assembled: Stainless steel panel included – ideal for direct installation. - Durable and industry-tested: Metal housing and mechanical display for low-maintenance operation. --------------------------------------------------------------- 2. General functions - Analog display in Pascal (-50 to +50 kPa). - Calibrated for vertical mounting orientation. - Two pressure connections at the back. - Manually adjustable reference marker (red marking needle). - Pre-mounted on stainless steel cover for easy integration into electrical cabinets or wall systems. --------------------------------------------------------------- 3. CO₂ savings Reusing this used differential pressure monitor avoids energy- and resource-intensive new production. Based on average values for comparable industrial components, the following results emerge: Component CO₂ emissions new production differential pressure gauge approx. 50–80 kg CO₂ ? Saved Emissions: approx. 65 kg CO₂ That corresponds roughly to: - The production of 325 plastic bags - Or a car trip of around 300 km with a petrol car --------------------------------------------------------------- 4. Device details (type plate data in German) Manufacturer: G. BRIEM Measurement Technology model/type: Differential pressure gauge, vertically calibrated Measuring range-50 to +50 kPa Max. Druckbelastung 15 PSIG (100 kPa) Temperature range: Min. 20°F (-6°C) / Max. 140°F (60°C) material: Die Druckgussgehäuse mit Edelstahl-Frontplatte connection: Two pneumatic connections on the rear calibrationFactory-installed for vertical mounting StateUsed, fully functional with minor signs of wear
About this machine
This G. BRIEM Messtechnik differential pressure gauge — sometimes referred to as a differential pressure indicator or manometer — is a laboratory instrument designed to measure and display the difference in pressure between two points in a system. Instruments of this type are commonly used to monitor air handling units, filter housings, cleanroom environments, and HVAC systems, providing continuous analog feedback on pressure differentials. G. BRIEM Messtechnik is a German manufacturer specialising in precision measurement technology for industrial and building services applications.

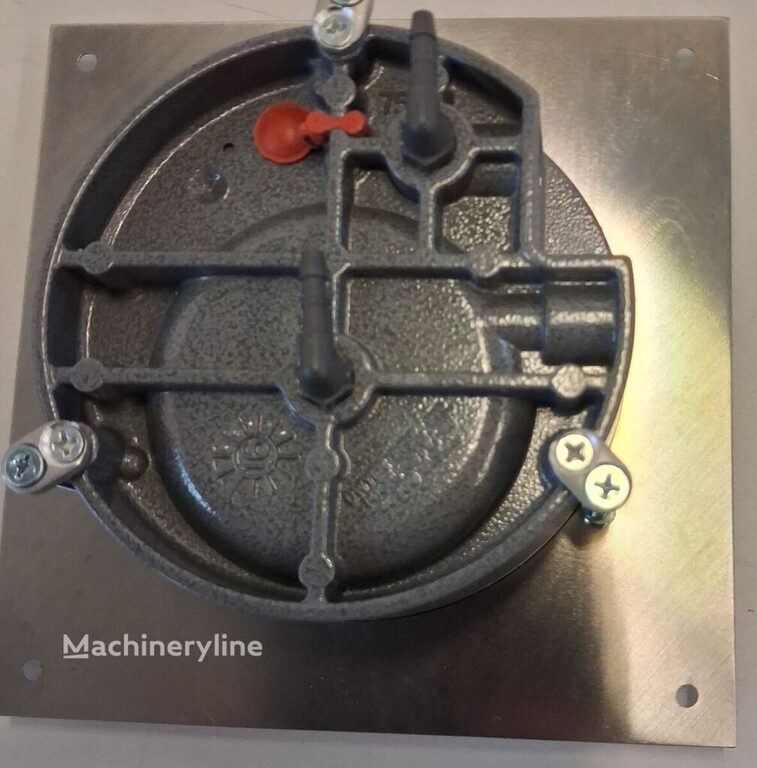

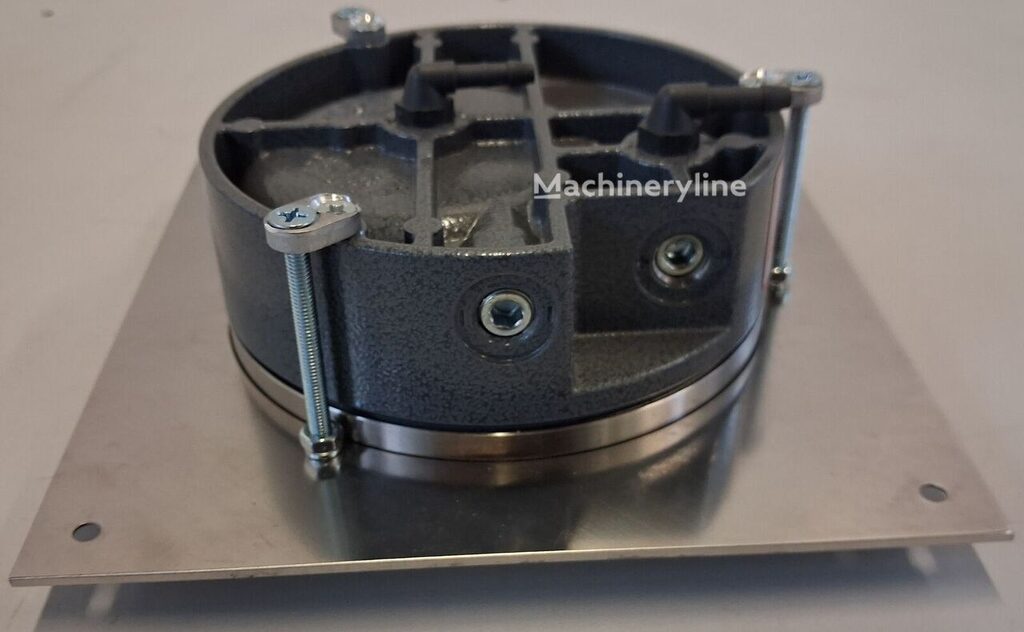

The gauge covers a measuring range of -50 to +50 kPa, displayed on an analog scale calibrated in Pascal, with a maximum allowable pressure load of 15 PSIG (100 kPa). It is factory-calibrated for vertical mounting orientation and connects to the monitored system via two pneumatic ports located on the rear of the unit. The housing is constructed from die-cast metal with a stainless steel front plate, combining mechanical robustness with a low-maintenance, fully mechanical display. The operating temperature range spans from -6 °C (20 °F) to 60 °C (140 °F).

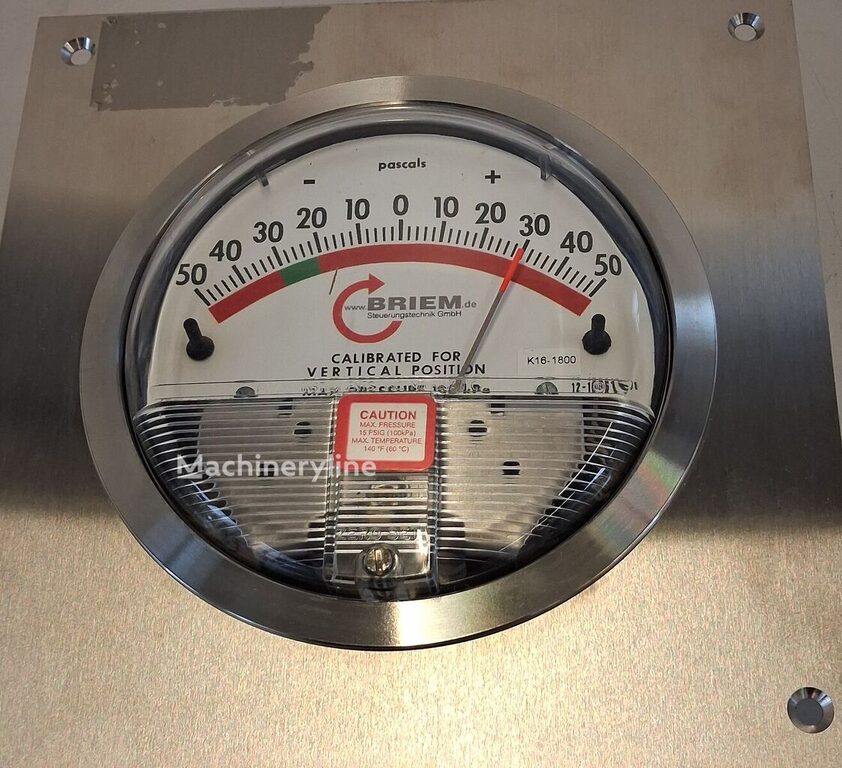

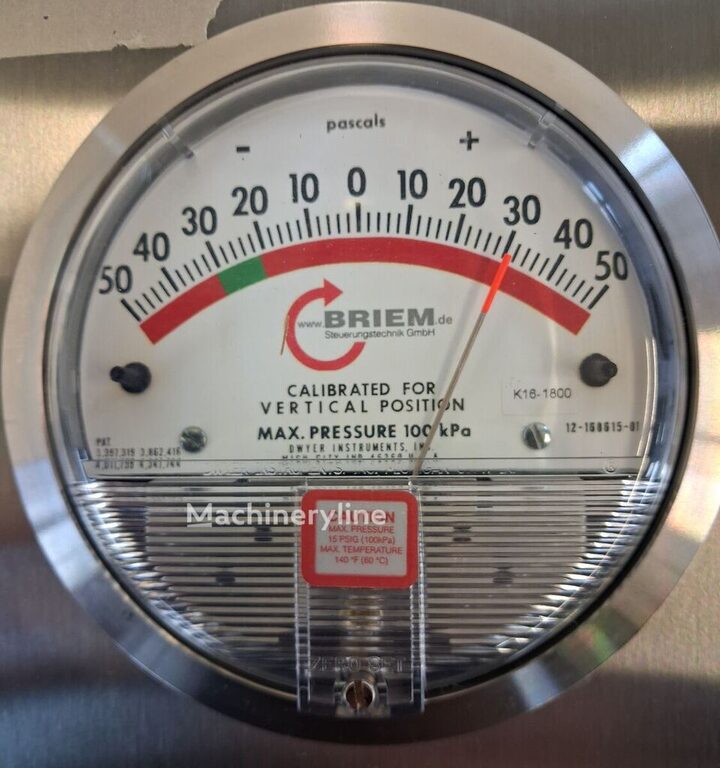

The display incorporates a colour-coded scale — with clearly delineated green and red zones — enabling at-a-glance status monitoring without the need for a power supply or digital readout. A manually adjustable red reference marker needle allows operators to set a visible setpoint directly on the dial face. The unit comes pre-mounted on a stainless steel installation frame, making it ready for direct integration into electrical cabinets or wall-mounted panel systems without additional bracketing.
The instrument is offered in used condition and described as fully functional, with only minor signs of wear consistent with previous service life. It is located in Germany and listed at $100.
