Gasparini 3100 X 8 MM CNC Guillotine Shears
()- Listing No
- 956190
- Year
- Manufacturer
- Gasparini
- Model
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
8 mm steel 6 mm inox Cybelec control CNC backgauge CNC blade angle setting CNC blade clearance setting with plate high hold system with scrap container with conveyor system for stacking: automatic width detection to allow support fingers to perfectly stack finished pieces with movable stacking unit nbsp Cutting length: 3100 mm Max sheet thickness st 45: 8 mm Depth of throat: 500 mm Backgauge: CNC
About this machine

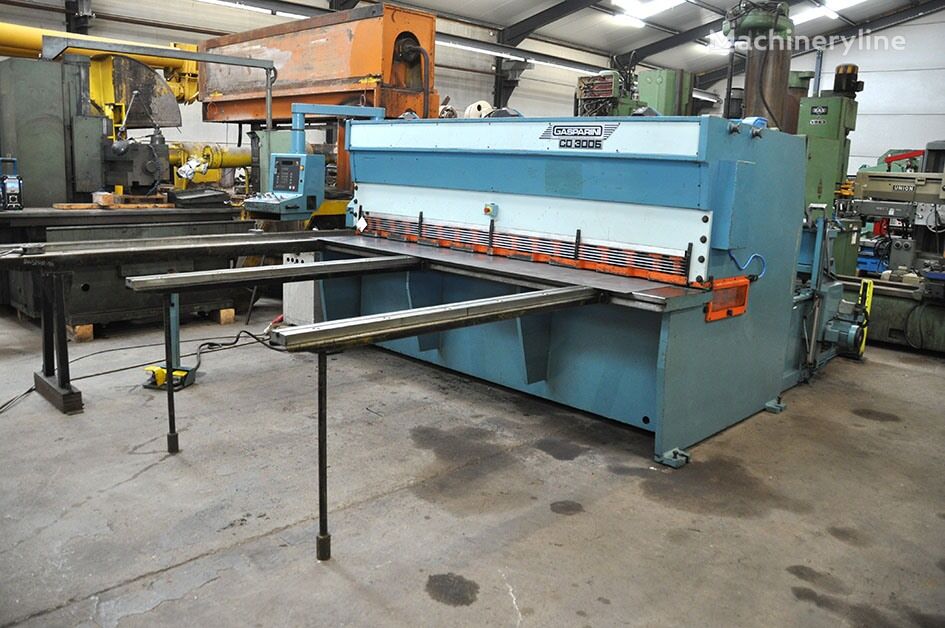

This Gasparini 3100 X 8 MM CNC is a used guillotine shear — sometimes referred to as a guillotine cutter or power shear — a machine designed to make straight, full-length cuts through sheet metal by driving a raked blade down through the material against a fixed lower blade. Gasparini is an Italian manufacturer with a long-standing reputation for building precision sheet-metal working machinery, including guillotine shears, press brakes, and related equipment, serving metalworking and fabrication industries worldwide.

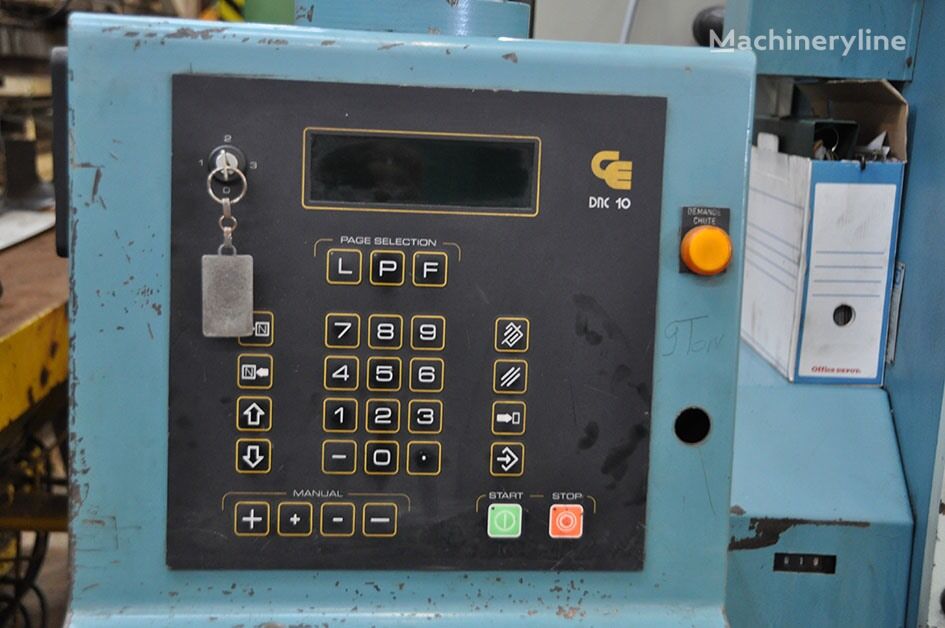

The machine is equipped with a Cybelec CNC control system, which governs the CNC backgauge, CNC blade angle setting, and CNC blade clearance setting. This level of CNC integration on all three axes means the operator can program and repeat cut parameters with precision — the blade angle can be optimised for different material thicknesses to minimise distortion, and the blade clearance can be matched to the specific sheet being cut, both of which directly affect cut quality and blade wear. The CNC backgauge positions the sheet accurately before each cut, enabling consistent, repeatable part lengths without manual adjustment between cycles.
Cutting capacity is stated at 8 mm for mild steel (St 45) and 6 mm for stainless steel, across a full cutting length of 3,100 mm. The throat depth is 500 mm, which determines how far a sheet can be fed into the machine from the front.
The machine is fitted with a plate hold-down system, which clamps the sheet against the worktable during cutting to prevent movement and ensure a clean, accurate shear line. A scrap container is included to collect offcuts from beneath the cutting zone.

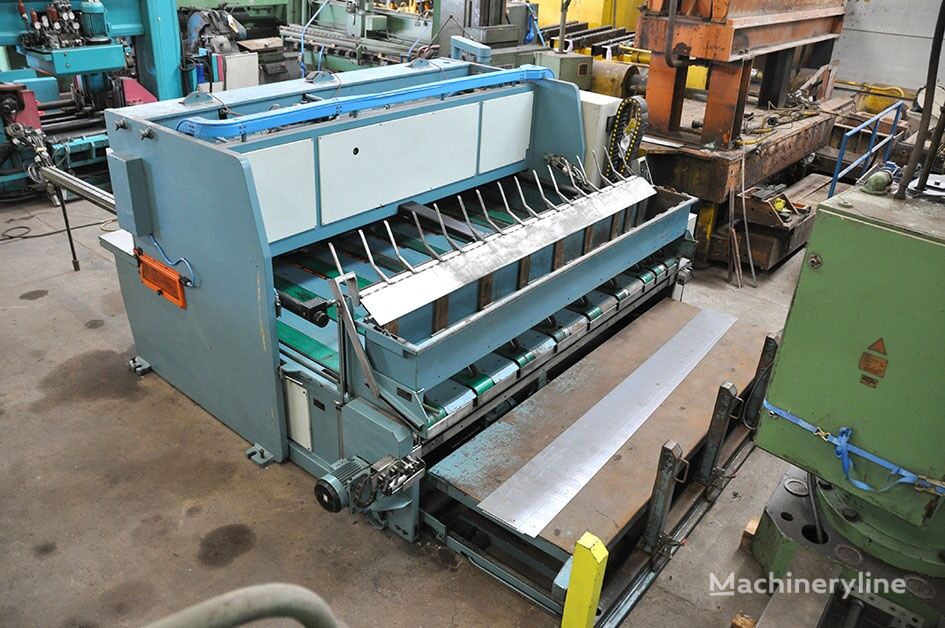

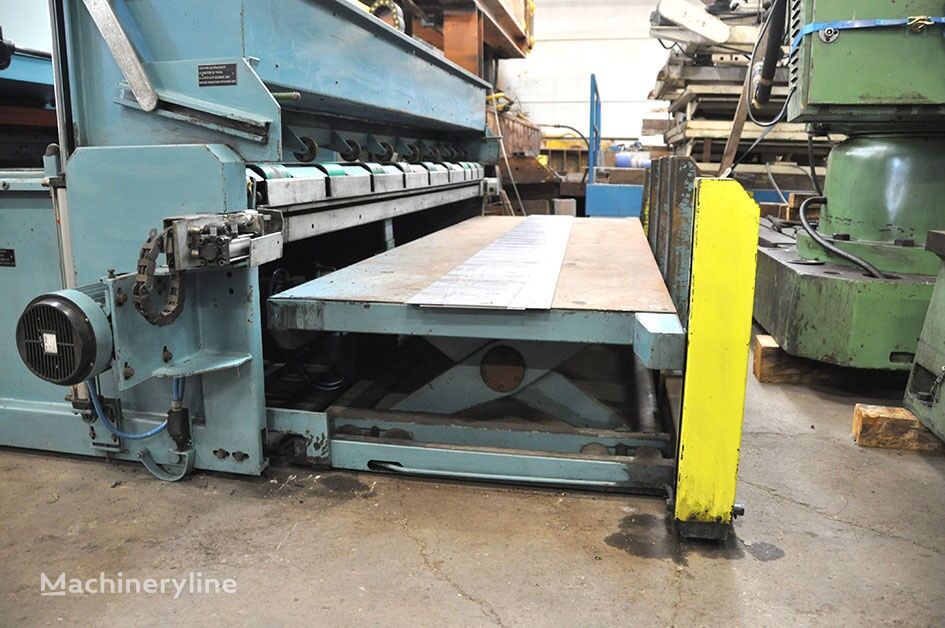

Also included is a conveyor-based stacking system with automatic width detection, which allows the support fingers to self-adjust and correctly position themselves to stack finished cut pieces neatly and without manual intervention. A movable stacking unit accompanies this system, providing flexibility in how and where finished parts are collected. This combination of automated stacking and support makes the machine well suited to production environments where handling large, heavy sheets after cutting is a practical concern.
The machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
