Genios hazardous materials cabinet / safety cabinet / fire prote Laboratory Equipment()
- Listing No
- 1220481
- Year
- Manufacturer
- Model
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Marke: Genios for the storage of flammable liquids Approved for the storage of flammable liquids in the workplace according to EN 14470-1 (Type 90) and TRGS 510 Annex 3 – Tested and approved overall construction by recognized material testing institute according to EN 14470-1 (type 90) with a fire resistance of > 90 minutes – GS-tested safety – Insulation according to DIN 4102 – Outer body sheet steel powder coating in RAL 7035 – light grey – 2 hinged doors in RAL 1007 – daffodil yellow – Inner body made of HPL coated boards – RAL 7035 – Stainless steel floor end rail – Niro rhombus – Shelves height adjustable in increments of 64 mm Außenmaße(BxTxH):1190x598x1935mm -753,00 Innenmaße(BxTxH):1087x430x1700mm Weight: approx. 505 kg Interior design consisting of 1 x bottom tray (collection volume 33 liters) according to WHG – Ü-sign according to StawaR 1 x perforated plate cover as 1st storage level 3 x shelf – Door hold-open system – In case of fire automatic self-closing via thermomechanics – doors when the temperature rises to < 50 °C and – Supply and exhaust air ducts when temperature rises to 70 °C – Ventilation connection through DN 80 pipe socket – Operation acc. TRGS 510 Annex 3 (also approved without exhaust air!) – Ground connection according to TRBS 2153 (avoidance of ignition sources) – Marking according to EN 14470-1 / TRGS 510 Annex 3 / ISO 3864 / ASR A1.3 – Doors lockable via cylinder lock
About this machine
This used Genios hazardous materials cabinet — also commonly referred to as a safety cabinet or flammable storage cabinet — is a purpose-built unit for the safe storage of flammable liquids in workplace environments. Genios specialises in fire-protection and hazardous-materials storage solutions for laboratory, industrial, and commercial settings, and this cabinet reflects that focus with a comprehensive set of tested safety features.

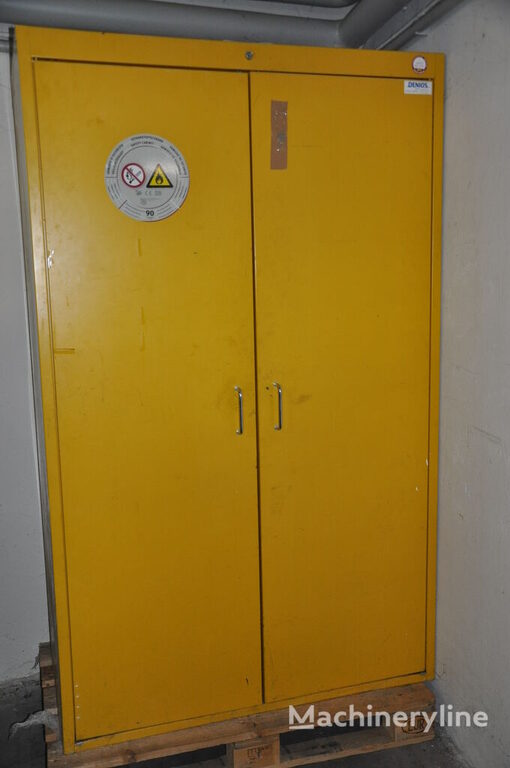

The cabinet holds full approval for the storage of flammable liquids in accordance with EN 14470-1 (Type 90) and TRGS 510 Annex 3, certified by a recognised materials testing institute. Its Type 90 classification confirms a fire resistance of more than 90 minutes, and it also carries GS safety certification. Insulation is constructed in accordance with DIN 4102. The outer body is fabricated from sheet steel with a powder-coat finish in RAL 7035 light grey, while the two hinged doors are finished in RAL 1007 daffodil yellow. The inner body is lined with HPL-coated boards in RAL 7035, and the floor is fitted with a stainless steel end rail in a rhombus (Niro) pattern.

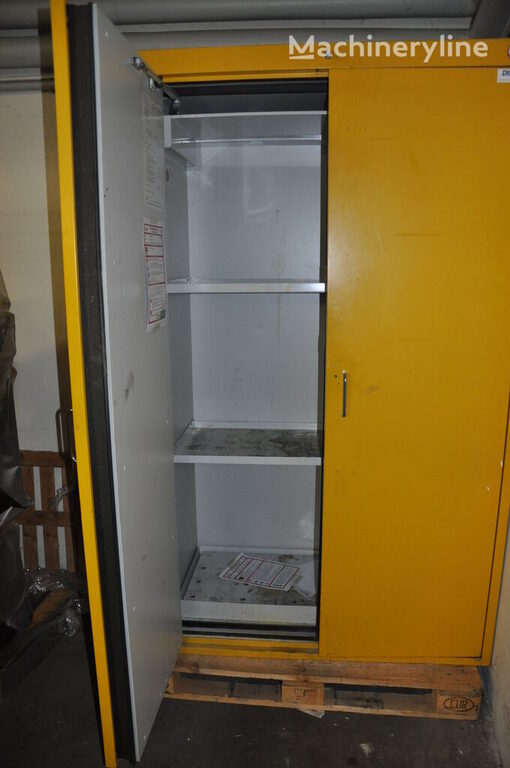

External dimensions are 1,190 mm wide × 598 mm deep × 1,935 mm tall; internal dimensions are 1,087 mm wide × 430 mm deep × 1,700 mm tall. The unit weighs approximately 505 kg. The interior includes one bottom collection tray with a spill-containment volume of 33 litres, compliant with WHG requirements and bearing the Ü-mark per StawaR. Above the tray sits a perforated plate cover serving as the first storage level, with three additional shelves above it; all shelves are height-adjustable in increments of 64 mm.

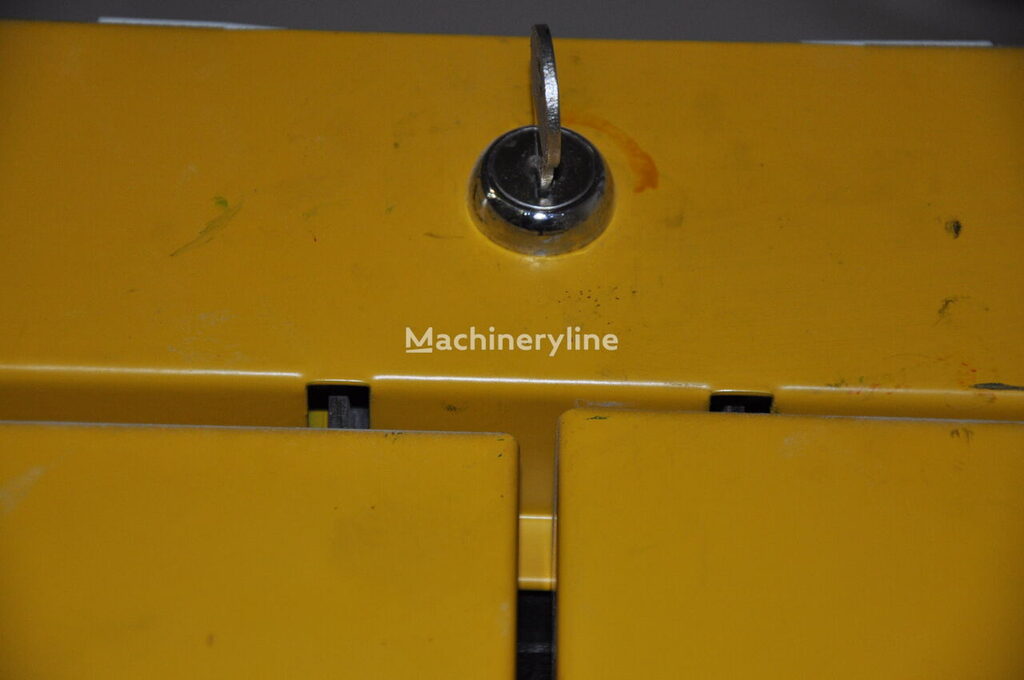

In the event of fire, the cabinet features automatic self-closing via a thermomechanical mechanism: the doors close automatically when ambient temperature rises to below 50 °C, and the supply and exhaust air ducts close at 70 °C. A door hold-open system is included for normal operation. Ventilation is provided through a DN 80 pipe socket, and the cabinet is approved for use with or without an active exhaust air connection, in line with TRGS 510 Annex 3. An earthing connection is fitted in accordance with TRBS 2153 for the avoidance of ignition sources, and the cabinet's labelling complies with EN 14470-1, TRGS 510 Annex 3, ISO 3864, and ASR A1.3. The two doors are secured by a cylinder lock. The unit is located in Germany and offered in used condition.
