About this machine

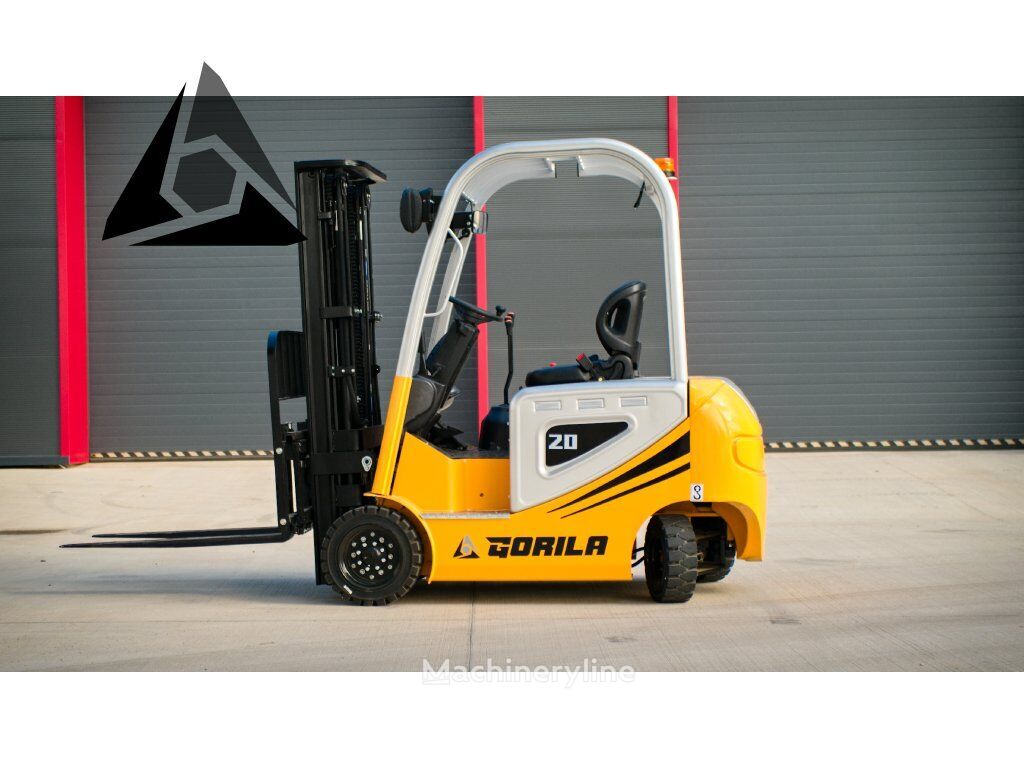

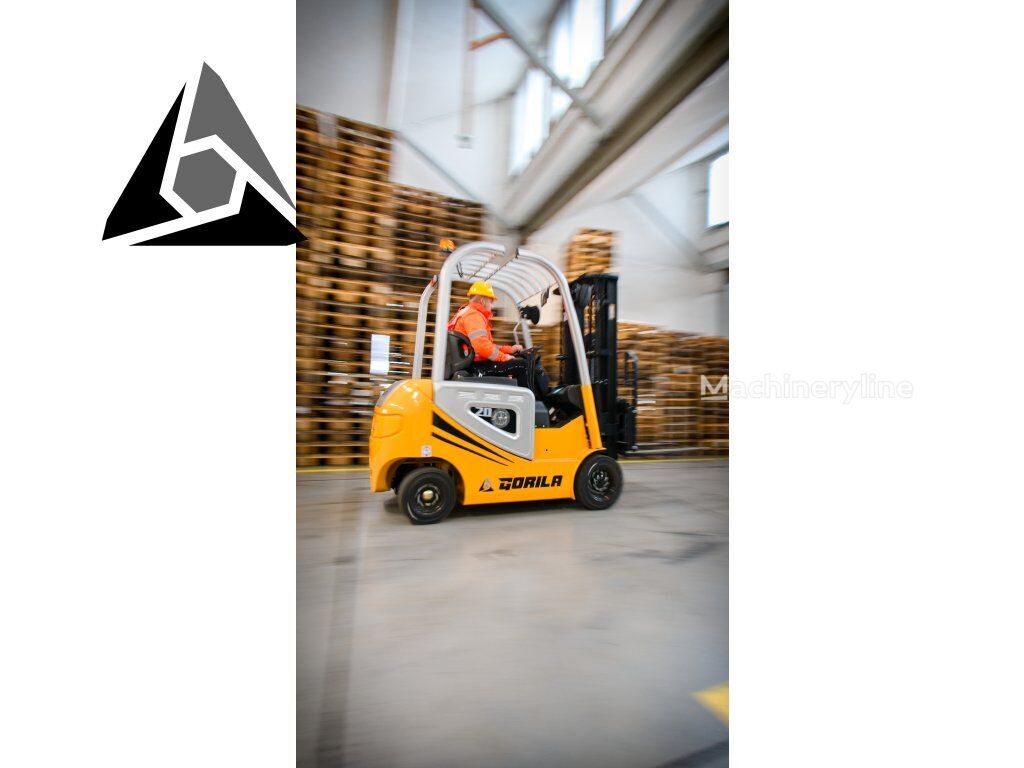

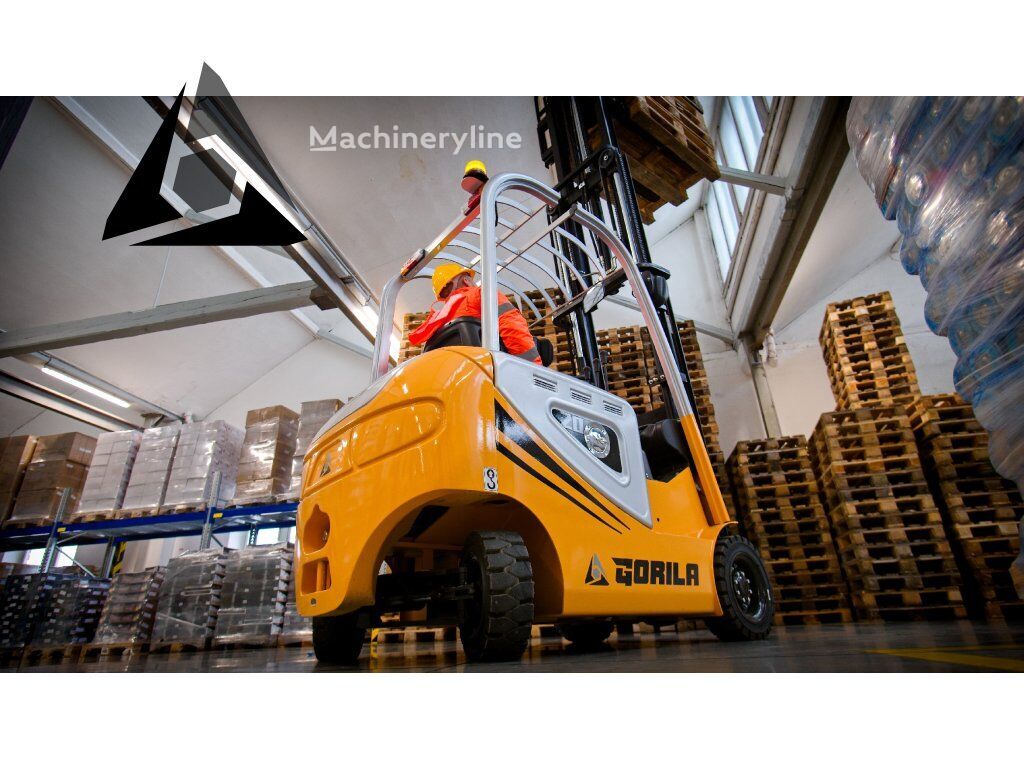

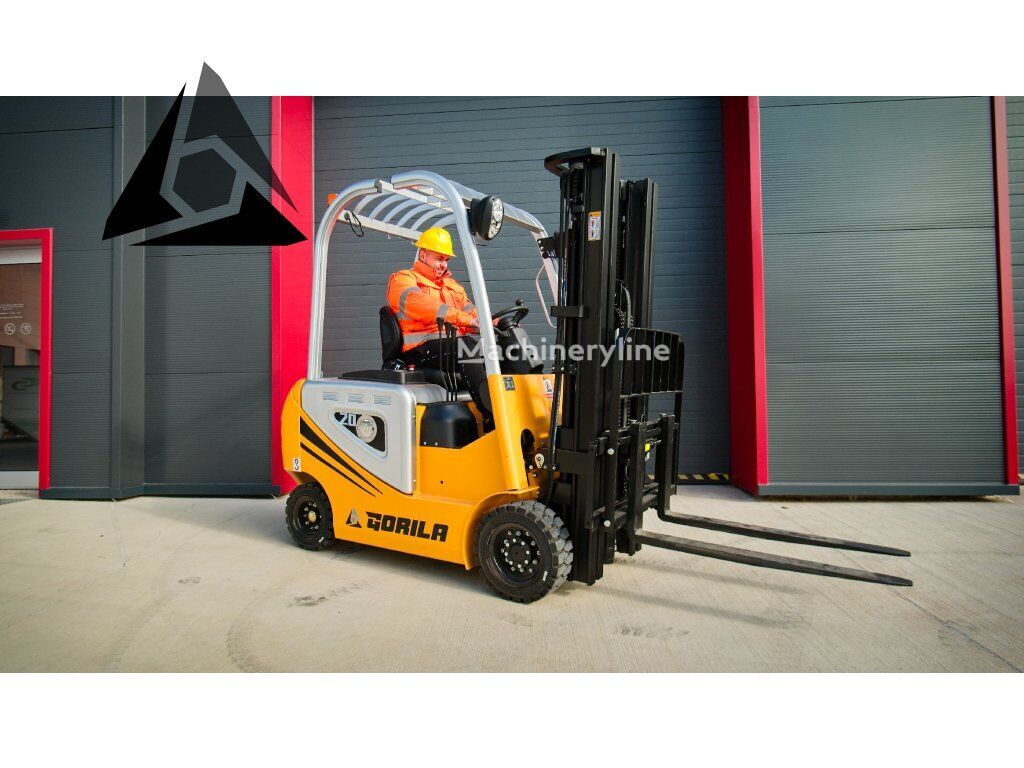

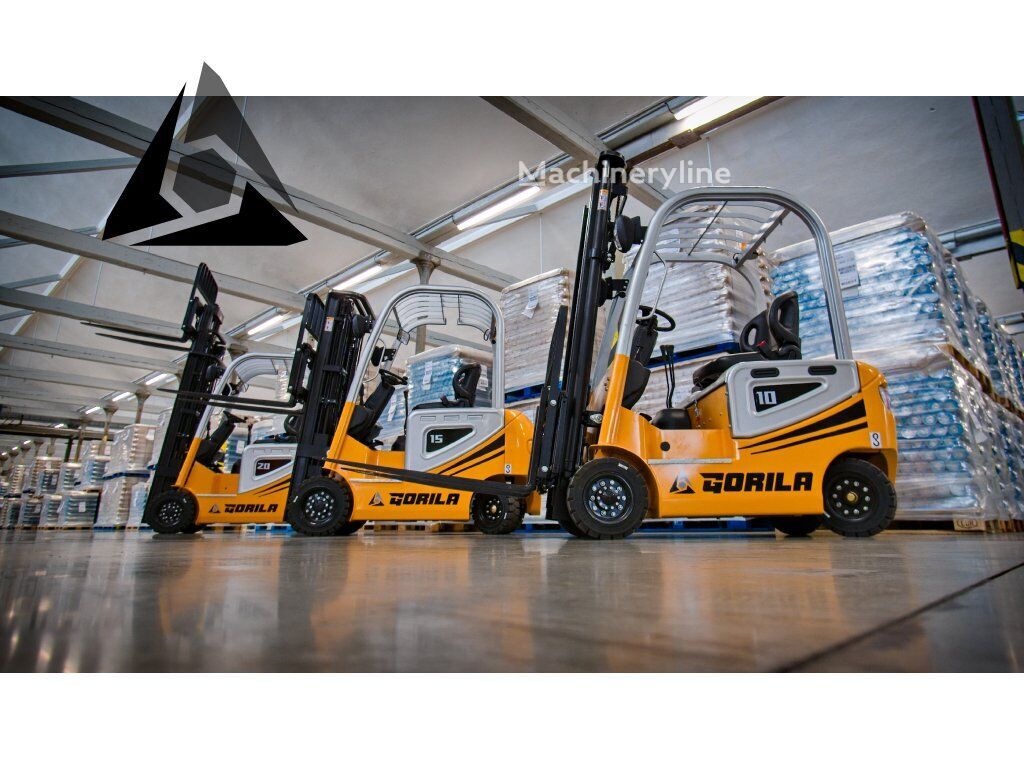

This Gorila G20 is a used electric forklift — sometimes referred to as an electric lift truck — designed for the movement and stacking of palletised loads in warehouses, distribution centres, and manufacturing facilities. Electric forklifts of this type are valued for their zero-emission operation, low running costs, and suitability for indoor use where combustion engines are impractical.

Power comes from a lithium-ion battery rated at 76.8 V and 175 Ah, a configuration that offers relatively fast charging cycles and a stable discharge curve compared with traditional lead-acid alternatives. The drive and lift systems are controlled through MOSFET and AC technology on the drive motor side, and MOSFET with a permanent-magnet synchronous motor arrangement on the lift side — both well-regarded approaches for precise, energy-efficient electric forklift operation. The hydraulic system operates at a working pressure of 17.5 MPa, with a service brake that is hydraulically actuated and a mechanically operated parking brake.

In terms of performance, the forklift travels at 12 km/h under full load and 13 km/h unladen. Lift speed is 300 mm/s at full load and 450 mm/s unladen, with fork lowering speed fixed at 450 mm/s. The machine manages a maximum gradient of 15% under full load and 20% without, making it capable of navigating ramps within typical warehouse environments. The load centre distance is stated at 500 mm.

The mast offers a door frame height of 4,055 mm with a door frame clearance of 88 mm, and the mast tilts 5° forward and 10° backward. Fork spread is adjustable across a range of 1,070 mm to 200 mm, and the forks themselves measure 35 mm thick, 100 mm wide, and 1,070 mm long. The machine's overall width is 1,096 mm, its body length without forks is 2,063 mm, and the overhead guard stands 2,110 mm tall. The turning radius is 2,070 mm, with a wheelbase ground clearance of 110 mm at full load.

Aisle requirements are 3,655 mm for a 1,000 × 1,000 mm pallet oriented along the fork axis, and 3,855 mm for a 1,200 × 1,200 mm pallet. The machine runs on solid (non-pneumatic) tyres throughout: 18×7-10 at the front and 16×6-8 at the rear, on a two-wheel-per-axle configuration. Front axle centreline to fork face measures 920 mm, and the rear axle centreline to the back of the machine measures 898 mm. The forklift is priced at $17,830.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
