2023 - Güntner Screener()
- Listing No
- 1155753
- Year
- 2023
- Manufacturer
- Güntner
- Model
- Multistar ONE
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
No. 10017 Two-fraction star screen GÜNTHER MULTISTAR ONE / MS ONE Used, year of construction 2023 Approx. 200 operating hours Mobile star screen for screening waste wood, biomass, green waste and other screenable materials in 2-fractions as well as for overlength recycling - Input material: specific weight 200 - 650 kg/m³ / moisture input material max. 55% / piece size and individual weight max. 1000 mm and 20 kg / material feed with conveyor belt or wheel loader / throughput capacity up to 200 m³/h - Control, operation, switch cabinet: Type PLC / Operation display, control panel / Manual or automatic operating mode / Power supply AC 400 V, 3P, 50Hz via 32A plug on site - System interlinking: 16-pin plug connection / Cable (15 m) incl. winding device on base frame / Screen deck overrun for EMERGENCY STOP / Dummy plug in control cabinet door - Hydraulic support legs: 4 hydraulic support legs / Increase the discharge height of the useful fraction by 450 mm / For optimum horizontal alignment of the machine / All support legs can be controlled individually - Feed hopper: Capacity approx. 2.5 m³ / Feed height 2500 - 3000 mm / Free throw-in length 2300 mm / Conveying medium scraper chain conveyor with maintenance-free flat link chain / Drive 2.2 kW adjustable via frequency inverter - Collecting belt: Center distance 4600 mm / Belt width 1000 mm / Belt type smooth / Drive slip-on geared motor 2.2 kW, v=1.2 m/s - Connect: Connect! is the innovative telematics solution from Komptech / A modern and clear user interface means the user always has an overview of e.g. operating status, error messages, statistics, GPS localization, capacity utilization - Petrol-powered hydraulic pump: For setting up the machine on site / 4-stroke petrol engine with hydraulic pump, brackets and housing / Starter cable pull / Normal petrol fuel - HyDrive System 2.0 MS ONE - Screen deck 60/90: Output: 0-60/90 and > 60/90 mm / Length 4500 mm / Width 1450 mm / Screen area 6.5 m² / Position 11° incline / Star shafts 17 pieces / Star diameter 340 mm / Star width 55 mm / Center distance 266.5 mm / Cleanstar cleaning elements / Drive motor 2 x 4 kW / Adjustable via frequency inverter - Drive motors 50 Hz: geared motors for driving the screen deck / version 2x 4 kW 50 Hz - Dosing roller: For even feeding of the material onto the screen deck / width 1560 mm / diameter 215 mm / drive 3 kW drum motor / with standard beater bar - FKAB with magnetic drum: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined / Belt type profiled, 15 mm chevron / Drive 3.0 kW shaft-mounted geared motor, v=2.2 m/s / Usable discharge height 3500 mm - 3950 mm / Multi-pole magnetic drum in permanent version / incl. discharge chute - Over-grain discharge conveyor: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined, 220° pivoting / Belt type profiled, 15 mm chevron / Drive shaft-mounted geared motor 3.0 kW, v=2.2 m/s / Usable discharge height 3600 mm - 4050 mm - Hook: Machine base frame made of structural steel profiles with integrated hook lift mount for transport in accordance with DIN 30 722 / Length 7300 mm / Width 2300 mm / Height 2600 mm / Eye height 1570 mm - Maneuvering drawbar: Screwable maneuvering aid with ball head mount - Box for fire extinguisher: Plastic box for 6 kg fire extinguisher Transport dimensions approx. 8176 x 2466 x 2600 mm LWH Weight approx. 9200 kg Sale on behalf of customer, ex location near 85456 Wartenberg, without dismantling, transport and assembly Subject to errors in the description and price Dismantling, transport and loading by us optionally possible To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical details, condition description, year of manufacture and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale No warranty is given for used machines, the following applies: “purchased as viewed” Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices excl. VAT, payment before collection or shipping Terms of delivery: ex location Our general terms and conditions apply, which can be viewed on the Internet at show contacts Please pay particular attention to Article 9 regarding complaints and returns!
About this machine
The Güntner Screener is a mobile two-fraction star screen designed for processing waste wood, biomass, green waste, and other screenable materials. Güntner manufactures waste processing and recycling equipment, and this unit represents their MULTISTAR ONE / MS ONE system—a mid-range mobile screener built for efficient material separation in demanding recycling and waste management operations.
This machine was manufactured in 2023 and has approximately 200 operating hours of use. It separates input material into two fractions with output categories of 0–60/90 mm and greater than 60/90 mm, making it suitable for varied end-product specifications. The system accepts input material with a specific weight between 200 and 650 kg/m³ and a maximum moisture content of 55 percent, with individual pieces not exceeding 1000 mm or 20 kg in weight. Material feed can be supplied via conveyor belt or wheel loader, and throughput capacity reaches up to 200 m³/h.

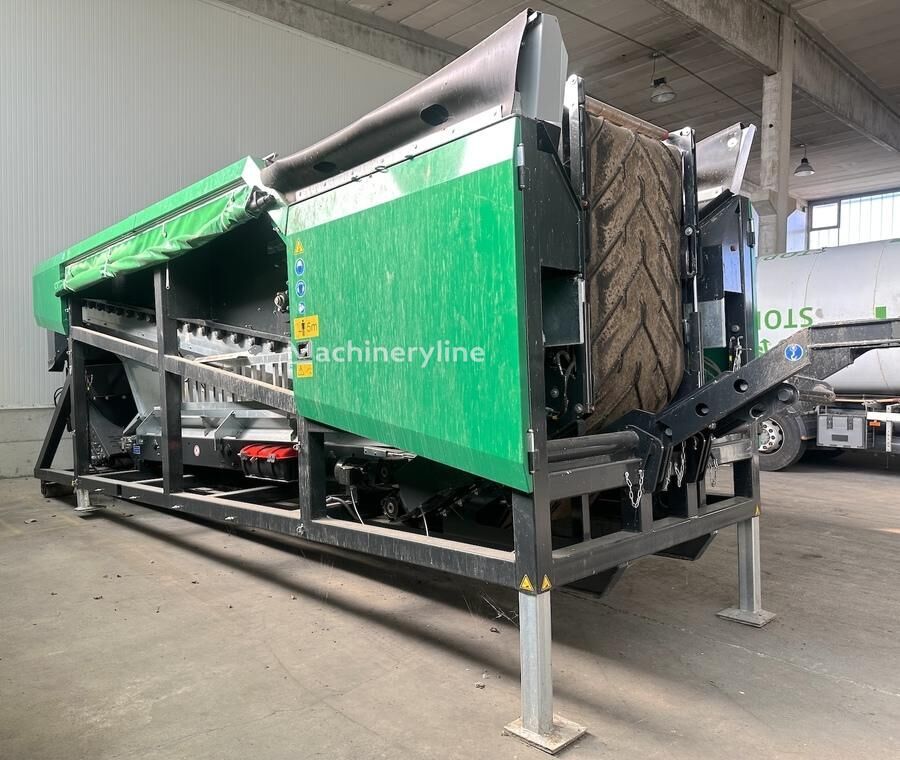

The screener is built around a HyDrive System 2.0 MS ONE configuration. The screen deck measures 4500 mm in length and 1450 mm in width, providing 6.5 m² of screening area. It is fitted with 17 star shafts, each 340 mm in diameter and 55 mm wide, set at an 11° incline and driven by dual 4 kW motors. A dosing roller with a 3 kW drum motor ensures even material distribution onto the deck. The machine incorporates a multi-pole magnetic drum on the fine-material conveyor (FKAB) to remove ferrous contamination, and an over-grain discharge conveyor inclined at 30° with 220° pivoting capability to optimize product placement.

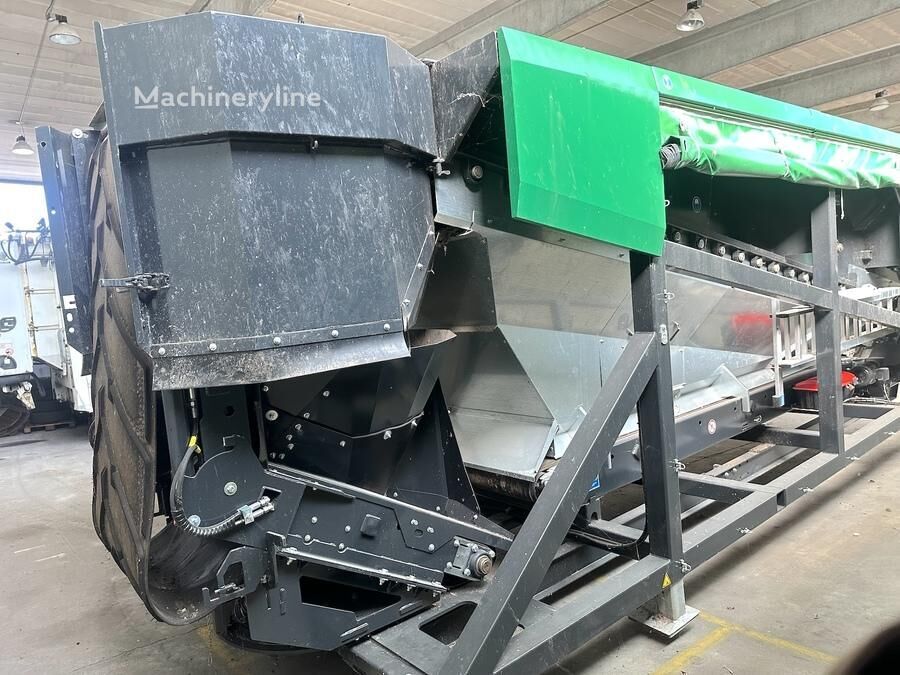

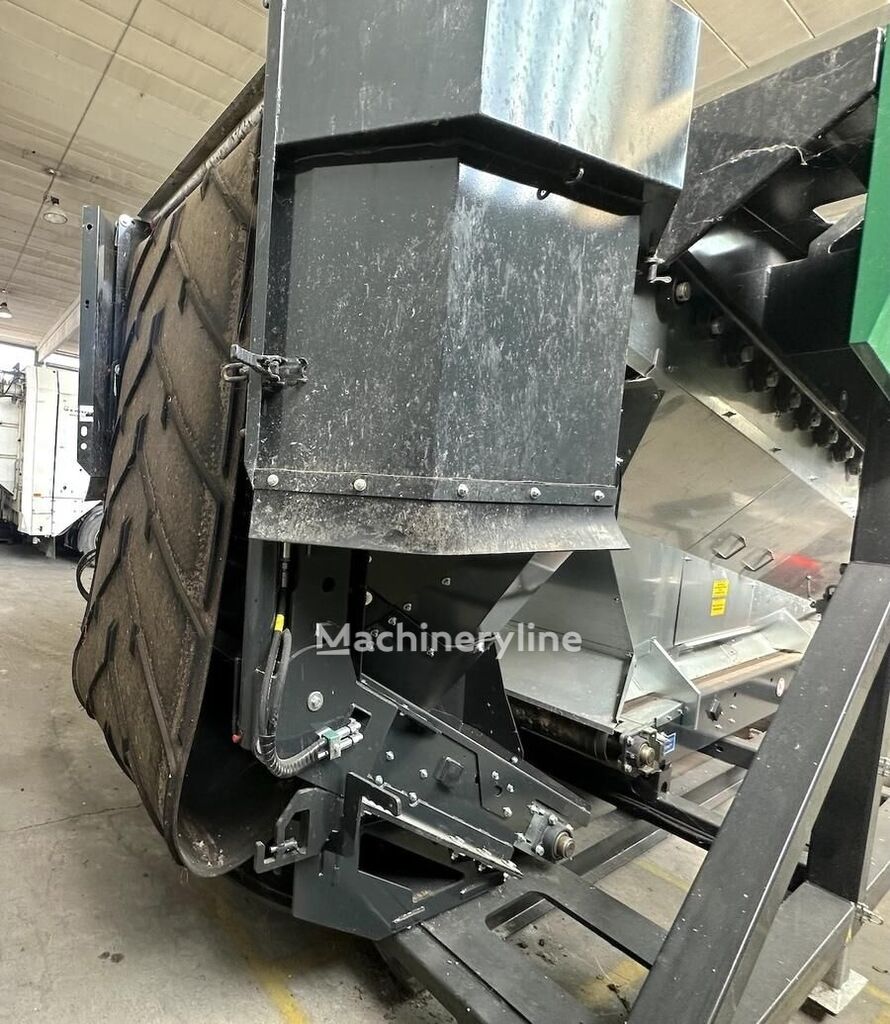

The feed hopper has a capacity of approximately 2.5 m³ with a free throw-in length of 2300 mm and a height of 2500–3000 mm. Material is conveyed into the hopper by a scraper chain conveyor driven by a 2.2 kW adjustable frequency inverter motor. The collecting belt has a center distance of 4600 mm, 1000 mm width, and smooth belt surface, driven by a 2.2 kW slip-on geared motor.
Four individually controlled hydraulic support legs increase the discharge height of the useful fraction by 450 mm and ensure optimal horizontal alignment on uneven ground. A petrol-powered hydraulic pump with a 4-stroke engine and pull-starter cable is supplied for on-site setup and operation.
The machine is controlled via a PLC-type system with a display and control panel, offering both manual and automatic operating modes. Power supply is AC 400 V, three-phase, 50 Hz via a 32 A site plug. System interlinking is achieved through a 16-pin plug connection, with a 15 m cable and winding device integrated into the base frame. An emergency stop function operates via screen deck overrun. The Komptech Connect! telematics system provides real-time monitoring of operating status, error messages, statistics, GPS localization, and capacity utilization.

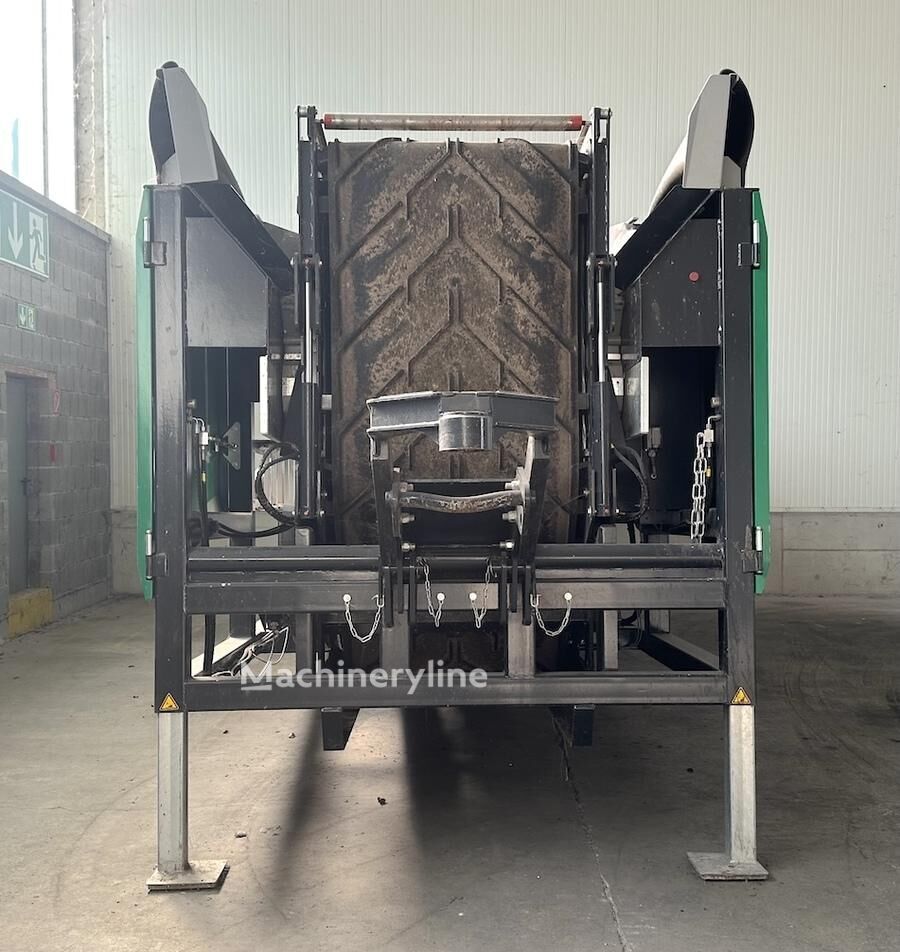

The machine base frame is constructed from structural steel profiles with an integrated hook lift mount compliant with DIN 30 722, suitable for transport. Overall dimensions are approximately 7300 mm length, 2300 mm width, and 2600 mm height. Transport dimensions are approximately 8176 × 2466 × 2600 mm, and the machine weighs approximately 9200 kg. A maneuvering drawbar with ball head mount and a fire extinguisher box (capacity 6 kg) are included.
The machine is located near 85456 Wartenberg, Germany, and is offered without dismantling, transport, or assembly. It is sold as viewed, with no warranty provided for this used machine.
