2001 - Handtmann VF 200 B Meat Processing()
- Listing No
- 1180206
- Year
- 2001
- Manufacturer
- Handtmann
- Model
- VF 200 B
- Condition
- Used
- Location
- Poland
- Price
- POA
- Description
-
The HANDTMANN VF 200B filler is a device with a very high efficiency, up to 5000 kg / h and a total power of 13.5 kW. The device has an integrated hydraulic loading system. The filler gives 500 portions / 1 min. Servings size from 5 to 100,000 g. The device is controlled by an integrated control system. Specification : Producer : Handtmann Model : VF 200B Type : Vacuum filler Dimensions : 1500 x 1800 x 2100 ( mm ) Power : 13,5 kW Voltage : 400V 50Hz 3N Capacity : 240 l Portioning : 5 - 100 000 g Efficiency : 5000 kg/h Pressure : 55 bars Material : Stainless steel, acid-resistant Portion speed : 25 g = 500 portions / min 50 g = 450 portions / min 100 g = 380 portions / min 200 g = 280 portions / min
About this machine

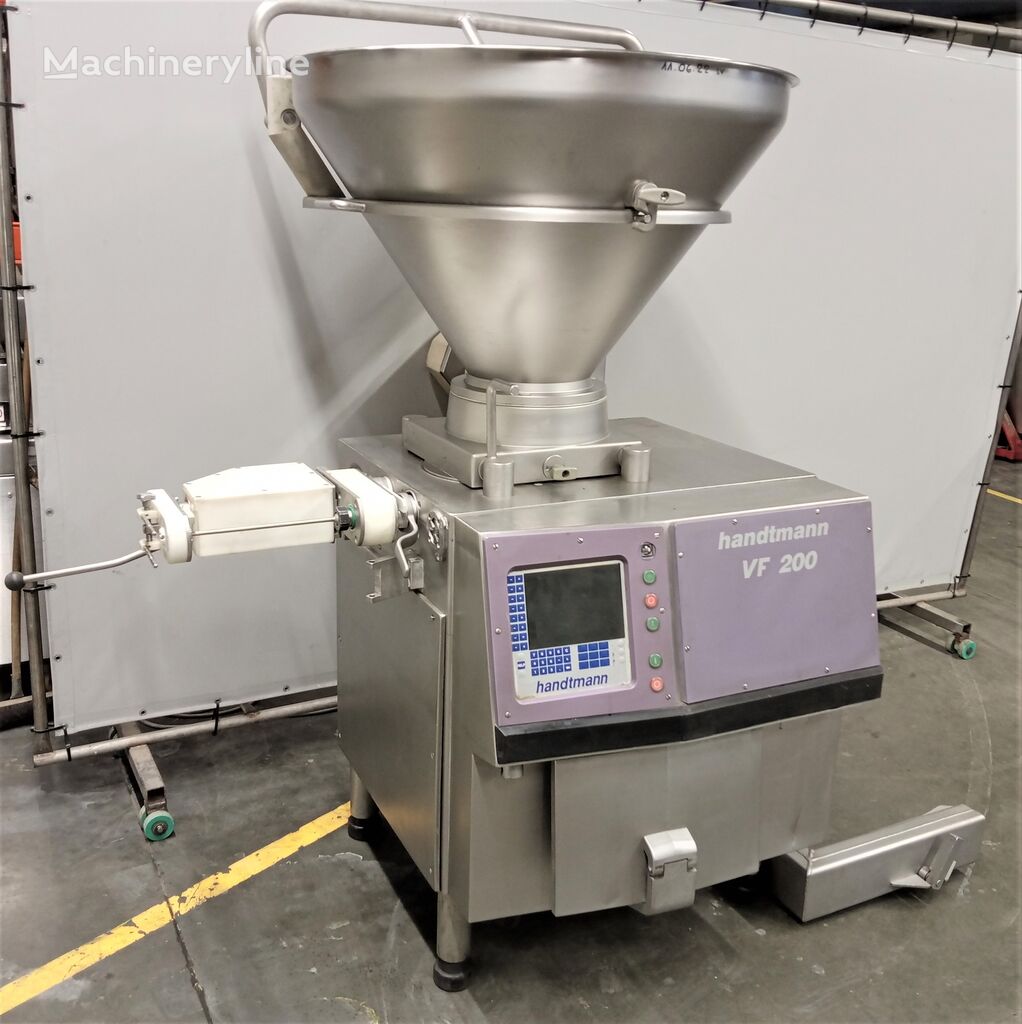

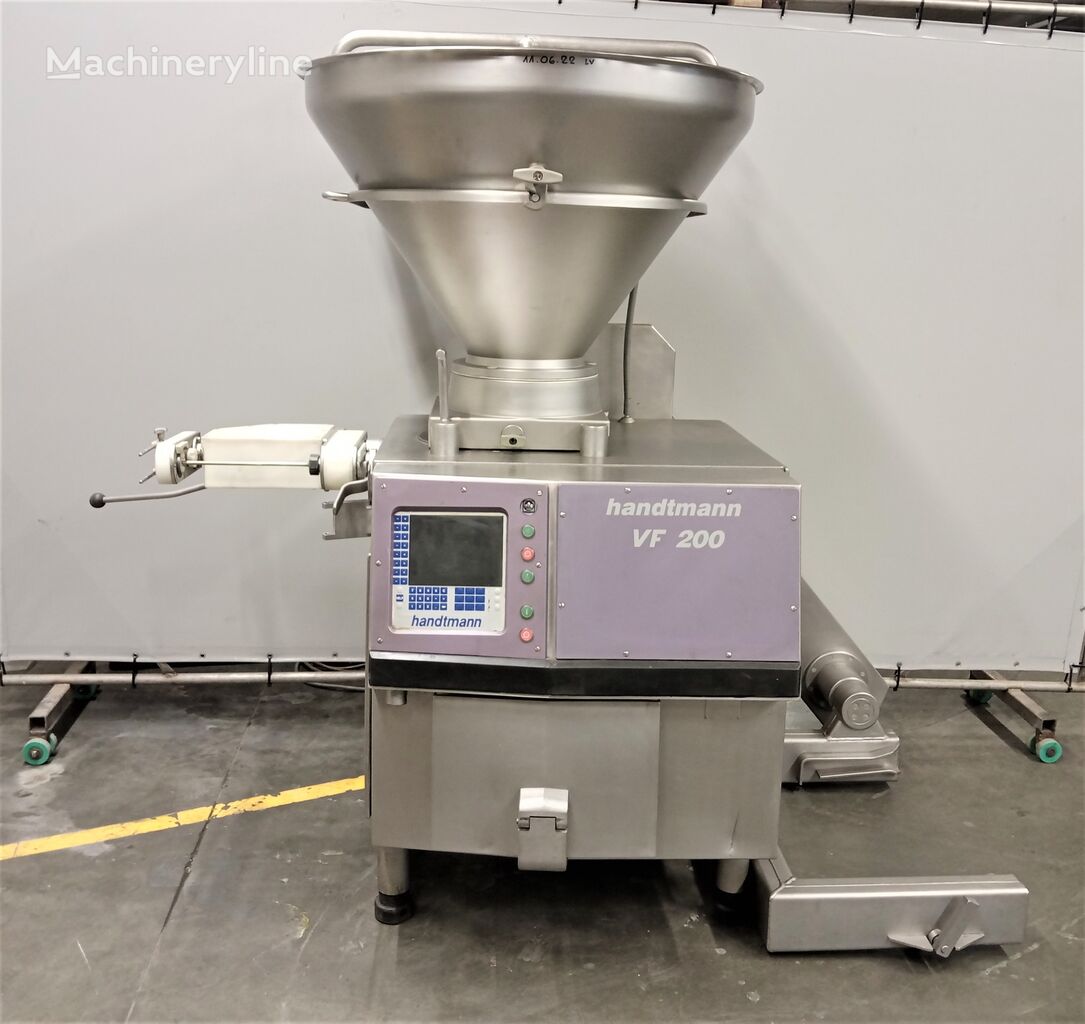

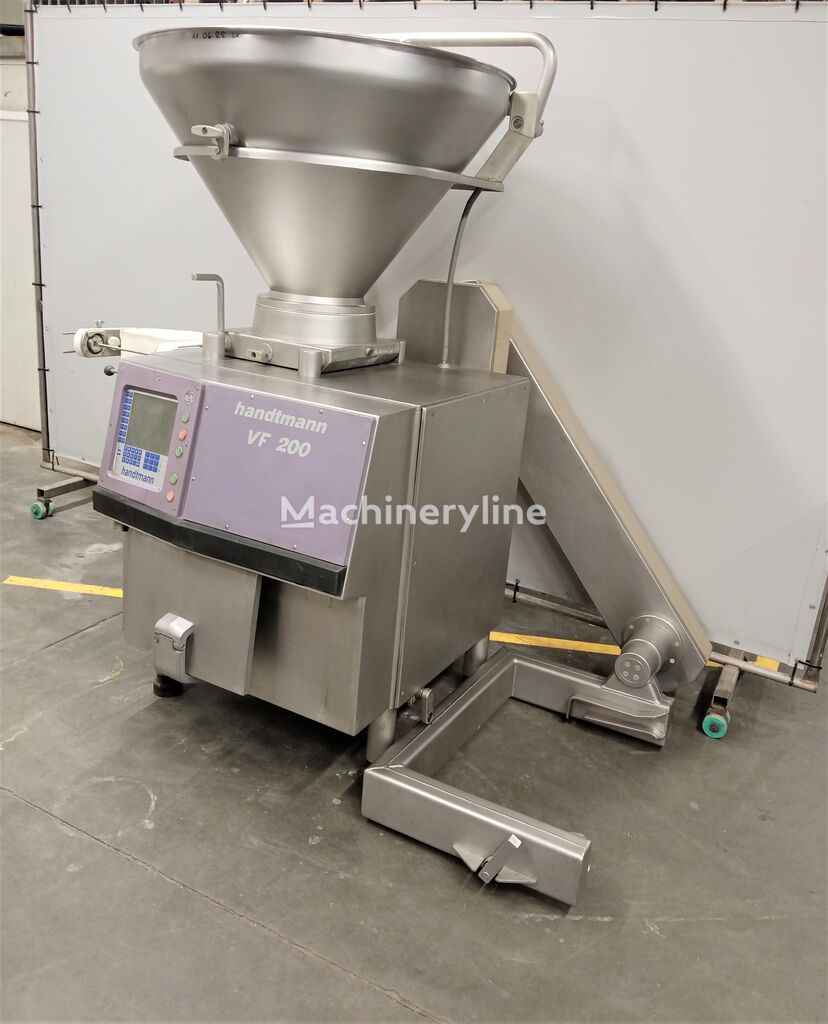

The Handtmann VF 200 B is a vacuum filler — sometimes referred to as a vacuum stuffer — a type of meat processing machine used to fill casings, molds, and containers with ground or emulsified meat and other food products under controlled pressure. Handtmann is a well-established German manufacturer recognised globally for its vacuum filling and portioning technology, serving the food processing, meat, sausage, and ready-meal industries.
This machine is rated for a throughput of up to 5,000 kg per hour and draws a total installed power of 13.5 kW, supplied at 400 V, 50 Hz, three-phase. The hopper capacity is 240 litres, and the system operates at a pressure of 55 bar. The filler is constructed from stainless steel with acid-resistant finishing, making it suitable for the hygienic demands of food production environments. Overall dimensions are 1,500 × 1,800 × 2,100 mm.

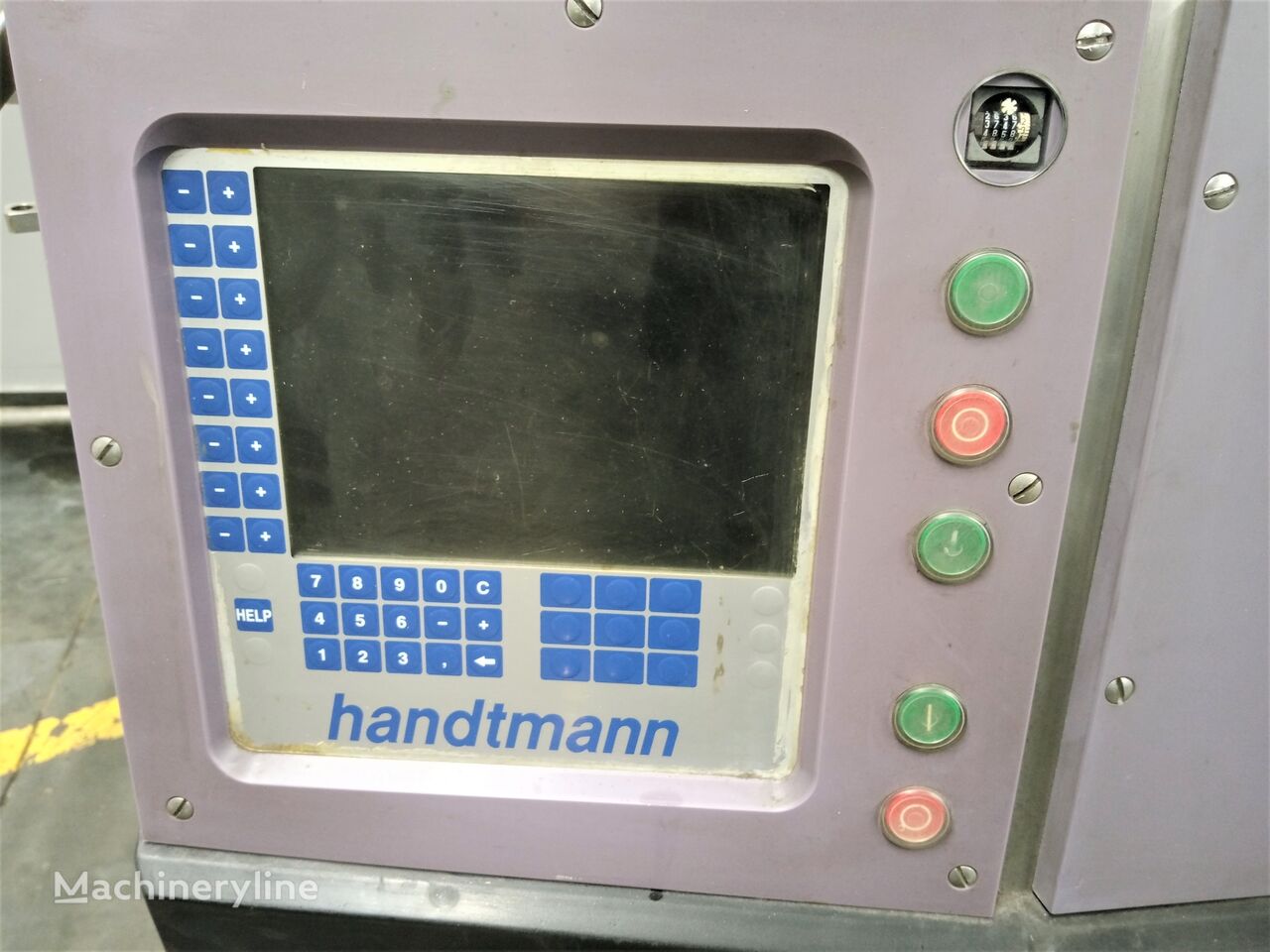

Portioning range runs from 5 g to 100,000 g per portion, giving the machine considerable versatility across different product formats. Portion output speed varies with portion size: at 25 g the filler delivers up to 500 portions per minute, at 50 g up to 450 portions per minute, at 100 g up to 380 portions per minute, and at 200 g up to 280 portions per minute. The machine incorporates an integrated hydraulic loading system and an integrated control system for managing the filling and portioning process.
This is a used example, manufactured in 2001, currently located in Poland.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
