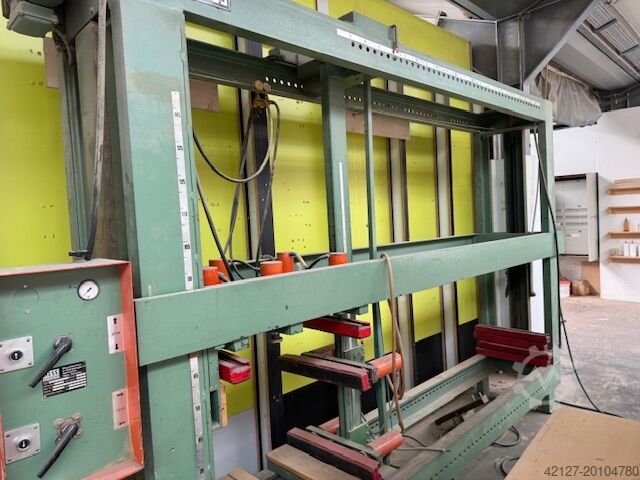

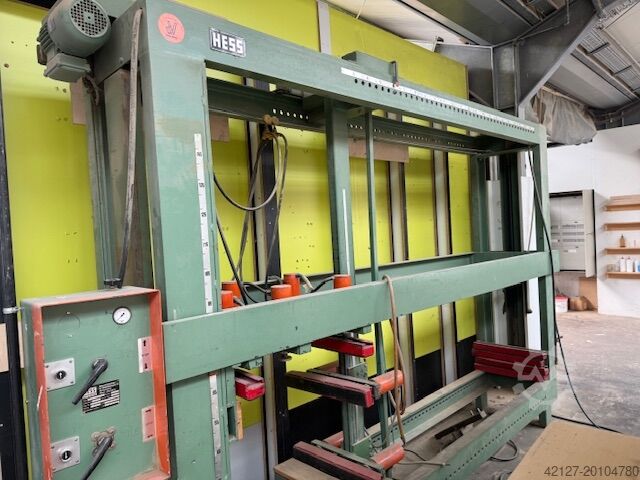

Hess Export Wood Press()
- Listing No
- 922920
- Year
- Manufacturer
- Hess
- Model
- Export
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Hess Corpus Press Type: Export, Pneumatic Manufacturer: Hess Type: Export Maximum workpiece size: 2,500 x 1,500 mm Press force: 1,400 kp pressing capacity per pressure unit at 15 bar Vertical cylinders: 2 + 2 pressure cylinders Co Upoxgvwponhfyjpt Horizontal cylinders: 2 + 2 pressure cylinders Dimensions: 3,900 mm x 2,500 mm x 600 mm Weight: 1,060 kg Hess Corpus Press Export, pneumatic 2 vertical pressure assemblies, each with 2 pressure cylinders, 80 mm cylinder diameter, 110 mm stroke, 1,400 kp pressing force per pressure unit at 15 bar 2 horizontal pressure assemblies, each with 2 pressure cylinders, 80 mm cylinder diameter, 110 mm stroke, 1,400 kp pressing force per pressure unit at 15 bar; the upper unit is easily adjustable thanks to weight compensation Pressing operation is controlled via 2 rotary slide valves with positions Press – Stop – Release Maintenance unit consisting of pressure regulator (0–15 bar), pressure gauge, and oil mist lubricator Anodized measuring scales, detachable feet Location: Ex works customer site - Immediately available - The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine

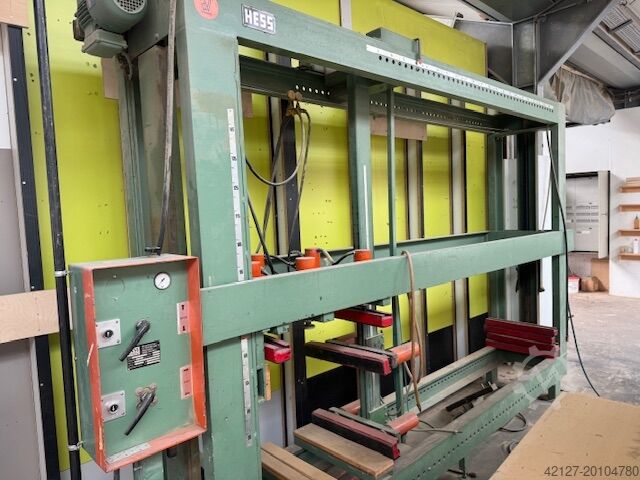

The Hess Export Wood Press is a used wood press — sometimes referred to as a corpus press or cabinet press — designed for clamping and pressing wooden workpieces during assembly, making it an essential tool in furniture manufacturing, cabinetmaking, and joinery production. Hess is a recognised German manufacturer of clamping and pressing equipment for the woodworking industry, known for producing robust pneumatic and hydraulic pressing systems used in professional workshop and industrial settings.
This machine is a pneumatically operated unit capable of accepting workpieces up to 2,500 x 1,500 mm. It is equipped with four pressure assemblies in total: two vertical and two horizontal, each assembly consisting of two pressure cylinders with an 80 mm cylinder diameter and a 110 mm stroke. Every pressure unit delivers a pressing force of 1,400 kp at a working pressure of 15 bar, giving the press substantial and evenly distributed clamping capacity across both axes simultaneously.

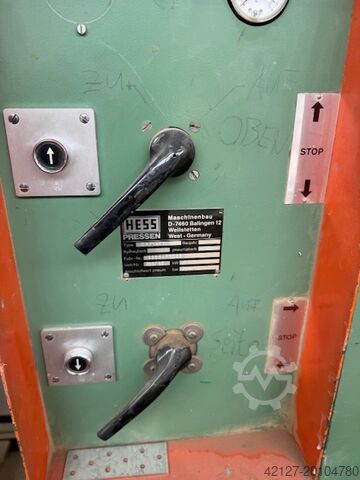

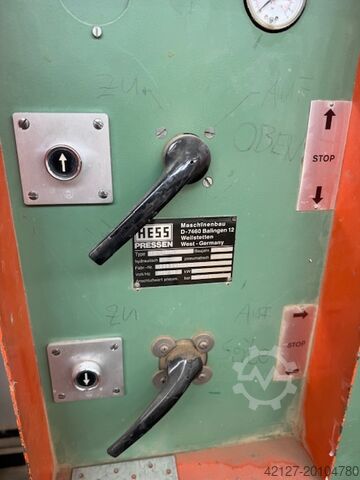

The vertical and horizontal assemblies each follow the same 2 + 2 cylinder configuration. The upper horizontal pressure assembly features weight compensation for straightforward height adjustment. Pressing operation is managed via two rotary slide valves, each offering three positions — Press, Stop, and Release — giving the operator direct and responsive control over the clamping cycle.
The machine includes an integrated maintenance unit comprising a pressure regulator adjustable from 0 to 15 bar, a pressure gauge, and an oil mist lubricator to keep the pneumatic system properly conditioned during use. Additional practical features include anodized measuring scales for repeatable setup and detachable feet for positioning flexibility.
The overall machine dimensions are 3,900 x 2,500 x 600 mm and the unit weighs 1,060 kg. Located in Germany and available from an ex-works customer site, this press is described as immediately available.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
