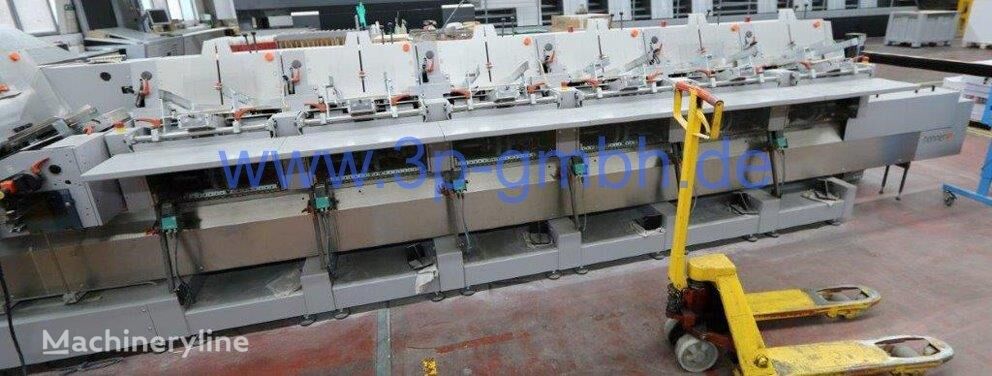

2015 - Hohner HSB 8.000 Book Binder()
- Listing No
- 1019880
- Year
- 2015
- Manufacturer
- Hohner
- Model
- HSB 8.000
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Year. 12-2015 approx. 3500 operating hours 6 VF 1 sheet feeder for 2:1 switching 1 Hand plant 1 Cover feeder 7 Opticontrol sheet inspection Stapler with staple and thickness control 4 stitching heads HK 52-8 Universal 4 stitching heads HK 52-8 for ring eyelets 6mm 4 Large coil carrier Trimmer with center cutting device for two-up production Transfer table Pressure vacuum supply long belt delivery without compensating stacker !!!!! The way of the middle user-friendly & economical The HSB 8.000 is the ideal solution if you are looking for an automatic saddle stitcher for finishing prefolded sheets in short and medium runs Behind its compact size our semi-automatic machine hides a great variety and high know-how for the user Format settings for example are made without tools and mean efficient and user-friendly work in the shortest possible time with extremely reduced manpower this saddle stitcher can produce up to 8,000 products per hour with high quality standards and without any staple misalignment In addition the HSB 8,000 format shows as it is best in class with a maximum format of 365 x 350 mm. Ring eyelet stitching is also no problem for him as an option At Hohner your quality and efficiency considerations are taken seriously and implemented in a user-friendly manner The advantages in a nutshell Subsequent expansion and adaptation of the system to your individual needs thanks to an extensive modular system (wide range of optional extensions: from one manual feeder to 8 automatic single folder feeders automatic cover feeder two-up device 2:1 indexing clamp control compensating stacker and transport system for cutting waste) Knife connection via a yoke 12 recirculating ball bushings for highly precise guidance and extremely long knife service life No staple misalignment – stapling and positioning of staples flawless Compact size with high performance profile – reduced space requirement Minimized personnel requirements Ergonomic user-friendly feed height Your advantages – stable production with approx. 7000 cycles – short changeover times – the large maximum format 340x355mm – low investment costs fast ROI
About this machine
The Hohner HSB 8.000 Book Binder is a saddle stitcher — sometimes referred to as a saddle stapler — a type of book binding machine used to collate, stitch, and trim folded printed sheets into finished booklets, catalogues, brochures, and similar products. Hohner is a well-established German manufacturer specialising in stitching and binding equipment for the print finishing industry, known for producing reliable, high-output saddle stitching systems suited to both commercial and industrial print operations.
This 2015 machine has accumulated approximately 3,500 operating hours and is located in Germany. It is offered in used condition and represents a comprehensively equipped configuration. The feeder arrangement consists of six VF single-sheet feeders set up for 2:1 switching, one hand plant, and one cover feeder, giving the line considerable flexibility for different product types and run lengths. Sheet inspection is handled by seven Opticontrol units, and the stapler is equipped with both staple and thickness control to ensure consistent, misalignment-free stitching.

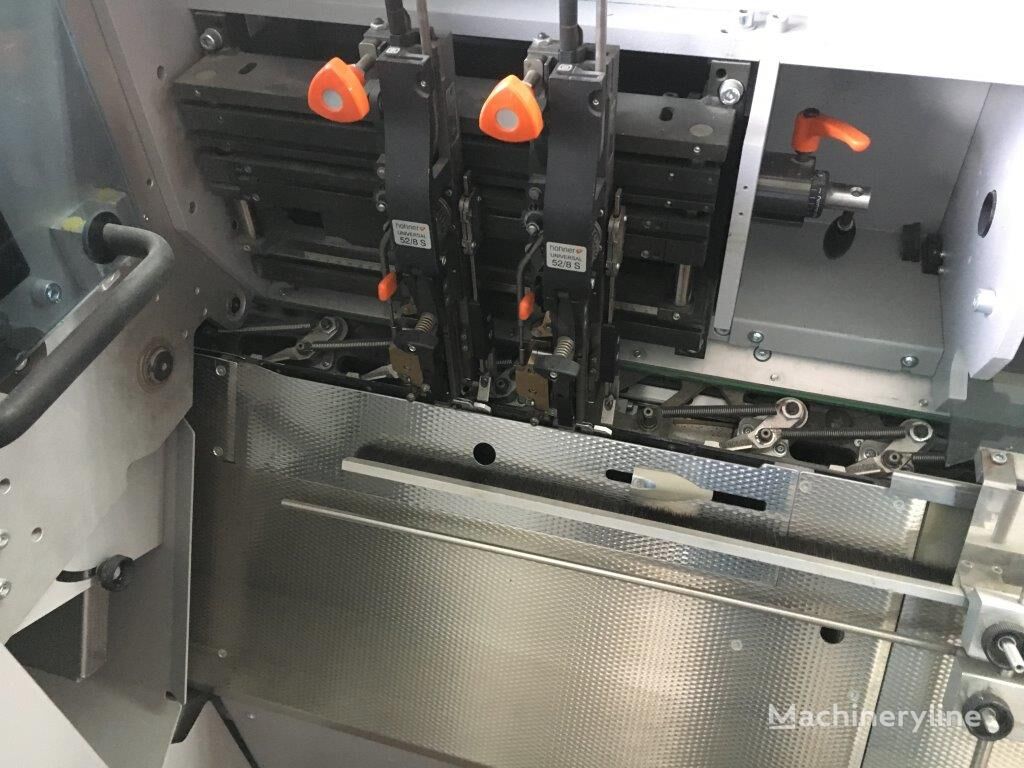

The stitching head configuration is particularly notable. Four HK 52-8 Universal stitching heads are fitted alongside four HK 52-8 heads dedicated to ring eyelet stitching at 6 mm — an option that extends the machine's capability beyond conventional saddle stitching into eyelet-bound products. Four large coil carriers are also included to support this function. The trimmer is equipped with a centre cutting device for two-up production, allowing two finished products to be produced simultaneously and significantly increasing effective output.
Additional equipment on the machine includes a transfer table, pressure and vacuum supply, and a long belt delivery. It is noted that a compensating stacker is not included with this listing.
The machine is rated for production of up to 8,000 products per hour and has a maximum format of 365 × 350 mm. Format changes are made without tools, reducing changeover time and operator effort. The seller describes stable production at approximately 7,000 cycles and highlights the machine's compact footprint relative to its output capacity.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
