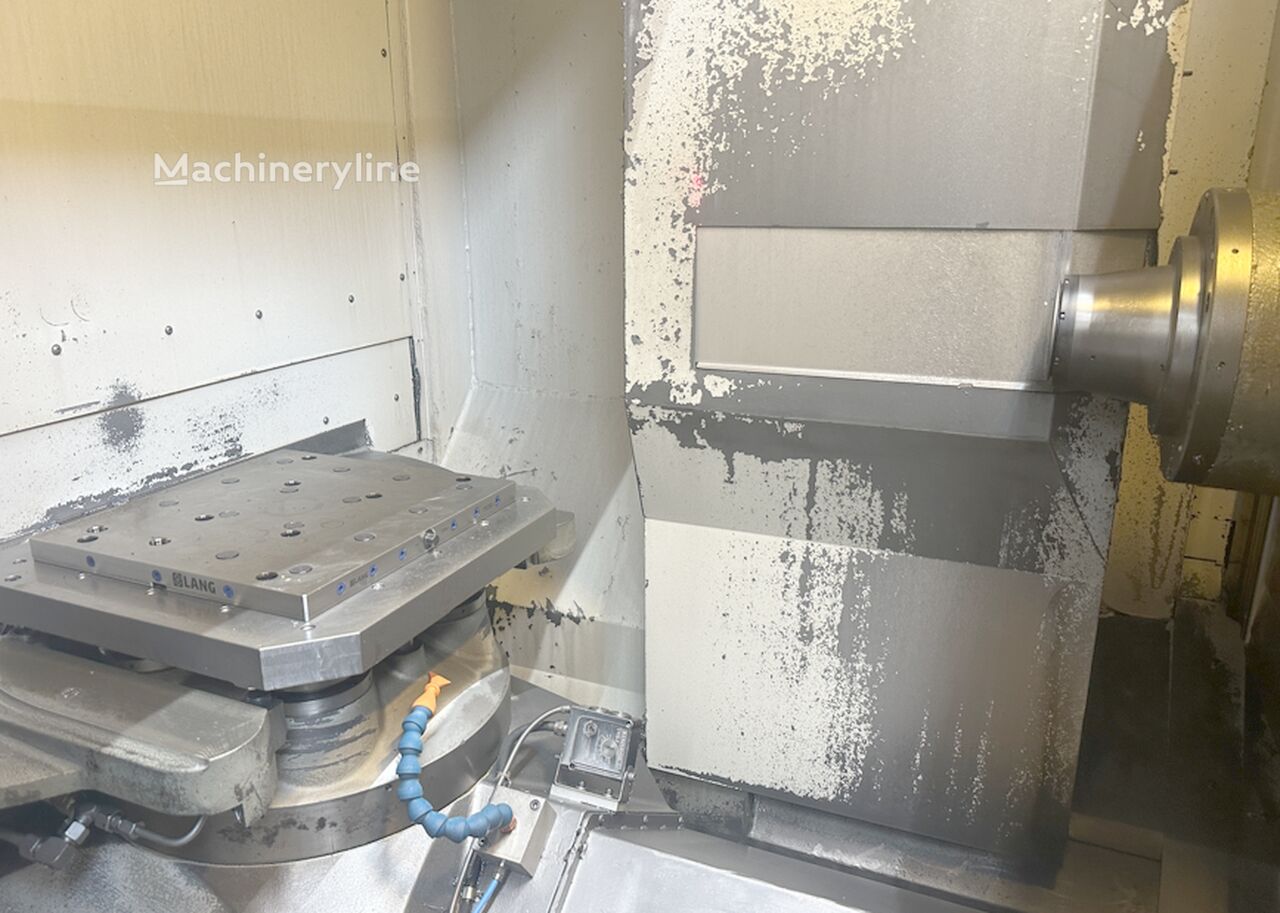

2007 - Hüller Hille Bluestar 5 Machining Center

• Listing No
• 968082
• Year
• 2007
• Manufacturer
• Hüller Hille
• Model
• Bluestar 5
• Condition
• Used
• Location
• Price
• $N/A
• Description
• Group: Machining centres Control: GE FANUC Series 21i-MB Number of axis total: 4 Transversal travel (y-axis): 630 mm Table divisions (B): 0.001 ° Table speed: 30 t/min Holding torque A-axis: 4000 Nm Tilting moment: 8000 Nm Pallet weight: 150 kg Time of changing palets: 7 s Number of tools: 40 Tool diameter max: 80 mm Diameter with free adjacent pockets: 150 mm Tool lenght: 350 mm Max. tool-weight: 10 kg Time of tool changing: 2.5 - 4.5 s Average chip-to-chip time: 4 s Spindle nose: HSK-A: 63 from: 1 t/min up to: 10000 t/min Feed range: 1 - 50000 mm/min Rapid traverse: 50 m/min Acceleration: 7 m/s Max. Feed force: 5000 N Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Spindle power: 30 / 18 kW Torque max: 202 Nm Total power required: 27 kVA Machine's weight about: 12500 kg
