Jaespa Ø 1600 Mobile Bandsaw FOR Large Workpieces Band Saw
()- Listing No
- 955887
- Year
- Manufacturer
- Jaespa
- Model
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Type: ASH-15/S mobile bandsaw for large workpieces max diameter: 1600 mm depth of throat: 1650 mm horizontal movement (stroke) of bandsaw: 1850 mm including table with 8 clamps (10 000 x 2500 x 1400 mm) Depth of throat: 1650 mm Max height of workpiece: 1600 mm Sawspeed: 16 > 120 m/min Length of band saw: 9100 x 0,9 x 25 mm
About this machine
This Jaespa ASH-15/S is a used horizontal band saw — sometimes referred to as a horizontal bandsaw mill — designed for cutting exceptionally large workpieces. Horizontal band saws of this type are used across heavy industry, timber processing, and fabrication operations where oversized cross-sections must be cut accurately and repeatedly. Jaespa is a Belgian manufacturer with a long-standing focus on heavy-duty sawing machinery, supplying equipment to industrial and woodworking sectors where demanding cutting requirements are the norm.

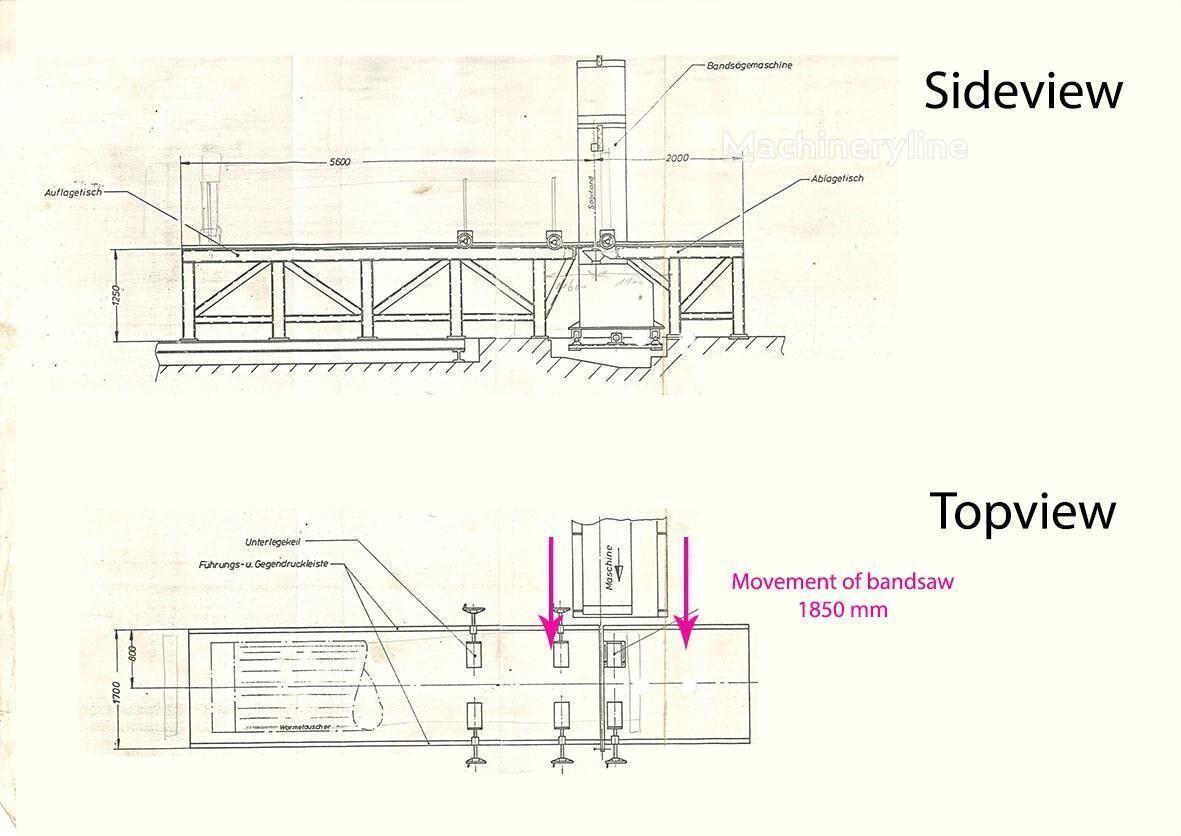

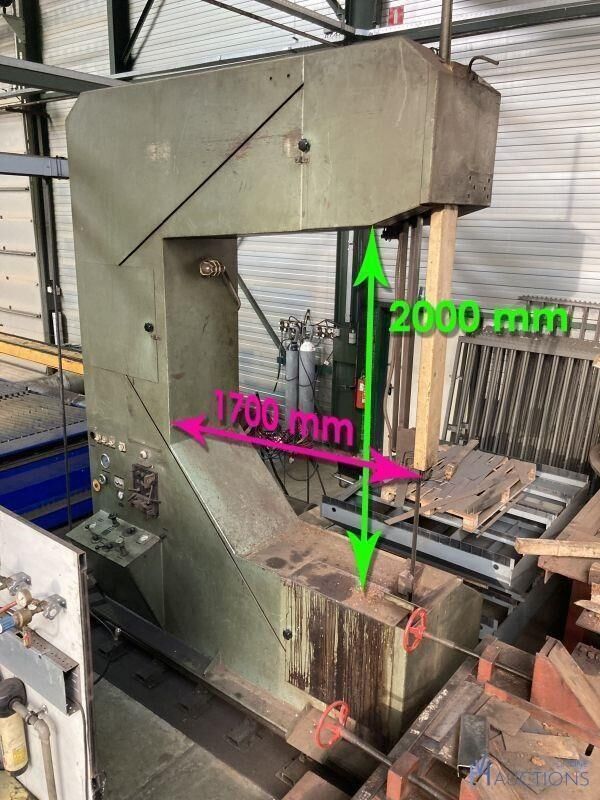

This particular machine is configured as a mobile unit, allowing it to be repositioned around a workshop or yard rather than being fixed in place. It is built around an impressive maximum cutting diameter of 1,600 mm and a depth of throat of 1,650 mm, meaning it can accept and cut through very large-diameter logs, billets, or structural workpieces that would be beyond the reach of conventional band saws. The horizontal stroke of the bandsaw head measures 1,850 mm, giving the cutting beam ample travel to pass fully through wide material.
The saw band itself measures 9,100 mm in length by 25 mm wide and 0.9 mm thick. Cutting speed is variable, running from 16 to 120 metres per minute, which allows the operator to select an appropriate feed rate for different materials and cross-sections.

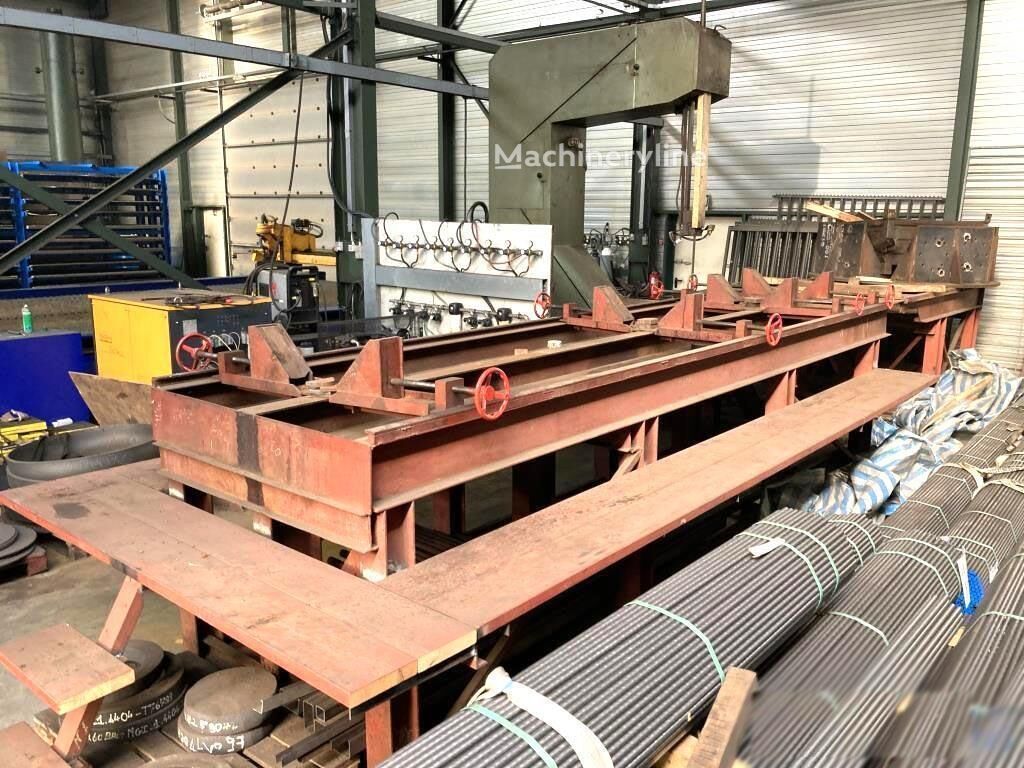

The machine is offered together with a substantial work table measuring 10,000 mm long by 2,500 mm wide by 1,400 mm high, which is fitted with eight clamping devices to secure large workpieces firmly during the cut. This combination of table size and clamping provision reflects the machine's orientation toward handling very heavy, long, or irregularly shaped stock. The machine is located in Belgium.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
