About this machine

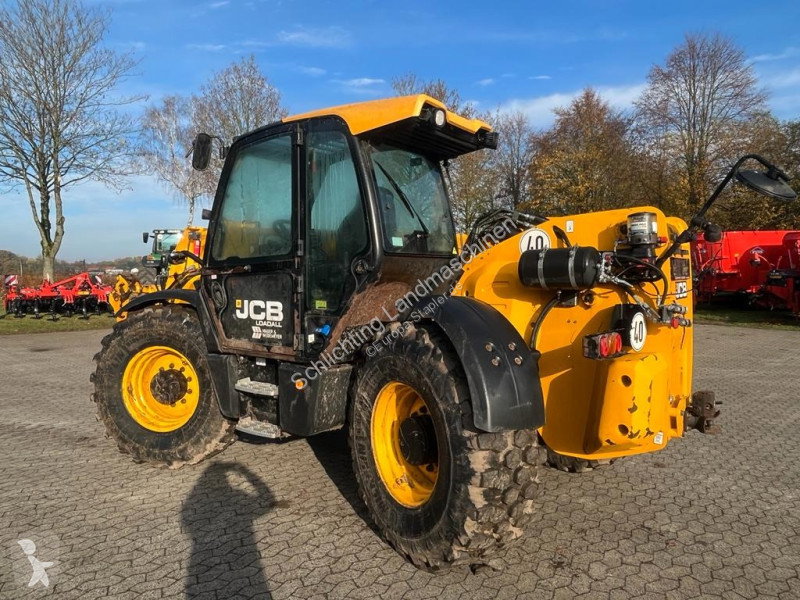

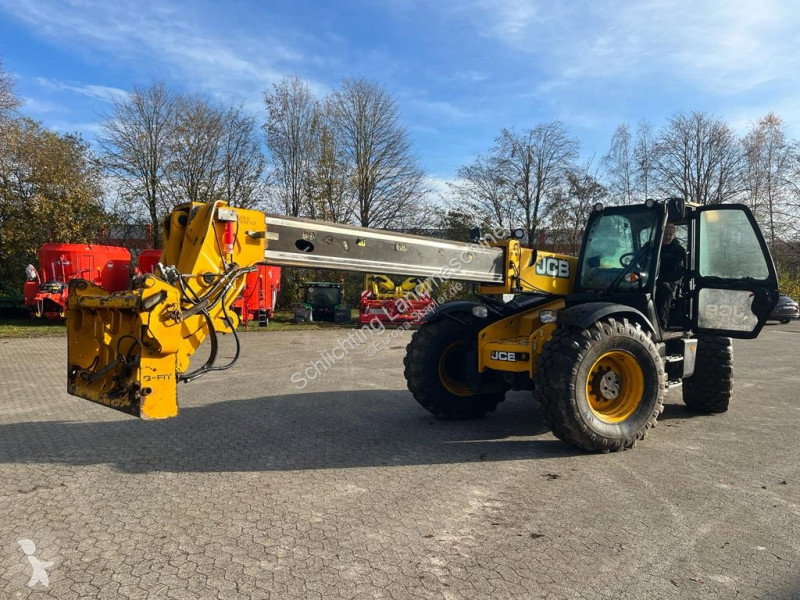

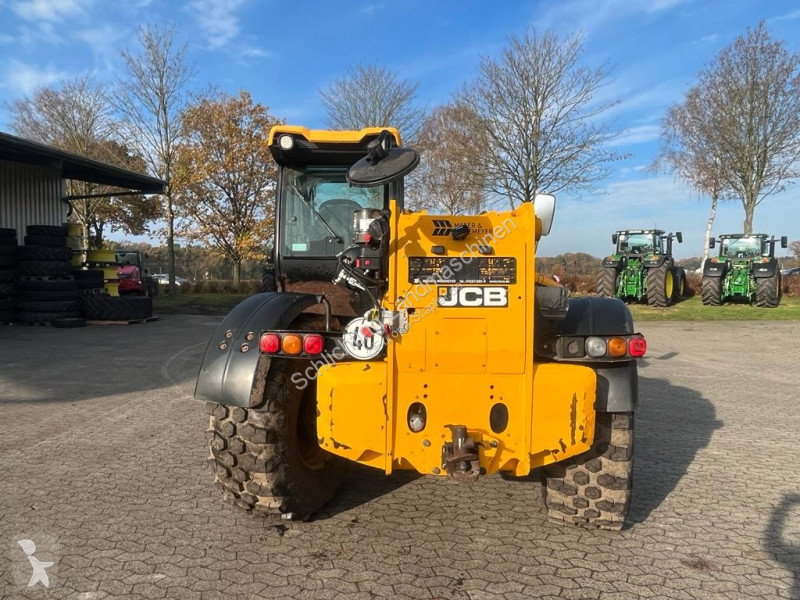

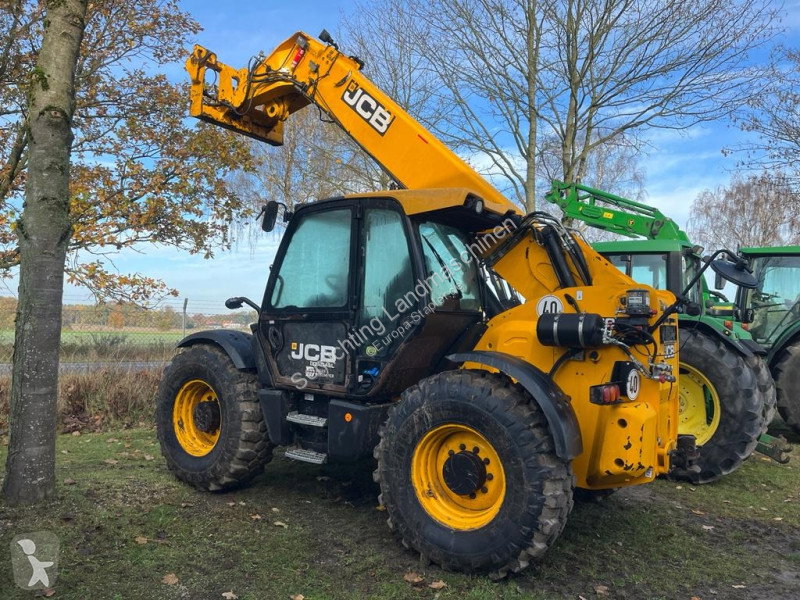

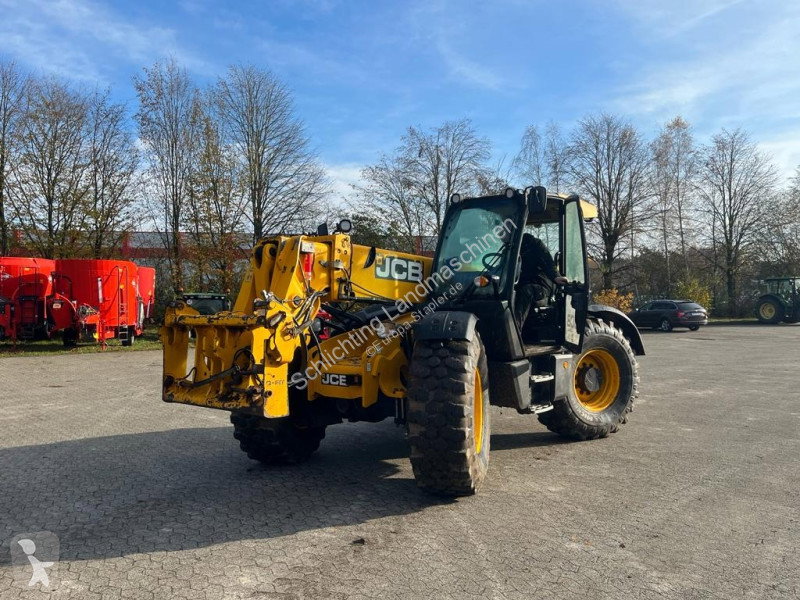

This JCB 560-80 Agri Super is a telehandler — also commonly referred to as a telescopic handler — a type of lifting and material-handling machine widely used in agriculture, construction, and logistics. Telehandlers combine the reach of a crane with the versatility of a forklift, using an extendable boom to lift, place, and transport loads at height and distance. JCB is a British manufacturer with a long-standing reputation for construction and agricultural machinery, and their telehandler range is among the most established in the industry.

This 2016 machine is offered in used condition from a location in Germany, priced at €50,000. It is powered by a JCB four-cylinder Tier 4 Final engine producing 108 kW (145 hp), driving through a six-speed powershift transmission with a top road speed of 38 km/h. Maximum rated payload is 6,000 kg with a lift height of 7.9 metres, making it a capable mid-to-large agricultural telehandler suited to demanding farm and yard duties.

The hydraulic system features a variable-flow axial piston pump with a delivery rate of 140 litres per minute, controlled via a proportional, servo-piloted single-lever system that includes one proportional auxiliary hydraulic circuit. A pressure relief button for the auxiliary control circuit and end-position damping are also fitted. The machine comes with a hydraulic JCB Q-Fit quick coupler for rapid attachment changes. The return circuit features a pressureless return line and a leak-oil line. Hydraulic oil delivery is supported by a Beka Max central lubrication system, which automates greasing of key pivot points, and a supplementary central grease rail is also installed.

Ride comfort and stability are addressed by the Smooth Ride System (SRS), a load-damping function that absorbs boom oscillations during travel. A locking front differential (LSD) improves traction on uneven ground, and four-wheel drive can be engaged or disengaged as required. A transmission disconnect switch is integrated into the brake pedal for smooth deceleration without drivetrain stress. The front tyres are 480/80R26 Michelin Bibload all-surface units.

The operator's cab holds ROPS and FOPS certification and is glazed with tinted glass. Inside, the driver benefits from an air-suspended comfort seat, heating, and air conditioning. A reversing fan helps manage engine cooling and prevents debris build-up. Central lubrication is further supported by the Beka Max automated system mentioned above. The machine is equipped with a Rockinger towing hitch with a 38 mm pin diameter and trailer electrics, a windscreen washer system, two front LED working lights, and two additional LED working lights mounted on the boom. JCB's Live Link telematics system is also fitted, enabling remote monitoring of machine data.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
