2020 - JCB JS175W Plus T.A.B. Wheeled Excavator()
- Listing No
- 649749
- Year
- 2020
- Manufacturer
- JCB
- Model
- Condition
- Used
- Location
- Germany
- Price
- €134,900
- Description
-
Allrad, Greiferhydraulik, Hammerhydraulik, Hydraulik (Nebenantrieb) Kabine, Klima, Tempomat, UVV, Verstellausleger, Zusatzscheinwerfer JCB Ecomax Turbodiesel Motor Typ 444 mit 129kw/173 PS - Abgasstufe TIER 4F \- Abgasnachbehandlung durch SCR (Selektive katalytische Reduktion) mit DEF (AdBlue) \Stufenloser hydrostatischer Allradantrieb über Verstellmotor \Lastschaltgetriebe mit 2 Fahrstufen und Kriechgang \Vorderachse Planetenachse pendelnd aufgehängt mit Verriegelungsautomatik \Integrierte im Ölbad laufende Lamellenbremsen in beiden Achsen \Feststellbremse über im Fahrgetriebe integrierten Federspeicher \Hydrostatische Lenkung mit verstellbarer Lenksäule \Hydrost. Schwenkantrieb über Axialkolbenmotor mit verschleißfreier Schwenkbremse \Hydr. Verstellausleger mit 4 Schlauchbruchsicherheitsventilen und Überlastwarneinrichtung \2 Axialkolbenregelpumpen mit Load Sensing (2 x 156 l/min / Betriebsdruck 314 bar) \manuelle Powerboostdruckerhöhung auf 343 bar \Automatische Drehzahlregelung (auto idle) \AMS - Computergestütztes Regel- und Überwachungssystem auf CAN–BUS Technologie mit \SMART-Control 7“ Farbdisplay mit integrierter Rückfahrkamera \24 Volt Bordelektrik \ISO–Luxuskabine auf Flüssigkeitssilentblöcken mit Heizung und Sicherheitscolorverglasung, Sonnenblende, Anschlüsse: 2 x 12 Volt, 1 x USB \Arbeitsscheinwerfer am Ausleger \StVZO Ausrüstung, TÜV – Abnahme, CE Zertifizierung \***JCB Live-Link – GPS-/GSM- gestütztes Überwachungs- und Diagnosesystem****** \**Löffelstiel 2,70m** \**Klimaanlage** \**Planierschild an Hinterachse parallel geführt** \**ZF-Achsen mit innenliegenden Trommelbremsen (2,75m)** \**Bereifung 8-fach 10x20** \**Planierschild an Hinterachse parallel geführt** \***Zusatzhydraulik mit elektro-proportionaler Steuerung für Hammer-,Scheren- und Schwenklöffelbetrieb***\***ATS (automatische Werkzeugvorwahl) ***\**luftgefederter und elektrisch beheizbarer Komfortsitz** \**elektrische Betankungspumpe** \**Klimaanlage** \**Beleuchtung in LED Ausführung** \**Regenschutzdach, Sonnenrollo** \**Radiovorbereitung mit Radio** \**Rundumleuchte** \**Zwei Staukästen am Unterwagenrahmen** \***Abdeckung für Planierschildzylinder*** \**teuerkreis für einen hydraulischen Schnellwechsler** \***Schnellwechsler und Anbauwerkzeuge nach Absprache*** \
About this machine

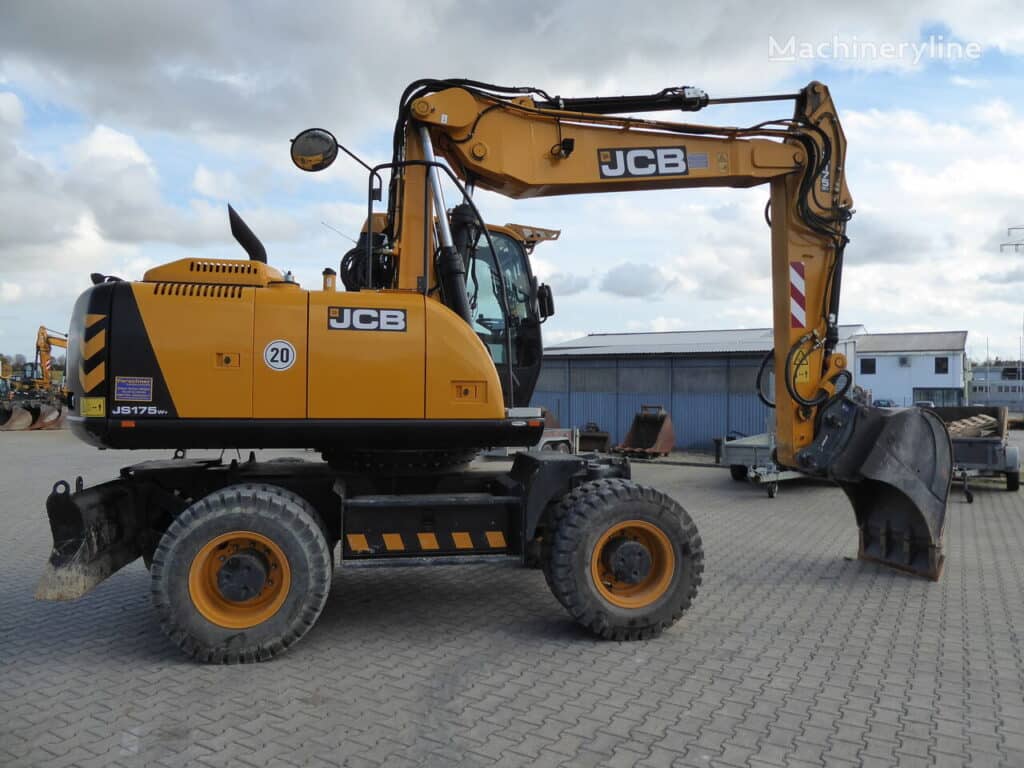

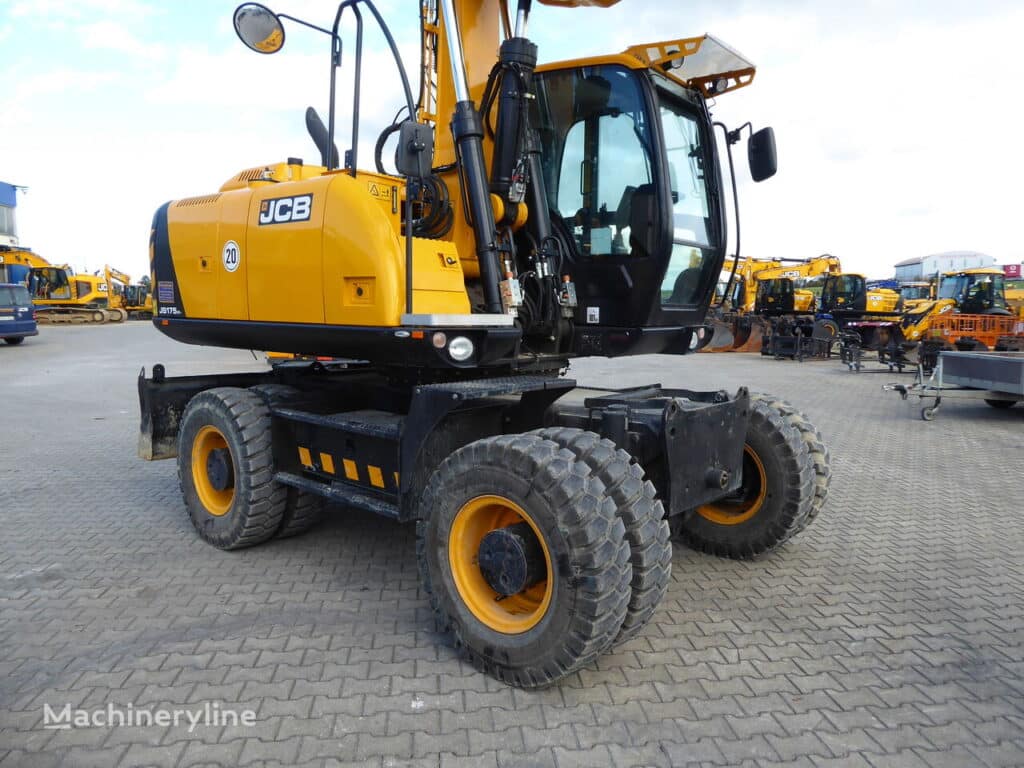

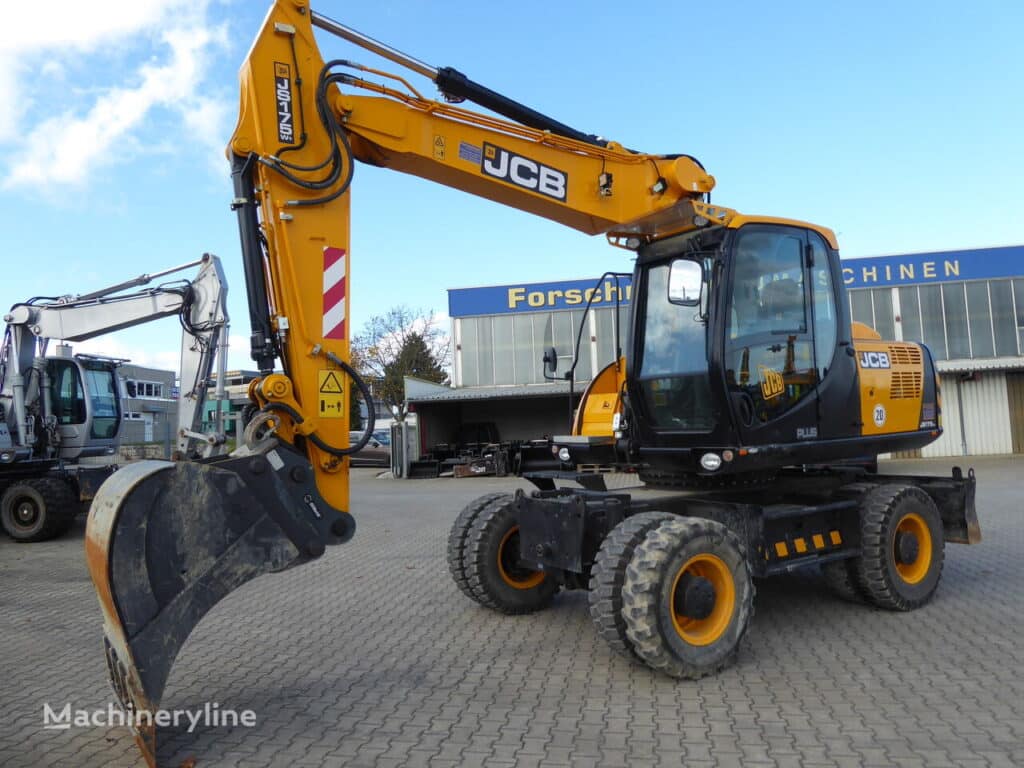

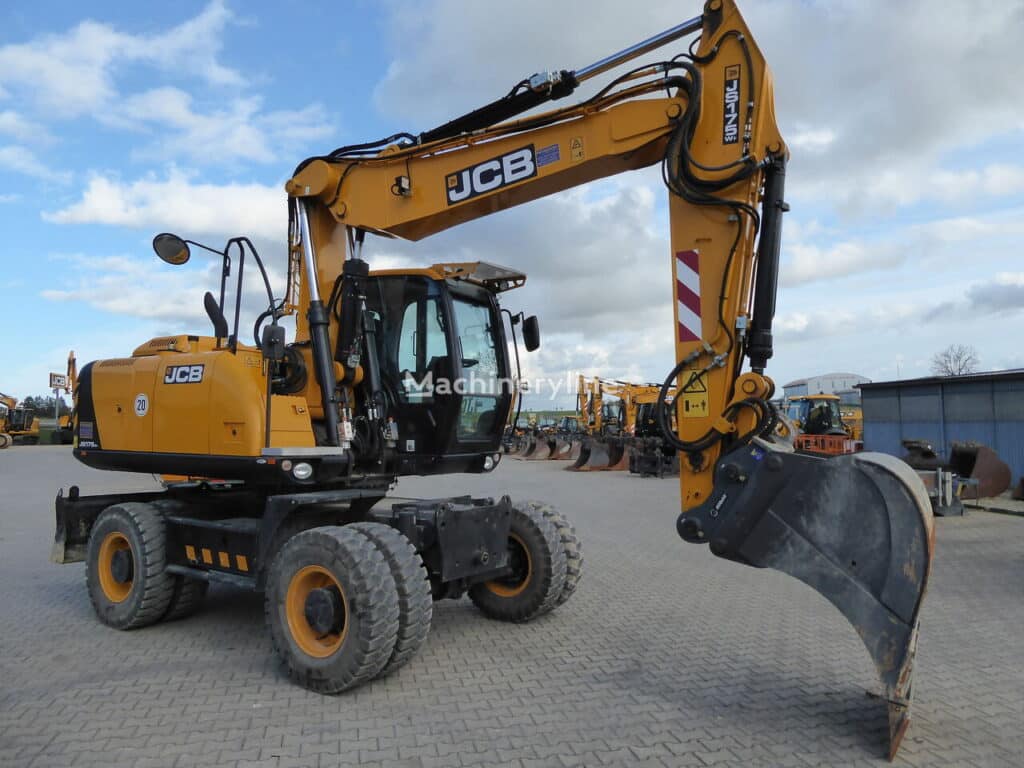

This JCB JS175W Plus T.A.B. is a wheeled excavator — sometimes called a wheeled digger — a rubber-tyred machine built for earthmoving, trenching, grading, and demolition work on both job sites and public roads. JCB is a well-established British manufacturer of construction and earthmoving equipment, supplying plant machinery to the construction, infrastructure, utilities, and civil engineering industries worldwide.
Power comes from a JCB Ecomax Turbodiesel 444-series engine producing 129 kW (173 hp), compliant with Tier 4 Final emissions standards. Exhaust aftertreatment is handled by SCR (Selective Catalytic Reduction) using DEF/AdBlue. Drive is delivered through a continuously variable hydrostatic all-wheel-drive system via a variable-displacement motor, with a powershift gearbox offering two travel speeds plus a creep gear. The front axle is a planetary unit with pendulum suspension and automatic locking. Both axles feature integrated multi-disc oil-bath brakes, and a spring-accumulator parking brake is integrated into the travel gearbox. Steering is hydrostatic with an adjustable steering column.
The hydraulic system is fed by two axial-piston variable-displacement pumps with load-sensing control, each delivering 156 l/min at an operating pressure of 314 bar, with a manual power-boost function raising pressure to 343 bar. The swing drive uses an axial-piston motor with a wear-free swing brake. The machine is fitted with an adjustable boom incorporating four hose-burst safety valves and an overload warning device. Auxiliary hydraulics are provided for hammer, shear, and tilting-bucket operation, with electro-proportional control and ATS (automatic tool selection). A hydraulic circuit for a hydraulic quick coupler is also installed; a quick coupler and attachments are available by arrangement.
Machine management is handled by the JCB AMS system, a CAN-bus-based computerised control and monitoring platform with a 7-inch SMART-Control colour display and integrated reversing camera. The machine is also equipped with JCB Live-Link, a GPS/GSM-based remote monitoring and diagnostic system. The electrical system operates at 24 volts.

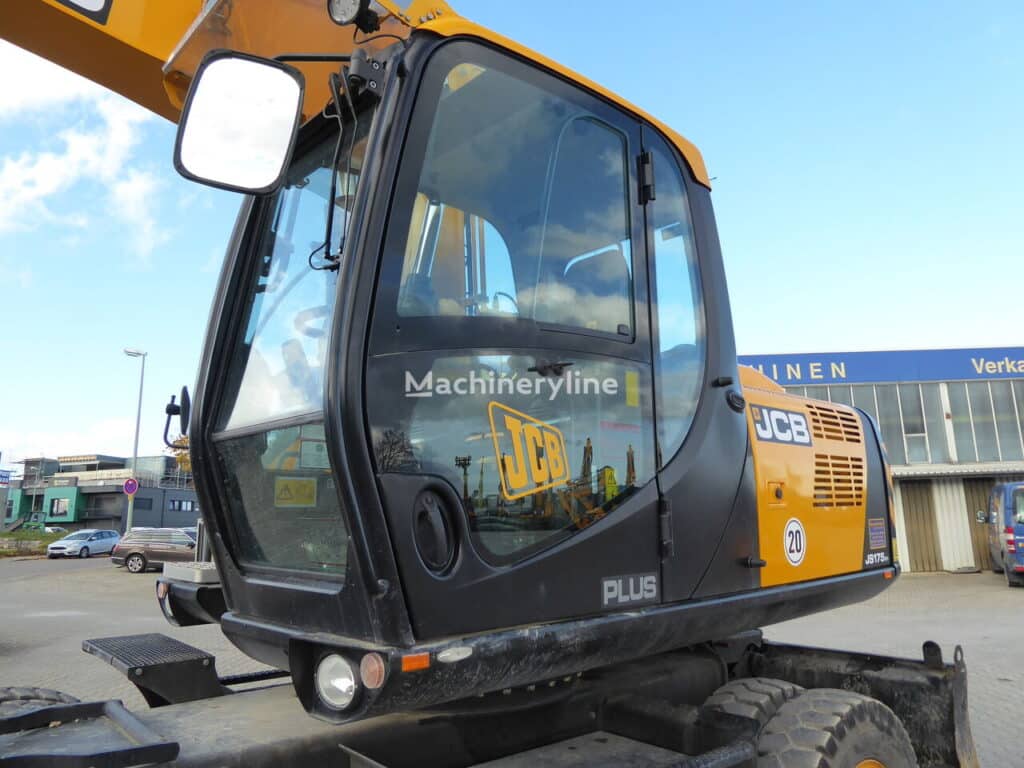

The cab is an ISO luxury specification unit mounted on liquid-filled silent blocks, with heating, air conditioning, safety colour glazing, a sun blind, a rain canopy, work lights on the boom, LED lighting throughout, additional working lights, a beacon, and a 12-volt socket (×2) plus one USB connection. The operator seat is air-suspended and electrically heated. Further cab amenities include radio preparation with radio fitted.
Additional equipment includes a 2.70 m dipper arm, ZF axles with internal drum brakes on a 2.75 m track width, 8-ply 10×20 tyres, a parallel-guided dozer blade at the rear axle with cylinder cover, an electric refuelling pump, two storage compartments on the undercarriage frame, and a cruise control function. The machine holds current StVZO road-homologation, TÜV inspection approval, and CE certification.
This 2020 machine is offered in used condition, located in Germany, at a price of €134,900.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
