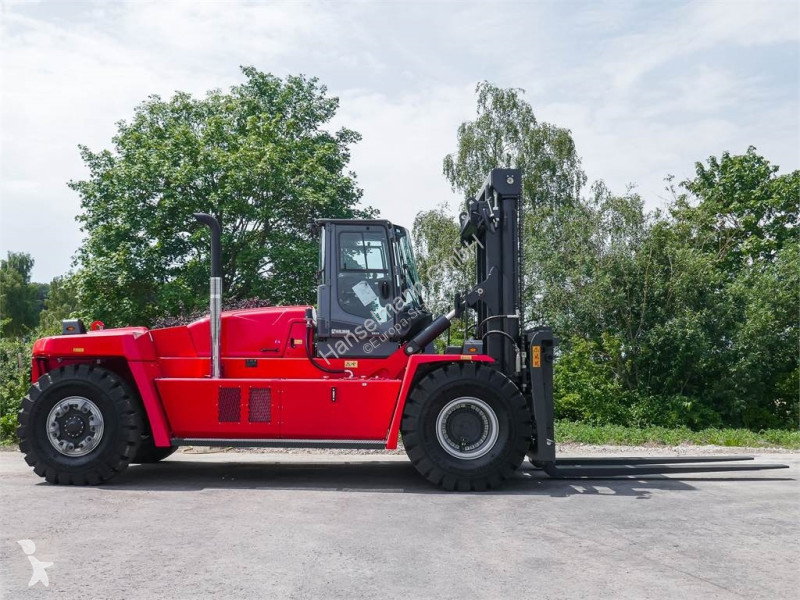

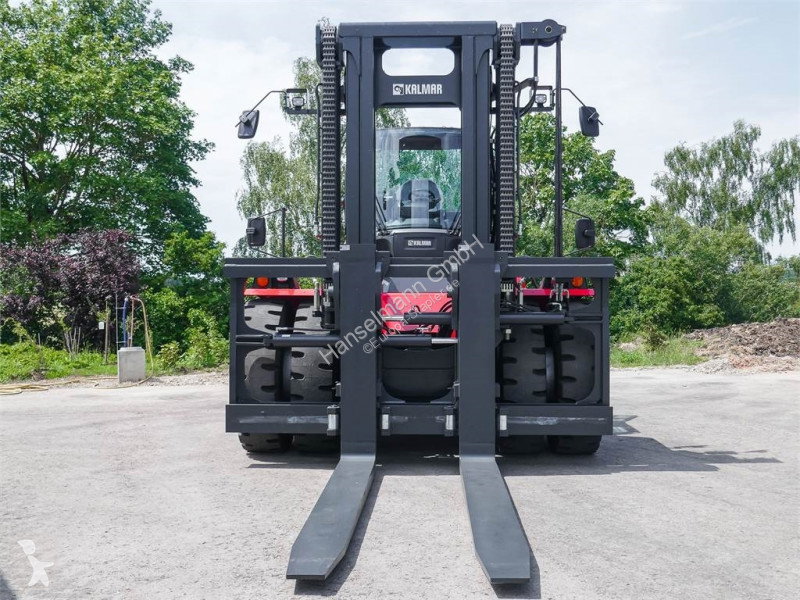

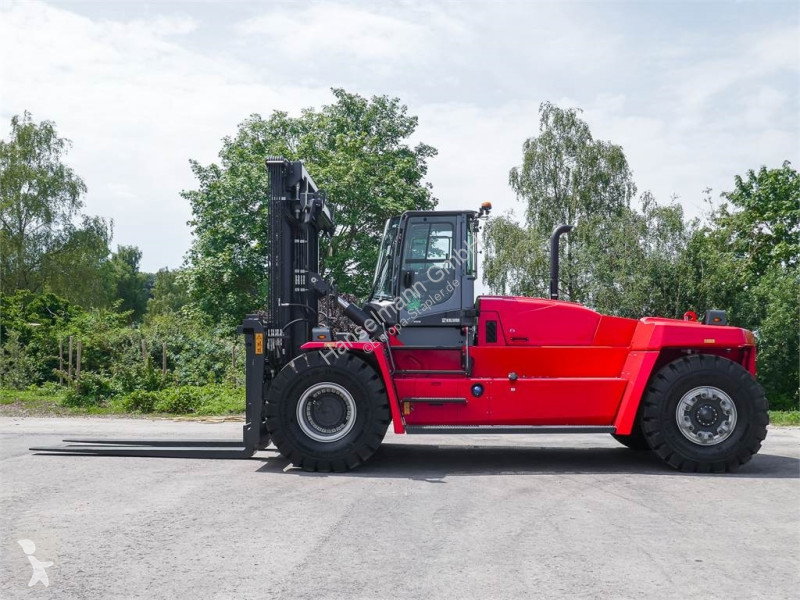

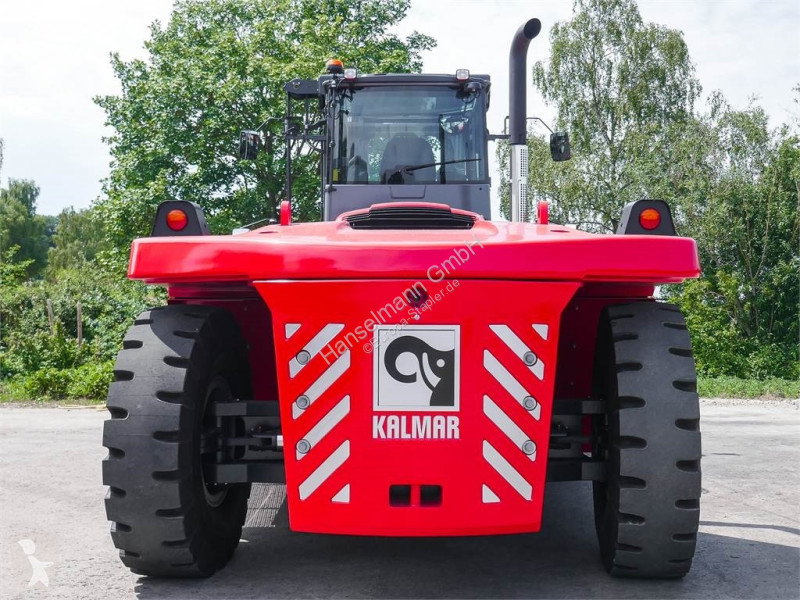

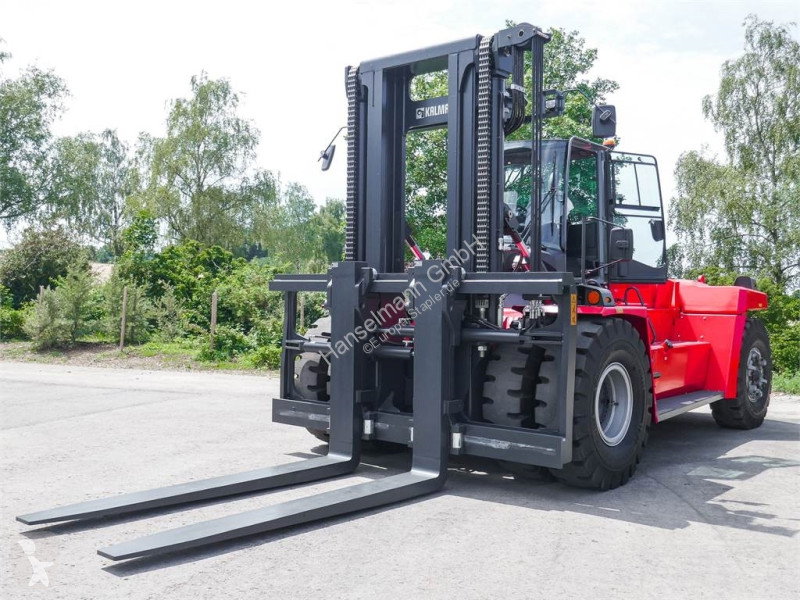

2024 - Kalmar DCG 330-12 Diesel Forklift()
- Listing No
- 768360
- Year
- 2024
- Manufacturer
- Kalmar
- Model
- DCG 330-12
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Internal Stock Number : g06288Max lift power : 33,000 kgLift height : 4,130 mmOther information : · Lastschwerpunktabstand: 1200 mm· Lastabstand, Mitte Antriebsachse zu Gabel 1125 mm· Achsabstand 4750 mm· Achslast, Last vorn 20500 kg · Achslast, Last hinten 68800 kg· Achslast, vorn ohne Last 21000 kg· Achslast, hinten ohne Last 4800 kg· Spurweite, vorn / hinten 2540/2440 mm· Reifendruck 1,0 Mpa· Mastneigung, α = vorwärts / β = rückwärts 5/10 Grad· Sitzhöhe 2300 mm· Höhe beim Neigen der EGO-Kabine / OHG 3800 mm· Breite beim Neigen der EGO-Kabine / OHG 3800 mm· Breite über Gabelarme, min. / max. 3150 / 850 mm· Seitenverschiebung ± bei Breite über Gabeln 575 / 2000 mm· Min. Arbeitsgangbreite für 90° Stapelung 10325 mm· Wenderadius 6600 mm· Wendekreis innen 950 mm· Betriebsdruck für Hydraulik 22,0 MPa· Hydrauliköltank, Volumen 330 l· Kraftstofftank, Füllmenge 450 l· AdBlue-Tank, Füllmenge 35 l· Leistung ISO 3046 / bei Drehzahl 185 / 2200 kW / rpm · Drehmoment ISO 3046 / bei Drehzahl 1160 / 1200 Nm / rpm· Anzahl Zylinder / Zylinderhubraum 6 / 7700 cm³· Kraftstoffverbrauch, normale Fahrweise 12-14 l/h· AdBlue-Verbrauch, normale Fahrweise 3-5 % of diesel· Kupplung, Typ Drehmomentwandler· Getriebe, Typ Hydrodynamisches Lastschaltgetriebe· Anzahl der Gänge, vorwärts / rückwärts 3/3· Generator, Typ / Leistung AC / 3080 W· Startbatterie, Spannung / Kapazität 2x12 / 145 V / Ah· Antriebsachse, Hersteller / Typ: AxleTech / Differential und Nabenvorgelege· Hubgeschwindigkeit Ohne Last (m/s) 0,35· Bei Nennlast (m/s) 0,33· Senkgeschwindigkeit Ohne Last (m/s) 0,38· Bei Nennlast (m/s) 0,38· Fahrgeschwindigkeit, V/R Ohne Last (km/h) 24 / 24· Bei Nennlast (km/h) 23 / 23· Steigfähigkeit, max. Ohne Last (%) 58· Mit Nennlast (%) 28· Steigfähigkeit bei 2 km/h Ohne Last (%) 39· Mit Nennlast (%) 21· Zugkraft Max. (kN) 213· Geräuschpegel, innen LpAZ*, EGO-Kabine (dB(A)) 73· Geräuschpegel, außen LWA** (dB(A)) 110
About this machine
This Kalmar DCG 330-12 is a diesel forklift — sometimes referred to as a heavy lift truck or counterbalance forklift — designed to handle extremely heavy unit loads in industrial, port, and heavy logistics environments. Kalmar is a well-established manufacturer of large material handling equipment, producing forklifts, reach stackers, and terminal tractors primarily for port, intermodal, and heavy industrial applications worldwide.
This machine is a 2024 model offered in used condition and is currently located in Germany. Its rated lift capacity is 33,000 kg, measured at a load centre distance of 1,200 mm, with a lift height of 4,130 mm. The distance from the centre of the drive axle to the fork face is 1,125 mm, and the wheelbase stands at 4,750 mm. Fork width is adjustable between a minimum of 850 mm and a maximum of 3,150 mm, and the sideshift travel is ±575 mm at a fork spread of 2,000 mm. The mast tilts 5 degrees forward and 10 degrees backward. The minimum aisle width required for 90-degree stacking is 10,325 mm, the turning radius is 6,600 mm, and the inner turning circle is 950 mm.
Axle loads are substantial: with a full load, the front axle carries 20,500 kg and the rear axle 68,800 kg; unladen, the front axle bears 21,000 kg and the rear 4,800 kg. Front and rear track widths are 2,540 mm and 2,440 mm respectively, and tyre pressure is specified at 1.0 MPa. The seated operator height is 2,300 mm, and when the EGO cab is tilted the height and width both measure 3,800 mm.
Power comes from a six-cylinder diesel engine displacing 7,700 cm³, producing 185 kW at 2,200 rpm and a peak torque of 1,160 Nm at 1,200 rpm, both figures to ISO 3046. Drive is transmitted through a torque converter clutch and a hydrodynamic power-shift transmission with three forward and three reverse gears. The drive axle is supplied by AxleTech and uses a differential with hub reduction. Under normal operating conditions, fuel consumption runs between 12 and 14 litres per hour; the fuel tank holds 450 litres. The machine is equipped with an AdBlue system with a 35-litre tank, and AdBlue consumption is approximately 3–5% of diesel consumption. The hydraulic system operates at 22.0 MPa and is served by a 330-litre oil reservoir. The AC generator delivers 3,080 W, and the starter batteries are two 12 V units each rated at 145 Ah.
Lift speed is 0.35 m/s unladen and 0.33 m/s at rated load; lowering speed is 0.38 m/s in both conditions. Travel speed is 24 km/h in both directions unladen and 23 km/h in both directions at rated load. Maximum gradeability is 58% without a load and 28% at rated load; at 2 km/h, gradeability is 39% unladen and 21% at rated load. Maximum drawbar pull is 213 kN. Operator cab noise is rated at 73 dB(A) and external noise emission at 110 dB(A). The internal stock reference for this unit is g06288.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
