About this machine

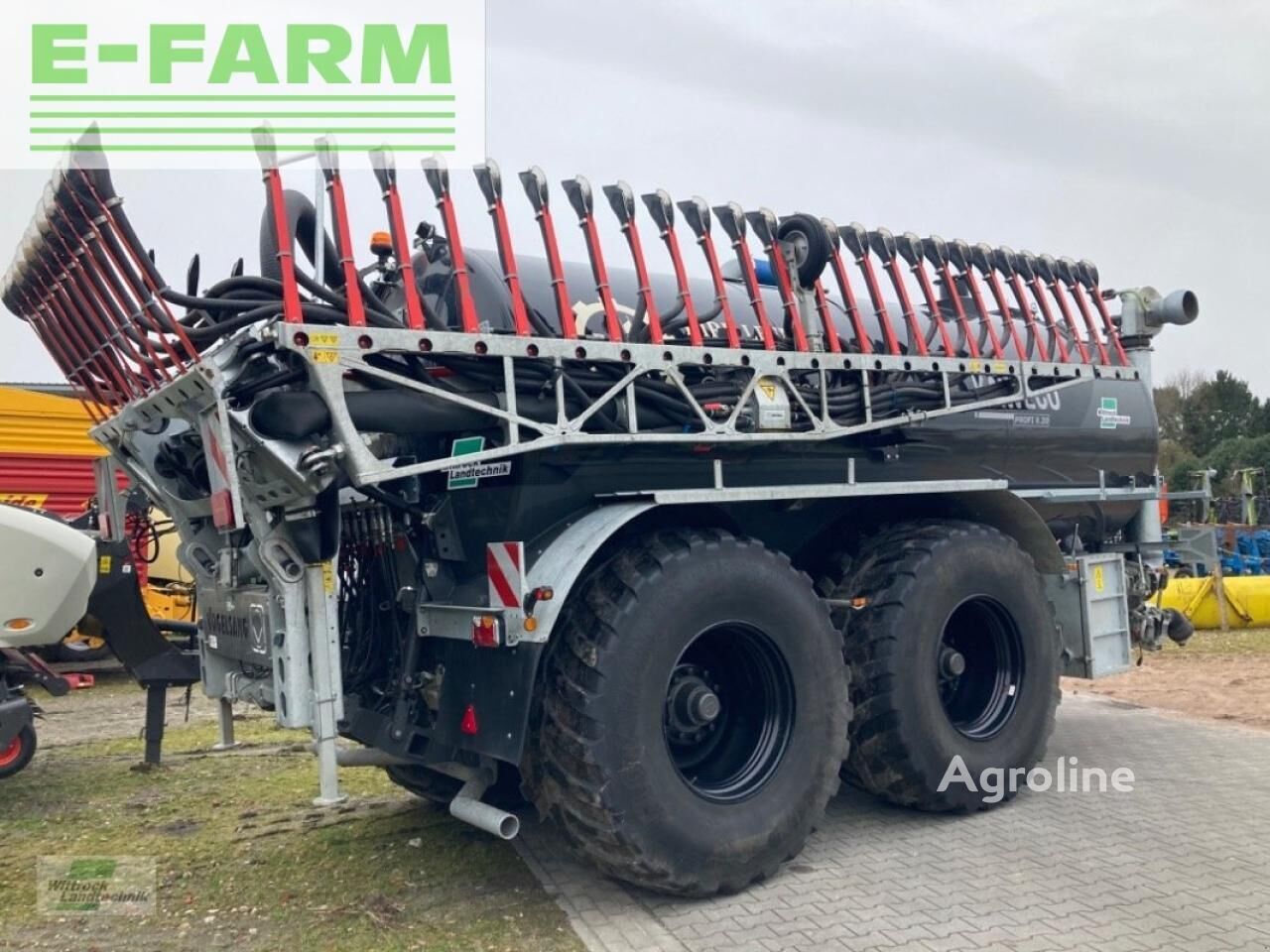

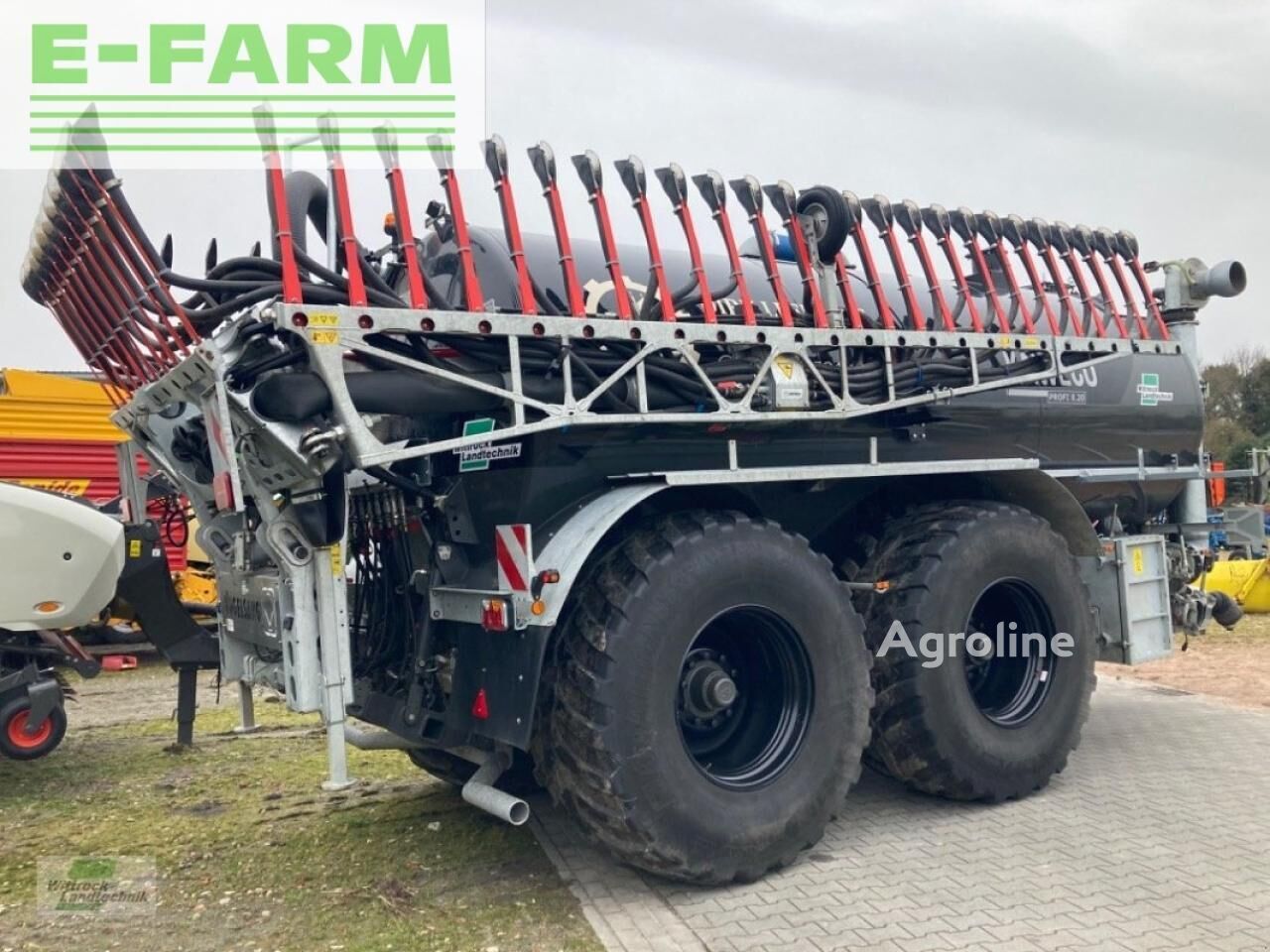

The Kaweco Profi II 20 Spreader is a tandem-axle slurry and manure spreader manufactured by Kaweco, a builder of agricultural application and spreading equipment. This machine is designed for efficient distribution of liquid and semi-solid manure across large areas, equipped with comprehensive hydraulic control systems and precision spreading technology typical of professional-grade farm machinery.

This 2023 model is configured as a 20 cubic metre capacity tank spreader with a net content specification and three baffle walls for load stabilization. The chassis features hydraulic pendulum axle suspension with tandem wheel configuration approved for 40 km/h operation, fitted with Alliance 800/60R32 A380 tyres on black rims. The tank itself is constructed in three external layers and hot-dip galvanized, with an 8-inch foreign-object catcher mounted at the barrel opening with hydraulic cutting mechanism.

The spreading system comprises a Vogelsang VX 186-260 injection pump delivering 6,000 litres per minute at 600 rpm, paired with a 15-metre working width boom carrying two ExaCut ECQ30 DN40 precision nozzles with 25-centimetre spacing. The boom features hydraulically swiveling side arms with dampened end-position hydraulic cylinders, integrated DropStop functionality via arm retraction, active pressure on all skids, continuously adjustable support wheels, and passive pendulum equalization in the centre frame for ground tracking. Partial width control on both sides employs hydraulic slide-plate valves, with additional shutoff capability for 2×3 hoses in the wheel track via ball cocks.

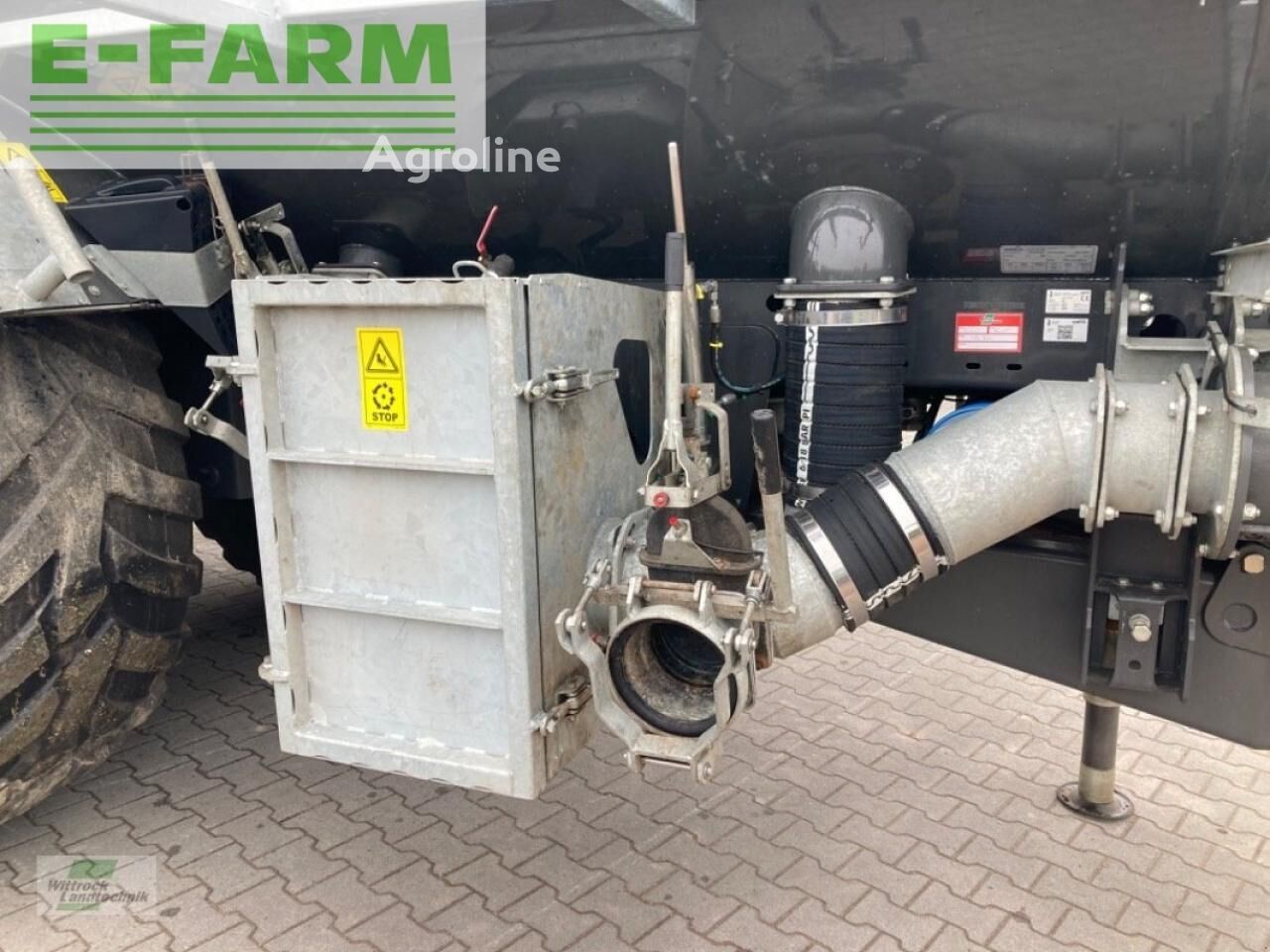

Fill level indication is provided by a 3-inch sight glass at the front, with side connections including a 6-inch starboard outlet with vent cock and a 6-inch direct barrel outlet for external discharge. A 6-inch delivery hose between tank and distributor is included with mounting bracket. The machine is equipped with a Kaweco Docking Arm PRO 8-inch starboard connection and a plastic water tank with pump. Lighting comprises two LED work lamps rated 2,800 lumens each, LED boundary lights (one port, two starboard), and illuminated warning signs. Hydraulic systems include load-sensing comfort hydraulics with switchbox, a hydraulic dynamic pump, and automatic base-unit lubrication with drive and control functions for barrel options. Control is managed via Kaweco ISOBUS integration with a Kaweco Touch 800 interface for EasyBus operation.

The 15-metre boom configuration includes four-point or fixed-mount capability with integrated catch device, stepped-adjustable support wheels, stable leaf springs with integrated vibration damping, modular width shutoff per side, flow-optimized manure outlet for consistent application pattern, and 1.5-metre approach guards on each side. Delivery infrastructure comprises DN40 manure hoses, DN125 distributor supply line with 2×DN125 connector, DN150 rear-frame supply with T-piece, ball cock, and blank flange. Machine preparation is included for scatter head and lifting device installation, with Bomech boom mounting points prepared up to 15 metres and Bomech boom structure fitted for 18-metre configurations.

The machine underwent TÜV certification for tandem 40 km/h operation and carries all standard agricultural warning signage. It is located in Germany and is offered in used condition.
