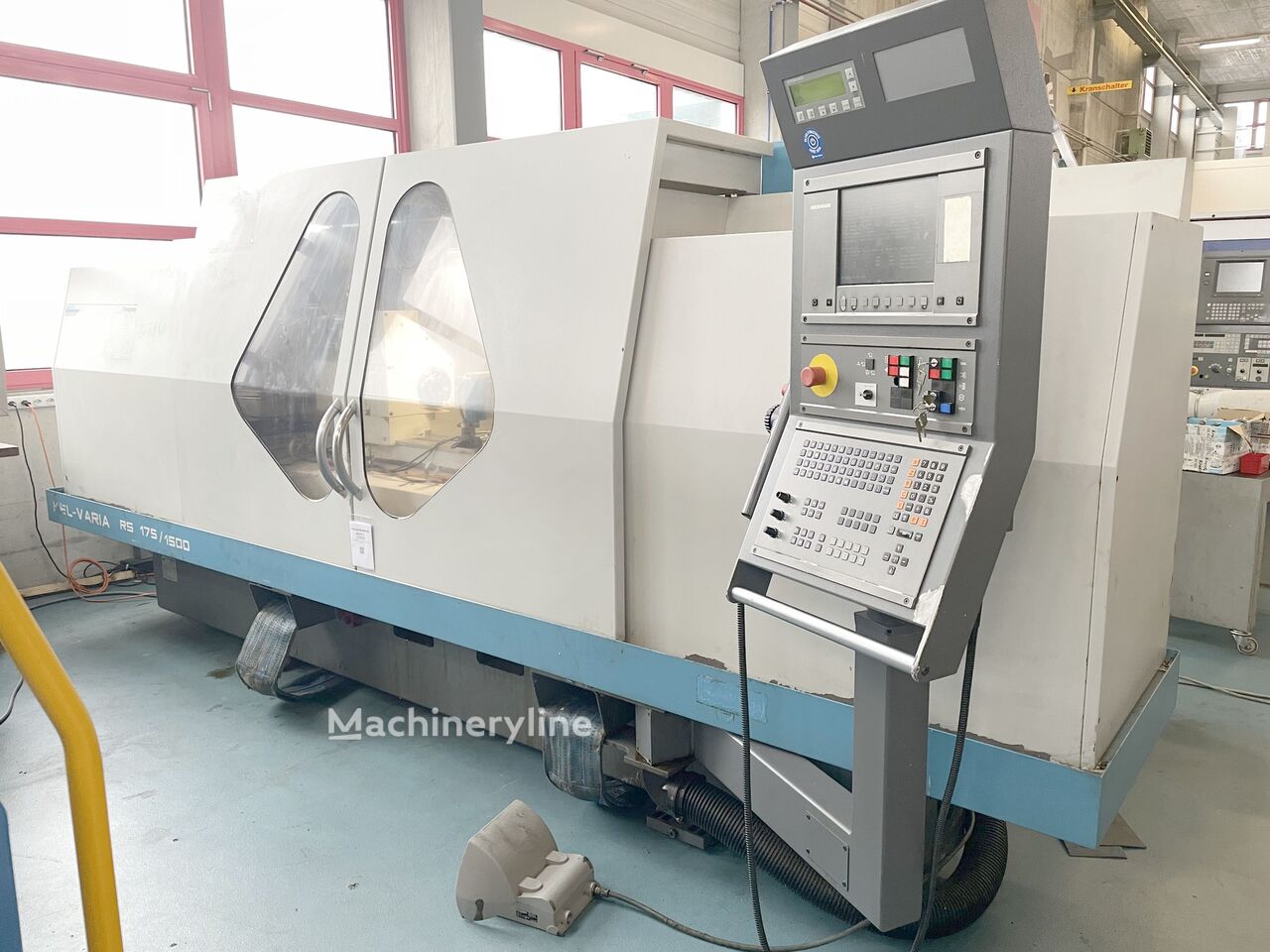

2001 - Kellenberger KEL-VARIA R175 Grinding Machine

• Listing No
• 993135
• Year
• 2001
• Manufacturer
• Kellenberger
• Model
• KEL-VARIA R175
• Condition
• Used
• Location
• Price
• $N/A
• Description
• Group: Grinding machines Control: KELCO 120 Centre height: 175 mm Distance between centres: 1500 mm Workpiece weight on centres max: 150 kg Diameter: 400 mm Bore: 127 mm B axis resolution max: 2.5 ° from: 8 t/min up to: 800 t/min Rotatable grinding spindle head (b-axis): +30° / -210 ° Peripheral speed: 45 m/s Max. travel: 320 mm Feed range: 7500 mm/min Swivelling range: 10 / +100 ° Internal mounting cone: 5 CM External short tapered mount: DIN 55026 Gr. 5 Permitted load capacity: 160 Nm Taper in tailstock: 4 CM Tailstock travel of barrel: 50 mm Rapid motion: 15 m/min Max. table angular displacement: 7 ° Air connect: 6 bar Voltage 50 Hz 3x: 400 Volt Machine's weight about: 6000 kg Measuring device: MOVOMATIC Feeler Renishaw: LP2H
