Klinsman RPP 125 320 Folding Machine()
- Listing No
- 1019201
- Year
- Manufacturer
- Klinsman
- Model
- RPP 125 320
- Condition
- Used
- Location
- Spain
- Price
- POA
- Description
-
Technical characteristics of the Klinsman RPP 125/320 hydraulic press brake Reference: 130/a019 Pressing force: 125 Tn Working length: 3200 mm Distance between frames: 2700 mm Ram Travel 130 mm Ram travel adjustment 85 mm Max Distance Table-Ram 380 mm Throat depth: 320 mm Table width 200 mm Engine power: 7,5 Kw Approx machine weight: 8300 Kgs Machine dimensions: 3500x1600x2600 mm Equipped with: Multiple mouth dies Punch digitalized backgauge Digitized ram
About this machine

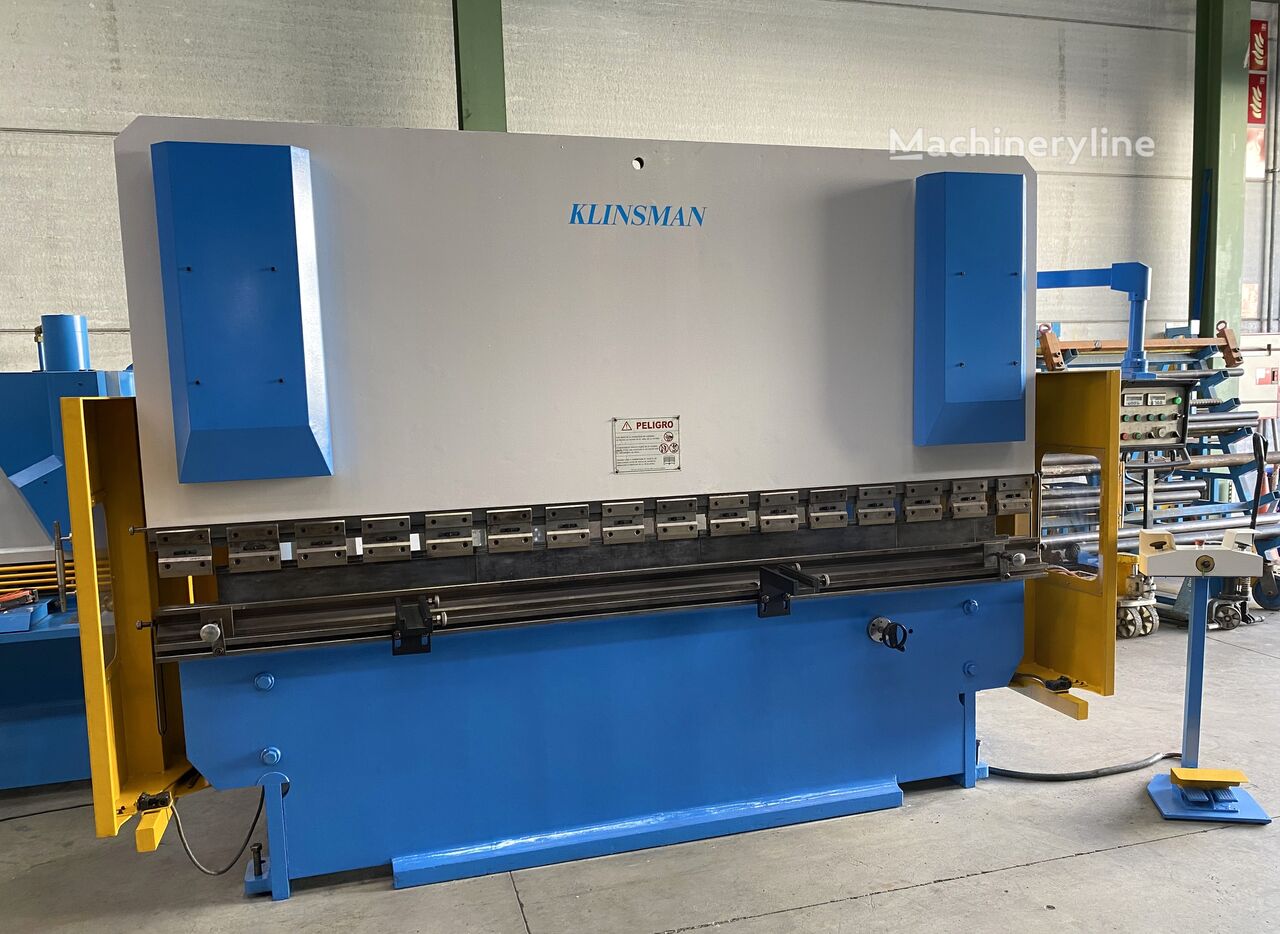

The Klinsman RPP 125 320 is a used hydraulic press brake — also commonly referred to as a press folder or bending machine — a category of metal-forming machinery designed to bend and fold sheet metal and plate by applying controlled hydraulic force along a straight working axis. Machines of this type are central to fabrication workshops, structural steelwork operations, and precision metalworking environments where repeatable, accurate bends across varying material thicknesses are required.
This machine is rated at a pressing force of 125 tonnes and offers a working length of 3,200 mm, making it well suited to medium-to-large panel and plate work. The distance between frames is 2,700 mm, defining the clear span available for material handling within the machine. Ram travel is 130 mm, with an adjustment range of 85 mm, and the maximum table-to-ram distance is 380 mm, accommodating a range of tooling heights and material setups. The throat depth is 320 mm and the table width is 200 mm. The machine is powered by a 7.5 kW motor.

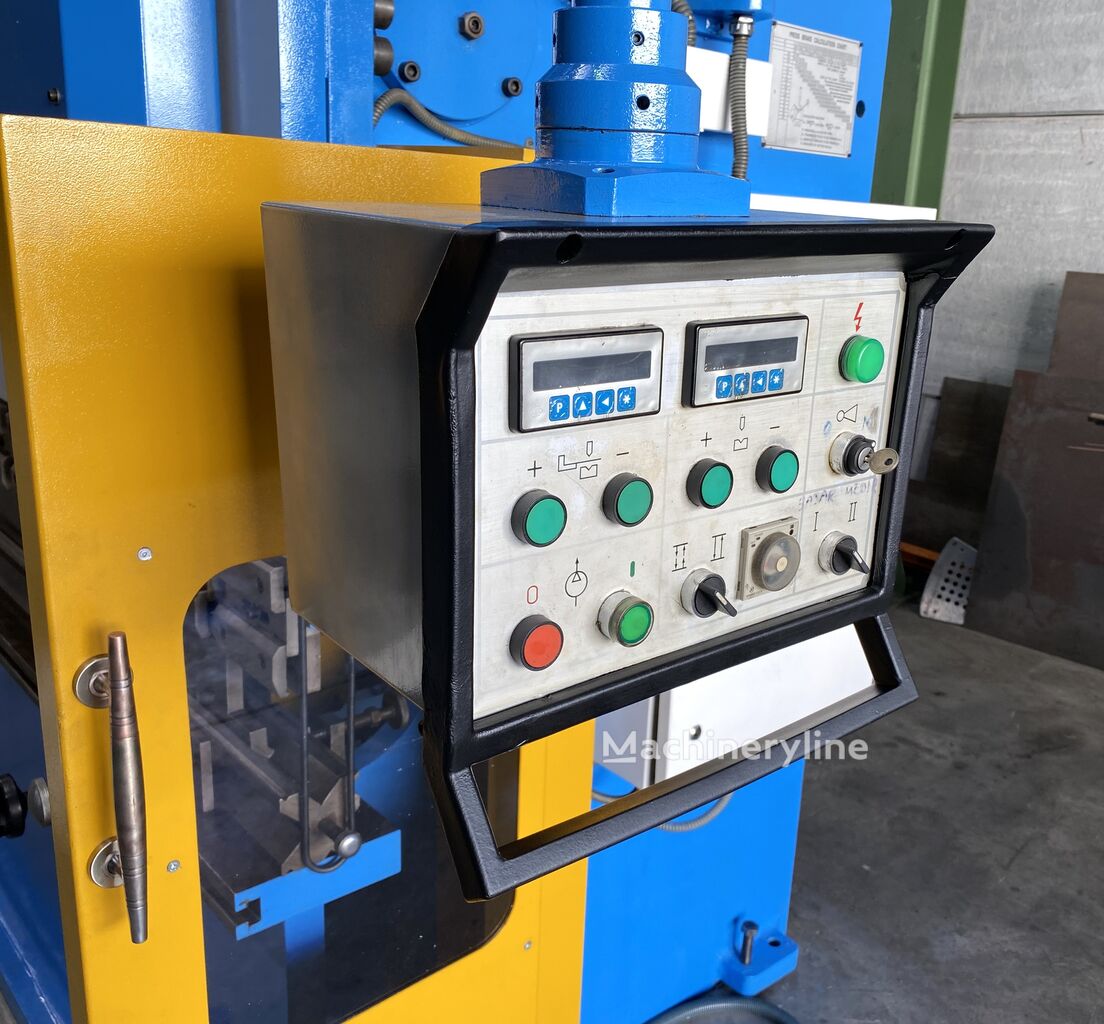

The unit is equipped with a digitised ram control and a digitised backgauge, both of which contribute to repeatable positioning accuracy and reduce setup time between bending operations. Tooling supplied with the machine includes a punch and multiple mouth dies, meaning the machine arrives with a working set of tooling ready for varied bending profiles.
The machine weighs approximately 8,300 kg and has overall dimensions of 3,500 x 1,600 x 2,600 mm. It is currently located in Spain and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
