2000 - Kraemer Elektronik UTS 4.1 Laboratory Equipment()
- Listing No
- 1219472
- Year
- 2000
- Manufacturer
- Model
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Sold for parts, ADU card missing. Automatic tablet testing system - Laboratory measuring equipment - Tablet tool Enables testing of: Hardness Diameter Thickness Weight Precision balance Sartorius WZ64S Scale : 10 à 50 g Unit : mg / 0,5 mg / 0,1 mg adjustable Thickness Drive: stepper motor. Measuring principle: linear potentiometer. Unit of measurement: mm or inch. Tolerance: +/- 0.1 mm Hardness Drive: stepper motor. Measurement: load cell (lmz) Measurement principle: dynamometric gauge Unit: N, Kp or Sc Diameter Drive: stepper motor. Measuring principle: stepper motor. Unit of measurement: mm or inch. Scale: 3 - 18 mm / 3 - 30 mm (manual) Tolerance: +/- 0.1 mm Tension : 100 / 240 V, 50Hz / 60 Hz The UTS is a universal, fully automated testing system developed for use in industry. This tool is the approved model of a series of test systems that have been tested over many years. It was developed in close collaboration with the pharmaceutical industry. The UTS 4.1 can be used to test round, oval, square and oblong tablets, as well as many special shapes. For delicate oblong tablets, the proven oblong centring system (OZB) can be integrated. All parts requiring cleaning can be removed quickly and easily without any tools. The test system can be supplemented with various options, such as a distributor and/or sample collector with a different number of stations. Use the UTS as a laboratory tester or an online control device connected to a tablet press. Sampling can be triggered either in the production machine or using the TTS11 software.
About this machine

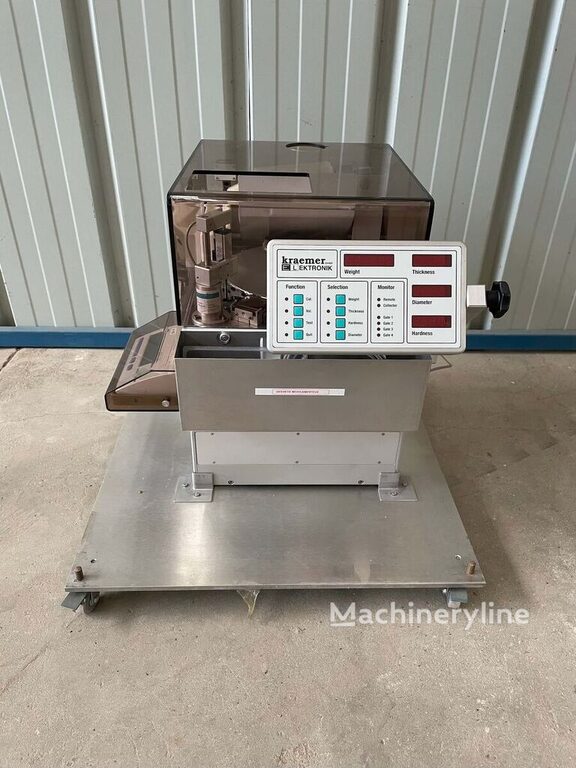

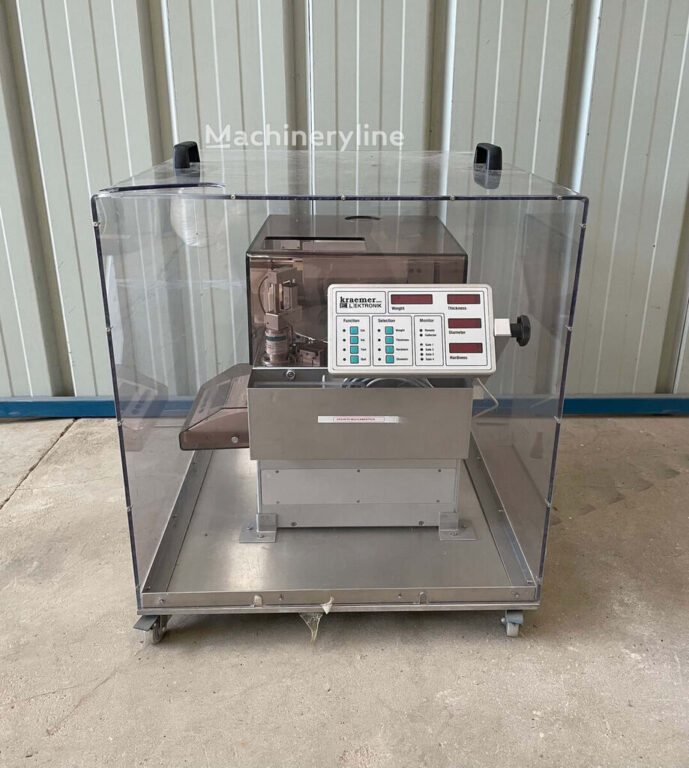

The Kraemer Elektronik UTS 4.1 is a laboratory automatic tablet testing system — sometimes referred to as a tablet tester — designed for use in pharmaceutical production and quality control environments. Kraemer Elektronik is a well-established manufacturer of tablet testing equipment, with its UTS series being a long-standing reference in the pharmaceutical industry, developed in close collaboration with industrial partners over many years.

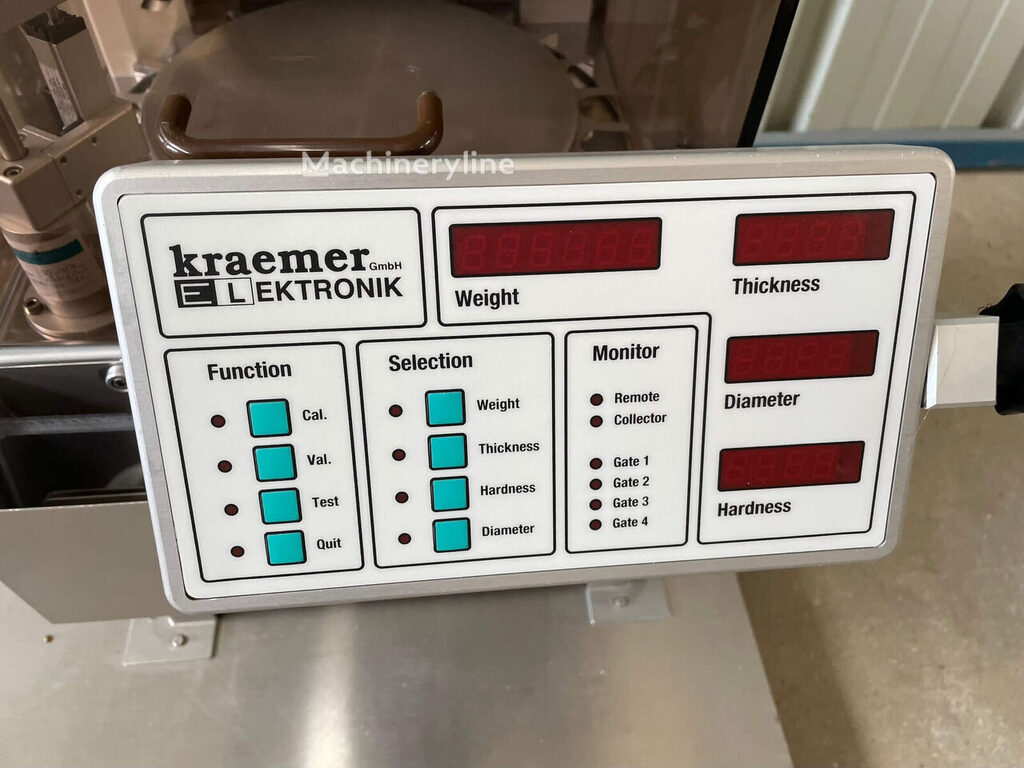

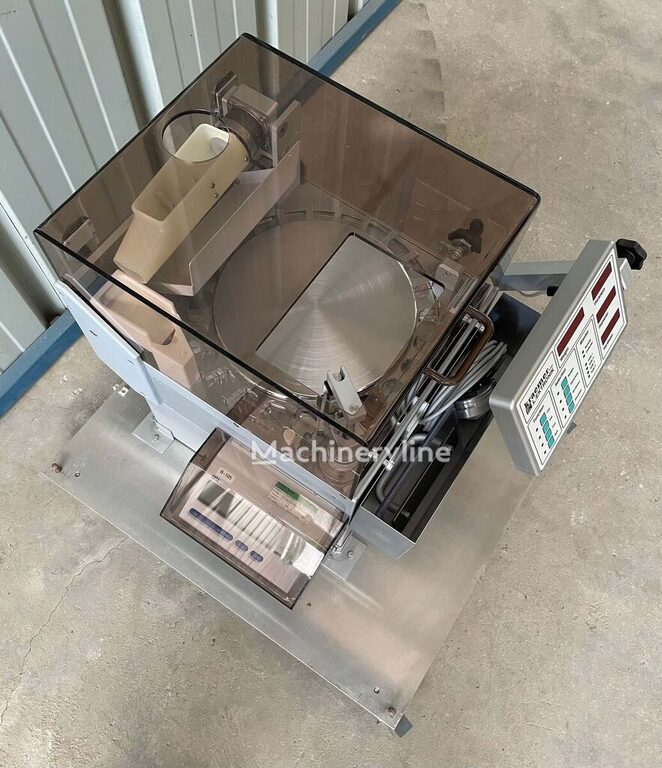

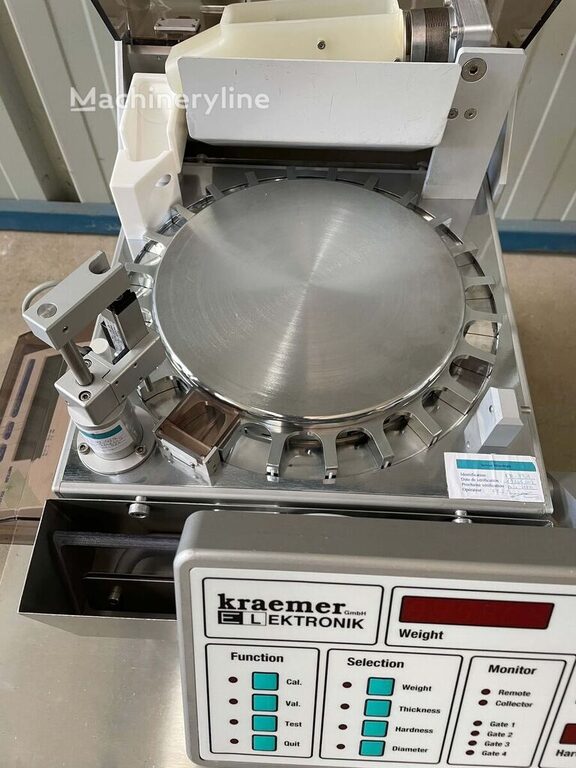

This unit is a fully automated system capable of measuring four key tablet parameters in sequence: hardness, diameter, thickness, and weight. It is designed to handle a wide range of tablet geometries, including round, oval, square, oblong, and many special shapes. For particularly delicate oblong tablets, the system supports an optional oblong centring system (OZB). All parts requiring cleaning can be removed quickly and without tools, an important consideration in pharmaceutical environments.
Weight measurement is handled by an integrated Sartorius WZ64S precision balance, with a usable scale range of 10 to 50 g. The balance offers selectable resolution units of mg, 0.5 mg, or 0.1 mg, making it suitable for precise pharmaceutical dosage control.
Thickness measurement uses a stepper motor drive and a linear potentiometer as its measuring principle. Results can be displayed in millimetres or inches, with a stated tolerance of ±0.1 mm.
Hardness measurement is also stepper motor driven, using a load cell and a dynamometric gauge measuring principle. Results can be expressed in Newtons (N), kiloponds (Kp), or Strong-Cobb units (Sc).
Diameter measurement similarly relies on stepper motor drive, with a standard scale range of 3 to 18 mm and a manual range extending to 3 to 30 mm. The unit of measurement is selectable between millimetres and inches, with a tolerance of ±0.1 mm.
The system operates on a wide-range power supply of 100 to 240 V at 50 or 60 Hz, making it compatible with electrical standards across most markets. It can function as a standalone laboratory tester or be connected online to a tablet press for in-process control, with sampling triggered either by the production machine or via TTS11 software. The system can also be expanded with optional distributors and sample collectors configured to different station counts.
This machine is located in France, dates from 2000, and is offered used, sold for parts, with the ADU card noted as missing.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
