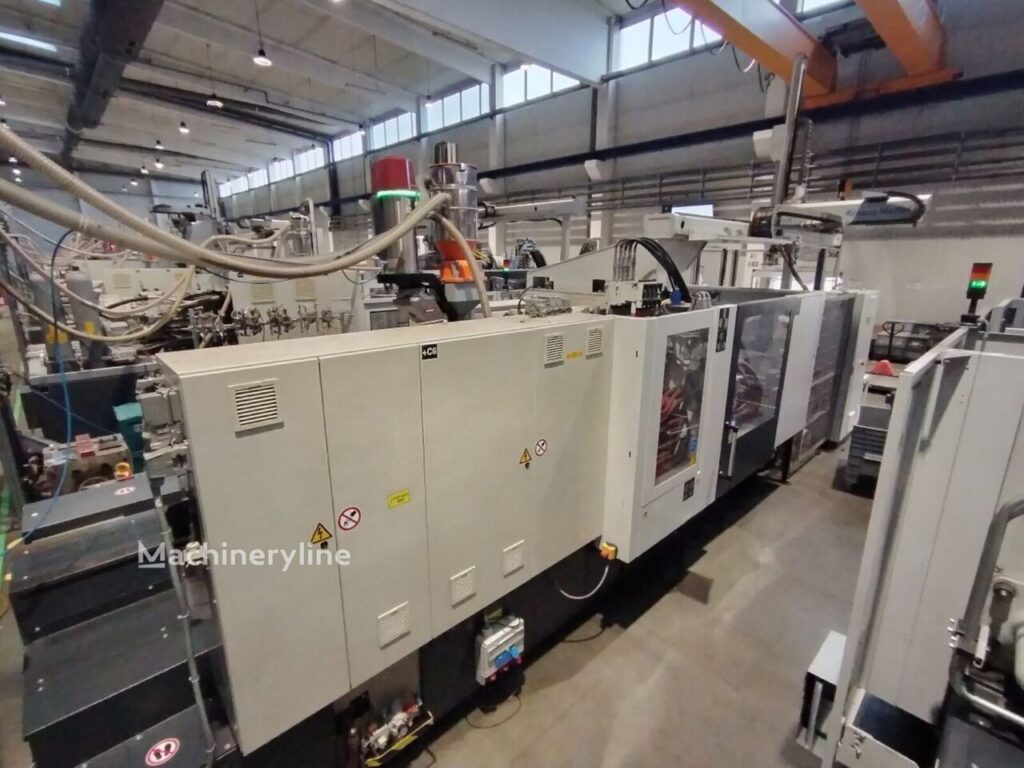

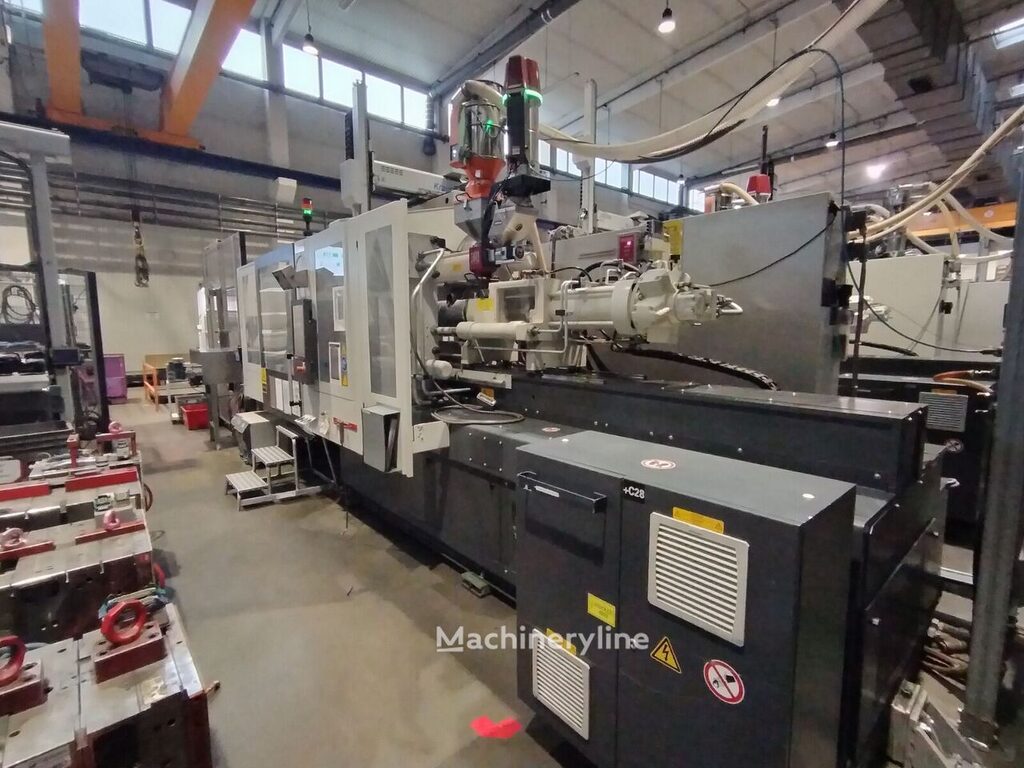

2017 - Krauss Maffei 250 – 1000 CX Injection Moulding
()- Listing No
- 1152361
- Year
- 2017
- Manufacturer
- Krauss Maffei
- Model
- 250 - 1000 CX
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This Krauss Maffei 250 - 1000 CX hydraulic injection moulding machine was manufactured in 2017. It features a clamping force of 2500 kN and a maximum mold weight of 3430 kg. The machine includes a linear robot LRX 150 for enhanced automation. Consider the opportunity to buy this Krauss Maffei 250 - 1000 CX hydraulic injection moulding machine. Contact us for further details. Location: HU Tie bar spacing (H x V): 630 x 630 mm Platen dimensions: 995 x 1050 mm Mold installation height (min): 330 mm Platen distance: 1150 mm Max mold weight: 3430 kg total (fixed: 1715 kg / moving: 2286 kg) Core pull control: 4 units (2 x fixed platen/FAP; 2 x moving platen/BAP) Shut-off nozzle: 4-fold hydraulic cascade Screw diameter: 55 mm Injection pressure: 1904 bar Stroke volume: 523 ccm Shot weight (PS): 476 g Injection flow (PS): 404 g/s Armored unit: Yes (ZE 33.00) Printer interface: Yes Condition: Well-maintained and serviced Automation: Linear robot LRX 150 with B/C axis combination (KM Linear Robot LRX 150 included) Hot runner control: 12-fold Cooling: 4 x HB 100 Injection unit 1 (code 1000) Additional equipment
About this machine
This Krauss Maffei CX is a used injection moulding machine — sometimes referred to as an injection moulding press — built in 2017 and currently located in Germany. Injection moulding machines are used to manufacture plastic components by injecting molten material into a closed mould under high pressure, and are central to production across the automotive, packaging, consumer goods, and medical industries. Krauss Maffei is a well-established German manufacturer with a long history of producing injection moulding systems, extrusion equipment, and reaction process machinery, and is widely regarded as a leading supplier to plastics processors worldwide.
This is a hydraulic machine, and its clamping system delivers 2,500 kN of clamping force. The tie bar spacing measures 630 × 630 mm, with platen dimensions of 995 × 1,050 mm. The minimum mould installation height is 330 mm, and the maximum platen distance is 1,150 mm. Total mould weight capacity reaches 3,430 kg, broken down as 1,715 kg on the fixed platen and 2,286 kg on the moving platen — figures that indicate suitability for large, heavy tooling.
The injection unit carries the designation code 1000 and is equipped with a 55 mm screw diameter. Injection pressure reaches 1,904 bar, stroke volume is 523 ccm, and the shot weight in polystyrene is 476 g. Injection flow rate stands at 404 g/s. The machine is fitted with a four-fold hydraulic cascade shut-off nozzle, and the injection unit includes an armoured configuration (ZE 33.00), which provides additional resistance to wear from abrasive or filled materials.
Core pull control is provided by four units — two on the fixed platen (FAP) and two on the moving platen (BAP) — giving flexible control over complex mould geometries. Hot runner control is 12-fold, accommodating multi-cavity and sequentially gated tooling. Cooling is handled by four HB 100 units. A printer interface is also installed.
Automation is provided by a Krauss Maffei LRX 150 linear robot with a B/C axis combination, enabling automated part removal and handling directly integrated with the machine cycle. The machine is described as well-maintained and serviced, and was manufactured in 2017.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
