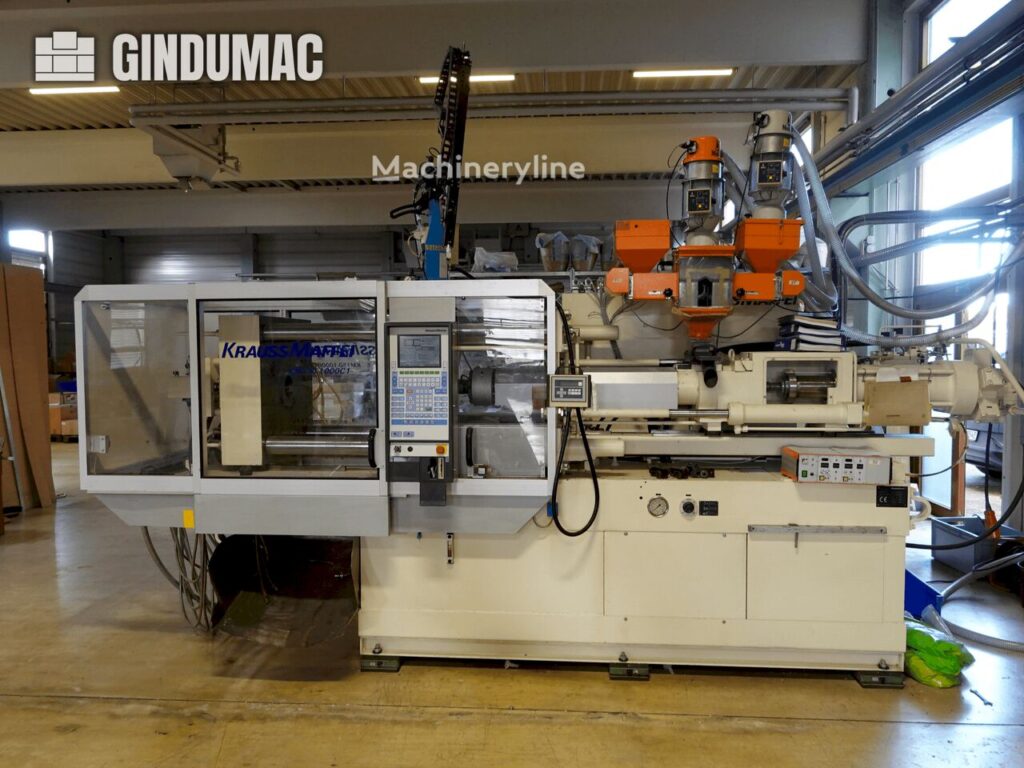

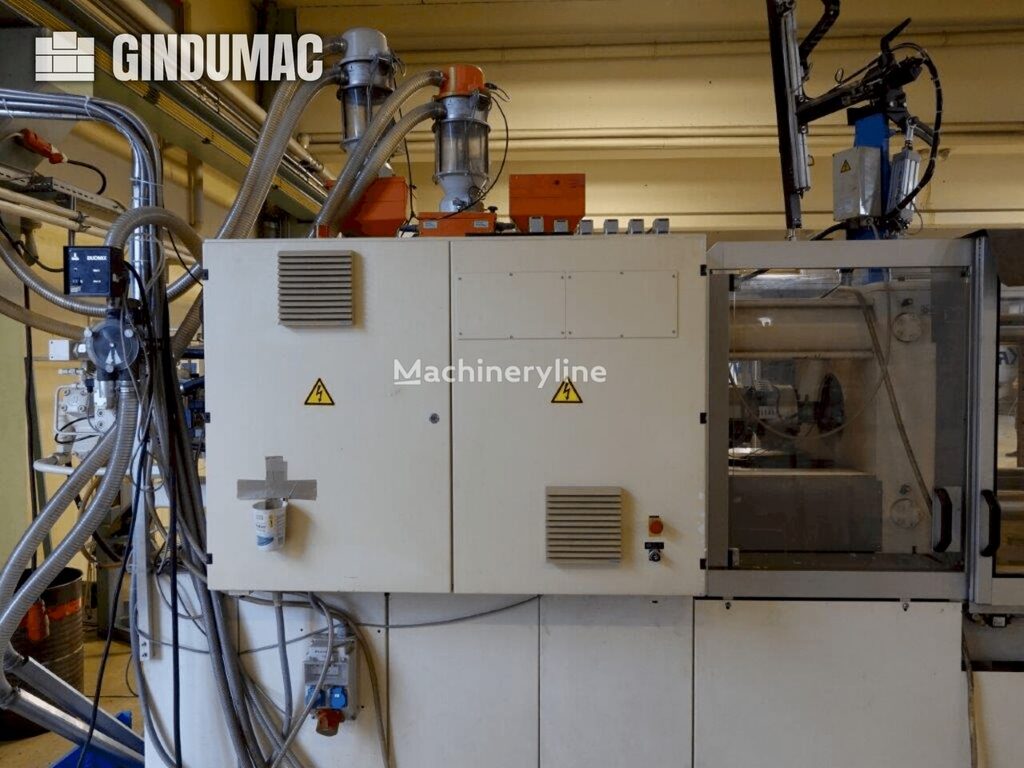

1997 - Krauss Maffei KM 150-1000 C1 Injection Moulding
()- Listing No
- 1151656
- Year
- 1997
- Manufacturer
- Krauss Maffei
- Model
- KM 150-1000 C1
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
This hydraulic injection moulding machine was manufactured in 1997. It features a clamping force of 1500 kN and a screw diameter of 55 mm, suitable for precise injection moulding processes. The machine dimensions are 4.97 x 1.48 x 2.16 m, and it weighs 8 tonnes. If you are looking to get high quality moulding capabilities consider the Krauss Maffei KM 150-1000 C1 machine we have for sale. Contact us for more information about this machine. Location: DE Max. Shot Weight: 476 g Screw Diameter: 55 mm Mould opening force: 86 kn Mould installation height: 300 mm Opening width: 900 mm L/d ratio: 20 mm Nozzle contact force: 110 kn Net weight with control cabinet: 8 tonnes Machine Benefits Technical Machine Benefits Extra Information Machine still under power
About this machine
This Krauss Maffei KM C1 is a used injection moulding machine — sometimes referred to as an injection moulding press — dating from 1997 and currently located in Germany. Injection moulding machines are used to produce plastic components by injecting molten material into a closed mould under pressure, making them central equipment in plastics processing across industries including automotive, consumer goods, packaging, and medical manufacturing. Krauss Maffei is a well-established German manufacturer with a long-standing reputation in plastics and rubber processing machinery, producing equipment recognised for precision and engineering quality.
This machine operates hydraulically and delivers a clamping force of 1,500 kN, providing the closure pressure needed to keep the mould securely shut during injection. The screw diameter is 55 mm with an L/D ratio of 20, which relates to the length-to-diameter proportion of the plasticising screw and influences the melt homogeneity and shot consistency. The maximum shot weight is 476 g, indicating the volume of material that can be injected in a single cycle.
Further process-relevant specifications include a nozzle contact force of 110 kN, which ensures a firm seal between the injection unit and the mould sprue bushing, and a mould opening force of 86 kN. The mould installation height is 300 mm, defining the minimum mould thickness the machine can accommodate, and the opening width is 900 mm, describing the available daylight between the platens when the mould is open.
The machine has overall dimensions of 4.97 x 1.48 x 2.16 metres and a net weight, including the control cabinet, of 8 tonnes. It is noted to still be under power at its current location in Germany.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
