2005 - Krauss Maffei M350 1900 C2 Injection Moulding
()- Listing No
- 1152814
- Year
- 2005
- Manufacturer
- Krauss Maffei
- Model
- M350 1900 C2
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Spritzgießmaschine Spritzgussmaschine Hersteller: Krauss Maffei Typ: KM350 /1900 C2 Baujahr: 2005 Schließkraft: 3.500 kN Werkzeugöffnungskraft: 220 kN Fahrkraft bewegliche Platte öffnen: 105 kN schließen: 95 kN Aufspannplatte (h x v): 1.060 x 1.095 mm Lichte Weite (h x v): 710 x 710 mm Werkzeugöffnungsweg: 920 mm Werkzeugeinbauhöhe min.: 380 mm Öffnungsweite: 1.300 mm Auswerferhub: 250 mm Auswerferkraft vor/zurück: 95 / 48 kN Pumpenmotor: 75 kW Installierte Heizleistung: 30 kW Regelzonen Zylinderheizung: 6 Trockenlaufzahl: 1.550 1/h Ölfüllung: 720 ltr Maße und Gewichte Nettogewicht mit Schaltschrank: ca.16,0 to L/B/H: 6.510 x 2.040 x 2.380 mm Werkzeuggewicht max.: 4.780 kg Spritzaggregat Arbeitsvermögen: 1900 Schneckendurchmesser: 70 mm Spritzdruck: 1.778 bar Hubvolumen: 1.047 cm3 Schussgewicht für PS: 953 g Einspritzstrom: 527 cm3/s Schneckendrehzahl Standard / Option: 1/min. 285/349 Schneckendrehzahl Standard oder Stufe 1: 95 PS Schneckendrehzahl Option oder Stufe 2: 117 PS Düsenanlagekraft: 82 kN Vollhydraulisches 2-Paletten Schließsystem PV-Regelung für Spritzaggregat MC4 32-bit Mikroprozessorsteuerung Integriertes Bedienpult mit TFT-Farbbildschirm und Diskettenlaufwerk (3,5 Zoll) zur Datensicherung Plastifizierung 1 kpl. Thermoplast-Plastifizierung in verschleißfester Ausführung Schneckendurchmesser 70 mm mit Rückstromsperre und offener Düse Düsenradius: 15,00 mm Düsenbohrung: 6,00 mm
About this machine

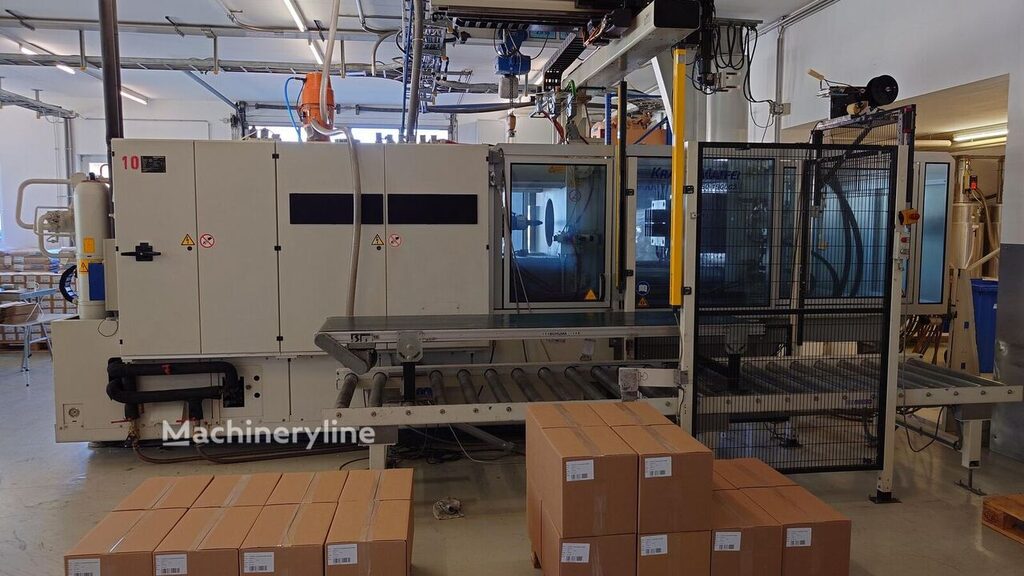

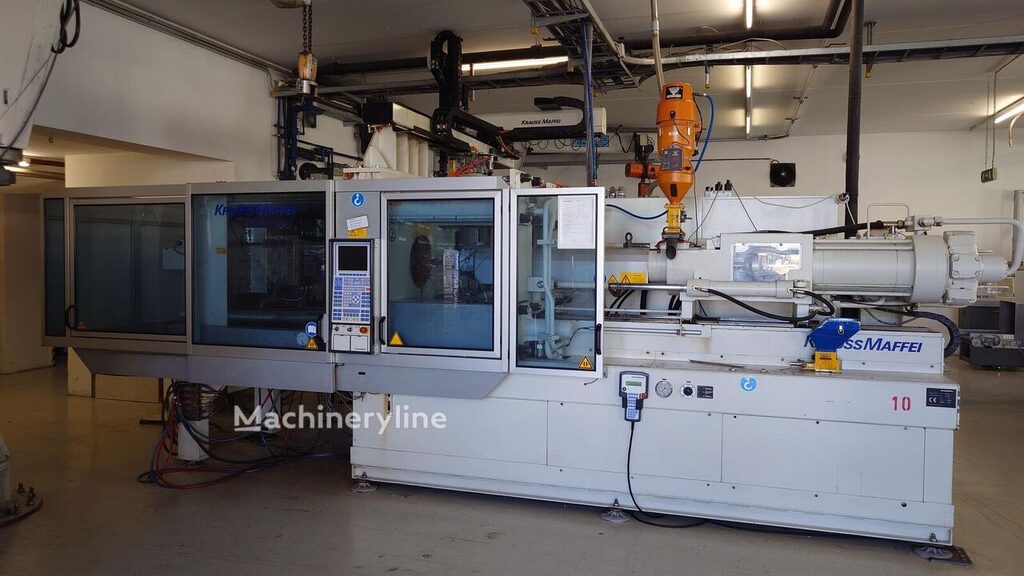

This Krauss Maffei KM350/1900 C2 is an injection moulding machine — sometimes referred to as an injection moulding press — used to produce plastic components by injecting molten thermoplastic material under high pressure into a closed mould. Krauss Maffei is a well-established German manufacturer with a long history of producing injection moulding machinery, extrusion systems, and reaction process equipment for the plastics and rubber industries worldwide.
The machine was built in 2005 and is offered in used condition from a location in Germany. It is a fully hydraulic two-platen clamping system, delivering a clamping force of 3,500 kN and a mould opening force of 220 kN. The moving platen travel forces are 105 kN when opening and 95 kN when closing. The platen dimensions measure 1,060 × 1,095 mm (horizontal × vertical), with a clear daylight between tie bars of 710 × 710 mm. The mould opening stroke is 920 mm, giving a maximum opening width of 1,300 mm, and the minimum mould installation height is 380 mm. The maximum permissible mould weight is 4,780 kg. The ejector stroke is 250 mm, with ejector forces of 95 kN forward and 48 kN returning.
The injection unit carries a working capacity designation of 1900. It is fitted with a 70 mm diameter screw equipped with a non-return valve and open nozzle, the nozzle having a radius of 15.00 mm and a bore of 6.00 mm. Shot volume is 1,047 cm³, with a calculated shot weight for polystyrene of 953 g. Injection pressure reaches 1,778 bar, and the injection flow rate is 527 cm³/s. Standard screw speed is 285 rpm, with an optional extended speed of 349 rpm. The plasticising drive delivers 95 PS at standard speed and 117 PS at the optional higher stage. Nozzle contact force is 82 kN. The plasticising unit is described as a complete wear-resistant thermoplastic assembly. Pressure-volume (PV) control is fitted to the injection unit.
The pump motor is rated at 75 kW, and the installed heating capacity is 30 kW across six barrel heating zones. The machine runs at a dry cycle rate of 1,550 cycles per hour and holds 720 litres of hydraulic oil. Control is provided by an MC4 32-bit microprocessor system with an integrated operator panel featuring a TFT colour screen and a 3.5-inch floppy disk drive for data storage.
Overall dimensions are 6,510 × 2,040 × 2,380 mm (length × width × height), and the net weight including the control cabinet is approximately 16.0 tonnes.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
