2023 - Kröger MUP 20 SP Dump Trailer
- Listing No
- 1073918
- Year
- 2023
- Manufacturer
- Kröger
- Model
- MUP 20 SP
- Condition
- Used
- Location
- Germany
- Price
- $57,120
- Description
- Geschwindigkeit: 65 km/h ________ MUP 20 SP;; Bodenblech "HARDOX450" ;1 bzw."RAEX450" bzw. "Durostat450" 6mm Verschleiß- und Oberflächendruckbeständiger Stahl ;Seitenbordwände "HARDOX450" ;1 bzw. "RAEX450" bzw. Durostat450" 6mm inklusive Stirn- und Heckbordwand, Verschleiß- und Oberflächendruck- beständiger Stahl ;1 Abschleppvorrichtung am Heck ;verstärkte Zugeinrichtung ;1 höhenverstellbar und gummigelagert, ausgelegt für 4to Stützlast (bei 4to Stützlast vorgeschrieben) bis 40 km/h. (über 40 km/h max. 2 to Stützlast zulässig)Ausführung als Zentralrohr, Ankuppelhöhe = ca. 600mm ;hydraulischer Stützfuß ;1 anstatt mechanische Stützwinde (dw Steuergerät erforderlich) SCHARMÜLLER Rundschaftzugkopf Typ K80 ;1 bis 4to Stützlast ;1 Seitenmarkierungsleuchten (LED) ;1 Positions- und Kennzeichenleuchten LED ;1 3-Kammer-Rückleuchten eckig, LED-Ausführung ;Schnellabsenkung für Kipphydraulik ;1 durch 2-Schlauch-System (Zwei Steuergeräte vom Zugfahrzeug erforderlich!) Bereifung "neu" 650/ ;1 BKT FLOTATION RADIAL, Profil FL 630, (65 km/h) 169D, Tragfähigkeit bei 1,5bar 10km/h = 5185kg) 1 Gutachten für 40 km/h Zulassung ;1 Transportkostenanteil
About this machine
The Kröger MUP 20 SP is a hydraulic dump trailer manufactured by Kröger, a German builder of specialist transport and agricultural machinery. Dump trailers of this type are used across construction, quarrying, farming, and bulk material haulage to transport and discharge loose cargo such as aggregates, soil, grain, and industrial materials.
This 2023 unit is equipped with a reinforced steel cargo body constructed from wear- and pressure-resistant material. The floor plate is fabricated from HARDOX 450, RAEX 450, or Durostat 450 steel, 6 mm thick. The side and end boarding—including front and rear walls—are similarly constructed from the same 6 mm hardened steel grades, providing durability under abrasive loading and high surface pressure.

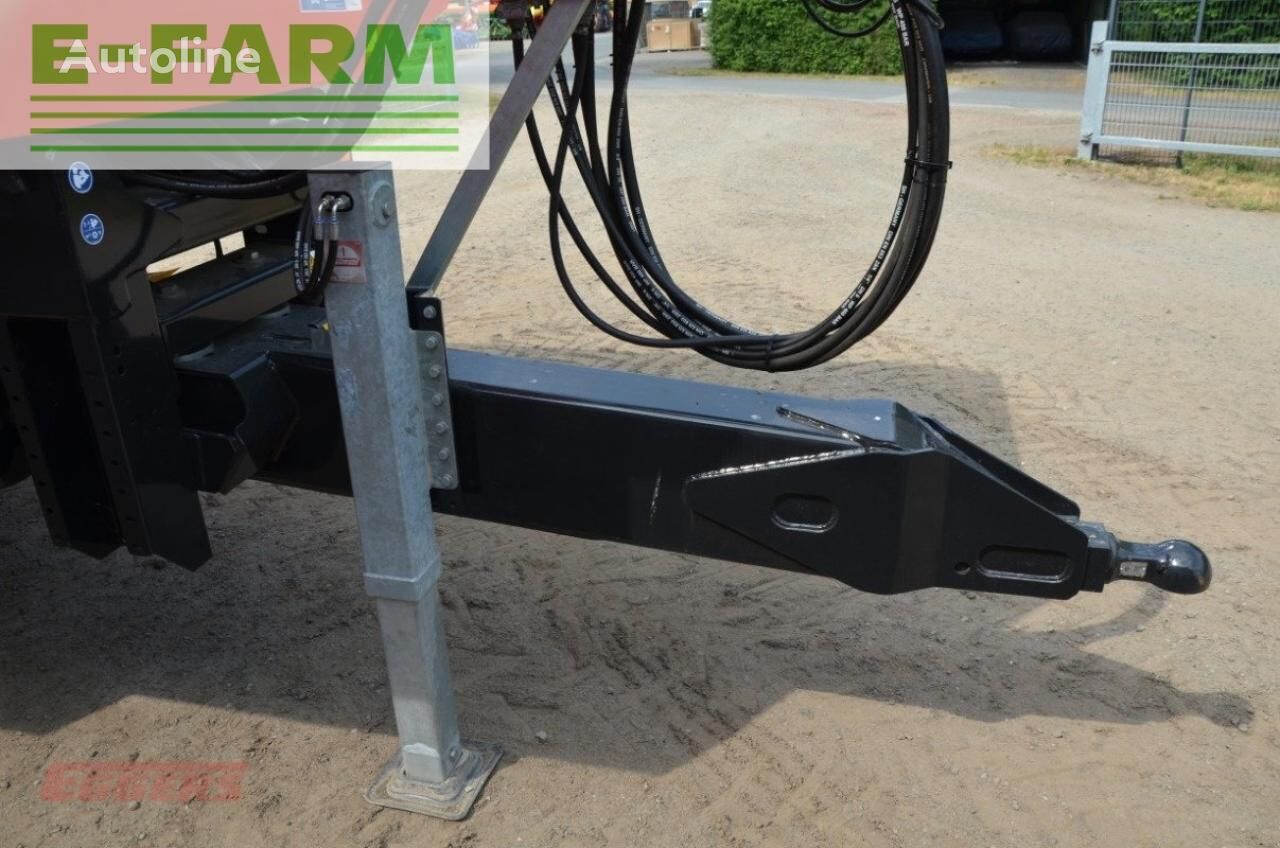

The trailer features a central-tube drawbar design with a towing coupling height of approximately 600 mm and a height-adjustable, rubber-mounted coupling assembly rated for a 4-tonne nose load at speeds up to 40 km/h; above 40 km/h, a maximum nose load of 2 tonnes is permissible. The coupling is fitted with a SCHARMÜLLER Type K80 round-shaft towing head rated to 4 tonnes. A hydraulic support leg is installed in place of a mechanical support winch; operation of the hydraulic support requires a control unit from the towing vehicle.
The tipping mechanism employs a fast-lowering hydraulic system operated via a two-hose configuration, which requires two control units from the towing vehicle. Lighting comprises LED side marker lights, LED position and registration lights, and LED three-chamber rear lights of rectangular design. The trailer is fitted with new BKT Flotation Radial tyres, profile FL 630, rated for 65 km/h operation and capable of carrying 5,185 kg per tyre at 1.5 bar and 10 km/h. Maximum road speed is 65 km/h. The unit is certified for 40 km/h operation and includes the relevant technical assessment documentation. This machine is located in Germany and priced at $57,120.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
